Interactive 3D

1 / 3

FEFCO 0435.1

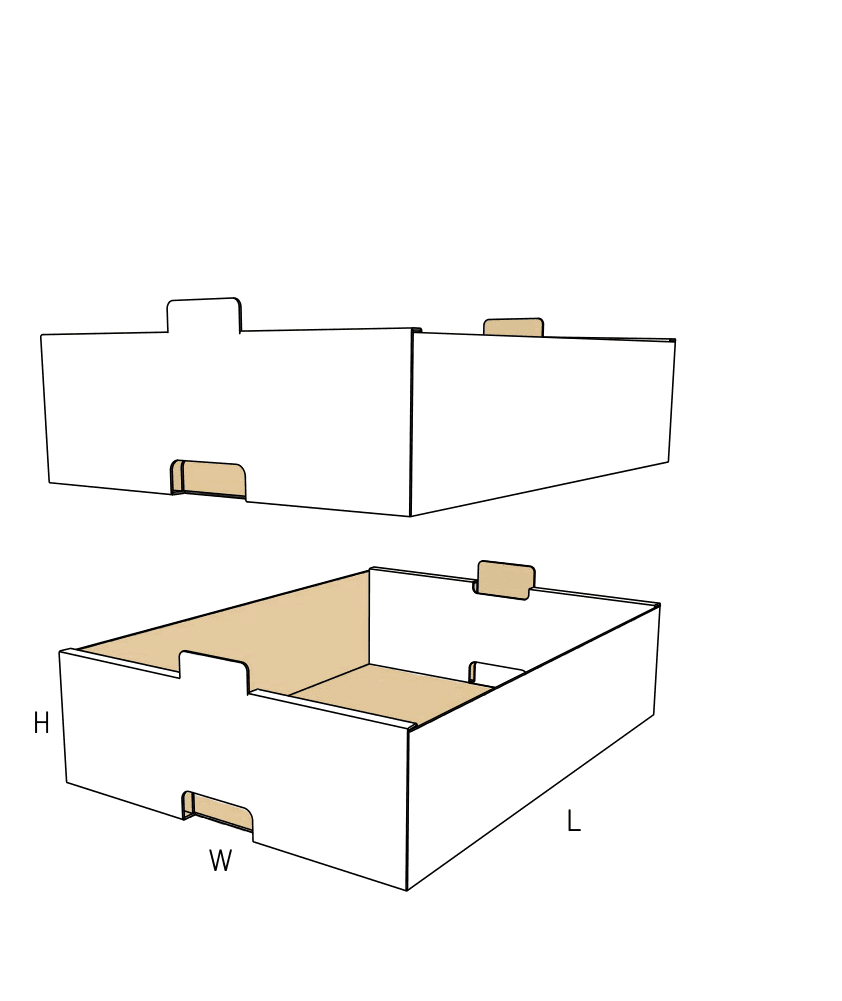

Heavy-Duty Produce and Display Tray with Roll-Over Sides

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

180-degree roll-over side walls provide double-thick lateral crush resistance
Assembles manually at the packing bench without tape, glue, or staples
Open-top presentation allows immediate retail shelf stocking

About this product

This one-piece corrugated tray is built for heavy bulk goods, fresh produce, and demanding retail displays. Instead of relying on glue or tape, it uses extended side walls that roll over 180 degrees to trap the corner flaps, locking securely into the base with mechanical friction tabs.

Because the reinforcement runs along the long edges, it provides excellent lateral crush resistance against bulging contents. However, the extended side flaps require a large flat footprint, and the open top means it must be palletized or placed inside a master carton for transit.

Common uses

Field-packed fresh produce
Pallet-to-shelf retail stocking
Intra-facility heavy parts transport
Point-of-purchase floor displays

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length (inside)

Width (inside)

Height (inside)

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

Will this tray be used in cold, damp, or humid environments?

Do you need carrying hand-holes on the short ends?

How will these loaded trays be shipped?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Agricultural Transport, Bulk Retail Display, and Parts Kitting

Fresh produce and field packing

The glueless design allows workers to erect the tray directly in the field or at the sorting station. The double-thick side walls resist the outward pressure of loose fruits and vegetables.

Pallet-to-shelf retail stocking

The open top frames the product clearly, allowing grocery or retail staff to move loaded trays straight from the delivery pallet to the display shelf without unpacking individual items.

Intra-facility heavy parts transport

For industrial settings, the rigid side walls keep heavy components contained as they move between workstations, while the open top ensures quick access for assembly teams.

Point-of-purchase floor displays

When stacked on a pallet, the reinforced long sides bear the vertical weight of the trays above them, creating a stable, self-supporting bulk display for hardware or grocery items.

Farms, Grocers, and Industrial Assembly Floors

Agricultural growers and distributors

Operations handling fresh goods need packaging that sets up quickly on-site and survives the cold chain without glue joints failing in high humidity.

Supermarkets and big-box retail

Retail environments rely on shelf-ready trays that support heavy stacking on pallets but look clean enough for direct consumer presentation.

Industrial manufacturing and assembly

Facilities moving heavy, loose components between stations benefit from the rigid side walls and open access, avoiding the recurring cost of plastic totes.

When to Compare End-Wall Roll-Overs or Glued Trays

End-wall roll-over trays

If your primary concern is vertical stacking strength on the short ends rather than lateral bulging along the long sides, a tray that rolls over its end walls may be a better structural fit.

Machine-erected glued trays

If you are packing thousands of units per hour on an automated line, a four-corner glued tray will be faster than manually folding 180-degree friction locks.

Close variants and lookalike dielines

The closest library neighbors include 0435a, 0435, 0422a. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board Thickness, Assembly Labor, and Transit Route

Board thickness and fold clearance

The 180-degree roll-over mechanism is very sensitive to board thickness. Heavy double-wall corrugated provides excellent strength but requires precise fold allowances to prevent the hinges from cracking during assembly.

Manual packing labor

Operators must fold the side walls over the corner flaps and press the tabs into the base slots. This requires two hands and firm thumb pressure, which should be factored into your pack-station rhythm.

Outer transit protection

Because the top is completely open and the friction tabs can dislodge under heavy drop shock, this tray is meant for stable pallet loads or insertion into a master shipper, not individual parcel delivery.

Print surface and coating

Slick, moisture-resistant coatings protect the board in humid environments but can reduce the friction that holds the locking tabs in place. The tab dimensions may need tightening to compensate.

Taper Adjustments and Handling Options

Inner flap taper tuning

The corner flaps feature specific angled cuts to prevent them from binding against the side walls during the roll-over motion. This taper can be adjusted based on the exact corrugated flute profile you select.

Locking tab friction

The size of the base slots and the locking tongues can be tightened or loosened depending on whether the board has a slick moisture-resistant coating or a standard kraft finish.

Carrying hand-holes

Die-cut hand-holes can be added to the short end walls to make manual lifting easier, though this slightly reduces the overall vertical stacking strength of those panels.

Board and packing details

Flat delivery and storage footprint

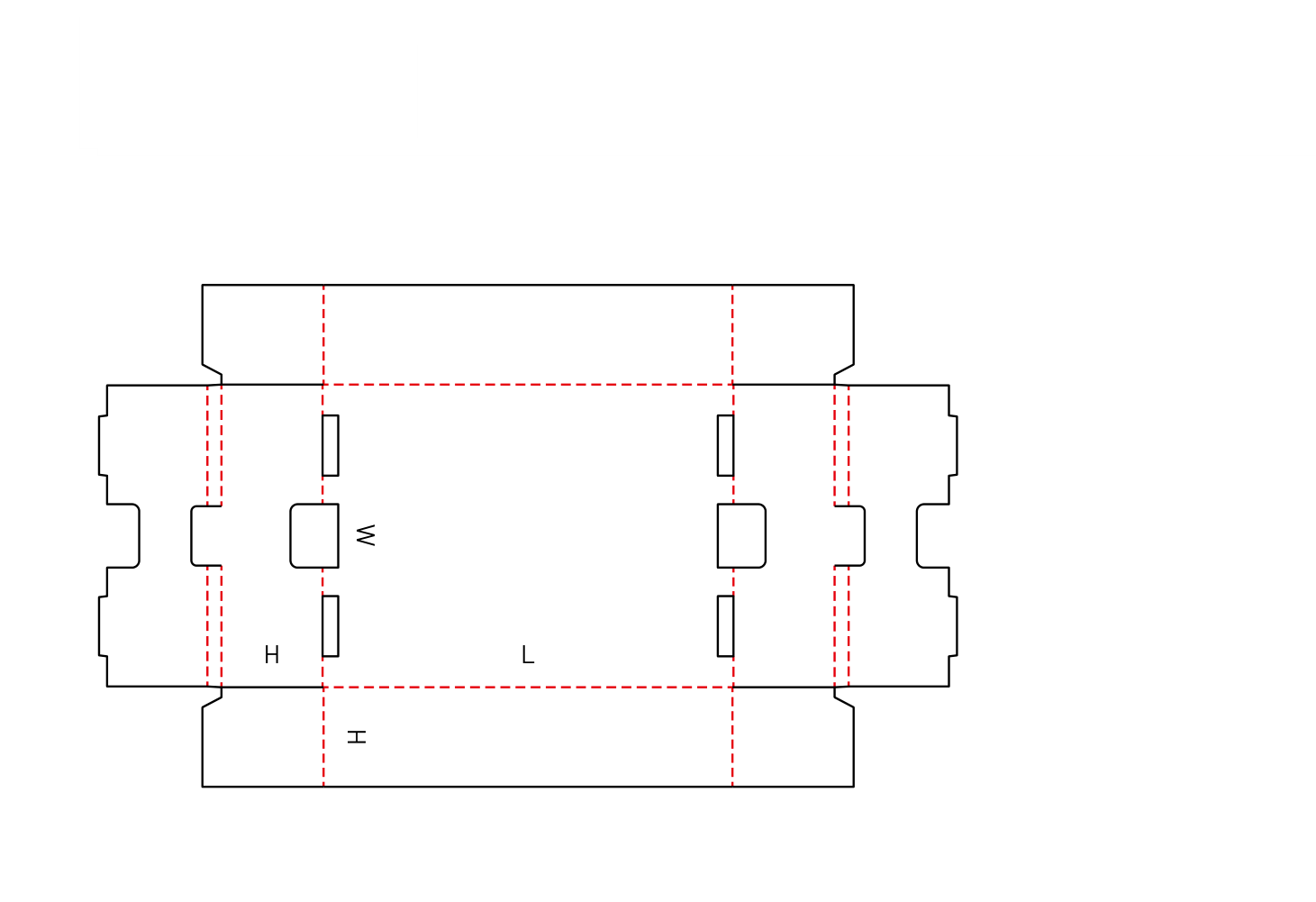

The extended side roll-over flaps create a large, cross-shaped flat blank. While it ships and stores flat to save warehouse space, the sprawling shape requires careful planning for large-volume production runs.

Clearance-Adjusted Variants for Heavy Board

Clearance-adjusted variants

For very thick agricultural boards, specific variants adjust the flap heights and double-crease widths to ensure the heavy board does not bind or crack during the fold.

Additional notes

Print panel and label placement

The double-thick side walls provide a continuous, flat surface for branding or inventory labels, though heavy double-wall fluting can make intricate flexographic printing less crisp.

Physical fold testing

Because the locking tabs rely on exact friction, you should always request a physical prototype in the final production board grade to verify that the hinges fold cleanly without binding.

FAQs

Route and shipping

Can this tray be shipped through a parcel network?

No, the open top and friction-lock tabs make it unsuitable for individual courier shipping. It should be palletized or packed inside a sealed master carton.

Closure and assembly

Does this tray require tape or glue for assembly?

No, it relies entirely on a mechanical friction lock. The side walls roll over the corner flaps and secure themselves by pressing locking tabs into the base slots.

Board and finish

Can we use heavy double-wall board for this design?

Yes, it is frequently made from heavy-duty board for agricultural use. However, the fold clearances and tapers must be precisely calibrated to your specific board thickness so the 180-degree hinges do not crack.

Print and finish

Will a moisture-resistant coating affect the tray?

A slick coating protects the board in humid cold-chain environments, but it can also reduce the friction that holds the locking tabs in place. The tab and slot dimensions may need to be tightened to compensate.

Packing labor

Is this tray compatible with automated packing lines?

Generally, no. The unglued, 180-degree roll-over sequence is designed for manual pack-bench assembly or specialized plunger-style tray erectors, rather than conventional linear folder-gluers.

First product context

What product details should we prepare before requesting a prototype?

Knowing the exact internal dimensions, the weight of the loose product pushing against the side walls, and whether the tray will face high humidity helps determine the required board grade and fold clearances.

Handling and modifications

Can we add carrying handles to this tray?

Yes, die-cut hand-holes can be added to the short end walls. Keep in mind that removing board from the end panels will slightly reduce their vertical stacking strength.

Storage and logistics

How is this tray delivered?

It ships completely flat. Because the side walls unfold to their full extended length, the flat blanks have a large cross-shaped footprint, which affects how many fit on a delivery pallet.
