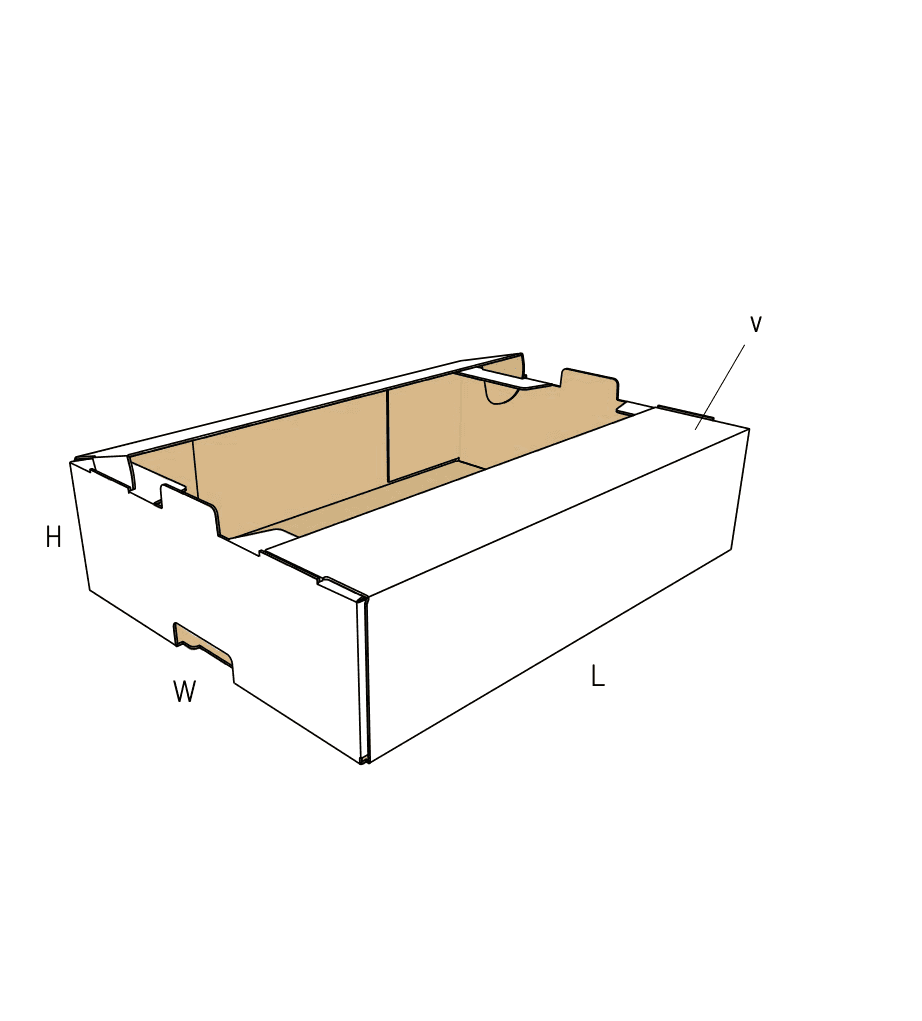

FEFCO 0436

Stackable Produce Tray

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Interlocking top tabs and base slots secure heavy pallet loads
  • Open top provides ventilation and immediate retail visibility
  • Available for manual friction-lock assembly or automated hot-melt gluing

About this product

Growers, bakeries, and bulk distributors use this heavy-duty open tray to move goods securely on pallets. It features alignment tabs on the top rim that lock into receiving slots on the base of the tray above, preventing vertical stacks from shifting during transit.

Because the top remains open, it works well for field-to-shelf produce, ventilated cooling, and immediate retail display. The design splits into two distinct paths based on your packing volume: a self-locking version for manual assembly, and a glued version for automated tray erectors.

Common uses

  • Field-to-shelf produce
  • Bulk bakery
  • Retail-ready display
  • Greenhouse and nursery transport

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Produce, Bakery, and Bulk Retail Packing

Field-to-shelf produce

The open top allows field heat to escape and frames fruits or vegetables for immediate display. The interlocking tabs keep heavy, stacked pallets stable from the farm to the grocery floor.

Bulk bakery and confectionery

Provides a rigid, breathable carrier for baked goods moving between commercial kitchens and retail locations, preventing lateral crushing.

Retail-ready display

Because the tray presents the product cleanly and requires no unpacking, retail staff can move loaded trays directly from the delivery pallet to the shelf.

Greenhouse and nursery transport

Moves potted plants and seedlings securely. The open top accommodates varying plant heights, while the interlocking tabs prevent the trays from sliding during truck transit.

Farms, Packhouses, and Retail Distributors

Agricultural distributors

Need packaging that survives cold-chain moisture, stacks efficiently without sliding, and reduces handling time at the destination.

High-volume packhouses

Operations with automated tray erectors can use the glued variants of this tray to pack thousands of units per hour with minimal labor.

Manual kitting and sorting

Smaller operations can use the unglued, self-locking base version to erect trays directly at the sorting bench without investing in machinery.

When an Outer Shipper or Simpler Tray Makes More Sense

Individual parcel shipping

This is an open-top tray. If you ship individual orders through a courier network, the contents will spill without an outer carton. You need a closed mailer or a master outer carton.

Standard retail display without heavy stacking

If your pallets are light or you do not need the aggressive interlocking tabs, a standard display tray offers a cleaner top edge and uses less corrugated board.

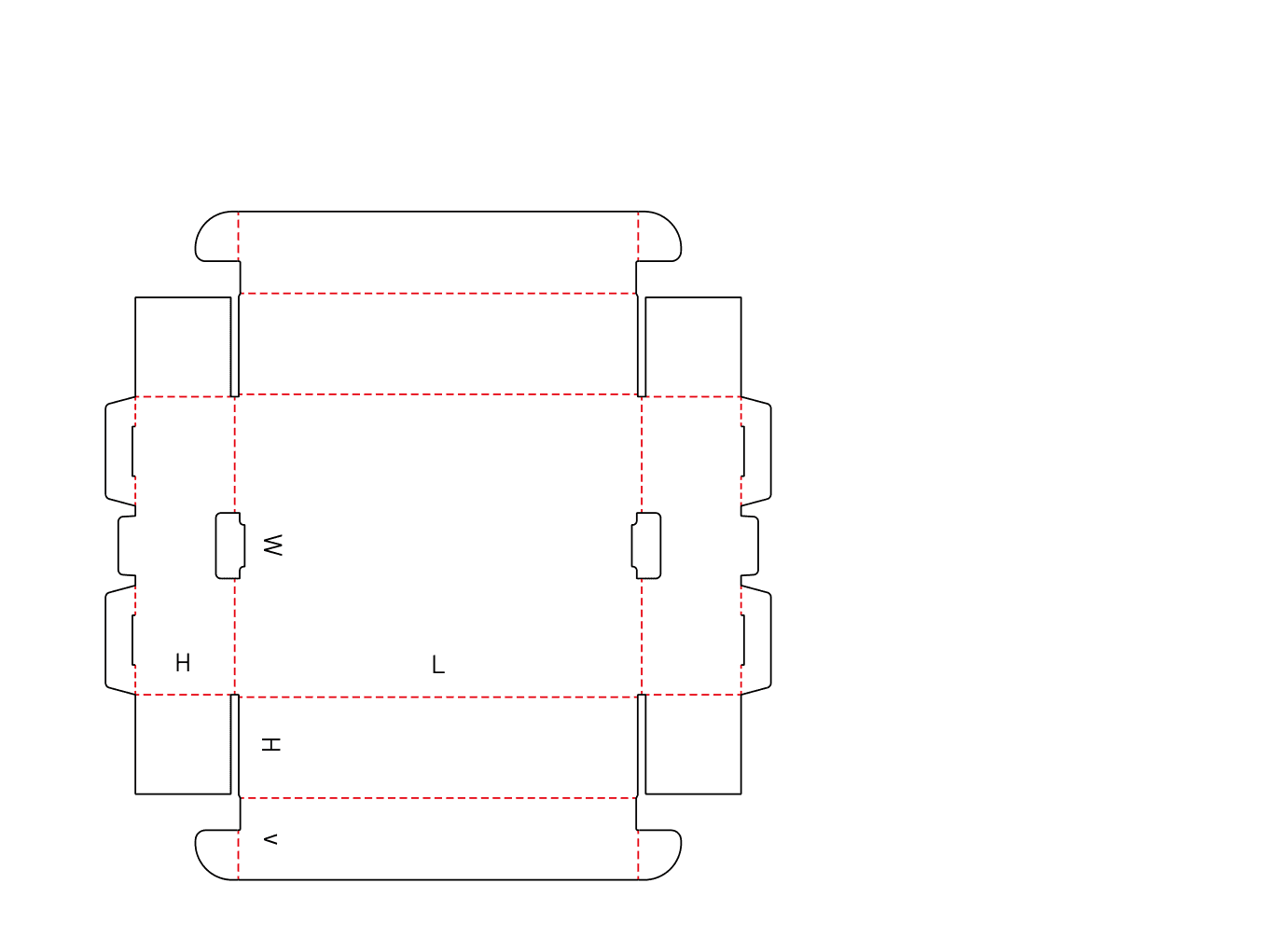

Close variants and lookalike dielines

The closest library neighbors include 0434, 0431, EVC30020. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Assembly, Board, and Cold-Chain Choices

Manual vs. automated packing

The manual version uses 180-degree fold-over walls and friction locks, which takes time at the bench. The automated version uses simple glue flaps designed for high-speed hot-melt machinery.

Board thickness and foldability

Heavy double-wall board provides excellent vertical crush resistance for produce, but it makes the manual friction locks stiff and difficult to fold cleanly. If you need double-wall board, the automated glued version is usually the safer path.

Pallet configuration and stacking patterns

The interlocking tabs only function if the trays are stacked perfectly vertically. If your pallet pattern requires cross-stacking or staggered layers, the tabs will not align with the base slots.

Moisture and cold-chain environments

If the tray will move through refrigerated storage, standard kraft board may absorb moisture and weaken the interlocking tabs. Discuss moisture-resistant coatings or specific agricultural board grades.

Ventilation, Hand Holes, and Tab Adjustments

Ventilation cutouts

While the top is open, side ventilation holes can be added to improve airflow for fresh produce or warm baked goods.

Tab and slot tolerances

The size of the interlocking tabs can be adjusted slightly to make pallet stacking easier or tighter, depending on how the pallets are built.

Integrated carrying hand-holes

Hand holes can be cut into the end panels for easier manual lifting, though this slightly reduces the overall vertical compression strength of the tray.

Board and packing details

Die-cutting and internal waste

The slots in the base of the tray create small pieces of corrugated waste during manufacturing. These must be stripped cleanly so they do not interfere with the locking tabs during palletization.

Surface finish and friction

High-gloss coatings can make the manual tuck tongues slippery, increasing the risk that the tray springs open before it is loaded.

Manual Friction Locks vs. Automated Glued Trays

Base 0436 (Manual Self-Locking)

Uses 180-degree roll-over side walls and tuck tongues that lock into the base. Fits operations without automated gluing equipment, though it requires more manual labor per tray.

0436.1 and 0436.1a (Automated Glued Trays)

Strips away the complex manual locks in favor of simple 90-degree corner flaps. Designed specifically for high-speed automated case erectors using hot-melt glue.

0436.2 (Glued Tray with Top Closure)

Uses the automated glued base but adds crossed interior flaps and a front tuck tab to close the top of the tray.

Additional notes

Pallet alignment and tab clearance

The interlocking tabs only work if the trays are stacked perfectly vertically. If your pallet pattern requires cross-stacking or staggered layers, the tabs will not align with the base slots.

Print surfaces and lock friction

If you are using the manual self-locking version, avoid heavy gloss varnishes on the locking tabs, as the slick surface can cause the friction locks to slip.

Alternative Trays and Outer Shippers

0422: Standard Display Tray

Review this option if you need an open display tray but do not require the aggressive interlocking tabs for heavy pallet stacking.

FAQs

Packing and Assembly

Do I need tape or glue to assemble this tray?

It depends on the version you choose. The base 0436 is self-locking and assembles manually using friction tabs. The .1 and .1a variants are designed for automated tray-erecting machines and require hot-melt glue.

Why would I choose the glued version over the manual version?

Speed and labor costs. The manual version requires an operator to fold and lock every corner by hand. If you pack thousands of trays a day, an automated erector using the glued version reduces your labor burden.

Shipping and Route

Can I ship this tray through the mail?

Not on its own. Because it has an open top, it fits strictly palletized freight or master-carton distribution. If sent through a mixed courier network, the contents will spill.

Board and Material

Can this tray be made from heavy double-wall board?

Double-wall board works well for the automated glued variants. However, on the manual self-locking version, thick board makes the 180-degree folds very stiff and difficult to fold cleanly unless the template is precisely adjusted.

Product Fit

How much weight can the interlocking tabs support?

The vertical stacking strength depends entirely on the board grade and the environment. The tabs themselves prevent lateral sliding, while the reinforced walls bear the vertical weight.

Customization

Can we add hand holes for easier carrying?

Yes, hand holes can be cut into the end panels, though this slightly reduces the overall vertical compression strength of the tray.

Product Fit

Does this tray require a lid?

No, the base 0436 and the .1 variants are designed to remain open for ventilation and display. If you need a lid, the 0436.2 variant includes top closure flaps, or you can use a separate master carton.

Customization

Are the ventilation holes standard?

The base template does not include ventilation holes, but they are routinely added to the side panels for fresh produce or warm bakery applications.
