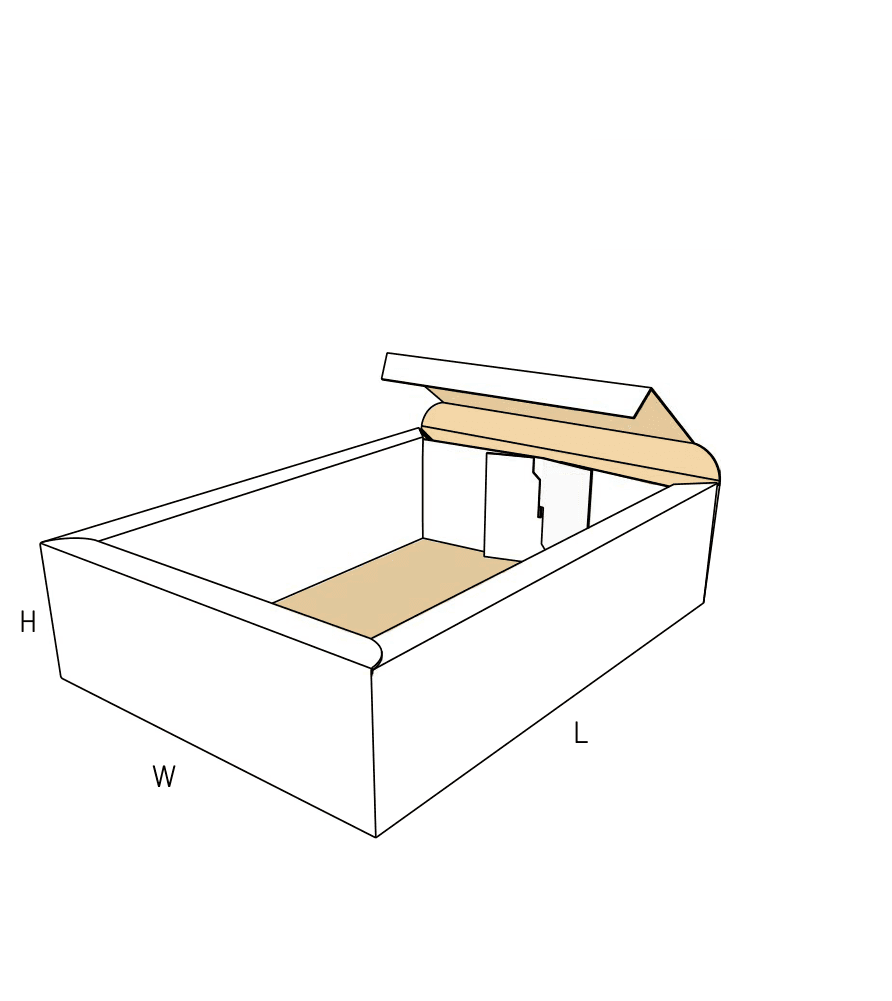

FEFCO 0439

Hollow-Wall Presentation Tray

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Wide hollow walls create a premium picture-frame aesthetic
Built-in perimeter standoff protects delicate items
Requires manual two-handed assembly to lock the frame

About this product

This one-piece corrugated tray features wide, hollow perimeter walls that roll inward to create a structural frame around your product. The empty cavity inside the walls acts as a built-in bumper, providing standoff protection without requiring a separate insert.

Because the frame requires a large flat blank and manual folding, it uses more board than a standard tray. It makes the most sense for premium retail displays, high-end kitting, and unboxing experiences where the presentation justifies the extra material and assembly time.

Common uses

Premium retail display
E-commerce kitting inside a master shipper
Delicate component staging
High-end gift and subscription boxes

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Inside length

Inside width

Inside depth

Frame width

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will the filled tray be shipped or displayed?

Where do you plan to print artwork?

How will these trays be assembled?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Premium Retail and Kitting Jobs

High-end retail display

The wide frame draws the eye inward while keeping the item protected from lateral bumps on the shelf. It works well for cosmetics, electronics, or specialty foods that need to stand out.

Premium e-commerce kitting

When placed inside a master shipping box, the hollow walls organize the presentation and absorb shock during transit. The customer sees a clean, framed layout the moment they open the outer box.

Delicate component staging

The hollow perimeter acts as a crush zone for fragile parts moving between assembly stations. It keeps components isolated without requiring custom foam inserts.

High-end gift and subscription boxes

The structural frame elevates the perceived value of the contents. The wide top ledge provides a continuous surface for brand messaging right as the box opens.

Boutique Brands and Specialty Distributors

Cosmetics and luxury goods

Brands use the wide top ledge as a continuous canvas for high-end printing. It brands the exact moment the customer looks down at the product.

Specialty food and confectionery

The standoff frame prevents delicate items from touching the outer edges of the master shipper. This lowers crush risk without wrapping individual items in plastic.

Electronics and delicate hardware

The hollow cavity provides a physical buffer against side impacts. This keeps sensitive screens or components away from the exterior strike zone.

When to Compare Simpler Trays or Mailers

High-volume automated packing

If your facility relies on automated tray erectors, the complex four-sided rollover and webbed corners of this tray will bottleneck production. A machine-erected glued tray is a better fit.

High-efficiency board usage

The hollow walls require a massive flat blank, creating significant offcut waste. If you just need to move goods and do not care about the picture-frame aesthetic, a standard roll-over tray uses far less board.

Direct parcel shipping

This is an open tray. If you intend to ship directly through a courier network without an outer master carton, you need a closed mailer instead.

Close variants and lookalike dielines

The closest library neighbors include 0437, EVF41242, 0437_1. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board Thickness, Frame Width, and Print Canvas

Board thickness limits

The double creases and webbed corners are highly sensitive to board caliper. Fine flutes fold crisply and lock securely. Thick double-wall board will cause the frame to warp and the friction tabs to pop out.

Print panel placement

The wide top ledge is highly visible and offers an excellent branding surface. Decide early if you need inside-and-out printing to maximize this canvas.

Manual assembly labor

Every tray requires an operator to fold the outer walls, tuck the webbed corners, roll the top ledge, and seat the friction tabs. Factor this labor into your fulfillment planning.

Outer shipping requirements

Because the top remains open, you must plan for a master carton, a clear sleeve, or shrink wrap if the tray needs to travel through a courier network.

Adjusting the Hollow Frame Width and Locks

Adjusting the hollow frame width

The width of the hollow wall can be expanded or narrowed. A wider frame increases the protective standoff and branding area, but exponentially increases the flat blank size.

Inside-and-out print mapping

Because the walls roll inward, the visible top ledge is actually the inside of the flat blank. We can map your artwork to ensure the branding lands exactly on the frame.

Base slot friction tuning

The entire structure relies on trapezium tabs friction-fitting into base slots. We can adjust the tab clearances if you choose a high-gloss varnish that might otherwise cause the locks to slip.

Board and packing details

Friction lock seating

The 3D structure holds together without glue, relying entirely on the base slots. High-gloss varnishes can reduce this friction, increasing the risk of the frame springing open.

Nesting yield and scrap

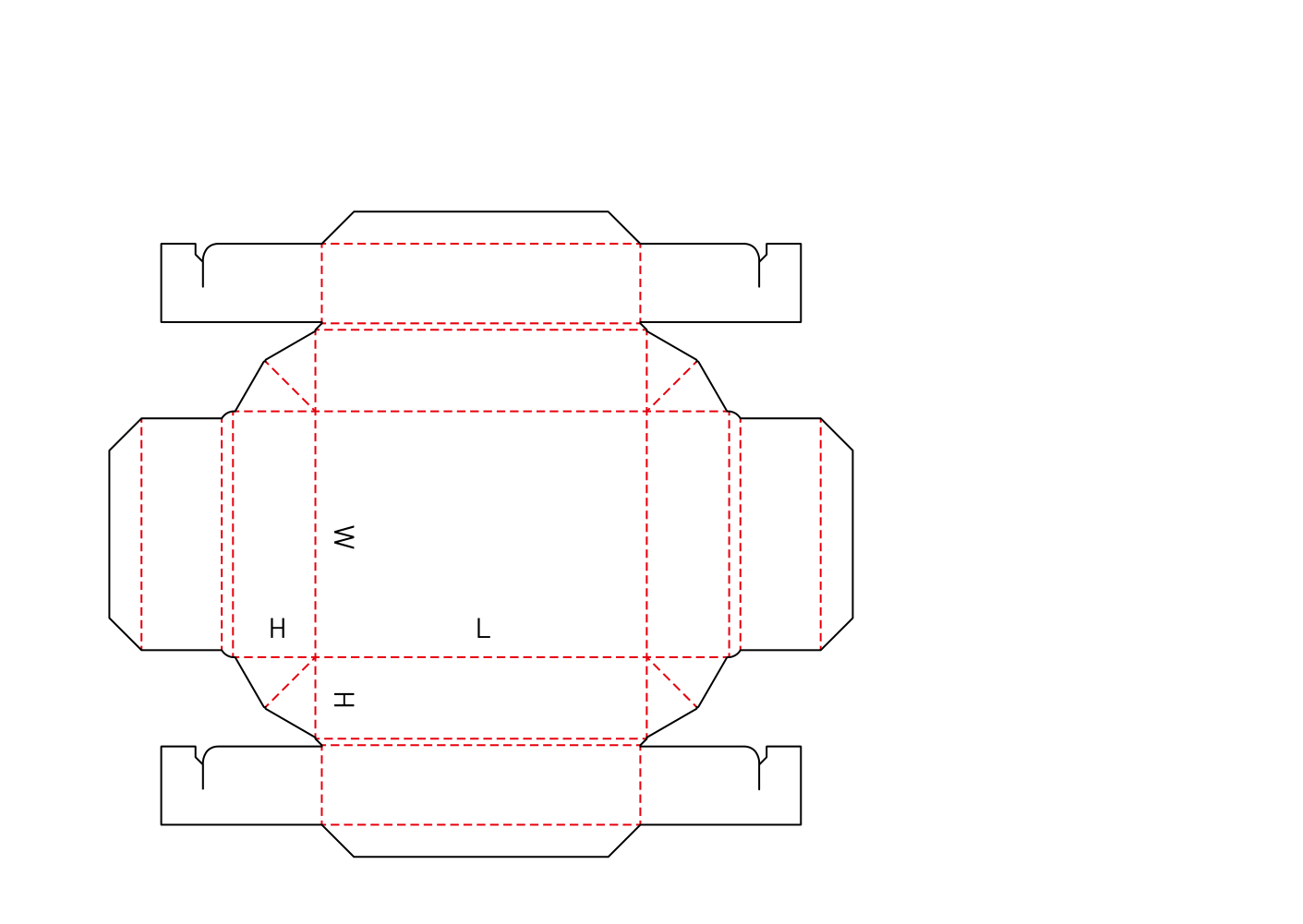

The cross-shaped blank with extended roll-over flaps limits how many trays a converter can cut from a single sheet of corrugated board. This changes the production route compared to simpler trays.

Frame and Corner Adjustments

Custom Frame Widths

The hollow wall width dictates the visual frame size. We can adjust this dimension to increase standoff protection or reduce material waste, depending on your priority.

Additional notes

Testing the friction locks

Because this tray relies entirely on friction tabs to hold its shape, we recommend requesting a physical prototype in your exact chosen board grade to verify the locks seat correctly before committing to a full production run.

FAQs

Assembly and Packing

Can this tray be erected by automated machinery?

Usually no. The four-sided rollover sequence and webbed corner tucks require manual, two-handed assembly. If you need high-speed automated packing, we should look at glued tray alternatives.

Shipping and Route

Can I ship this tray directly in the mail?

No. Because it has an open top, it requires an outer master carton, a clear sleeve, or a shrink wrap to keep products secure during rough courier transit.

Material and Board

Can we make this out of heavy-duty double-wall board?

It is highly risky. The complex folds and friction locks bind up when the board is too thick. We strongly recommend fine flutes to keep the frame square and the tabs locked.

Print and Finish

Where does printing look best on this tray?

The wide top ledges of the hollow walls provide a continuous, highly visible canvas. Because the walls roll inward, you can achieve a premium look by printing on the inside of the blank.

Cost and Production

Why does this tray use more board than a standard open tray of the same volume?

The hollow walls require a much larger flat blank. That extra footprint means fewer trays fit on a single sheet of corrugated board, which changes the material efficiency.

Product Fit

Does the hollow wall actually protect the product?

Yes. The empty cavity creates a physical standoff between the outer edge of the tray and your product. This acts as a crush zone that absorbs lateral impacts before they reach the center.

Adjustments

Can the frame width be changed?

Yes. We can widen the hollow walls to create a larger visual frame and deeper bumper, or narrow them to save board.

Structure

How do the corners stay sealed?

Diagonal webbed flaps connect the adjacent outer walls. As the tray folds, these flaps tuck tightly inside the hollow frame, preventing gaps at the corners.
