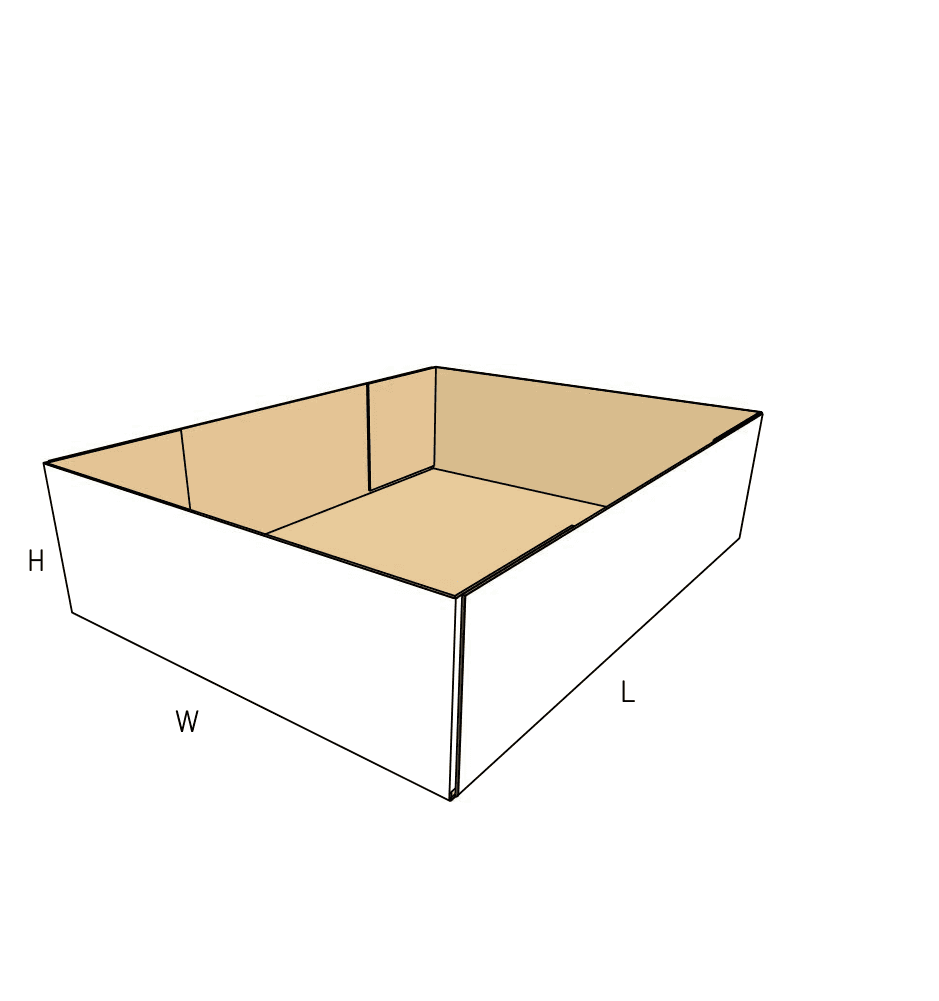

Automated Trays and Telescopic Caps
Rigid caps for half-slotted boxes
Placed over a half-slotted base, it acts as a modular lid. The corners are glued or stitched, and the entire cap is strapped or taped to the base for heavy industrial transit.
Automated hot-melt tray packing
High-volume fulfillment centers use flat blanks in automated mandrel erectors, which fold and glue the corners in one motion before loading the product.
Heavy-duty stitched produce trays
When packed with dense agricultural goods or when using waxed boards that repel glue, the corners are pneumatically stitched to create a rigid, stackable open tray.
Bases for telescopic boxes
Paired with a slightly larger version of itself, this tray forms the bottom half of a fully enclosed, two-piece telescopic package.
Fulfillment, Agriculture, and Industrial Logistics
High-volume fulfillment
Operations with automated tray erectors benefit from the low production economics and high pallet density of the flat blanks, pushing the assembly effort onto the machine rather than the board.
Industrial component shipping
Manufacturers shipping heavy parts in half-slotted containers use this tray as a reinforced top cap to distribute vertical stacking weight across the pallet.
Agricultural and produce packing
Growers moving field-packed goods rely on this package because it can be stitched together when waxed or coated boards make standard gluing impossible.
When to Consider Friction Locks or Pre-Glued Trays
Manual pack stations without tools
If your team erects trays by hand without glue stations or pneumatic staplers, a roll-over tray uses friction locks and requires zero tools.
Fast manual kitting
If the package needs the speed of a glued tray but lack erecting machinery, a four-point pre-glued tray ships flat and pops open instantly by hand.
Standalone courier shipping
Because this is an open tray, shipping individual orders through courier networks requires a full master carton or a switch to a sealed mailer.

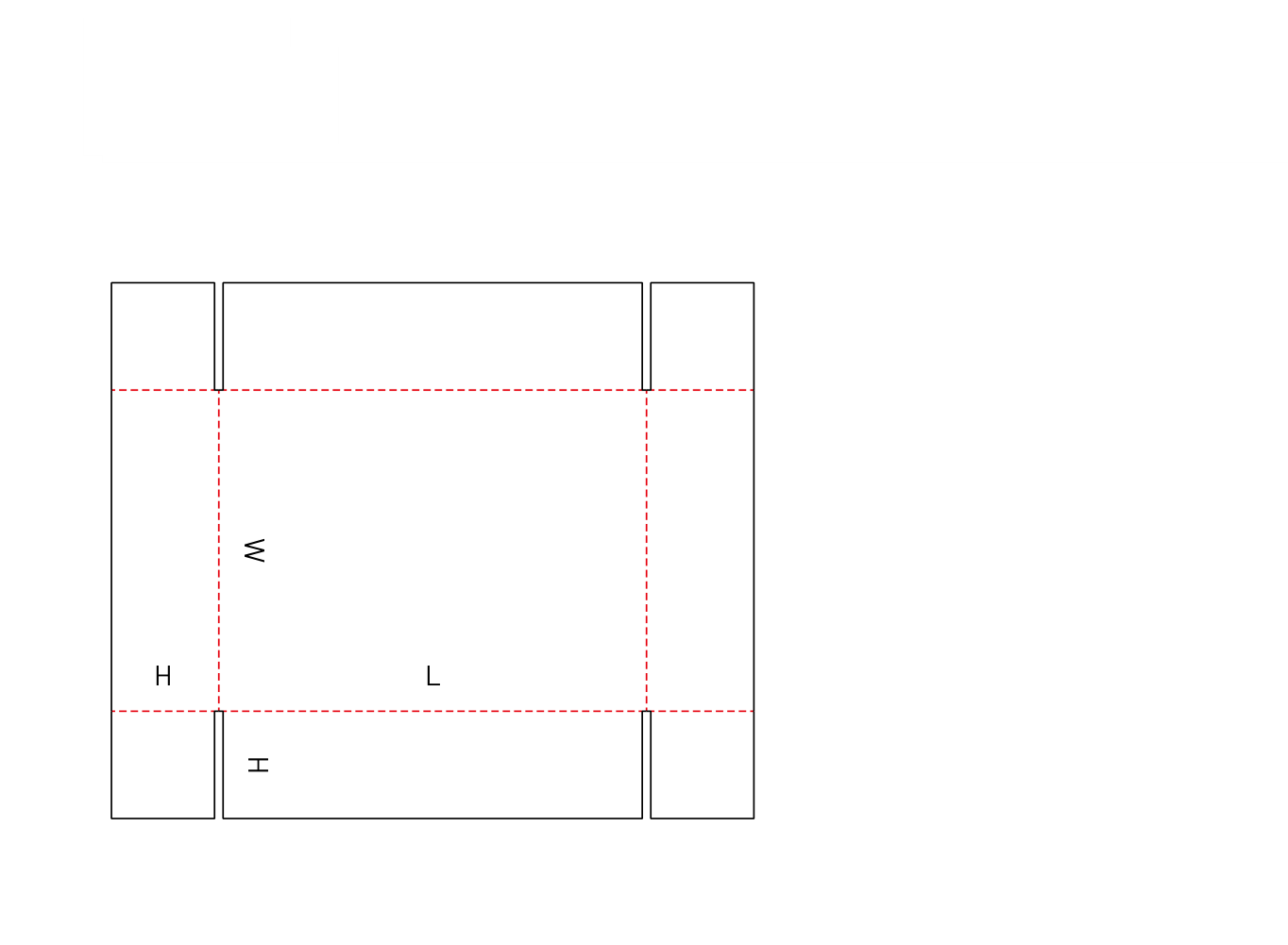

Fastening Methods and Board Clearances
Hot-melt glue versus stitching
Standard corrugated boards glue easily in automated erectors. If your product requires waxed, coated, or heavy double-wall board, hot-melt glue often fails under the spring-back tension, making stitching a better choice.
Sizing for caps versus trays
If this tray will be used as a lid over another box, the internal dimensions must account for the outer dimensions of the base box plus clearance for easy removal.
Board thickness and corner tension
Thicker boards require wider corner slots and precise fold allowances. If the board is too thick for the template, the corner flaps will bulge inward, causing the outer walls to bow.
Packing line automation
Hand-holding four corners square while applying glue is slow and prone to skew. This tray makes the most sense when automated mandrel erectors or dedicated stitching jigs are available.
Flap Shapes and Handling Additions
Straight versus angled corner flaps
Straight flaps keep the edge profile simple and fast to prepare. Angled or trapezoidal flaps prevent edge collision on thicker boards but require shaped cutting preparation.
Carrying hand-holes
Adding cutouts for manual lifting is straightforward, but it changes the preparation method from simple straight cuts to shaped die-cutting.
Corner fold allowances
The gap between the side walls and the corner flaps can be adjusted to match the exact thickness of the board, ensuring the tray sits perfectly square without bulging.
Board and packing details
Telescopic clearance tolerances
When pairing two of these trays to form a full box, the lid must be incrementally larger than the base. The exact clearance depends on the board thickness and whether the box will be strapped or taped shut.
Additional notes
Straight cuts versus shaped cuts
Keeping the corner flaps straight allows for simple, fast preparation. Adding angles, hand-holes, or complex clearances requires shaped die-cutting.
Related Trays and Base Boxes
FAQs
Assembly and packing
Can this tray be assembled by hand?
Yes, but it is slow and requires a physical fixture to hold the corners perfectly square while hot-melt glue sets or stitches are applied. It is not a tool-free folding tray.
Production path
Does it require shaped cutting preparation?
Not always. If the design uses straight corner flaps and slots, it can often be prepared with simple straight cuts. Adding hand-holes or angled flaps requires shaped cutting.
Shipping and route
Is this suitable for courier shipping?
Not on its own. It is an open-topped tray. To ship through a courier network, it must be placed inside a master carton or paired with a matching base to form a fully enclosed telescopic box.
Comparison
Why use this instead of a roll-over tray?
Material efficiency. A roll-over tray uses much more corrugated board to create its friction locks. If you have the machinery to glue or stitch corners, this tray uses less material.
Board and finish
Can we use double-wall board?
Yes, but the high spring-back tension of thick double-wall board often challenges standard hot-melt glue. Heavy-duty applications usually switch to corner stitching to ensure the joints hold.
Product fit
How do we size it as a lid?
You must provide the exact outer dimensions of the base box it will cover, plus your preferred clearance tolerance, so the internal dimensions of the cap can be adjusted accordingly.
Board and finish
What if we are packing waxed produce?
Waxed or coated boards repel standard hot-melt glue. For these applications, the corners must be pneumatically stitched or stapled to hold the tray together.
Product fit
How does it work as a telescopic box?
You can pair two of these trays together. One acts as the base, and the second is sized slightly larger to slide over the top as a full-depth lid, creating a very rigid, double-wall perimeter.
