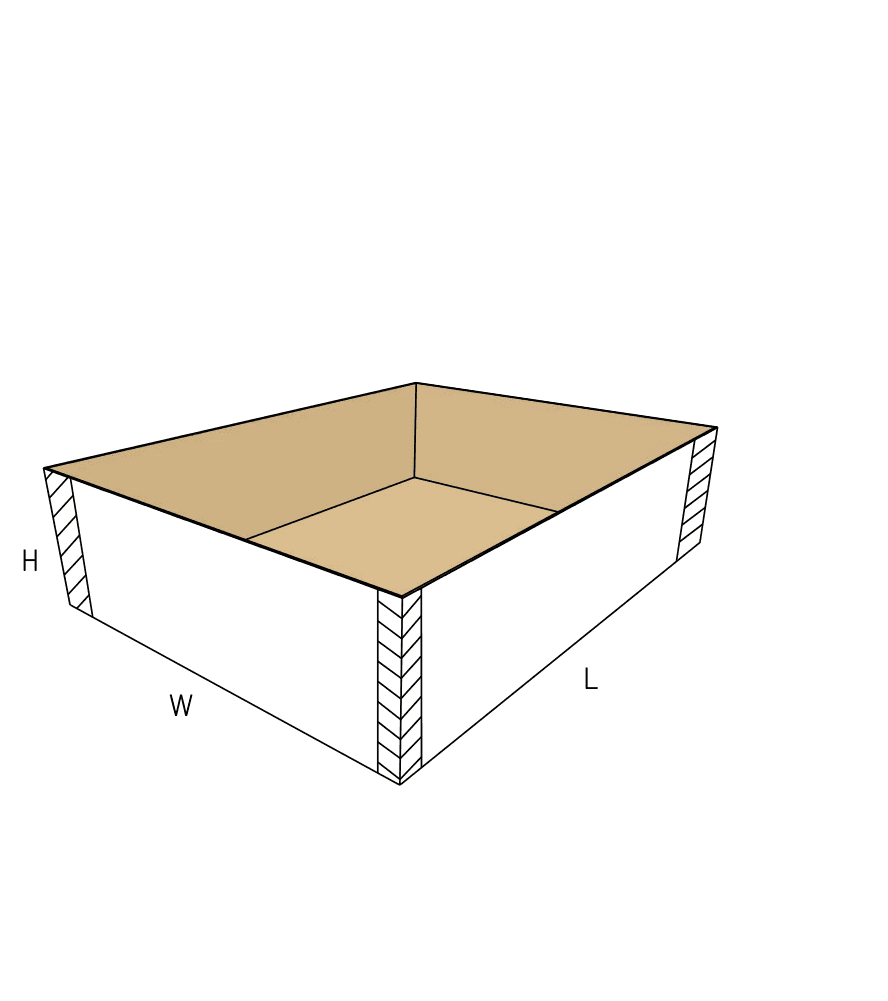

FEFCO 0458

Automated Carton Lid and Taped Tray

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Designed for automated hot-melt lidding equipment
  • Requires external tape or glue to hold its shape
  • Highly material-efficient with minimal corrugated waste

About this product

High-speed automated packaging lines use this corrugated blank as a lid to cap variable-height base cartons. It features four overlapping corner flaps that are typically secured with hot-melt glue directly over the filled base, creating a secure seal without the need for additional strapping.

While it can also serve as a standalone taped tray for manual packing, its lack of mechanical locks means operators must hold the corners square while applying tape. Because of this, it brings the most value to high-volume fulfillment centers equipped with automated lidding machinery.

Common uses

  • Automated e-commerce fulfillment lidding
  • Volume-optimized carton capping
  • Manual taped transit trays

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

High-volume lidding and transit trays

Automated e-commerce carton lidding

Fulfillment centers use this blank to cap variable-height base cartons. The lid is positioned over the filled box, hot-melt glue is applied to the overlapping flaps, and the machine presses it into place. This creates a secure outer shipper that resists lateral bulging and vertical compression.

Manual taped transit trays

For operations without automated equipment, this blank can be folded and secured with external corner tape. It provides a simple, low-waste shallow tray for moving parts or staging goods, though the manual taping process is slower than using a friction-lock alternative.

Volume-optimized capping

When shipping mixed orders, automated lines can cut the base carton to the exact height of the goods and apply this lid over the top. This eliminates the need for void fill and reduces dimensional weight charges during transit.

Heavy liquid grouping

Bottling lines and dairy distributors use these glued trays to group heavy liquid containers. The glued corners provide the necessary rigidity to keep heavy bottles contained during pallet transit.

Fulfillment, beverage, and industrial logistics

High-speed fulfillment centers

Operations shipping thousands of orders a day use automated lidding to match packaging height to the product volume. Gluing a lid directly to a base carton eliminates the need for void fill and plastic strapping.

Beverage and liquid packaging

Bottling lines and dairy distributors use these glued trays to group heavy liquid containers. The glued corners provide the necessary rigidity to keep heavy bottles contained during pallet transit.

Industrial parts staging

Manufacturing facilities use the taped tray configuration to move heavy components between workstations. The simple flat blank stores efficiently and can be taped together quickly when a shallow, open-top container is needed.

When to evaluate self-locking or standard glued trays

Manual pack benches without taping fixtures

If your team is assembling trays by hand, holding the four corners square against the board's natural spring-back tension can slow down the line. A friction-lock tray like the 0422 snaps together without tape or glue, trading a slightly larger footprint for much faster manual assembly.

Standard folder-gluer production

This package is shipped flat and erected in 3D at the packing station. If you need a tray that arrives pre-glued and simply pops open, you should evaluate standard crash-lock or 4-point glued structures instead.

Close variants and lookalike dielines

The closest library neighbors include 0452, 0955, 0453. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Machine clearances, board thickness, and tooling

Board thickness and glue adhesion

Thick corrugated boards, such as double-wall, create severe spring-back tension when folded. This tension can fight the hot-melt glue before it fully sets, causing the corners to pop open. Fine flutes fold crisply and bond much more reliably on high-speed lines.

Straight slots versus die-cut reliefs

If the corner slots are perfectly straight, this blank can often be produced on a standard rotary slotter without custom cutting dies. However, if your automated erector requires offset flaps or trapezoidal clearances to avoid machine plows, the design will require flatbed or rotary die-cutting.

Machine mandrel and plow clearance

The exact dimensions of the corner flaps must match the forming mandrel and glue-gun placement of your specific lidding equipment. Providing the machine specifications early ensures the blank will feed and fold without jamming.

Print coatings and adhesive compatibility

Standard flexographic printing works well, but high-gloss varnishes or wax coatings will reject standard hot-melt adhesives. If the lid requires a premium finish, the glue zones must be explicitly masked out during production.

Flap offsets, corner clearances, and slot profiles

Flap offsets for glue-gun placement

The length and width of the corner joining flaps can be adjusted to match the exact placement of the glue guns and forming mandrels on your specific lidding equipment.

Corner slot profiles

The slots separating the flaps from the walls can be cut straight for simple production or angled to provide clearance for specific machine plows during the folding sequence.

Depth and overlap adjustments

The depth of the lid walls can be extended to provide more overlap with the base carton, increasing the glued surface area and improving the overall rigidity of the sealed package.

Board and packing details

Manual taping and corner alignment

If assembling by hand, operators must hold all four corners perfectly square against the board's natural tension while applying tape. This can lead to uneven trays and poor stacking if not done carefully.

Additional notes

Manual taping and corner alignment

If assembling by hand, operators must hold all four corners perfectly square against the board's natural tension while applying tape. This can lead to uneven trays and poor stacking if not done carefully.

Related trays and lids

0452: Standard Glued Tray

Review this option if you are looking for a standard tray style rather than a parameterized automated lid.

0955: Interior Form

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

0453: ES Tray

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

FAQs

Production and tooling

Does this lid require a custom cutting die?

It depends on your machinery. If the corner slots can remain straight, it can often be run without custom tooling. If your automated erector requires angled or offset flaps for clearance, a cutting die becomes necessary.

Assembly and closure

Can this tray be assembled without tape or glue?

No. The structure has no mechanical locks or friction tabs. It relies entirely on external tape, hot-melt glue, or stitching to hold its three-dimensional shape.

Shipping and route

Is this package suitable for parcel shipping?

As a standalone open tray, it exposes the goods. When used as a lid, it relies entirely on the adhesive bond to the base carton. For rough courier networks, the glue joint must be thoroughly tested, or an outer master carton should be used.

Material limits

Can we use double-wall board for extra stacking strength?

Double-wall board is high-risk for this specific style. The thick material creates strong outward tension when folded, which often causes hot-melt glue joints to fail before they set. If heavy board is required, the corners may need to be stitched or taped instead.

Equipment compatibility

Will this run on a standard folder-gluer?

No. This blank is shipped completely flat and must be erected in 3D around the product or a machine mandrel. It requires a dedicated tray erector or automated lid applicator.

First conversation

What details help guide the specification for this lid?

Sharing the exact make and model of your automated lidding equipment is the most helpful starting point. Knowing the machine's mandrel clearances and glue-gun positions allows the flap offsets to be configured correctly from the start.

Performance

Does the lid add stacking strength to the base carton?

Yes. When glued securely to the outside of a base carton, the overlapping walls of the lid reinforce the corners and help resist lateral bulging under heavy top loads.

Print and finish

Can we apply a high-gloss finish to the entire lid?

Applying a full-coverage gloss or wax coating will prevent hot-melt glue from bonding properly. If you need a premium finish, the specific areas where the flaps overlap must be left uncoated.
