FEFCO 0465

Premium Roll-Over Presentation Box

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Double-thick rolled side walls provide excellent side crush resistance
Clean interior presentation hides corner dust flaps
Friction-tuck lid relies on an external seal or tape for parcel shipping

About this product

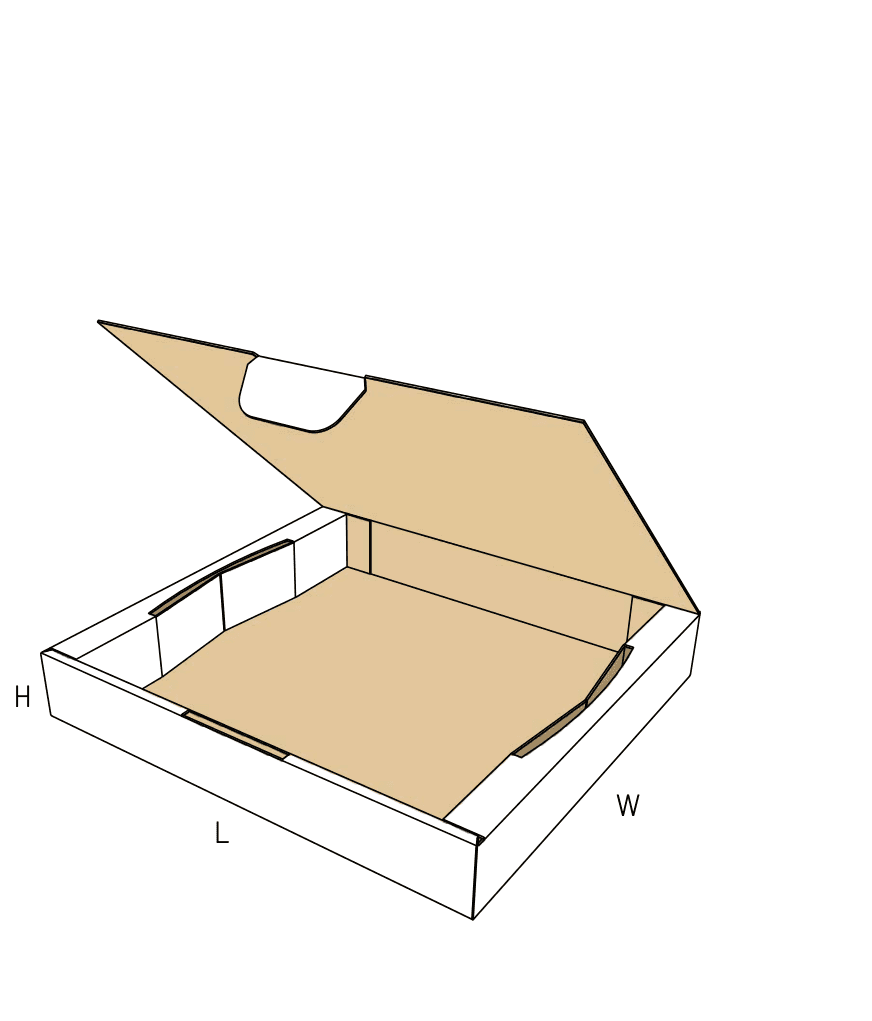

This one-piece presentation box features side walls that roll inward 180 degrees, creating double-thick structural buffers and a clean, continuous interior. It locks together mechanically using discrete tongue tabs that seat into the base, eliminating the need for glue during assembly.

Because the extended side panels require more corrugated board and manual folding effort, this style is typically reserved for premium kitting, fragile electronics, and high-end retail presentations where the unboxing experience justifies the extra packing labor.

Common uses

Premium e-commerce kitting
Fragile electronics packaging
Corporate promotional boxes
Subscription boxes requiring a framed interior

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Inside length

Inside width

Inside depth

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

Will this box use a custom insert to hold items in place?

How will this box be shipped or handed out?

Who will be assembling and packing these boxes?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Premium Presentation and Kitting

High-end corporate gifting and promotional kits

The rolled side buffers hide the raw edges of the corner dust flaps, creating a smooth, framed interior. This clean aesthetic makes it an excellent vessel for branded merchandise and custom inserts.

Fragile electronics and flat components

The double-thick side walls act as shock-absorbing bumpers. When paired with a precise insert, the rigid perimeter isolates delicate screens or components from side impacts during handling.

Subscription boxes requiring a framed interior

For recurring deliveries where presentation is part of the product value, the rolled edges provide a retail-like unboxing experience. The friction tuck lid allows subscribers to easily reclose the box for storage.

Retail presentation trays with attached lids

When used in a retail environment, the lid can be left open to display the contents while the double-thick walls provide a sturdy, premium frame around the product.

Industries Relying on Rolled-Buffer Trays

Premium e-commerce and subscription brands

Brands looking to elevate their unboxing experience beyond standard mailers use this box for its structured, high-end feel. Because the lid relies on a simple friction tuck, fulfillment teams must apply a branded wafer seal or outer tape strip before handing it to a courier.

Manual kitting and assembly operations

This box requires a specific manual folding sequence to seat the tongue locks into the base. It fits well in facilities set up for careful, multi-step hand assembly rather than high-speed automated lines.

Third-party fulfillment centers handling fragile goods

Fulfillment centers packing delicate items benefit from the side crush resistance of the rolled buffers. However, the packing team must be trained to pre-break the double creases to ensure the tongue locks seat properly without tearing the base.

When to Consider a Standard Mailer

High-volume fulfillment prioritizing speed

If your packing line needs to move quickly, the precise 180-degree roll and tongue-lock insertion of this box will cause bottlenecks. A standard cherry-lock mailer folds faster and stays closed more reliably in transit.

Heavy vertical pallet loads

While the side walls are double-thick, the front and rear walls are single-layer. If you are stacking heavy pallets without a master shipper, a box with reinforced corners or a full wrap-around design may offer better top-crush resistance.

Direct parcel shipping without external seals

The friction tuck lid on this box springs open if dropped. If your operation cannot accommodate applying an external tape strip or wafer seal, a mailer with a locking tab or adhesive strip provides better closure for courier networks.

Close variants and lookalike dielines

The closest library neighbors include 0462, 0475, 0426b. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board Caliper and Closure Decisions

Board thickness and fold clearance

This box style is extremely sensitive to board thickness. The side panels must roll a full 180 degrees. If the board is too thick, the hinges will crack, the walls will bow, and the locking tabs will pop out of the base. Fine flutes are highly recommended to keep the folds crisp and the locks secure.

Securing the lid for transit

The hinged lid uses a simple friction tuck. While this allows customers to open and close the box easily, it springs open if dropped. You must plan for an external tamper-evident seal, a branded sticker, or a shipping sleeve if the box is entering a mixed courier network.

Internal volume calculations for inserts

Because the rolled buffers take up internal space, the inside clearance must be calculated carefully. If you are using custom foam or corrugated inserts, the dimensions must account for the thickness of the rolled walls to prevent bowing.

Assembly labor and packing line setup

This box requires an operator to pre-break the double creases, roll the side walls inward, and apply downward pressure to seat the tongue locks. You must evaluate whether the premium presentation justifies the slower manual packing rhythm.

Structural Adjustments for Assembly

Tongue lock tightness

The friction fit of the base tabs can be adjusted during the structural design phase. Tighter locks provide a more rigid tray but require more thumb pressure from your packing team to seat properly.

Flap tapers for easier assembly

The inner dust flaps can be tapered to prevent them from binding against the side walls as the buffers are rolled inward, speeding up the manual assembly process.

Double crease width adjustment

The distance between the score lines on the side panels can be widened to accommodate slightly thicker board grades, reducing the risk of hinge cracking during the 180-degree roll.

Board and packing details

Blank sprawl and material efficiency

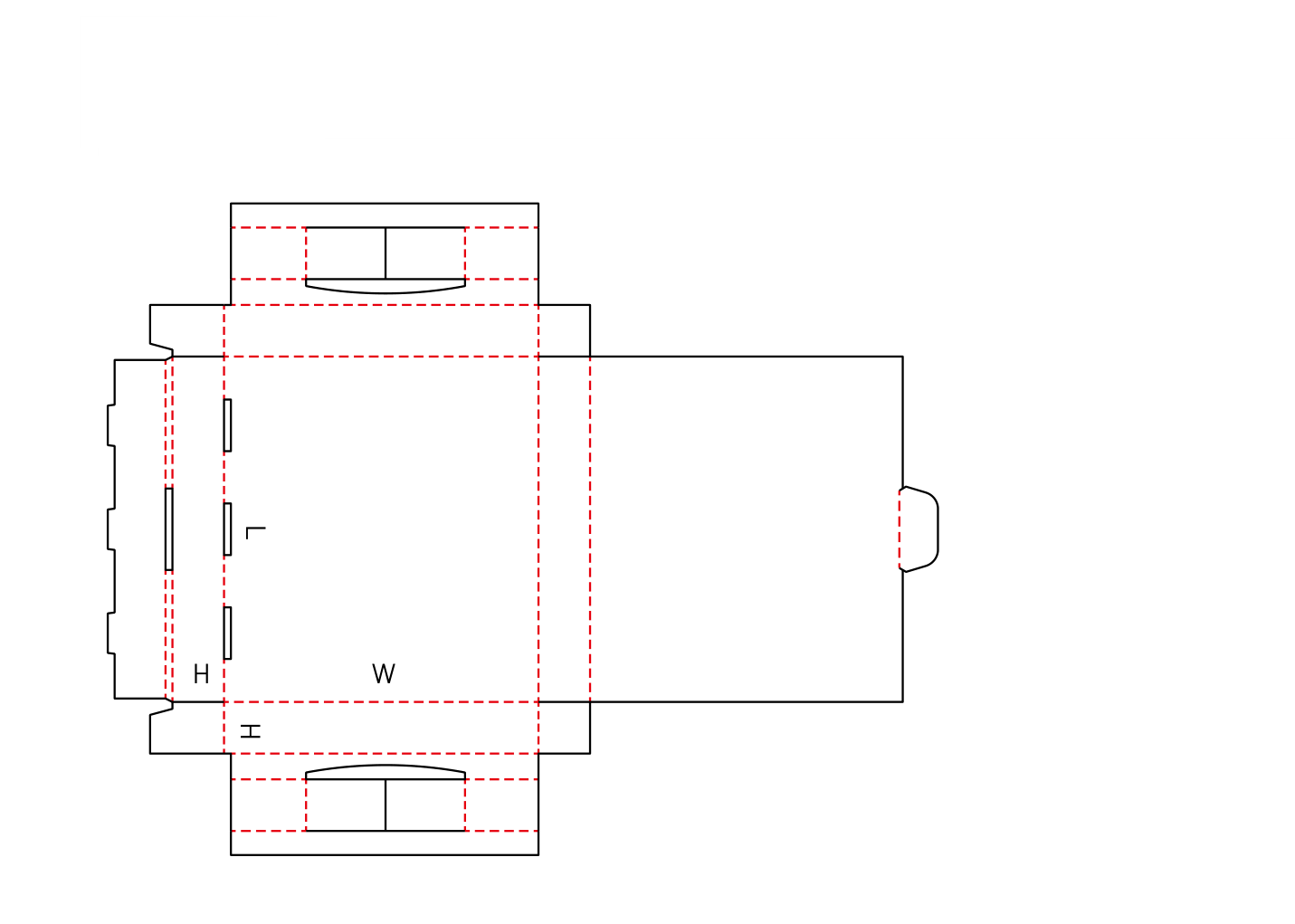

Because the side walls extend to roll completely over, and the full lid is attached to the rear wall, this box requires a much larger flat corrugated blank than a standard tray. This reduces the number of boxes that can be cut from a single sheet.

Additional notes

Pre-breaking the double creases

Operators must fold the side panel creases completely before attempting to roll the buffers inward. Skipping this step often results in skewed walls and torn base slots.

FAQs

Shipping and Route

Can I ship this box unsealed?

The base locks together without glue or tape, but the lid relies on a simple friction tuck. It springs open during rough courier handling. You must apply an external seal, tape, or label across the front opening for parcel shipping.

Board and Finish

Can this box be made in heavy double-wall corrugated?

Thick double-wall board is highly discouraged. The side walls must roll 180 degrees to form the interior buffers. Heavy board will crack at the hinges and create too much tension, causing the locking tabs to pop out of the base. Fine flutes fold cleanly.

Packing Labor

Is this box suitable for automated packing lines?

The assembly requires an operator to pre-break the double creases, roll the side walls inward, and apply downward pressure to seat the tongue locks into the base slots. This box requires hand assembly.

Print and Presentation

Does this box support interior printing?

Because the side walls roll inward to form the interior buffers, a large portion of the inside presentation area can be printed on the same side of the flat blank as the exterior graphics, depending on the layout.

Material Usage

Why does this style require a larger flat blank than a standard mailer?

The extended side panels and attached lid create a very large, cross-shaped flat blank. This blank sprawl means fewer boxes fit on a standard sheet of corrugated board during die-cutting.

Inserts and Fit

How do inserts work with the rolled side buffers?

The rolled buffers create a clean, flat interior wall that is excellent for holding custom inserts. Because the buffers take up internal volume, the inside clearance must be calculated carefully to ensure your insert fits snugly without bowing the walls.

Comparison

How does the assembly differ from a standard 0427 mailer?

A standard mailer uses a continuous friction wedge to lock the front wall, while this box uses discrete tongue tabs that must be individually seated into base slots. This makes the 0465 slightly slower to assemble by hand.

Closure

Will a high-gloss finish affect how the box stays closed?

Applying a slick coating or high-gloss varnish reduces the friction on the front tuck flap. This makes the lid more likely to spring open on its own, increasing the need for a strong external seal.
