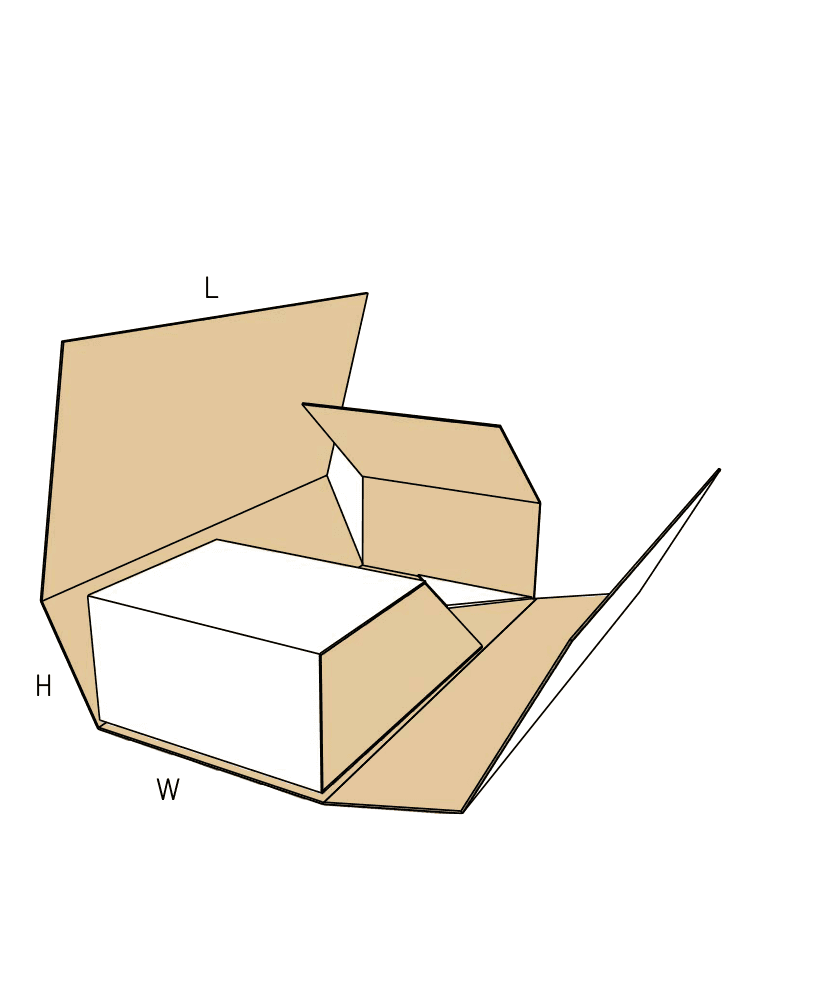

FEFCO 0474

Hollow-Wall Display Tray

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Hollow side frames provide a built-in lateral buffer zone
Wide open top designed for external shrink-wrapping or sleeving
Requires manual assembly and a large flat footprint before folding

About this product

This one-piece display tray features side walls that fold inward to create a raised, hollow frame around your product. Often called a television tray in the bakery and confectionery sectors, it provides a wide open top for visibility while the hollow sides act as a structural buffer against lateral impacts.

Because the hollow frame requires more corrugated board and careful two-handed manual assembly, it makes the most sense when premium retail presentation and side-impact protection outweigh the need for rapid packing speed.

Common uses

Confectionery and bakery displays
Premium retail kits
Cosmetics presentation
Fragile item buffering

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Inside length

Inside width

Inside depth

Side frame width

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will the final tray be sealed or covered?

What type of product is going inside?

Do you need printing on the raised side frames?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Presentation and Shrink-Wrapped Kitting

Confectionery and bakery displays

The broad open window allows high product visibility on the shelf. The hollow side walls protect delicate pastries or chocolates from lateral crushing. An external clear shrink-film or sleeve secures the food and maintains hygiene.

Premium retail kits and cosmetics

The raised frame creates a shadow-box effect that elevates the perceived value of the items inside. The hollow ledges also provide a clean surface for printed branding right next to the product.

Fragile item buffering

Products that need shelf visibility but are sensitive to side impacts benefit from the hollow wall standoff. The folded frame absorbs bumps that would otherwise transfer directly to the primary product.

Shrink-wrapped multi-packs

The open top and rigid frame make this an excellent base for shrink-wrapped bundles of jars or bottles. The hollow sides keep the items grouped tightly while allowing shoppers to see the labels.

Bakery, Food Production, and Promotional Kitting

Retail and point-of-sale

Store environments benefit from the clean presentation. The tray sits flat on the shelf, framing the goods while keeping them contained.

Bakery and food production

Food producers use this tray to balance hygiene and visibility. The tray provides the structural base and frame, while an external film seals the product.

Gift and promotional kitting

Brands building gift sets use the hollow walls to create a premium unboxing experience. The recessed floor and raised edges make the contents look deliberately staged rather than just dropped in a box.

When to Compare Simpler Display Trays

High-volume transit packing

If you just need to move cans or jars and do not need a premium display frame, a standard roll-over tray uses less corrugated board and folds much faster.

Full perimeter framing

If your presentation requires a hollow frame on all four sides instead of just two, you will need a different template. Be aware that four-sided frames generate massive central die-cut waste.

Close variants and lookalike dielines

The closest library neighbors include 0473, A11.01.03.00, A41.01.03.00. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Frame Width, Board Thickness, and Packing Speed

Frame width and window size

You control how wide the hollow side ledges are. A wider frame increases the lateral stiffness of the tray but reduces the visible display area for your product.

Board thickness limits

This design relies on double creases to form the hollow frame. Thick double-wall board will often bind, crack, or prevent the friction tabs from locking. Fine or medium flutes yield much cleaner folds.

External closure method

The tray top remains completely open. You must decide whether the final retail unit will use shrink film, a custom paperboard sleeve, or drop directly into a master shipper.

Packing line speed

Operators must erect the side walls, fold the frame inward, raise the end walls, and insert the locking tabs simultaneously. This requires two hands and slows down the packing line compared to machine-erected trays.

Frame Width, Base Sizing, and Print Surfaces

Frame width adjustment

The width of the hollow side panels can be expanded or narrowed. This directly changes the size of the display window and the lateral stiffness of the hollow walls.

Base panel sizing

The floor area can be sized to fit specific insert trays, product counts, or master carton dimensions. A larger base requires stiffer board to prevent sagging when lifted.

Print surface allocation

The hollow side ledges provide a continuous flat surface for branding right next to the product. You can adjust the frame width to create more room for text or logos.

Board and packing details

Blank sprawl and corner offcut waste

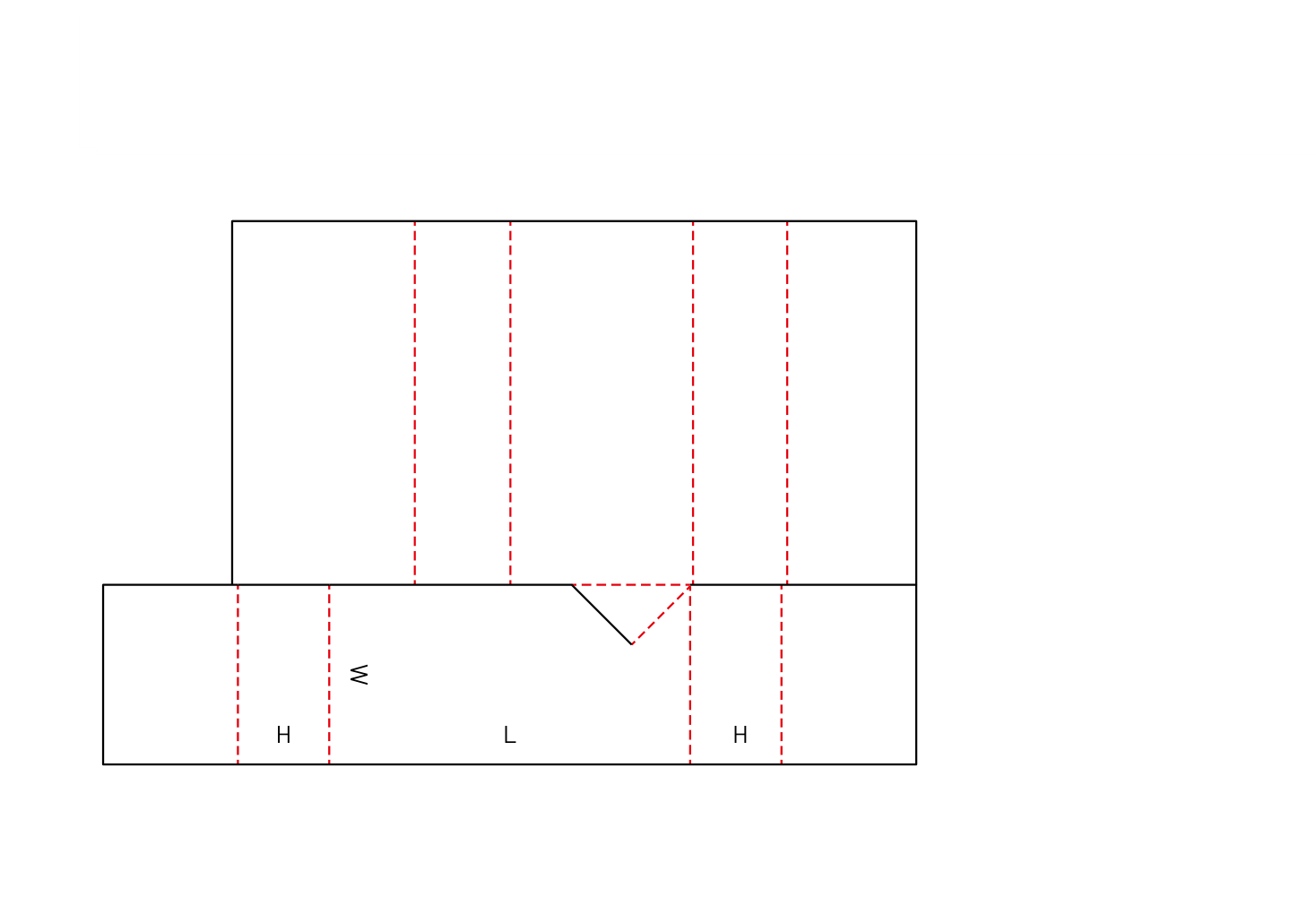

The extended side and end flaps required to build the hollow frame create a cross-shaped flat blank. This limits how tightly the template can nest on a sheet of corrugated board, which increases material scrap compared to simpler trays.

Manual assembly friction

The tab-and-slot locking mechanism relies entirely on friction. If the board is too thick or the slots are too narrow, the tabs will release and the frame will unfold.

Additional notes

Shrink film tension and board bowing

If you plan to shrink-wrap the final tray, the board must be stiff enough to resist the film's tension. Weak board will bow inward and distort the display frame.

FAQs

Shipping and Route

Can this tray be shipped through parcel networks?

Not on its own. The open top exposes the product, and the friction locks may release under drop shock. Parcel delivery requires placing this tray inside a sealed master carton.

Production and Board

Can we use heavy double-wall board for extra strength?

It is highly risky. Thick board causes the double creases on the hollow side frames to bind. The friction tabs will also struggle to seat properly in the end-wall slots. Fine or medium flutes yield much cleaner folds.

Assembly and Packing

Does this tray require glue or tape to assemble?

No. The tray holds its shape using mechanical friction locks. Tabs from the side frames insert into mating slots on the vertical end walls.

Can this run on automated tray erectors?

No. The complex folding sequence and tab-in-slot locking require manual two-hand assembly.

Product Fit

What keeps the product from falling out?

The tray only provides a base and lateral boundaries. You must secure the product using an external shrink wrap, a tight-fitting sleeve, or a master carton.

Customization

How does the frame width affect the tray?

A wider hollow frame makes the side walls stiffer and provides more standoff protection. However, it shrinks the open window, leaving less visible area for your product.

Material

Why is board thickness so critical for this tray?

The hollow side frames rely on precise double creases. If the board is too thick, those creases will bind, the inner walls will crack, and the locking tabs will fail to reach their slots.

Storage

How is this tray delivered?

It ships flat to save space. Your packing team will need to manually fold and lock the side frames and end walls before loading the product.
