3D view
1 / 2

FEFCO 0482

Stepped-Side Display Tray

The stepped-side display tray, often called a stadium tray, is designed to keep products visible on retail shelves. It features a high back wall for branding and support, sloped sides, and a low front lip that gives shoppers an unobstructed view of the contents.

Because it prioritizes presentation over vertical stacking strength, this tray is assembled manually without tape or glue and must be packed inside a master carton for shipping.

Get a quote
  • Order custom samples, short runs, or production runs.
  • US-based. Nationwide service.
  • Nationally competitive pricing & delivery costs.
  • Available in a wide variety of configurations.

At a glance

  • Tiered side profile keeps products visible from the front
  • Assembles manually via 180-degree roll-over friction locks
  • Requires a master shipping carton for transit and palletizing

Common uses

  • Cosmetics and skincare counter displays
  • Confectionery and snack shelf-ready packs
  • Small electronics promotional kits
  • Trade show sampling

Get a quote

Or email us at info@herculeindustrial.com

Files (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail and Point-of-Sale Applications

Shelf-ready retail packaging (SRP)

The tray can be loaded with product, placed inside a standard shipping box, and pulled out directly onto the retail shelf. The low front lip allows immediate consumer access without store staff needing to cut or tear the packaging.

Countertop promotional displays

The high rear wall provides a natural billboard for branding or pricing, while the stepped sides keep small items contained without hiding them. It works well for temporary or seasonal promotions at the point of sale.

Multi-pack assortment presentation

For products sold in mixed sets, the tiered profile allows shoppers to see the variety of flavors or colors at a glance, rather than just the front row.

Trade show and event sampling

The open top and sloped sides make it easy for attendees to grab samples quickly. The mechanical friction locks keep the tray rigid even as the product is depleted throughout the event.

Product Categories and Merchandising

Cosmetics and personal care

Small, high-value items like jars, bottles, and tubes benefit from the tiered presentation. A fine-flute board allows for crisp, high-quality print that matches premium brand standards.

Confectionery and snack foods

For wrapped snacks or candy assortments, the open top encourages impulse purchases. The unglued assembly means the tray can be easily flattened for recycling after use.

Small electronics and accessories

Cables, chargers, and small tech accessories packaged in hanging boxes or small cartons can be organized upright, using the high back wall for support.

Packaged hardware and DIY parts

Small bagged items that are difficult to stack neatly can be corralled in the tray, keeping the retail aisle organized while maintaining full visibility of the parts.

When to Consider a Different Tray Style

Heavy pallet stacking without master cartons

If you need the tray itself to bear the weight of pallets, the stepped sides of this display tray will crush. Consider a standard full-height open tray, which provides uniform vertical columns for stacking.

Direct parcel shipping

The open top and sloped sides leave products exposed, and the friction locks can pop open under drop shock. If the package must travel through a courier network without an outer box, consider a sealed mailer or a folder with a locking lid.

Board, Print, and Packing Decisions

Board thickness and fold clearance

This tray relies on front and rear walls that roll over 180 degrees to trap the side flaps. Thick materials, like double-wall corrugated, will cause these hinges to crack and the locking tabs to fail. Fine flutes or standard single-wall boards are highly recommended for clean assembly.

Manual pack-bench assembly

The tray is shipped flat and erected by hand. Operators must fold the sides, roll the end walls over, and apply thumb pressure to seat the locking tabs into the base. It is not designed for high-speed automated tray erectors.

Master carton sizing for transit

Because the tray cannot bear top loads, the master shipping carton must be sized precisely. A loose fit allows the display tray to shift and potentially crush during transit.

Print surface and coating friction

The flat front, high rear wall, and stepped sides offer excellent billboard space for retail graphics. However, heavy high-gloss varnishes can reduce the friction of the locking tabs, so closure security should be tested if using slick coatings.

Adjusting the Display Profile

Front lip height

The height of the front wall can be adjusted to balance product visibility with retention. It must remain tall enough to securely house the locking tabs, but low enough to keep the primary product labels visible.

Carrying handles

Die-cut hand holes can be added to the rear or side walls to turn the display into a portable promotional kit or carry-out basket. This requires careful board selection to ensure the handle does not tear under the payload weight.

Lock tab clearance tuning

The width and depth of the locking tabs can be adjusted to match the exact board thickness. This ensures the tabs seat firmly without requiring excessive thumb pressure from the packing team.

Board and packing details

Die-cutting and blank footprint

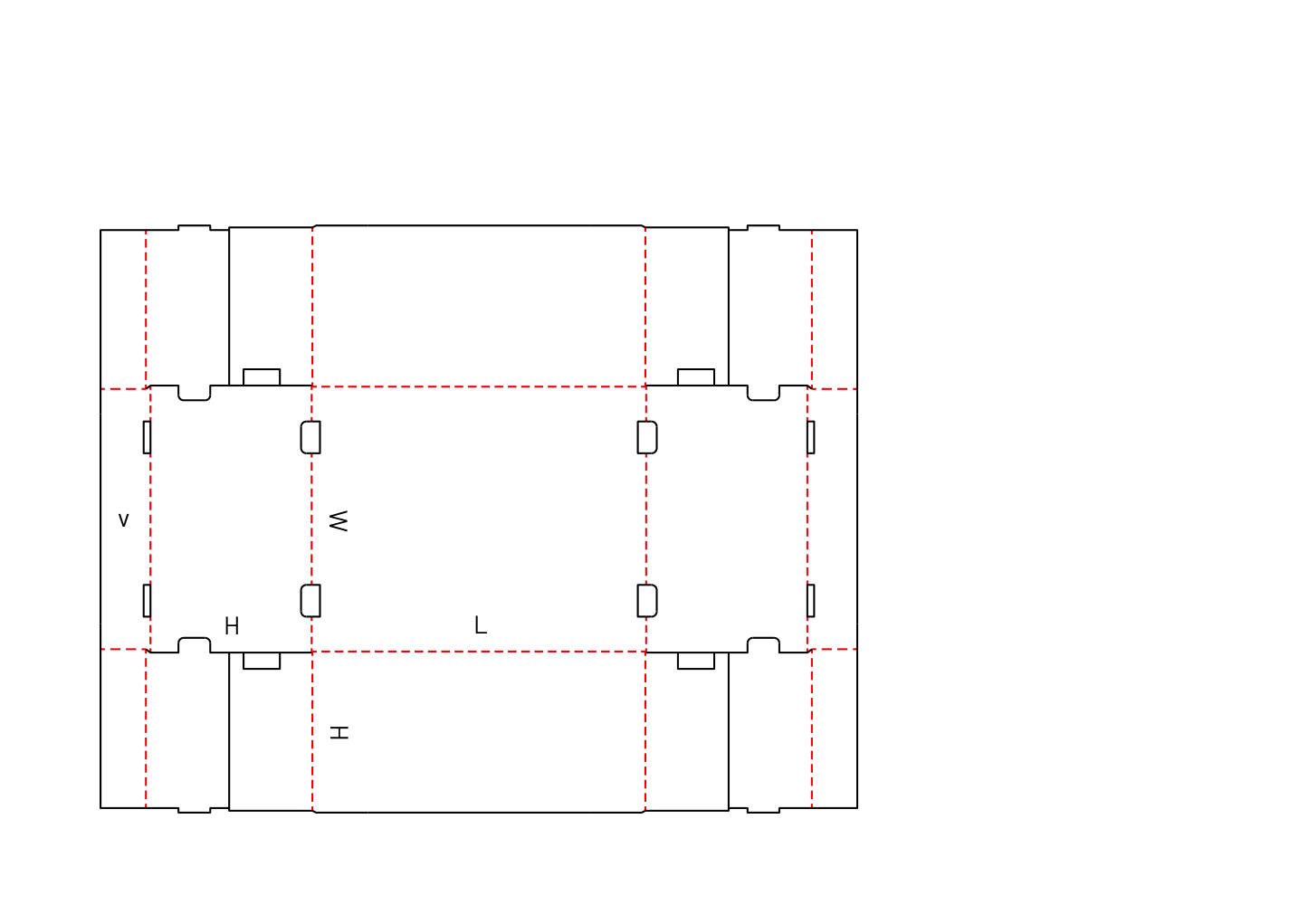

The flat layout of this tray is cross-shaped with extended roll-over flaps. This creates a large footprint that requires flatbed die-cutting and generates more offcut waste than a standard rectangular box.

Additional notes

Print surfaces and high-gloss coatings

The flat front, high rear wall, and stepped sides offer excellent billboard space for retail graphics. However, heavy high-gloss varnishes can reduce the friction of the locking tabs, so closure security should be tested if using slick coatings.

Related Trays and Displays

0422: Standard Open Tray

Consider this when you need uniform, full-height side walls for transit protection and stacking strength rather than a sloped retail display.

0484: Stackable Produce Tray

Consider this when you need an open tray that includes vertical stacking tabs for heavy agricultural or bulk loads.

FAQs

Shipping and Route

Can I ship this tray directly through a parcel courier?

The open top and stepped sides leave the product exposed, and the friction locks can pop open under drop shock. This tray must be packed inside a sealed master carton for transit.

Assembly

Does this tray require glue or tape?

It uses mechanical friction locks instead of adhesives. The front and rear walls roll over the side flaps and lock into slots in the base, holding the tray rigid.

Materials

Can we make this out of heavy-duty double-wall board?

Thick materials like double-wall board typically cause the hinges to crack and prevent the locking tabs from seating properly. The 180-degree roll-over folds require precise clearances best suited for single-wall or fine-flute boards.

Production

Is this compatible with automated tray erectors?

The complex roll-over walls and friction tabs are designed for manual pack-bench assembly. Automated lines usually require glued trays with simpler flap structures.

Design

Can we add a lid to this tray?

Because of the uneven, sloped side walls, adding a simple hinged lid is structurally difficult. If you need a closed presentation box, a different style of mailer or a separate slipcase is usually a better choice.

Customization

What product information is useful before starting a project?

Share the exact dimensions and weight of the products going inside, whether you need carrying handles, and how you plan to pack the master shipping cartons. This helps determine the right board thickness and front lip height.

Structure

How does the tray stay rigid as products are removed?

The 180-degree roll-over walls trap the corner dust flaps and lock into the base. This mechanical tension keeps the tray square and rigid even when it is completely empty.

Modifications

Can we add carrying handles for promotional kits?

Die-cut hand holes can be added to the rear or side walls. However, the board grade must be strong enough to support the entire payload weight without tearing at the handle.

Start with the dimensions and weight of the items you are displaying. This ensures the front lip provides enough visibility while keeping the products securely contained on the shelf.
