FEFCO 0502

Custom Corrugated Sleeves and Banderoles

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Open-ended continuous sleeve for sliding over trays or products
  • Material-efficient with zero slotting waste
  • Requires precise friction-fit tolerances to prevent slipping or binding

About this product

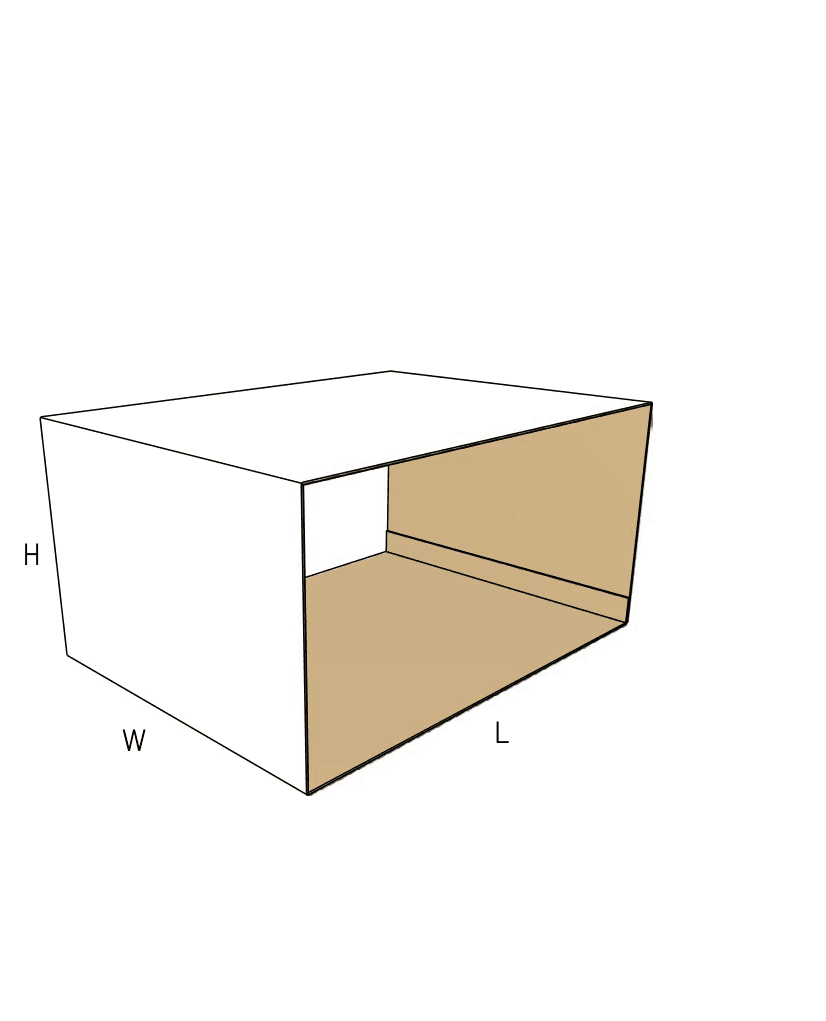

The corrugated sleeve is a continuous four-panel tube open at both ends. It slides over an inner tray to create a premium matchbox-style presentation, wraps around primary packaging as a printed retail banderole, or slides over a standard carton to add structural reinforcement.

Because it lacks end closures, it relies entirely on a precise friction fit with the inner product or tray. It ships flat and squares up instantly by hand at the packing station.

Common uses

  • Retail banderoles
  • Sliding matchbox outers
  • Structural reinforcement sleeves
  • Multi-pack bundling

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail Banderoles, Matchbox Outers, and Box Reinforcement

Retail banderoles

Wrapping a plain inner box with a high-quality printed sleeve adds a branded layer to the unboxing experience without printing the entire primary carton. This allows brands to use standard boxes for fulfillment while adding seasonal or promotional graphics via the sleeve.

Sliding matchbox outers

Pairing the sleeve with an open-top inner tray creates a two-piece sliding presentation pack. The sleeve acts as the primary display surface and keeps the inner tray securely closed.

Structural reinforcement

Sliding a heavy-duty sleeve over a standard shipping box adds double-wall protection to the side panels. This prevents side-wall bulging under heavy top loads without requiring an upgrade to the entire box inventory.

Product bundling

Grouping multiple identical items, such as hardware components or packaged goods, tightly together for retail shelves or warehouse kitting. The sleeve acts as a unifying band.

E-commerce Branding and Hardware Kitting

E-commerce and subscription brands

Sleeves provide a flexible branding layer. Instead of stocking custom-printed boxes for every campaign, operators can buy plain master shippers and apply specific printed sleeves for different product lines or seasons.

Electronics and hardware kitting

For kits containing cables, components, or manuals, a sliding tray and sleeve combination keeps small parts organized. The friction fit ensures the tray does not slide open accidentally during warehouse handling.

Industrial fulfillment

When specific shipments require extra stacking strength, a heavy-board sleeve can be added to the standard packing process. This reinforces the vertical columns of the inner box against top-down compression.

When to Compare Fully Enclosed Mailers or Vertical Rings

Standalone parcel shipping

If the package needs to ship through a courier network without an outer master carton, the open ends of a sleeve will fail. Compare a fully enclosed mailer or standard slotted box instead.

Vertical pallet containment

If you need a sleeve to sit vertically on a pallet and hold loose bulk goods, compare the vertical pallet ring (FEFCO 0501). The 0502 is oriented horizontally for sliding.

Fully enclosed telescopic packing

If you need a two-piece box that completely encloses the product on all six sides, compare a full telescopic slider (FEFCO 0504), which uses two intersecting sleeves.

Close variants and lookalike dielines

The closest library neighbors include 0501, 0503, 0503a. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Friction Fit, Cutouts, Board, and Print Finish

Friction fit and clearance

The sleeve must be sized precisely to the outer dimensions of the inner tray. Too tight, and the board will crush during insertion; too loose, and the sleeve will slip off during handling. Testing a physical sample with the actual product helps verify the sliding action.

Thumb notches and cutouts

Adding half-moon cutouts makes it easier for the end user to grip and pull the inner tray. However, this changes the production route from simple inline scoring to flatbed die-cutting, which makes more sense for higher-volume repeat programs.

Board grade and flute profile

Fine flutes provide a smooth surface for retail printing and fold cleanly. Heavy double-wall boards offer excellent reinforcement but create bulky flat stacks and may require pre-breaking the creases for easier hand assembly.

Print surface and finish

Because the sleeve acts as the primary retail face, the choice of print method and protective coating matters. High-friction sliding can scuff standard inks, so a protective varnish or laminate is often necessary for tight-fitting matchbox styles.

Sleeve Depth, Windows, and Crease Preparation

Sleeve depth

The width of the panels dictates how much of the inner product is covered. A short depth acts as a narrow belly band, while a full depth covers the entire inner tray.

Display windows

Cutouts can be added to the main panels to reveal the product inside. This requires a flatbed cutting process and reduces the overall compression strength of the sleeve, so board grade may need an upgrade.

Pre-broken creases

For heavy double-wall reinforcement sleeves, the factory can pre-break the score lines. This makes the flat sleeve much easier for packing operators to square up by hand without fighting the stiff board.

Board and packing details

Flat delivery and storage

Sleeves are glued at the factory and delivered flat. Because they have no complex flaps, they stack very densely, saving warehouse space before use.

Print panel orientation

When planning artwork, consider which panel will host the manufacturer's glue joint. The joint is typically placed on a less visible face or the bottom panel to keep the primary display faces clean.

Glue Flap Placement Variations

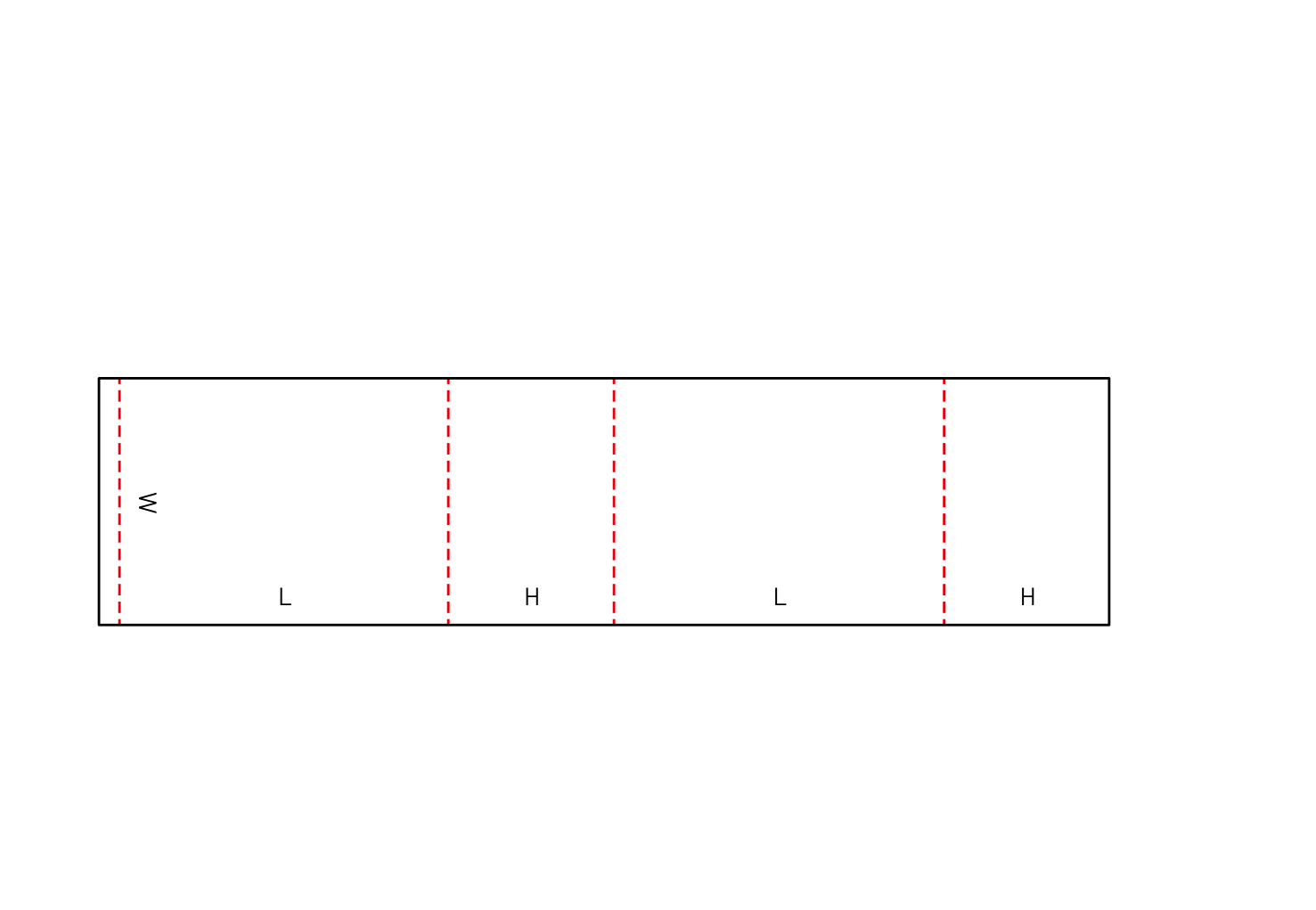

Glue flap placement (0502 vs 0502a)

The factory glue joint can be attached to either the length or height panel. This is primarily a manufacturing adjustment to accommodate different machine widths or to hide the seam on a specific face of the final package.

Additional notes

Print panel and scuff risk

Because the sleeve slides tightly over an inner tray, the inside faces experience friction. If you require internal printing, discuss scuff-resistant finishes to prevent ink transfer during assembly.

Related Sliding and Telescopic Packaging

0503a: Slide Type Box (WHL)

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

FAQs

Product fit or inserts

Can this sleeve be used as a shipping box on its own?

Because both ends are completely open, it cannot contain loose items during transit. It must be paired with an inner tray, wrapped around a product, or placed inside a master shipper.

How do I ensure the sleeve fits my existing box?

The internal dimensions of the sleeve must account for the exact outer dimensions of your inner box, plus a small clearance allowance. We recommend testing a physical sample with your actual product to verify the sliding friction.

Quantity or production path

How do thumb notches change the manufacturing process?

A plain straight-edged sleeve can often be produced on continuous inline equipment. Adding a thumb notch or display window requires a flatbed cutting process, which shifts the production route and is typically better suited for established, repeat retail programs rather than quick prototypes.

Route/shipping

How is the sleeve assembled for packing?

The factory glues the joint and delivers the sleeve flat. At the packing station, the operator simply pushes the folded edges inward to square it into a tube, then slides it over the product.

Print/finish

Which board profiles fit retail banderoles?

Fine flutes or solid folding carton board are typically chosen for retail banderoles. They provide a smooth surface for high-quality printing and fold cleanly around the inner product.

Route/shipping

Will the sleeve slip off during handling?

If the friction fit is too loose, the sleeve can slide off. For heavy items or retail displays, clear wafer seals or shrink wrap are sometimes added to secure the sleeve to the inner tray.

Can a sleeve reinforce a heavy master carton?

Sliding a heavy-duty corrugated sleeve over a standard shipping box adds a second layer of board to the side panels, increasing vertical stacking strength for heavy pallet loads.

Print/finish

How do we prevent ink from scuffing when sliding the sleeve?

Because the sleeve relies on a tight friction fit, the inside faces rub against the inner tray during assembly. Applying a scuff-resistant varnish or laminate helps protect the printed graphics from transferring or scratching.
