FEFCO 0503

Corrugated Sliding Sleeves and Banderoles

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Open at both ends; requires an inner tray or product for containment
Delivered flat and squared up instantly at the packing station
Highly efficient rectangular blank with zero slotting waste

About this product

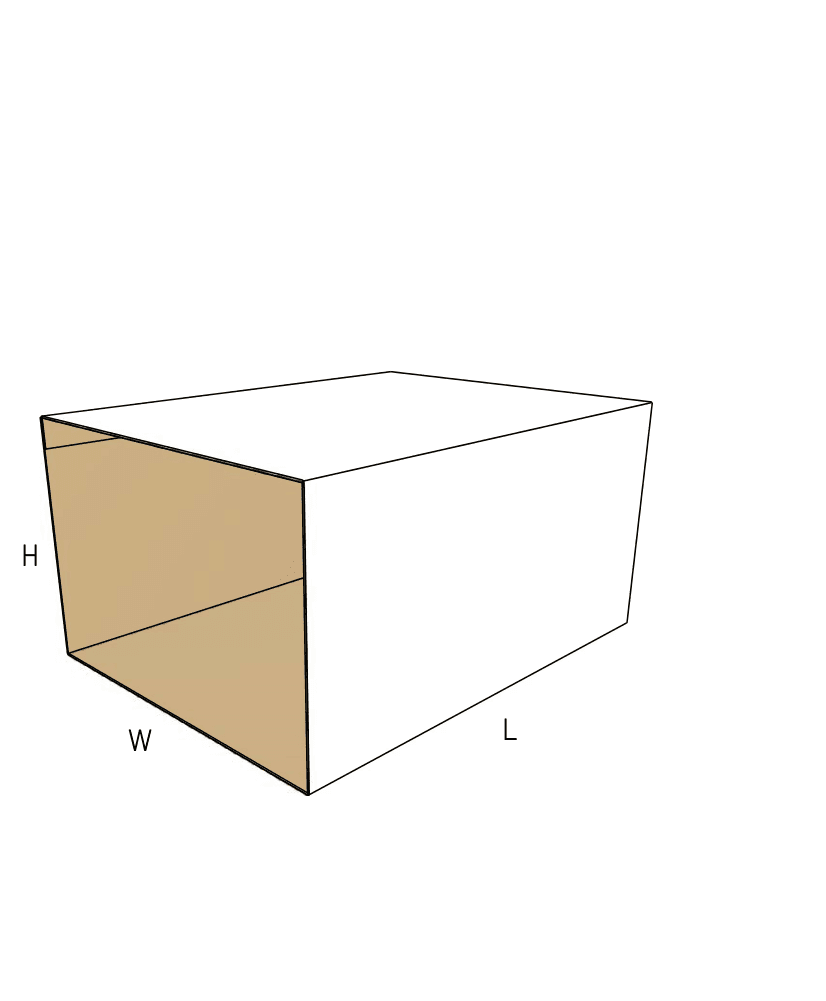

The sliding sleeve is a continuous four-panel tube open at both ends. Delivered flat and squared up by hand, it slides over an inner tray or primary package to create a premium, matchbox-style unboxing experience.

Because it lacks top and bottom flaps, it never functions as a standalone shipping box. Instead, it acts as a printed retail banderole, a protective slipcase, or a structural reinforcement layer for a separate base container.

Common uses

Retail slipcases
Transverse banderoles for branding
Reinforcement sleeves for heavy trays

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What will this sleeve slide over?

Do you need any cutouts in the sleeve?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Primary uses for corrugated sliding sleeves

Retail slipcases

Paired with a folder-type tray to create a two-part sliding presentation. The sleeve provides a continuous canvas for branding while keeping the inner tray securely closed.

Transverse banderoles

Sliding over a plain primary box to add a high-quality print surface or tamper evidence. This allows teams to upgrade unboxing presentation without printing the entire master carton.

Tray reinforcement

Slipped over a heavy-duty base to double the side-wall thickness. This prevents the inner tray from bowing outward under heavy lateral loads.

Multi-component kitting

Bundling multiple smaller inner boxes together into a single unit. The sleeve holds the separate components securely without requiring a fully enclosed master carton.

Retail and industrial packing situations

E-commerce and retail brands

Teams selling premium goods use the sleeve to slow down the unboxing process. The sliding motion builds anticipation, and the flat panels offer uninterrupted space for graphics.

Industrial kitting

Parts distributors use heavy-duty sleeves to bundle multiple smaller boxes or secure loose components inside a master tray before palletizing.

Subscription box fulfillment

Operations sending monthly curated goods use the sleeve over a standard tray to refresh the unboxing presentation without changing the base packaging.

When to evaluate other sleeve styles

Need a complete sliding set

If you need both the inner tray and the outer sleeve designed together, look at the two-piece telescopic slider box. It provides the complete matched set.

Need vertical pallet containment

If you are building a retaining wall for a heavy pallet load, compare the vertical pallet ring. It is oriented vertically to maximize stacking strength.

Close variants and lookalike dielines

The closest library neighbors include 0502, 0501, 0502a. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board, fit, and production choices

Friction fit and board caliper

The sleeve must slide smoothly without binding or falling off. This requires exact clearance calculations based on the specific board thickness of both the sleeve and the inner tray. Fine flutes generally provide a more predictable sliding action than heavy double-wall board.

Production route and cutouts

A plain rectangular sleeve can often be produced on a rotary slitter and scorer. Adding thumb notches, display windows, or angled cuts shifts the production route to a flatbed die-cutter.

Flute direction and stacking

Because the sleeve is extruded along its length, the flutes naturally run horizontally when the sleeve is laid flat. This provides excellent rigidity against bowing during insertion, but very poor vertical stacking strength if used as a standalone load-bearing piece.

Surface finish and sliding action

Heavy varnishes, slick coatings, or litho-laminates change the surface friction. A sleeve that fits perfectly in raw kraft board might slide off too easily if a slick coating is applied.

Modifications for slipcases

Thumb notches

Adding half-moon cutouts to the open ends makes it easier for the end user to grip and pull the inner tray. This improves the opening experience but changes the manufacturing route.

Display windows

Cutting an aperture into the top or side panel allows the inner product to remain visible while still secured by the sleeve.

Pre-broken scores

For applications requiring heavy double-wall board, the flat sleeves can be difficult to square up by hand. Pre-breaking the creases during manufacturing reduces resistance at the packing station.

Board and packing details

Friction fit testing

A successful sliding sleeve depends entirely on the friction fit. Testing a physical sample with the actual inner tray ensures the unboxing experience matches expectations before full production.

Manufacturer joint variations

0503a

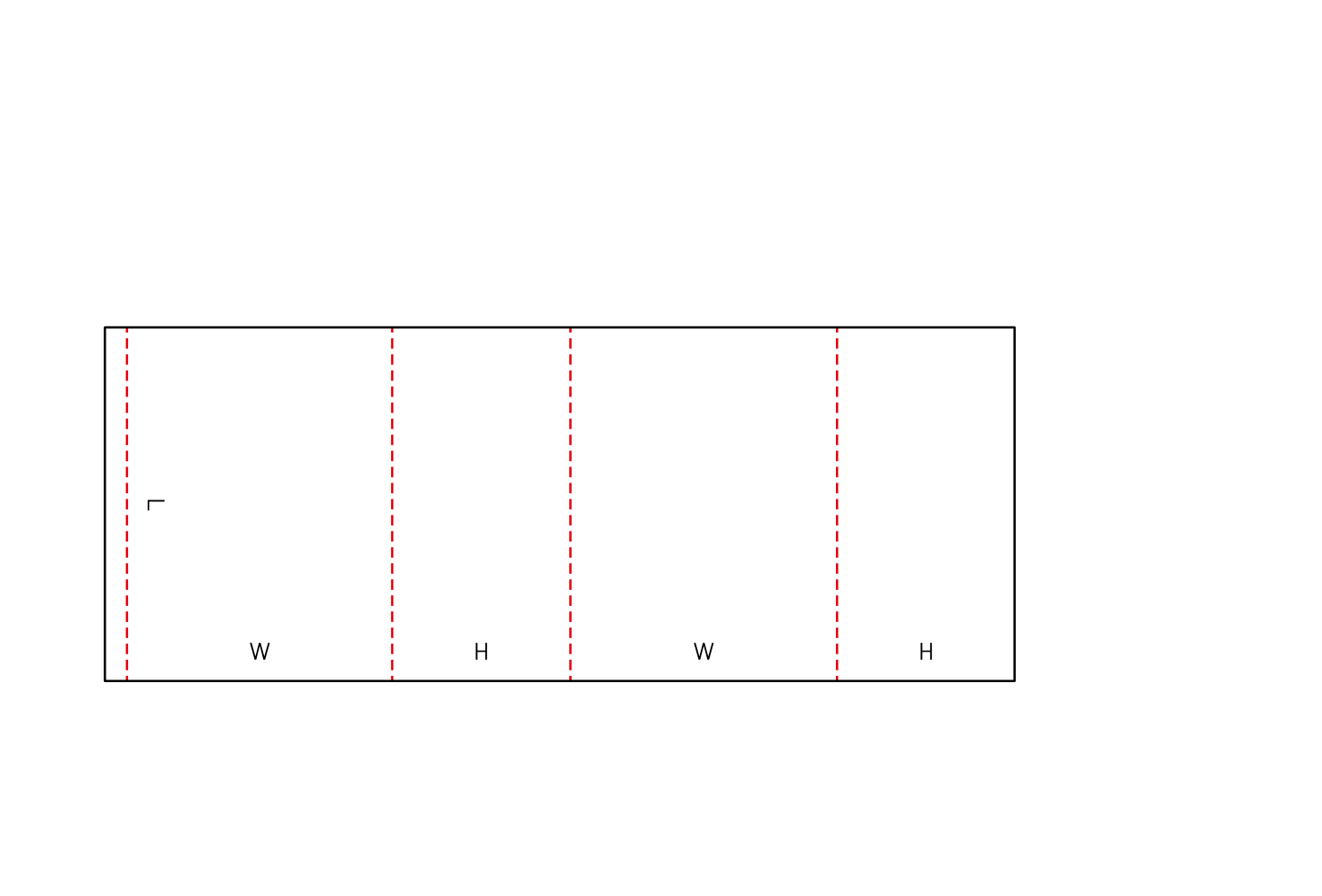

The standard 0503 places the glued seam on the width panel. The 0503a variant moves the glue flap to the height panel. This choice usually depends on folder-gluer width limits or a brand's preference for hiding the seam on a specific face.

Additional notes

Pre-breaking scores for heavy board

If the application requires heavy double-wall board, the flat sleeves can be difficult to square up by hand. Pre-breaking the creases during manufacturing reduces resistance at the packing station.

FAQs

Shipping and route

Can I ship a sliding sleeve in the mail?

Not on its own. Because both ends are completely open, the inner tray will slide out during transit. Parcel shipping requires either an outer master carton, shrink wrap, or heavy-duty tamper-evident tape securing the sleeve to the tray.

Fit and assembly

How do we make sure the inner tray doesn't get stuck?

Friction fit depends heavily on board thickness. Specific clearance allowances must be calculated based on the exact flute profile chosen. Testing a physical prototype with the actual inner tray is a necessary step before running a full production order.

Production and cutouts

Does adding a thumb notch change the production method?

Yes. A plain rectangular sleeve can run on efficient rotary equipment. Adding a thumb notch or window forces the job onto a flatbed die-cutter.

Print and finish

Will a glossy finish affect how the sleeve slides?

Heavy varnishes, slick coatings, or litho-laminates change the surface friction. A sleeve that fits perfectly in raw kraft board might slide off too easily if a slick coating is applied. Internal clearances must be adjusted if a coated finish is specified.

Packing labor

How is the sleeve assembled at the packing bench?

The sleeve arrives knocked down flat with the seam already glued. The packer simply pushes the opposite folded edges toward the center to square the tube, then slides the inner tray through the opening.

Board choice

Can this be made from heavy double-wall board?

While possible, heavy double-wall board increases the risk of the inner tray binding. It also makes the flat sleeve harder to square up by hand. Fine flutes generally provide a much smoother sliding action.

Standalone use

Can the sleeve hold products without an inner tray?

No. The sleeve is completely open at both ends. It relies entirely on an inner tray, a separate base container, or a solid block-like product to hold anything securely.

Orientation

Can I stack pallets of these sleeves flat?

If the sleeves are laid flat, the flutes run horizontally, offering very poor vertical crush resistance. They are not designed to bear heavy top loads unless supported by a rigid inner tray.
