Heavy Hardware, Retail Presentation, and Linear Goods
Heavy hardware and dense parts
The double-wall overlap provides substantial lateral crush resistance. This makes it a strong fit for dense industrial components that would bulge a standard single-wall box.
Premium retail presentation
The smooth, linear sliding action creates a controlled reveal that slows down the unboxing experience for high-end goods.
Linear extruded parts
When configured concentrically to leave the ends open, it acts as a heavy-duty bundling sleeve for long, rigid items like metal extrusions or architectural hardware.
High-value tool kits and instruments
The rigid outer shell protects delicate instruments, while the sliding inner tube can be fitted with custom foam or corrugated inserts to hold individual components securely.
Manual Kitting, Retail Display, and Industrial Bundling
Manual kitting operations
This box requires an operator to square two separate tubes, load the inner tube, and slide them together. It fits manual bench assembly well but slows down automated packing lines.
Retail shelf display
The flat outer panels provide uninterrupted printable surfaces for branding, while the rigid double-wall construction allows the boxes to be stacked vertically on retail shelves without crushing.
Industrial component bundling
For long metal or plastic parts, the concentric open-ended configuration groups multiple items tightly together, preventing them from shifting or scratching each other during palletized transport.
When to Consider a Different Sliding Box
Faster top-loading requirements
A tray-and-sleeve uses an open-top inner tray instead of a fully enclosed inner tube. This makes it easier to drop products in from above before sliding the sleeve over.
Reducing manufacturing setups
A roll-end tray with a tuck top is a single piece of board. It lacks the sliding reveal but cuts the converter setup time in half.
Board, Friction, and Mating Direction
Board caliper and friction tolerance
The entire closure relies on the friction between the inner and outer tubes. Thinner flutes provide a smooth, consistent slide. Heavy double-wall board increases the risk of the tubes binding or jamming during insertion.
Surface finishes and slip risk
Heavy varnishes or slick coatings reduce surface friction. If the box is too slick, the inner tube may slide out under its own weight during transit.
Mating direction

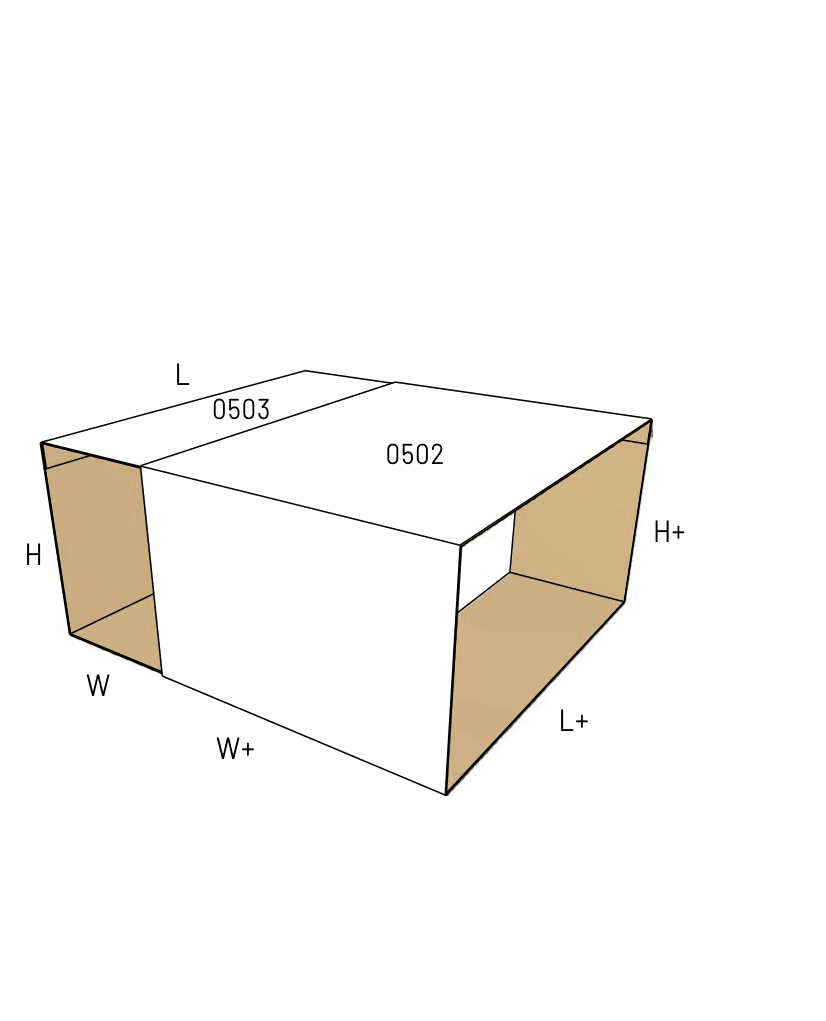

Depending on the exact dimensions and folding axes, the two tubes can slide together along the same axis to leave the ends open, or mate perpendicularly to cap each other's open ends and form a fully enclosed container.
Pre-breaking scores for heavy board
When specifying a heavy board grade for maximum protection, the converter may need to pre-break the crease lines so the tubes square up easily by hand without bowing the side panels.
Thumb Notches, Windows, and Inserts
Thumb notches for access
Adding half-moon cutouts to the outer sleeve makes it much easier for the end user to grip and pull the inner tube. This shifts the production route from simple rotary scoring to flatbed die-cutting.
Display windows
Cutting a window into the outer shell allows consumers to see the product inside without opening the package. Like thumb notches, this requires flatbed die-cutting.
Custom inner inserts
The inner tube can be fitted with custom corrugated partitions or foam pads to hold multiple components in place, preventing them from shifting during the sliding action.
Board and packing details
Two-pass manufacturing route

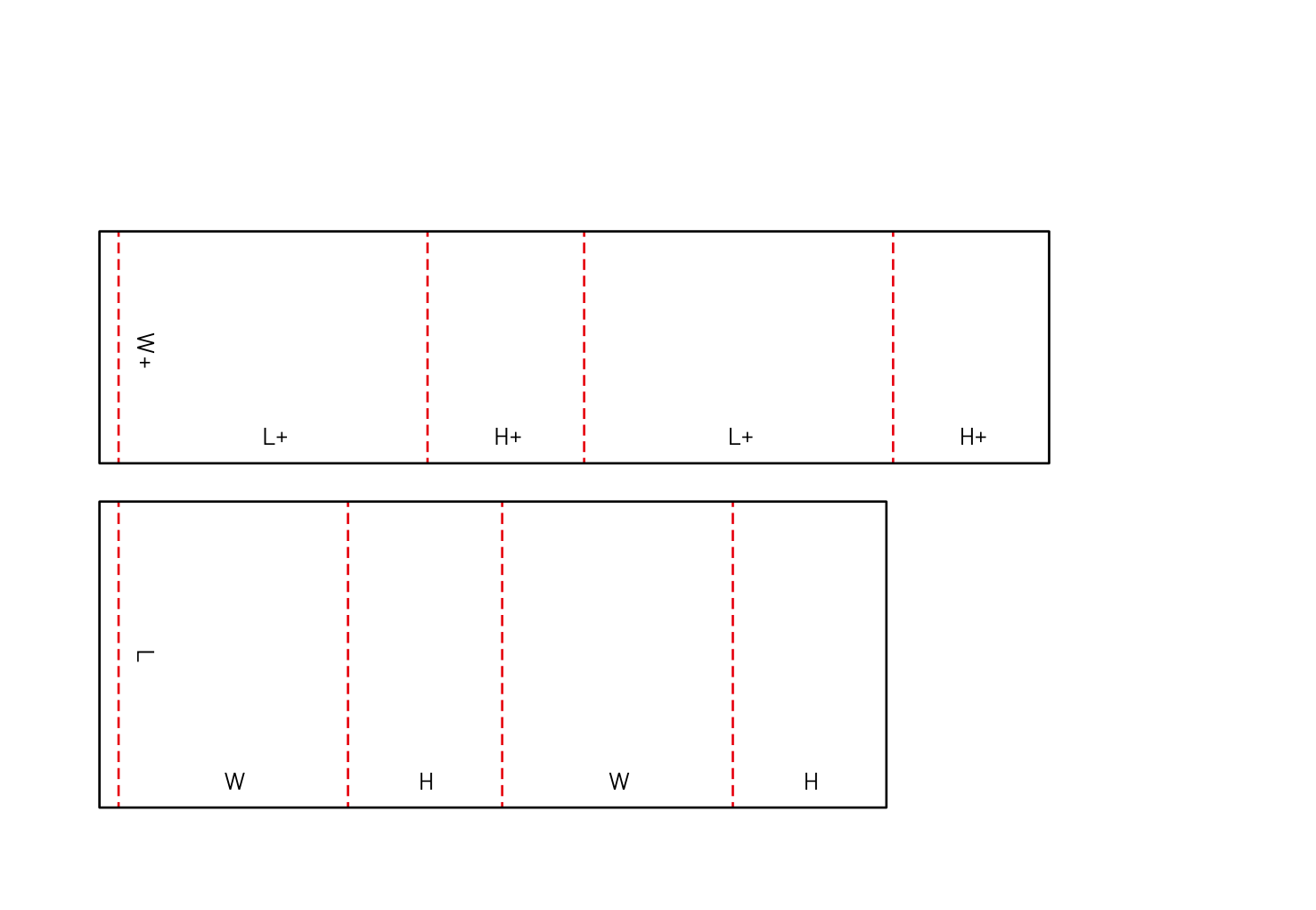

Because the inner and outer tubes are entirely separate components, they require two distinct runs through the folder-gluer. This means managing two inventory items for every finished box and planning for two machine setups.
Mating Configurations: Concentric vs. Orthogonal
Concentric vs. Orthogonal Mating
Depending on the exact dimensions and folding axes, the two tubes can slide together along the same axis to leave the ends open, or mate perpendicularly to cap each other's open ends and form a fully enclosed container.
Additional notes
Pre-breaking scores for heavy board
When specifying a heavy board grade for maximum protection, the converter may need to pre-break the crease lines so the tubes square up easily by hand without bowing the side panels.
Related Sliding and Telescopic Packaging
FAQs
Shipping and Closure
Can this box ship through parcel networks without an outer seal?
Friction fit alone is rarely secure enough for rough transit. Vibration or drops can cause the inner tube to slide open. Parcel shipping generally relies on an outer seal, such as a clear wafer seal, strapping, or shrink wrap.
Manufacturing and Cost
Why does a two-piece sliding box cost more to produce than a standard folding carton?
While the rectangular blanks use corrugated board very efficiently, the inner and outer tubes must be glued on separate machine runs. You are paying for two manufacturing setups and handling two separate components at your packing bench.
Board and Fit
What happens if we change the board thickness later?
The clearance allowance between the inner and outer tubes is precisely calculated based on the exact board thickness. If you switch to a thicker or thinner board without adjusting the template, the inner tube will either bind and jam, or become too loose and fall out.
Assembly
Can this box be erected on automated packaging lines?
Standard case erectors struggle with the linear sliding insertion of two tight-fitting tubes. This style is almost always squared and assembled by hand at a manual packing station.
Design Options
Can we add windows to the outer sleeve?
Yes, but adding windows or thumb notches means the blanks must be cut on a flatbed die. Simple rectangular tubes without cutouts can often be produced more economically using inline rotary scoring.
Friction Control
How do heavy varnishes affect the sliding action?
Glossy coatings and heavy varnishes reduce the surface friction between the two tubes. If the surfaces become too slick, the inner tube may slide out under its own weight, requiring tighter tolerances or an outer seal.
Tooling
Does this package require flatbed die-cutting?
If you keep the design as two simple rectangular tubes, it can often be produced without a flatbed die using inline rotary scoring. Adding thumb notches, windows, or angled cuts will shift the job to a flatbed die.
Mating
What is the difference between concentric and orthogonal mating?
Concentric mating means the tubes slide together along the same axis, leaving the ends open like a sleeve. Orthogonal mating means they slide together perpendicularly, so the solid walls of one tube cap the open ends of the other, forming a fully enclosed container.
