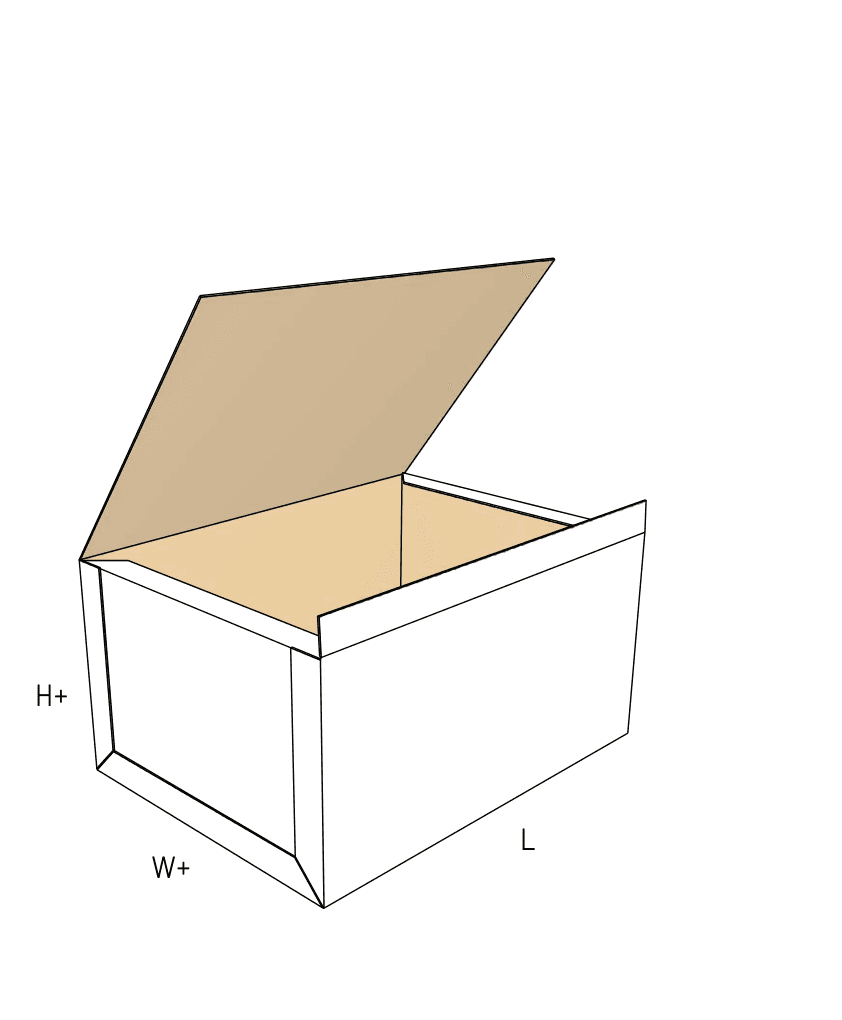

FEFCO 0601

3-Piece Bliss Box with Hinged Lid

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Three-piece construction requires permanent stitching or gluing before use
  • Rigid end columns deliver exceptional vertical stacking strength for heavy loads
  • Hinged lid closes over the end-flap structure and needs an external seal for transit

About this product

Heavy industrial parts and dense agricultural loads require packaging that will not crush under pressure. The three-piece Bliss box with a hinged lid (FEFCO 0601) delivers extreme vertical stacking strength by using separate, rigid end panels.

Because the main shell and end pieces must be permanently stitched or glued together before loading, this design trades manual packing speed for exceptional structural support. Unless you run an automated Bliss forming machine, joining the three pieces by hand requires dedicated fixtures and labor.

Common uses

  • Agricultural field packing with portable Bliss machines
  • Dense industrial hardware transit

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Heavy-duty transit and bulk packing

High-stacking agricultural and bulk transit

The solid bottom and reinforced corners handle dense, heavy loads like field-packed produce or bulk hardware. Because the load transfers directly through the rigid end pieces, the box resists crushing under heavy pallet weight.

High-volume automated fulfillment

When paired with an automated Bliss forming machine, the three-piece design offers excellent corrugated board yield. The flat blanks nest tightly on the cutting die, improving material usage compared to large single-piece boxes of the same volume.

Dense hardware and metal components

Heavy metal parts easily break through taped bottom seams. The permanently joined base of a three-piece Bliss box contains shifting weight safely during transit.

Reusable internal transport bins

Because the stitched corners resist racking and tearing, these boxes often serve as returnable work-in-progress bins moving between different manufacturing stations.

Industrial manufacturing and agriculture

Industrial parts and hardware distributors

Metal components and dense hardware easily blow out the bottom of taped boxes. The permanently stitched or glued base of a Bliss box contains shifting weight safely during transit.

Agricultural field packing

Portable Bliss machines can erect these boxes directly in the field. The rigid structure protects heavy produce from compression damage during palletized transport to processing facilities.

High-volume fulfillment centers

Operations equipped with automated Bliss forming machinery benefit from the flat delivery state. The separate blanks nest tightly on pallets, saving warehouse space before the boxes are erected on the packing line.

When to choose a one-piece folded alternative

Manual packing without dedicated assembly fixtures

If your team packs by hand and lacks stitching equipment or alignment fixtures, assembling three separate pieces is slow and prone to skewing. Compare a one-piece roll-end tray (FEFCO 0427) for a similar hinged-lid style that folds together using friction locks.

Parcel shipping without outer tape

If your fulfillment line relies on self-locking closures to avoid taping, the friction-fit tuck lid will not handle a courier network alone. Compare a self-sealing mailer or a design with locking side tabs if you want to eliminate tape.

Close variants and lookalike dielines

The closest library neighbors include 0602, 0610, 0607. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Assembly method, joint type, and board clearance

Stitching versus hot-melt gluing

The end panels attach to the main shell via inward-folding flanges. You must decide whether these joints will be wire-stitched (stapled) or glued. Stitching provides high shear strength for heavy loads, while glue offers a continuous seal but requires specific compression time.

Board thickness and corner interference

Heavy single-wall board is the frequent choice. If you specify double-wall board for extra protection, the overlapping flanges inside the corners become much thicker, which can interfere with your internal payload clearance.

Flange attachment direction

The attachment flanges on the end pieces typically fold inward to sit inside the main shell. This presents a clean outer print surface and prevents edges from catching on other boxes, but you must account for the internal space these flanges consume.

Delivery state and assembly labor

Shipping fully assembled three-piece boxes consumes massive freight volume. You must decide whether your facility has the labor and fixture benches to assemble flat blanks on-site before loading.

Flange styles and corner overlaps

Flange corner profiles

The attachment flanges on the end pieces can be cut with butted, mitered, or offset corners. Mitered corners prevent corrugated material from bunching up where the three planes intersect, ensuring the box stays square during assembly.

Tuck flap depth

The front tuck flap relies on friction to stay closed. A longer flap increases retention but can bind against the side flanges during closure. We adjust this depth based on your board choice and expected transit conditions.

Dust flap additions

We can add top dust flaps to the end panels. These fold inward beneath the main hinged lid, providing extra support against top compression and keeping debris away from the payload.

Board and packing details

Parcel shipping and outer seals

The hinged lid and tuck flap keep dust out and secure the contents for palletized freight. However, the friction lock opens easily under the rough handling of a mixed courier network. Parcel shipments rely on outer tape or strapping.

Flange and closure variants

Flange placement variations

While the 0601 places the attachment flanges on the end pieces, related Bliss styles move the flanges to the main wrapper or alter the top closure. We route these choices based on your available assembly equipment.

Additional notes

Production routing for three-piece designs

Producing this box requires separate cutting passes for the main shell and the end pieces. While the flat blanks nest tightly to improve board yield, the production run involves managing three distinct shapes.

Related rigid and folding containers

FAQs

Assembly and Production

Can we run this box through a conventional folder-gluer?

Conventional continuous linear folder-gluers cannot process three-piece designs. the package needs a specialized Bliss forming machine or manual fixture benches with staple guns or hot-melt applicators.

Do the end panels attach to the inside or outside of the box?

The attachment flanges typically fold inward and sit on the inside of the main shell. This presents a clean outer print surface and prevents the edges from catching on other boxes during transit.

Shipping and Route

Is this box safe for individual parcel shipping?

The rigid body handles impacts well, but the friction-fit tuck lid opens easily during rough handling. You must apply outer tape or strapping if shipping it as a standalone parcel.

Product Fit

How does board thickness affect the internal dimensions?

Because the end panel flanges fold inward, they consume internal space. If you upgrade from single-wall to double-wall board, those overlapping corners become significantly thicker. We adjust the outer blank dimensions to maintain your required internal clearance.

Print and Finish

Can we print across the entire outer surface?

Because the box ships as three flat blanks, all outer-facing panels run easily through standard flexographic printers before assembly.

Ordering and Quotes

Should we order these flat or pre-assembled?

Shipping fully assembled Bliss boxes consumes massive freight volume. We almost always ship the three pieces flat. Your facility must handle the final assembly before loading.

Assembly and Production

What happens if we try to assemble these by hand without a fixture?

Without a squaring fixture, aligning three separate pieces while applying glue or staples often results in a skewed box. A skewed box will not stack safely and the hinged lid may bind when closing.

Product Fit

Why choose a three-piece box instead of a regular slotted carton?

A three-piece design provides continuous, unbroken vertical columns at the corners. This delivers far more stacking strength for heavy loads than a regular folded box where the corners are simply creased board.
