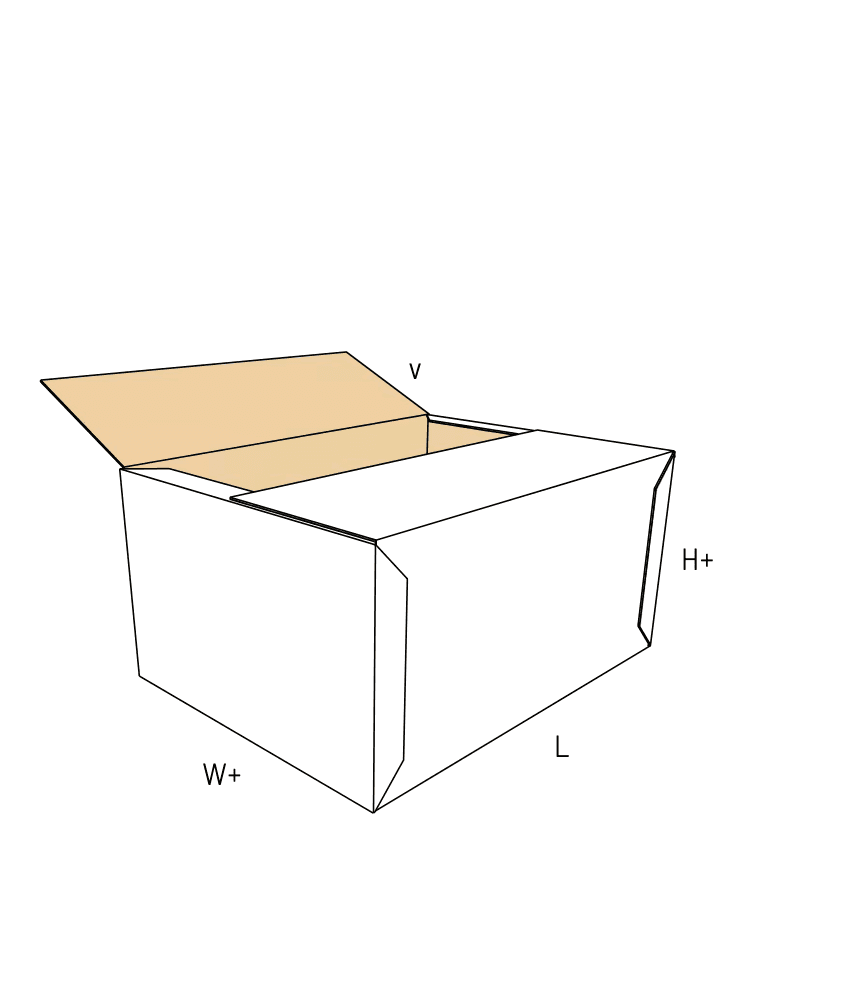

FEFCO 0605

3-Piece Bliss Box with Top Flaps

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Three-piece construction creates rigid corner columns
Requires permanent stitching or gluing before loading
Closes with four standard top flaps for tape or glue sealing

About this product

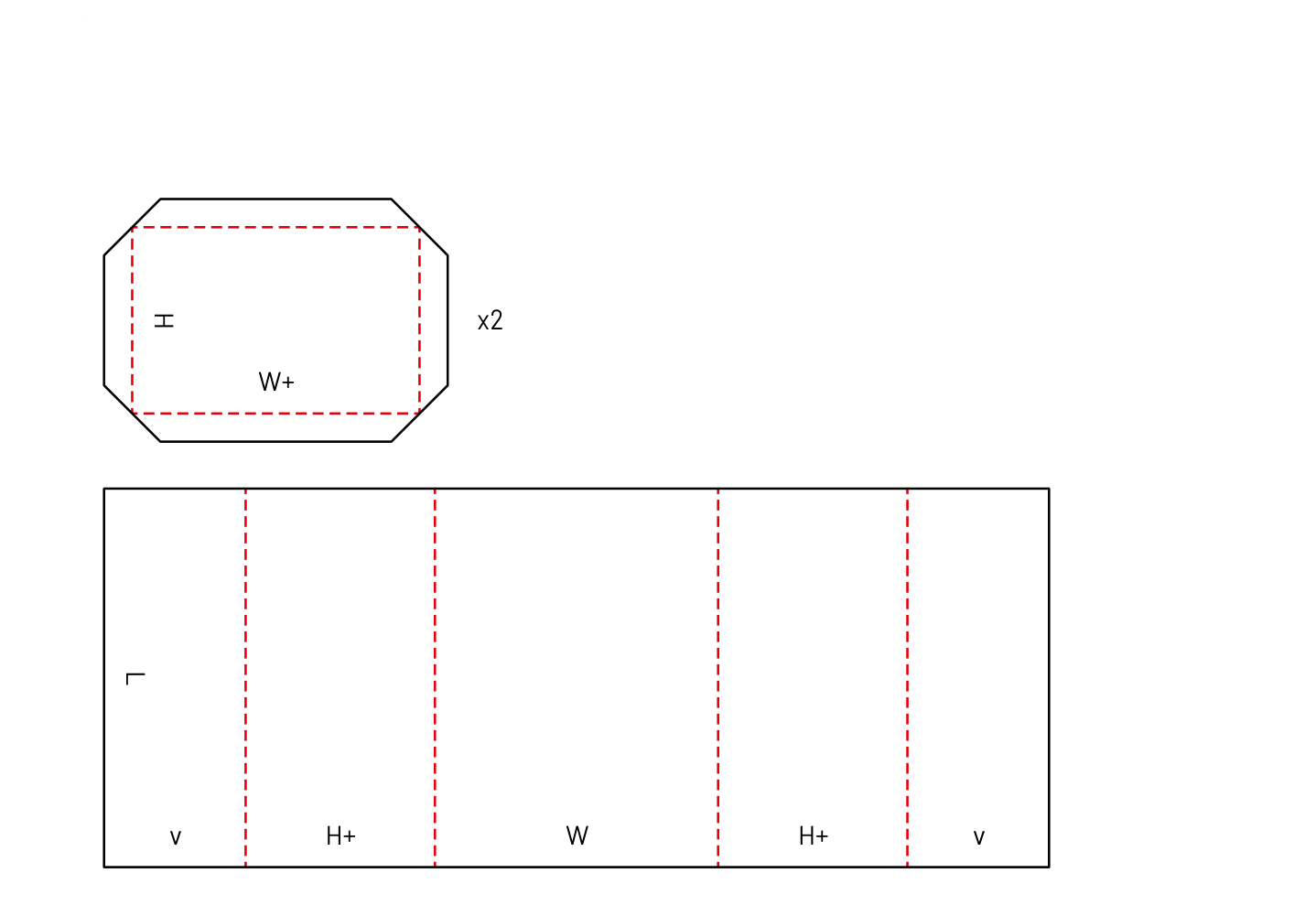

The 3-piece Bliss box is engineered for extreme vertical stacking strength. Instead of folding from a single sheet of corrugated board, it uses a main U-shaped body and two separate end panels. When these three pieces are permanently stitched or glued together, they create rigid corner columns that resist crushing under heavy pallet loads.

Once assembled, it closes with four standard top flaps just like a regular shipping box. The main tradeoff is assembly. This design offers superior strength and excellent material efficiency, but it requires dedicated forming equipment or fixture stations to join the pieces before packing.

Common uses

Agricultural field packing
Dense industrial hardware transit
High-volume automated fulfillment

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Inside length

Inside width

Inside depth

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What is the approximate weight of the packed box?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Products and packing jobs

Heavy industrial components

The rigid end panels support dense hardware and metal parts that would cause standard boxes to bulge or collapse under their own weight.

Agricultural bulk transit

Often erected on-site with portable formers, providing the burst resistance needed for field-packed produce traveling through rough supply chains.

High-stacking pallet loads

The continuous vertical planes transfer weight directly to the base, protecting fragile or heavy contents at the bottom of a stacked pallet.

Dense consumer liquids

Beverage and liquid case-packs rely on the reinforced corners to prevent bottom failure during transit and warehouse storage.

Operations using this box

High-volume fulfillment

Operations equipped with automated Bliss forming machinery benefit from the excellent material yield and rapid erection this design offers at scale.

Industrial manufacturing

Teams shipping dense hardware or bulk fasteners rely on the stitched corners to prevent bottom blowouts during transit.

Field packing operations

Agricultural teams use portable Bliss formers to assemble these boxes directly in the field, ensuring immediate protection for heavy produce.

When to consider a different box style

You lack specialized assembly equipment

If your packing line relies on quick hand-assembly without fixtures, a standard 1-piece shipping box (RSC) is much easier to erect, though it sacrifices some vertical strength.

You prefer a tuck-in lid

If you want the strength of a 3-piece base but want to avoid taping four top flaps, review the hinged-lid Bliss box.

Close variants and lookalike dielines

The closest library neighbors include 0608, 0607, 0610. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Decisions that shape the final box

Assembly method and delivery

You must decide whether you will receive these as flat blanks to form on your own equipment, or if you need them delivered pre-assembled, which significantly increases the shipping volume.

Joining technique

The corners can be wire-stitched or hot-melt glued. Stitching handles heavy loads well but requires a tear-resistant liner, while glue provides a continuous surface seal.

Board grade and thickness

While heavy single-wall board is standard, double-wall can be used for extreme loads. However, thicker board requires careful adjustment of the corner overlap to prevent interference.

Top closure method

Because the top features four standard flaps, you must plan for either automated case taping or hot-melt gluing after the product is loaded.

Template adjustments and options

Top flap tapers

The edges of the top flaps can be tapered slightly to prevent them from catching or clashing during automated closure.

Flange overlap direction

The corner attachment flaps can be designed to mount on the inside or outside of the end panels, depending on whether you need a perfectly smooth interior or exterior.

Flange width adjustments

The width of the corner attachment flaps can be expanded for stronger glue joints or reduced to save material, depending on the payload weight.

Board and packing details

Material yield advantage

Because the three pieces are cut as separate flat rectangles, they nest tightly on the corrugator bed. This produces far less scrap than a large single-piece box of the same volume, which can lower material costs for high-volume programs.

Additional notes

Stitching versus gluing

Wire stitching provides strong mechanical grip for heavy loads, while hot-melt glue offers a continuous surface seal. The choice depends on your forming equipment and payload.

FAQs

Assembly and packing

Can this box be assembled by hand?

Hand assembly is possible but slow. It requires a dedicated fixture to keep the three pieces square while stitching or gluing. It is generally meant for automated formers or dedicated assembly stations.

Closure

Does this box require tape?

Yes. While the body is permanently stitched or glued, the four top flaps require standard packing tape or adhesive to seal after the product is loaded.

Comparison

Why choose a 3-piece box over a standard 1-piece box?

The separate end panels act as rigid vertical columns, giving the box significantly higher stacking strength. It also uses corrugated board more efficiently, which can lower material costs at high volumes.

Shipping and delivery

How is this delivered?

It is typically delivered as flat blanks. You receive one main body and two end panels per box to save space, assuming you have the equipment to form them at your facility.

Materials

Can we use double-wall board for this design?

Yes, but the corner overlaps must be carefully calculated. Thick double-wall board can create interference where the attachment flanges meet the end panels.

Quoting

What product details help shape the pricing?

Share your internal dimensions, payload weight, and whether you plan to stitch or glue the corners. Most importantly, clarify if you have a Bliss former or need pre-assembled delivery.

Machinery

Can this run on a standard folder-gluer?

No. Because it consists of three separate pieces that must be joined at right angles, it cannot run through a standard straight-line folder-gluer. It requires specialized Bliss forming equipment.

Design

How does the top of this box close?

Once the three base pieces are joined and the box is loaded, it closes with four top flaps. This makes it look and function exactly like a standard shipping box from the top down.
