FEFCO 0616

Heavy-Duty Bliss Bins

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Three-piece construction requires permanent stitching or gluing before use
  • Continuous bottom floor eliminates center-seam failure for heavy parts
  • Rigid end panels provide strong vertical stacking support

About this product

This three-piece rigid container is built for high stacking strength and heavy payloads. It uses a continuous U-shaped floor and two separate end panels to create a durable open-top bin.

The main tradeoff is assembly. Because the three pieces must be permanently stitched or glued together before loading, this box requires dedicated forming equipment or fixture stations. It is not a quick-fold solution.

Common uses

  • Agricultural field packing
  • Industrial bulk parts
  • Work-in-progress manufacturing
  • Warehouse club bulk displays

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Heavy-Duty and Bulk Packing Applications

Agricultural field packing

The open top allows rapid filling of dense produce, while the rigid corners support high stacking in transit. This format is useful for field packing when erected via portable Bliss machines.

Industrial bulk parts

The continuous bottom floor ensures heavy metal or plastic components will not break through a taped center seam during lifting or transit.

Work-in-progress manufacturing

Teams moving heavy components between assembly stations benefit from the open top and rigid walls, allowing quick access while maintaining box strength.

Warehouse club bulk displays

For heavy retail environments, the open-top bin provides immediate product access while maintaining the vertical column strength needed for pallet stacking.

Industries Managing Dense Payloads

Manufacturing and assembly lines

Facilities moving dense hardware or machinery parts need packaging that will not bow or tear under concentrated weight.

High-volume agricultural operations

Farms equipped with automated Bliss formers can erect these bins rapidly, maximizing material yield compared to large single-piece trays.

Automotive parts distribution

Suppliers shipping heavy metal components require the continuous floor and reinforced corners to prevent bottom failure during lifting.

When to Consider a Single-Piece Alternative

Manual packing stations

If your pack station relies on hand-taping or standard folder-gluers, a three-piece Bliss box will bottleneck your line. Look at a standard RSC (FEFCO 0201) or a one-piece roll-end tray (FEFCO 0422).

Individual parcel shipping

The open-top 0616 requires an external lid or shrink wrap to handle individual parcel routing. If you need a self-contained shipper, evaluate the 0616a variant or a fully enclosed box.

Close variants and lookalike dielines

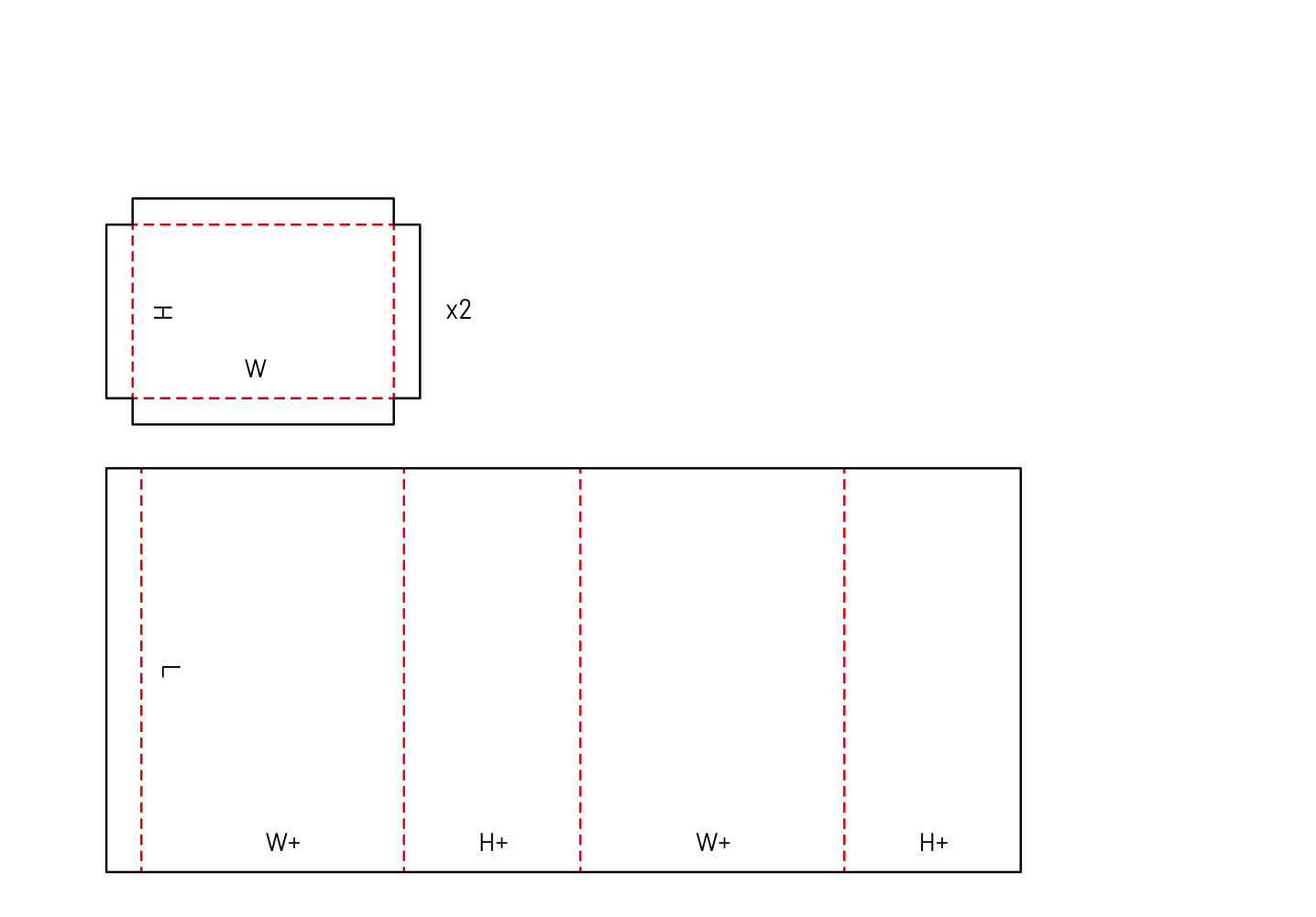

The closest library neighbors include 0615a, 0620, 0607. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Assembly, Joining, and Board Decisions

Delivery state

Decide whether you will receive these as flat blanks, requiring a Bliss former at your facility, or pay to have the converter ship them pre-assembled, which increases inbound freight volume.

Joining method

The end panels must be permanently attached to the main wrapper. Wire stitching provides mechanical grip for heavy loads, while industrial hot-melt glue offers a continuous seal but requires specific uncoated board grades.

Board grade and flute

These bins are typically cut from heavy single-wall or double-wall corrugated. Double-wall provides strong protection but requires careful tolerance planning where the thick corner flanges overlap.

Top closure requirements

Determine if your shipping route allows for an open-top bin. If the payload needs dust protection or top-load support, you may need to specify the 0616a variant with top flaps.

Flange and Corner Adjustments

Flange tapers

The attachment flaps on the end panels can be mitered or tapered to prevent thick corrugated board from bunching up in the corners during assembly.

Flange width

The width of the attachment flanges can be adjusted to balance joint strength against material usage, depending on whether you use glue or wire stitching.

Corner clearances

When using double-wall board, the internal fold allowances must be precisely calculated to ensure the three pieces fit together squarely without binding.

Board and packing details

Print panel and scuff risk

The attachment flanges typically fold inward, leaving the outer walls of the main wrapper smooth and uninterrupted for flexographic printing or labeling.

Top Closure Variants

Top Closure Flaps (0616a)

The base 0616 is an open-top bin. The 0616a variant adds top closure flaps to the main wrapper, allowing you to fully enclose the payload for transit. These top flaps must be secured with external tape or strapping.

Additional notes

Inbound freight volume

Receiving these boxes as flat blanks is efficient for inbound freight, but shifts the entire assembly burden to your facility.

Related Heavy-Duty and Tray Packaging

0201: Standard RSC

Look at this option if you need a fully enclosed, single-piece box that is easy to hand-tape at a standard pack station.

0422: One-Piece Tray

Evaluate this style if you want an open-top tray but need to avoid the machinery requirements of a three-piece assembly.

FAQs

Assembly and Production

Can my team assemble these boxes by hand?

While possible with dedicated fixture jigs and staple guns, manual assembly of a three-piece Bliss box is slow and labor-intensive. They are designed to be erected by automated Bliss forming machines.

Should we use glue or wire stitching for the corners?

Wire stitching provides strong mechanical grip against tear-out, especially for heavy industrial parts. Hot-melt glue creates a continuous seal but requires uncoated board to bond correctly. The choice depends on your payload weight and the converter's equipment.

Shipping and Route

Is this box suitable for parcel delivery?

The base 0616 is an open-top bin, meaning it requires an external lid, over-pack, or heavy shrink wrap before entering a standard parcel network.

Product Fit and Inserts

Does the continuous bottom floor make a difference?

A continuous floor prevents heavy, dense parts from dropping through a taped center seam during lifting. The main wrapper forms the front, bottom, and back in one continuous sheet.

Board and Finish

Can we use double-wall corrugated for this design?

Double-wall board maximizes stacking strength, but the corner attachment flanges must be carefully sized and tapered to prevent the thick board from binding or bulging inside the corners.

Related Package Choice

Why choose a three-piece box over a single-piece tray?

A three-piece Bliss box reduces total corrugated board usage compared to a large one-piece tray of the same volume. It also provides stronger vertical columns at the ends, making it useful if you have the machinery to assemble it.

Print and Finish

Can we print on the outside of the bin?

Because the attachment flanges typically fold inward, the outer walls of the main wrapper remain smooth and uninterrupted, providing a clean surface for flexographic printing or labeling.

Shipping and Route

Can we add a lid later if our shipping route changes?

If you anticipate needing a lid, it is better to specify the 0616a variant upfront, which includes integrated top closure flaps. Otherwise, you will need to source a separate drop-on lid.
