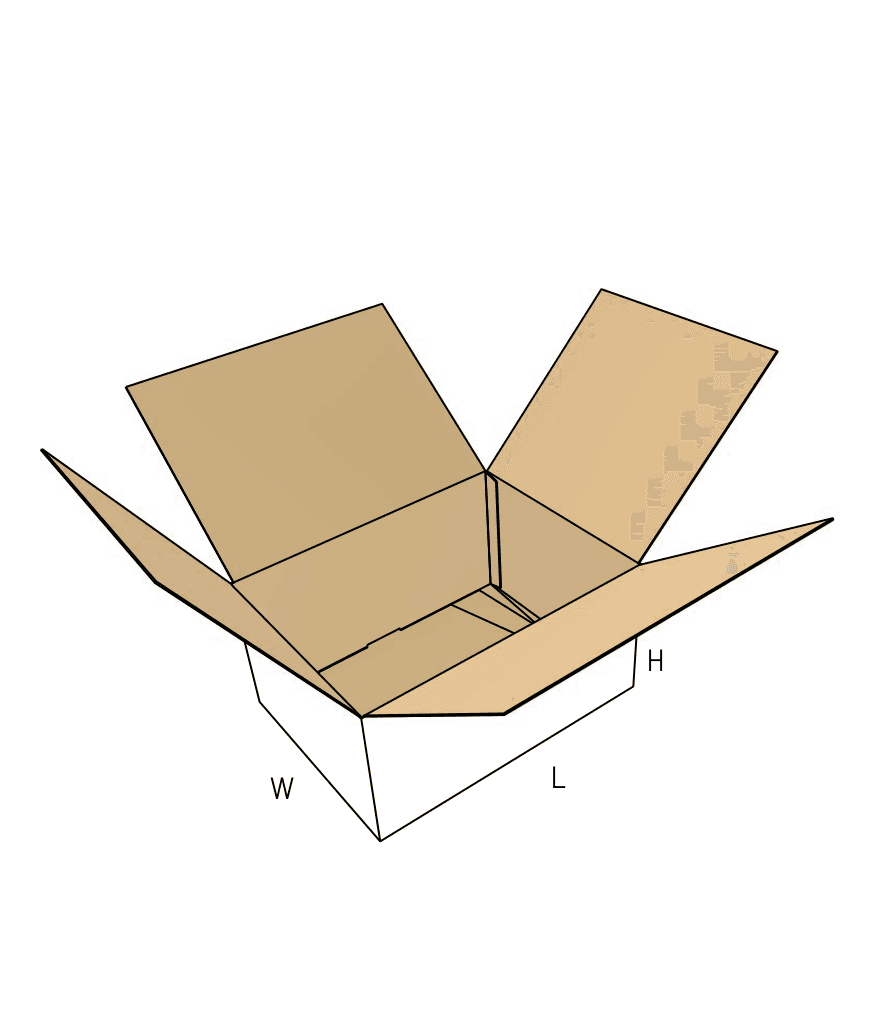

FEFCO 0703

Crash-Lock Box with Fully Overlapping Top

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Base locks automatically when squared, saving pack-bench time
Double-layer top flaps resist crushing and punctures
Requires significantly more board than a standard crash-lock box

About this product

This box combines the instant-setup speed of an auto-bottom base with the heavy-duty protection of a fully overlapping top. When an operator pushes the opposite corners together, the pre-glued base locks into a rigid floor immediately, eliminating bottom taping.

Unlike a standard crash-lock box, the outer top flaps extend across the entire width of the opening. This creates a double-thick corrugated shield over your product, making it highly resistant to top-down crushing and punctures during transit.

Common uses

E-commerce transit
Heavy parts kitting
High-volume fulfillment
Apparel packing

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length (inside)

Width (inside)

Depth (inside)

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How do you plan to seal the top of the box?

Do you need features to make the box easier for customers to open?

Which option describes the items going inside?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

High-volume fulfillment and dense product packing

High-volume e-commerce shipping

When daily output targets are tight, the instant base setup removes manual flap folding and bottom taping. The fully overlapping top ensures that once sealed, the package resists top-down crushing when heavier boxes are stacked on top.

Heavy or dense parts kitting

The interlocking dual-layer base supports concentrated weight better than a standard taped seam, while the double-thick top prevents sharp internal components from piercing through the lid if the box is inverted.

Apparel and soft goods fulfillment

The fully overlapping top provides a flat, continuous surface. This prevents center-seam tape from snagging or cutting into garments when the customer slices the box open.

Subscription box programs

For monthly batch packing, the crash-lock base allows operators to erect hundreds of boxes quickly. The flat top surface then provides a clean, uninterrupted canvas for branded labels or printed graphics.

E-commerce, 3PL, and industrial distribution

High-value direct-to-consumer brands

The flat, continuous top surface provides an uninterrupted canvas for branded graphics and large shipping labels, avoiding the center-seam tape split common on standard shipping boxes.

Third-party logistics (3PL) providers

Operations managing high daily volumes often choose this style because the labor savings at the pack bench offset the larger material footprint required to produce the box.

Industrial spare parts distributors

Distributors shipping dense metal or plastic components rely on the double-thick top to prevent parts from breaking through the lid during handling and pallet stacking.

Alternative crash-lock and overlapping styles

Standard Crash-Lock Box (FEFCO 0701)

Consider this style if your product does not require extreme top-puncture resistance. A standard crash-lock box uses significantly less corrugated board because the outer flaps meet in the center rather than overlapping, reducing the overall footprint of the flat blank.

Fully Overlapping Box with Manual Base (FEFCO 0203)

Look at this style if you are running a short trial or packing low volumes. A manual-bottom box offers the exact same top protection but is easier to produce in small batches where a pre-glued crash-lock base is not justified.

Crash-Lock Open Top Tray (FEFCO 0700)

Review this option for retail displays or inner master-shipper sorting. If the box will not be shipped individually, the top flaps are entirely unnecessary and can be removed to save material.

Close variants and lookalike dielines

The closest library neighbors include 0707, 0710, 0704. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board thickness, sealing, and run-size choices

Board grade and base binding

The clearance in the crash-lock mechanism is calculated for a specific board thickness. Switching to a heavy double-wall board without adjusting the template can cause the base to bind during setup, and the long top flaps may resist folding flat.

Top sealing method

While the base requires no tape, the top must be sealed. You will need to decide between standard pack-bench taping, gluing, or specifying an integrated peel-and-seal adhesive strip for faster closure.

Order maturity and run size

Combining a crash-lock base with fully overlapping top flaps creates a very long, complex flat blank. This requires specific flatbed die-cutting and multi-point folder-gluer equipment, making this style better suited for mature, repeat production runs rather than quick prototypes.

Print and label placement

Because the top flaps overlap completely, the primary visual surface shifts. You can place large shipping labels or primary branding directly across the top without worrying about a tape seam splitting the design.

Thumb cuts, tear-strips, and base adjustments

Thumb cuts for easier opening

Because the top flaps overlap completely and are often sealed aggressively, they can be difficult for the end customer to open. Adding thumb notches to the outer flaps gives the recipient a clear grip point to break the seal.

Tear-strip integration

For e-commerce applications, a tear-strip can be added to the overlapping top flap. This allows the customer to open the box without a knife, preserving the unboxing experience while maintaining the double-layer transit protection.

Base locking tongue variations

The internal tabs that lock the base together can be adjusted in the template. Different tongue profiles are used depending on the board thickness and the specific stripping limits of the cutting equipment.

Board and packing details

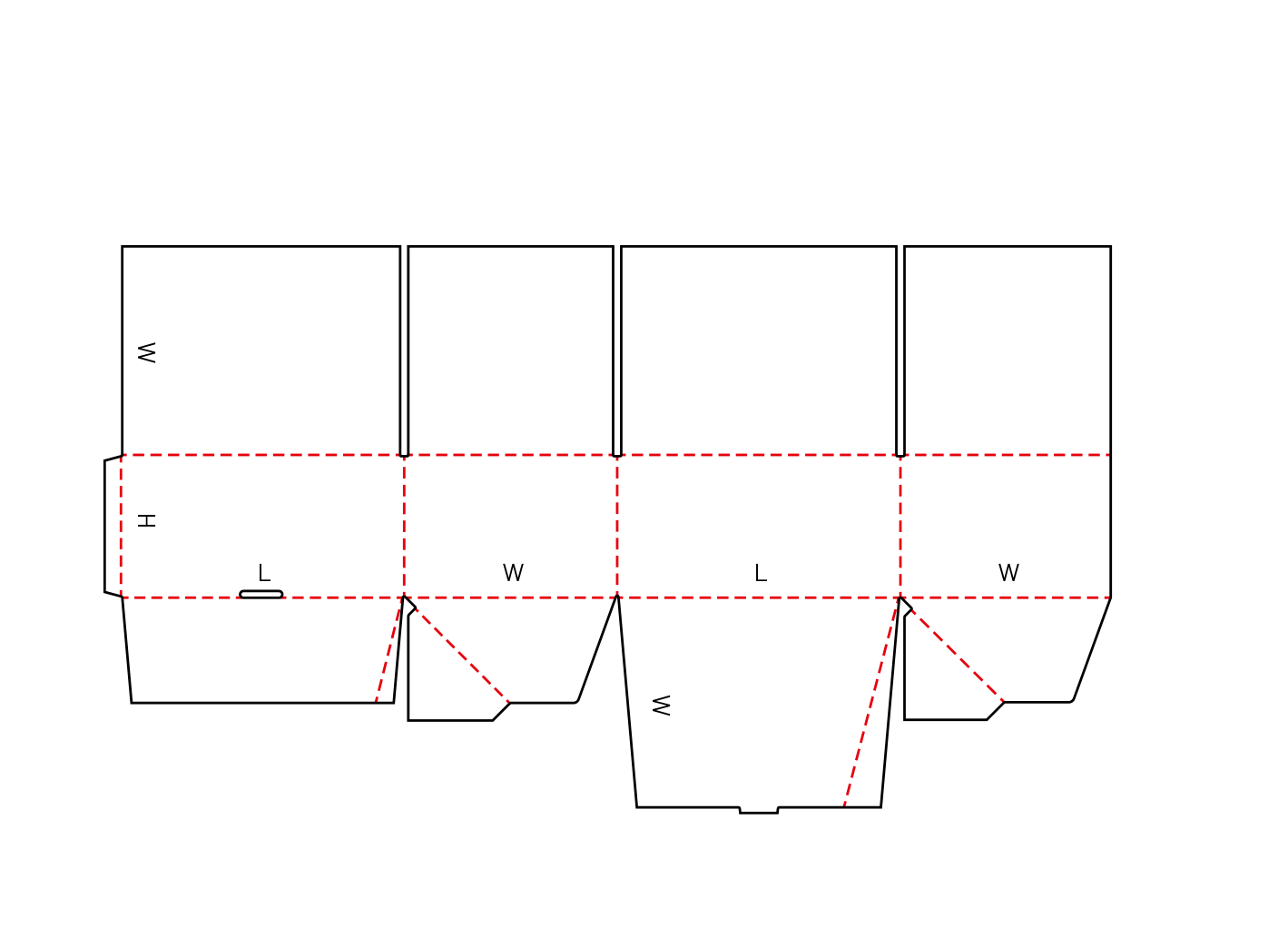

Blank sprawl and flatbed routing

The combination of a crash-lock base and fully overlapping top flaps creates an exceptionally long flat blank. This requires specific flatbed die-cutting and multi-point folder-gluer equipment, which influences production routing and minimum run sizes.

Handling upgrades for the end user

Enhanced handling variant (0703_1)

Includes structural adjustments like specialized base locking tongues and top-flap thumb cuts, often paired with tear-strips to improve the unboxing experience without sacrificing transit security.

Additional notes

Tear-strips and unboxing

Because a fully overlapping top is highly puncture-resistant, it can be frustrating for customers to open if heavily taped. Discuss adding a tear-strip perforation if consumer unboxing experience is a priority.

FAQs

Shipping and closure

Does this box require tape to ship?

Yes. While the crash-lock base deploys and locks automatically without tape, the fully overlapping top flaps must be secured using pack-bench tape, glue, or a pre-applied self-adhesive strip before transit.

Board and material

Can I use heavy double-wall corrugated for this style?

It requires careful testing. Heavy double-wall board increases the force needed to pop the base open and can cause the interlocking tabs to bind. Additionally, the long top flaps may resist lying flat. Fine to medium flutes generally perform much better.

Cost and production

Why does this style use more material than a standard shipping box?

The top flaps extend across the entire width of the box rather than meeting in the middle. This creates a double-thick top layer, which significantly increases the overall footprint of the flat corrugated blank.

Product fit

Is this a good choice for retail display?

Usually not. To display the product, the large overlapping top flaps would need to be cut away or folded awkwardly down the sides. If you need a display-ready auto-bottom, an open-top crash-lock tray is a cleaner choice.

Samples and prototypes

Can I order a small run to test the pop-up speed?

Digital prototypes can verify the dimensions and the top closure, but they are often glued by hand. To truly test the pop-up resistance and fold memory, you need samples run through a factory folder-gluer, which typically requires a larger repeat program.

Packing labor

How much time does the crash-lock base actually save?

It eliminates the need to square the box, fold four bottom flaps, and apply a strip of bottom tape. In high-volume fulfillment lines, saving those seconds on every single unit compounds into a major reduction in daily labor.

Stacking and storage

Does the double-layer top affect how the box stacks on a pallet?

Yes, it provides a very even, rigid surface. Because the flaps overlap completely, there is no center seam or gap, which helps distribute vertical weight evenly when pallets are stacked.

Unboxing experience

How do customers open a fully overlapping top if it is heavily taped?

A heavily taped fully overlapping top is highly puncture-resistant, which can make it frustrating to open. If consumer unboxing is a priority, discuss adding thumb cuts or a tear-strip perforation to the outer flap.
