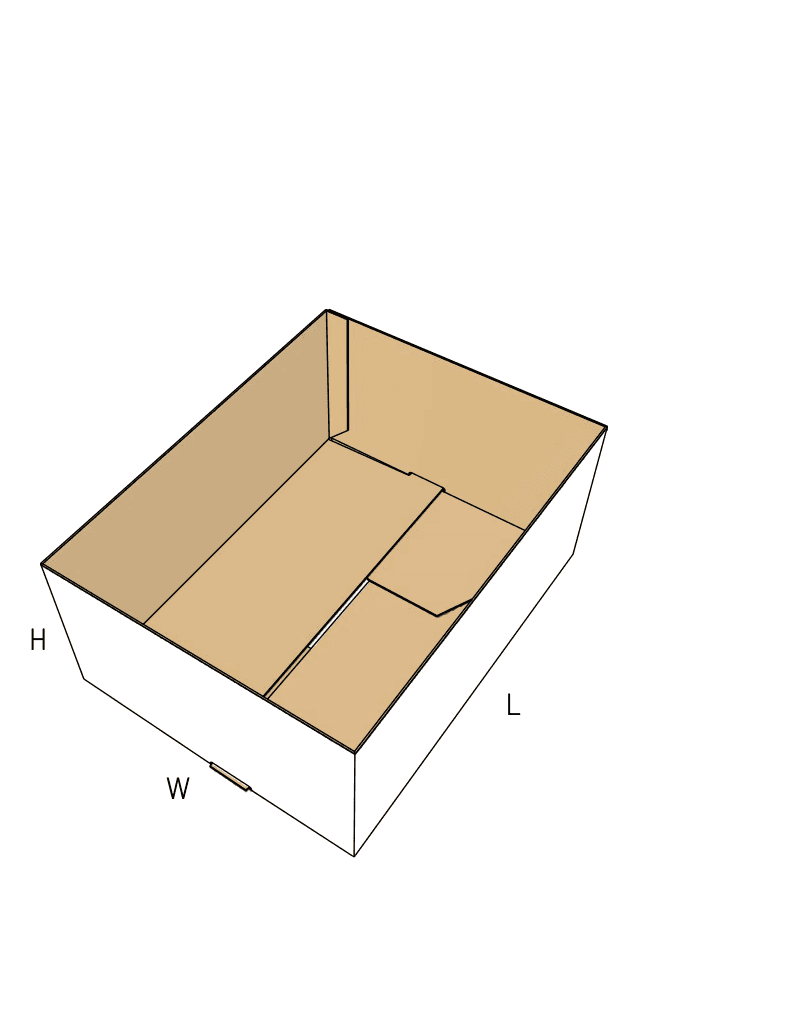

Auto-Bottom Open Tray for Long Items

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Base locks automatically when squared, requiring no bottom tape
Proportioned specifically for elongated parts, extrusions, and rolled goods
Open top allows immediate loading before sliding into a master shipper or sleeve

About this product

This open-top corrugated tray arrives flat and snaps into a rigid, locked shape when you push the opposite corners together. Because the factory pre-glues the interlocking base, your packing team skips bottom taping entirely.

While it shares the instant-setup mechanics of a standard crash-lock tray, this specific format is proportioned for elongated goods like pipes, extrusions, and rolled materials. The tradeoff is manufacturing complexity: the extreme length requires specific folder-gluer routing, making it a practical choice for high-volume fulfillment where pack-bench labor savings outweigh the initial production steps.

Common uses

Industrial extrusions and pipes
Rolled fabrics and materials
Internal kitting for long components
Structural beams and profiles

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length (inside)

Width (inside)

Height (inside)

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will this tray be transported after packing?

What type of items are going into the tray?

How are you currently packing these items?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

High-volume packing for elongated goods

Industrial extrusions and pipes

The long format supports rigid, elongated items. The interlocking base holds the weight, while the open top allows operators to drop parts in quickly before sliding the tray into an outer sleeve.

Rolled fabrics and materials

For fulfillment centers handling rolled goods, the instant setup removes the awkward step of trying to tape the bottom of a long, narrow tube.

Internal kitting for long components

Assembly lines use these as temporary holding trays for oversized parts, keeping them organized and protected before final integration.

Structural beams and profiles

Heavy metal or plastic profiles can be grouped inside the tray. The locked floor keeps the bundle together while the open top allows easy access for inventory counts.

Manufacturing, kitting, and fulfillment

High-volume fulfillment

When daily output targets are tight, removing the bottom-taping step across thousands of long-format orders yields measurable labor savings.

Industrial parts distribution

Suppliers shipping metal or plastic extrusions use these trays to group components securely before loading them onto pallets or into master transit boxes.

Assembly line staging

Manufacturing facilities use these trays to move long components between workstations, relying on the fast setup to keep the line moving without waiting for taped boxes.

When to consider a different base or closure

Short trial runs

If you are testing a new product line and only need a few hundred units, a manual snap-lock base or a standard slotted tray avoids the specific multi-point gluing steps.

Standalone parcel shipping

This tray has an open top. If the package needs to ship through a courier network on its own, compare it to a fully enclosed long-format box or plan to pair this tray with a sliding sleeve.

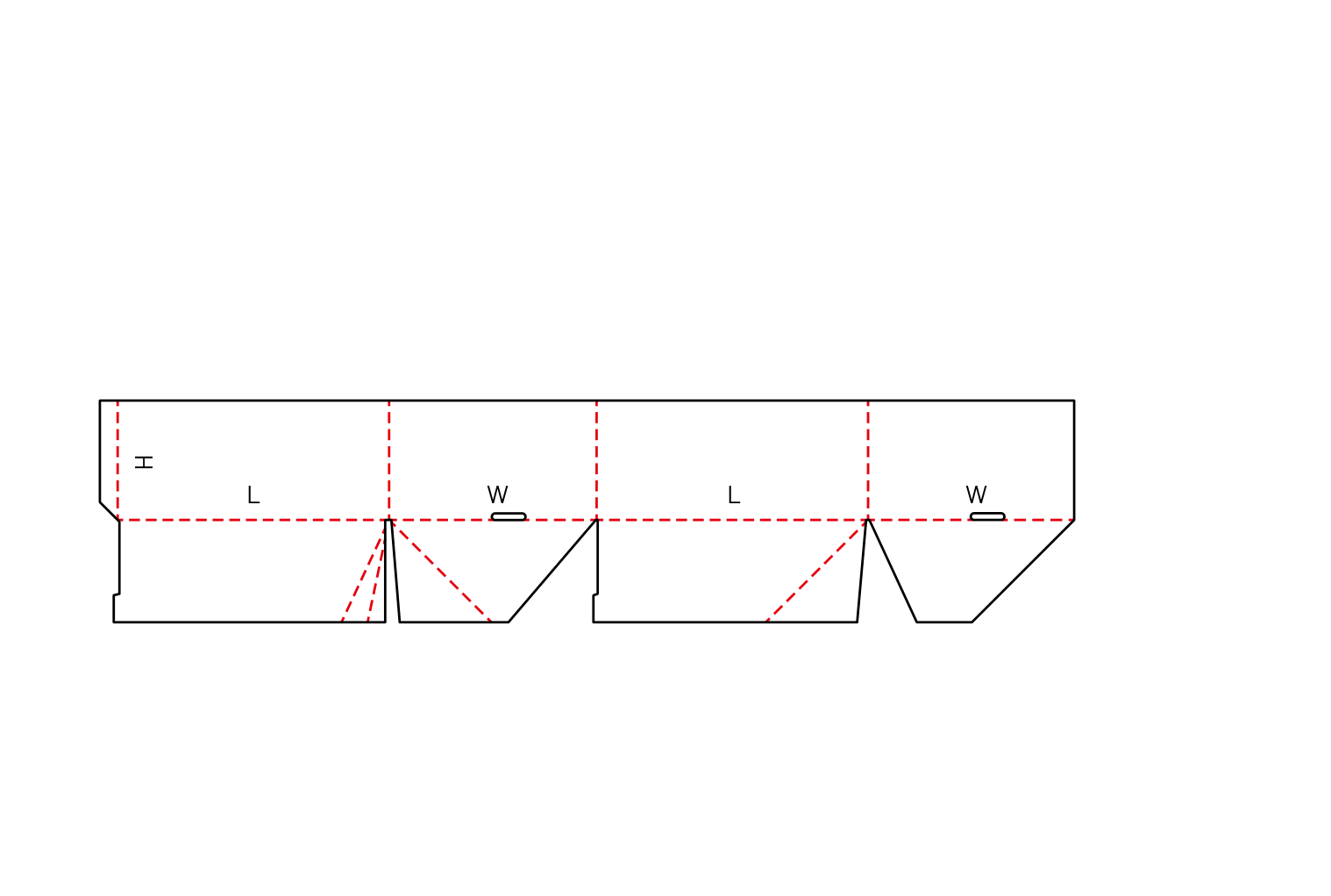

Close variants and lookalike dielines
