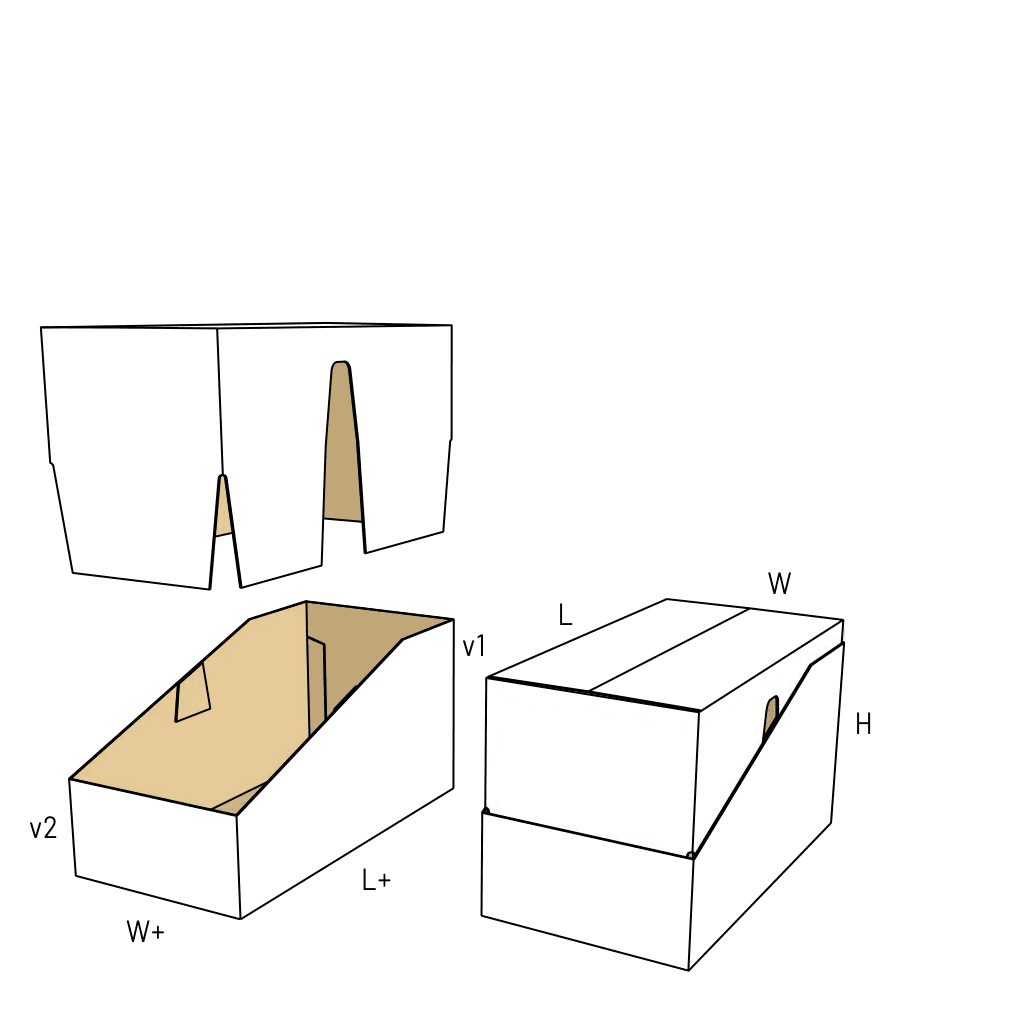

FEFCO 0725

Two-Piece Auto-Bottom Display Box

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Two-piece construction separates the auto-bottom tray from its protective hood
  • The hood fits over the erected and loaded display tray
  • Requires two distinct production paths, making it better suited for mature repeat programs

About this product

This two-piece container combines an instant-setup crash-lock display tray with a separate protective hood. The hood fits over the tray after loading.

Because it uses two separate pieces of corrugated board, it requires two distinct production paths. Buyers choose it when a gapless top presentation matters more than the added step of managing two separate components during fulfillment.

Common uses

  • High-end retail kits
  • Shelf-ready food and beverage displays
  • Promotional influencer boxes
  • Apparel and luxury goods

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail display and premium kitting

Premium retail kits

The flush butt-joint top provides an uninterrupted surface for branding, while the auto-bottom base supports heavy items like cosmetics, electronics, or specialty foods. The two-piece design feels intentional and substantial to the end user.

Shelf-ready presentations

The side walls of the base are typically angled. Once the top lid is removed or opened by the customer, the base acts as a structured display tray that keeps products organized on the retail shelf.

Subscription boxes

Brands that want a rigid unboxing experience use the two-piece structure to separate the heavy lifting of the base from the clean presentation of the lid.

Promotional influencer mailers

The separate blanks allow for different print treatments on the top and bottom, creating a high-end reveal when the recipient opens the flush lid.

High-volume rollouts and specialty retail

High-volume promotional rollouts

When packing teams need to assemble thousands of kits, the instant-setup base speeds up the initial loading phase. The time saved on taping bottoms helps offset the manual labor required to insert the separate lid.

Specialty food and beverage

The dual-layer crash-lock floor handles dense jars or bottles, while the wrap-around lid ensures the top surface remains perfectly flat for retail stacking.

Apparel and luxury goods

The two-piece design feels intentional and substantial to the end user, elevating the perceived value of the items inside compared to a standard slotted box.

When to consider a single-piece alternative

Single-Piece Butt-Joint Box (FEFCO 0709)

If you want the flush top presentation but prefer to keep the entire box on one blank to simplify production and inventory, a single-piece 0709 is usually the better choice.

Standard Auto-Bottom Box (FEFCO 0711)

If you need the fast-setup base but do not care about a perfectly flush top, a standard 0711 with regular slotted top flaps is simpler to pack and eliminates the separate lid entirely.

Close variants and lookalike dielines

The closest library neighbors include 0726, 0727, 0714. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board fit and pack-bench sealing

Board thickness and lid clearance

The separate lid must slide perfectly into the base. Heavy flutes (like C-flute or double-wall) often cause the lid to bind and bow the side walls outward. Fine flutes (E or B) provide the best sliding fit and crisp folds.

Pack-bench sealing

The top flaps meet exactly in the center to form a butt-joint. They do not overlap, which means your packing team must secure them with tape, adhesive, or a branded label to keep the box closed during transit.

Production routing and order maturity

Because this is a two-piece design, the base and lid run through different manufacturing paths. This double routing pushes the design toward higher-volume repeat programs rather than short trial runs.

Inventory management

Shipping and storing this package requires managing two separate SKUs (the knocked-down base tube and the flat lid sheet) at the pack bench.

Display angles, lid depth, and print surfaces

Base wall angles

The side walls of the base can be angled or stepped to reveal more of the product when the lid is removed, tailoring the box for specific retail shelf requirements.

Lid insertion depth

The inner collar of the top piece can be adjusted to sit higher or lower inside the base, depending on how much vertical support the product needs and where the graphics should align.

Contrasting print finishes

Because the base and lid are cut from separate blanks, you can easily specify different print treatments, colors, or finishes for the top and bottom components without complex press setups.

Board and packing details

Friction risks with heavy board grades

Altering the board caliper without recalculating the clearance between the inner lid and the body tube will cause either insertion failure or a loose fit. Always request an unprinted structural sample to test the slide-fit before moving to full production.

Additional notes

Print surfaces on two-piece designs

Because the base and lid are cut from separate blanks, you can easily specify different print treatments, colors, or finishes for the top and bottom components without complex press setups.

Related packaging to compare

0726: Body and Lid Container Display

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

0727: Body and Lid Container Display

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

FAQs

Closure and packing

Does this box require tape to close?

Yes. While the base is pre-glued at the factory and locks automatically, the top flaps meet in the center and must be secured with tape, adhesive, or a strong label on the pack bench.

Board and fit

Can I use heavy double-wall board for this design?

It is rarely a good idea. The separate lid has to slide inside the base. Thick board creates friction, making the lid difficult to insert and causing the side walls to bow outward. Fine or medium flutes work best.

Production path

Why does this design require higher volume commitments?

It requires two completely separate pieces of corrugated board. The base and lid run through different machines, which increases setup time and makes short runs less practical.

Shipping route

Is this a good choice for shipping individual parcels?

The butt-joint top is not naturally secure against rough courier handling. If you ship this through a parcel network, you will need strong tape across the top seam or a separate outer shipping box.

Closure and packing

What are the manual assembly steps?

The operator pushes the base open, which locks the floor in place. They load the product, slide the separate lid component down into the base, and fold the top flaps inward before taping them shut.

Is the lid insertion suitable for automation?

The base is great for manual pack benches, but inserting the separate lid requires dexterity. Fully automating the lid insertion requires specialized two-piece erecting equipment.

Inventory

How does this box arrive from the manufacturer?

It arrives in two parts. The base ships as a knocked-down flat tube with a pre-glued side seam, while the lid usually ships as a completely flat sheet.

Display

Does the base function as a standalone display?

Yes. The side walls of the base are typically angled. Once the end user removes the top lid, the base acts as a structured display tray for retail shelves.
