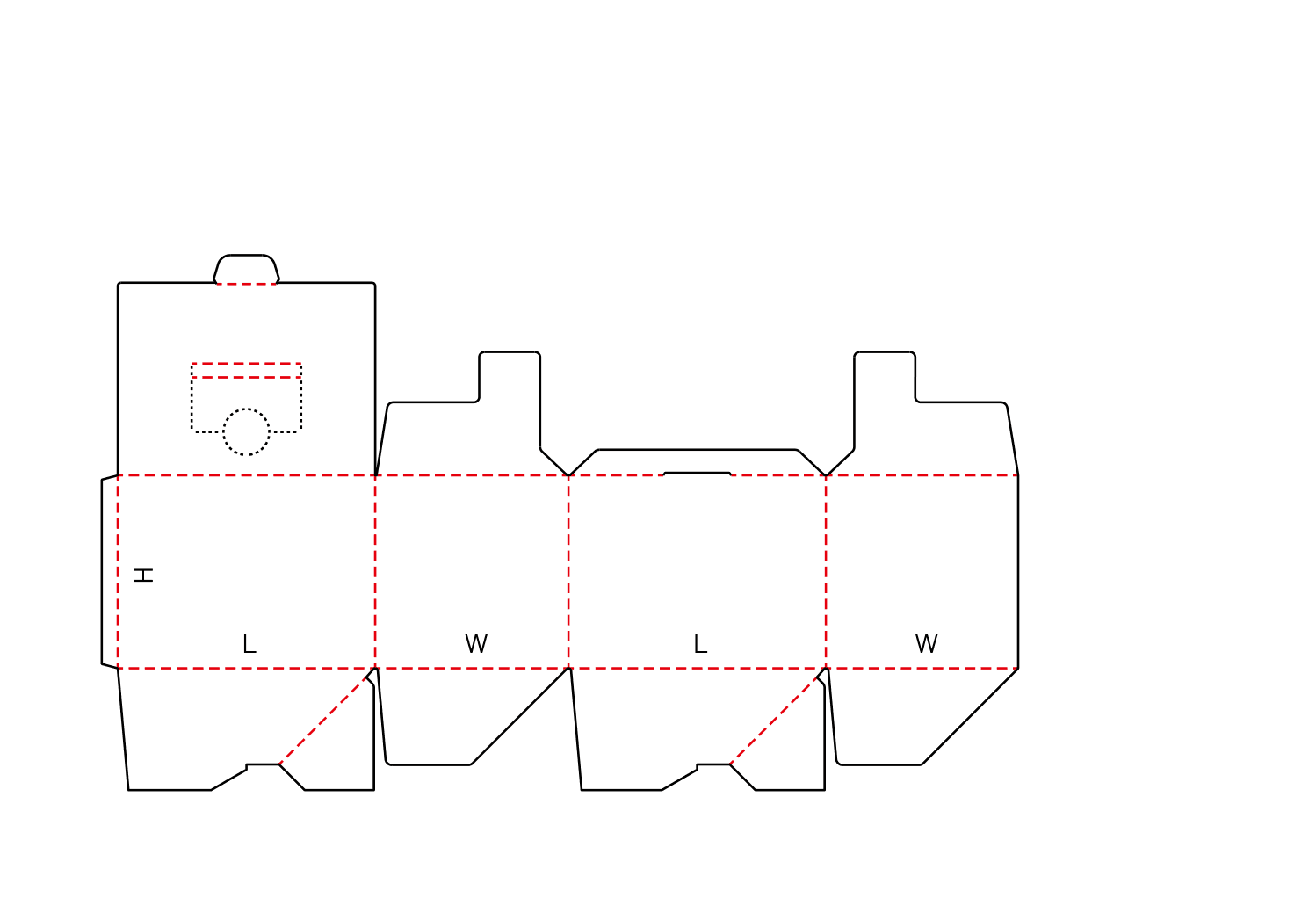

FEFCO 0740

Bag-in-Box Dispenser with Crash-Lock Base

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Front aperture custom-sized to fit your specific bladder nozzle
  • Crash-lock base deploys instantly for fast pack-bench filling
  • Requires wet-strength liners to prevent board degradation from condensation

About this product

This single-piece carton is engineered specifically to house flexible liquid bladders. It combines an instant-setup crash-lock base with a precise front aperture, allowing a dispensing spout to protrude for retail or food-service use.

Because liquids shift during transit and exert heavy outward pressure, the top lid secures with a friction-fit tongue lock that tucks inside the front panel. The base deploys automatically when the box is squared, saving labor on high-volume filling lines.

Common uses

  • Retail boxed wine and beverages.
  • Commercial catering syrups and cooking oils.
  • Industrial gels and bulk cleaning fluids.
  • Dairy and liquid egg transport.

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Liquid and bulk dispensing applications

Retail boxed wine and beverages

Provides a flat, printable billboard for retail shelves while allowing the consumer to dispense directly from the fridge or counter.

Commercial catering syrups and oils

Allows back-of-house restaurant staff to dispense bulk liquids cleanly without lifting heavy rigid jugs.

Industrial gels and cleaning fluids

Houses heavy, shifting bulk liquids securely. Large industrial volumes often require double-wall board and physical drop testing to ensure the base holds.

Dairy and liquid egg transport

Protects temperature-sensitive liquid food products during transit, allowing sanitary dispensing in commercial kitchens without exposing the entire batch to air.

Food service, retail beverage, and industrial fluids

High-volume liquid filling lines

The auto-bottom base removes the need to tape the floor before dropping the heavy bladder inside, speeding up the packing rhythm.

Retail and club-store distribution

The fully enclosed shape protects the inner bladder from light and punctures while presenting a clean, stackable profile on the pallet.

Catering and event hospitality

Provides a stable, self-contained dispensing station that sits neatly on counters or prep tables, reducing spills compared to pouring from rigid plastic jugs.

When to consider standard crash-lock boxes

Packing solid goods without a spout

If the payload consists of solid goods, kits, or items that do not require a dispensing spout, a standard open-top crash-lock tray removes the complexity of the aperture and tongue lock.

Shipping through parcel networks

If the priority is fast base assembly but the top will be sealed with standard packing tape for courier transit, an RSC-top crash lock is often more secure against dynamic shock than a friction-fit tongue lock.

Close variants and lookalike dielines

The closest library neighbors include 0713, EVC11102, EVC11121. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board strength, aperture sizing, and filling ergonomics

Wet-strength liners and condensation

Corrugated board loses structural integrity quickly when exposed to condensation from chilled liquids or micro-leaks. Kraft liners or water-resistant coatings are highly recommended for any liquid payload.

Aperture matching

The diameter and offset of the front hole must exactly match your vendor-supplied bladder nozzle. A mismatch causes tearing or dispensing failure.

Filling line ergonomics

While the box base erects instantly, dropping a heavy, shifting liquid bladder into the top and aligning the spout through the hole requires two-handed precision.

Lid closure security

The tongue lock relies on friction and internal pressure to stay closed. Heavy liquids that slosh violently during transit may require secondary taping or an outer master carton to prevent the lid from opening.

Spout placement and lock clearances

Spout position

The vertical and horizontal placement of the cutout can be adjusted to ensure gravity drains the bladder completely.

Tongue lock friction

The tuck profile on the top lid can be tightened or loosened depending on the board thickness and the expected internal liquid pressure.

Base tab clearance

The interlocking hooks on the crash-lock floor must be calibrated to the exact board thickness. Thicker double-wall boards require wider notches to prevent the base from binding during assembly.

Board and packing details

Production route and flatbed cutting

The circular spout cutout and complex base tabs require a flatbed die-cutter and a multi-point folder-gluer. This production path is suited for large fulfillment programs but less practical for very short trial runs.

Courier transit risks

The friction-fit tongue lock may open if the liquid sloshes violently during rough parcel handling. Single-unit courier shipments often rely on heavy-duty top tape or an outer master shipper.

Additional notes

Pallet stacking and stress concentrators

The cutout for the spout removes material from the front panel, creating a weak point under vertical load. Pallet stacking limits should be physically tested, as standard compression formulas will overestimate the strength of a box with a front aperture.

Related packaging for high-volume assembly

0201: Standard RSC

For low-volume manual packing where flatbed cutting and multi-point gluing are not practical.

0713: Friction Tuck - Crash Lock

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

EVC11102: Regular Tuck Lock - Crash Lock

EngView neighbor that can look close in CAD. Review it if a sample or dieline seems similar, then verify closure style, slots, wall build, and assembly before treating it as a substitute.

FAQs

Inserts and product fit

How is the spout matched to the front hole?

The cutout diameter and placement must be parametrically matched to the specific bladder nozzle. A physical sample or exact mechanical drawing of the filled bladder ensures the spout does not retreat inside or tear the board.

Board and finish behavior

Can standard corrugated board hold chilled liquids?

Standard test liners degrade rapidly when exposed to condensation. If the product is refrigerated or prone to micro-leaks, wet-strength kraft liners or coated boards help maintain structural integrity.

Route and shipping

Is the tongue lock secure enough for parcel shipping?

Usually not on its own. Heavy liquids shift dynamically during transit, which can force the friction-fit tongue lock open. For courier networks, the top lid typically requires tape or placement inside a master shipping carton.

Packing labor

Does the crash-lock base support automated filling?

The base deploys quickly by hand, but inserting a heavy bladder and aligning the spout is a precise, manual task unless specialized bag-in-box filling machinery is used.

Quantity and production path

Why does this box require specific flatbed cutting?

The circular aperture, diagonal base creases, and tongue lock require a flatbed die-cutter, and the base must be glued on a multi-point folder-gluer. This makes it efficient for large programs but less practical for short runs.

Board and finish behavior

Can heavy double-wall board be used for larger liquid volumes?

Double-wall board provides excellent crush resistance, but it can cause the complex crash-lock base and tongue lock to bind during assembly. Physical drop testing and assembly trials help verify performance for thicker flutes.

Inserts and product fit

What prevents the liquid bladder from shifting inside the box?

The box dimensions are sized to tightly enclose the filled bladder, while the protruding spout anchors the front. The top dust flaps and tucked tongue lock apply downward pressure to restrict upward surging during transit.

Print or label surface

Does the spout cutout interfere with printed graphics?

The circular aperture and the tucked tongue lock break up the front and top panels. Key branding elements and mandatory regulatory text should be positioned away from these structural folds and cutouts.
