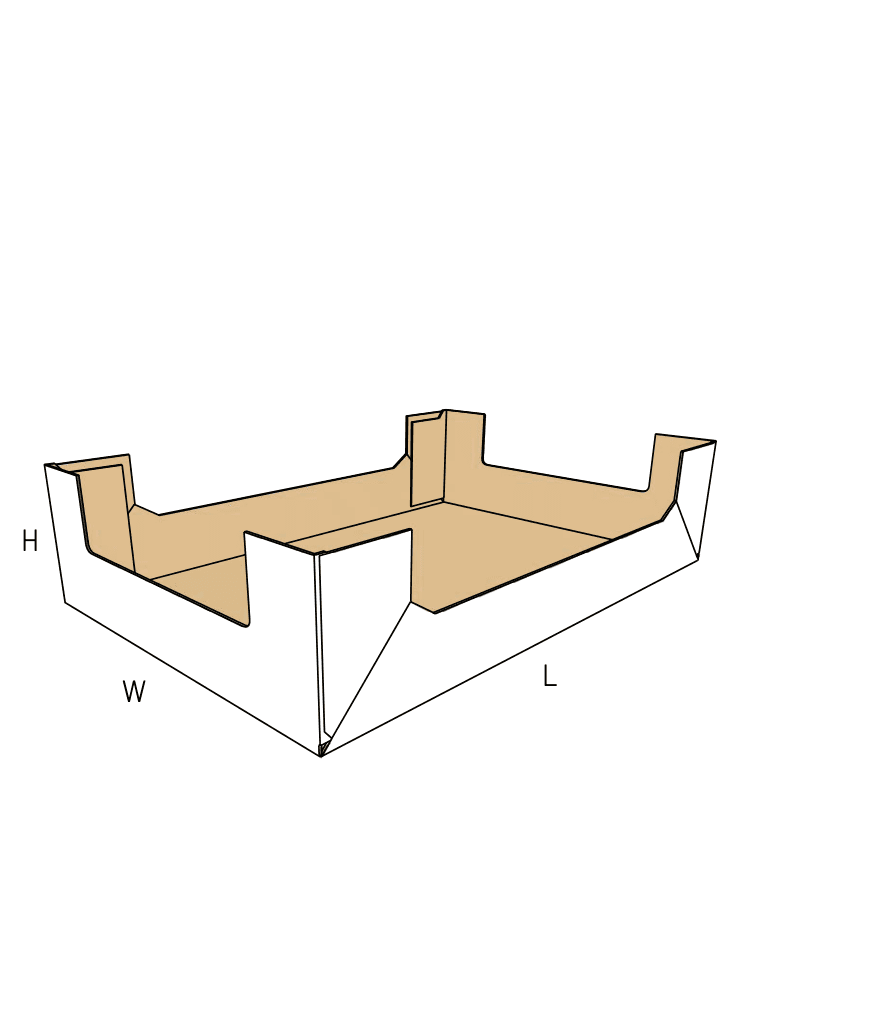

FEFCO 0770

Auto-Erecting Corrugated Tray

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Snaps into a rigid open tray instantly without tape or manual folding
  • Ships flat to save inbound freight and warehouse space
  • Requires high order volumes to offset factory machine preparation

About this product

This pre-glued corrugated tray ships flat and snaps into a rigid, open-top container the moment a packer pulls the walls upward. Factory-glued corner hinges and mechanical locks eliminate the need for tape or manual folding at the pack bench.

It trades higher factory preparation time for rapid assembly on the packing line. Because the converter must run the blank through a multi-point folder-gluer, this tray makes the most practical sense for high-volume operations where manual labor is the primary bottleneck.

Common uses

  • High-volume fulfillment kitting
  • Retail shelf-ready displays
  • Produce and bakery transport
  • Component staging on assembly lines

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

High-speed packing and display jobs

High-volume fulfillment and kitting

When operators pack thousands of open trays per shift, manually folding unglued corners wastes hours. This pre-glued version deploys instantly, keeping the line moving.

Retail shelf-ready displays

The clean, open top allows customers to pick products directly from the tray. The locked corners keep the walls rigid even when the tray is pulled forward on a retail shelf.

Produce and bakery transport

Fast assembly and easy top access make it a practical carrier for baked goods or fresh produce moving through short-distance distribution loops.

Component staging on assembly lines

Keeps parts accessible while the rigid, locked walls hold their shape during rapid picking and movement across factory floors.

Operations relying on fast tray assembly

Scaled fulfillment centers

Operations managers use this tray to remove assembly friction. Shifting the folding work to the corrugated factory allows pack-bench staff to focus entirely on loading the product.

Retail merchandising teams

Display buyers rely on the rigid locked walls to maintain a clean presentation on the shelf, avoiding the sloppy corners that sometimes happen with poorly folded manual trays.

Contract packaging facilities

Co-packers facing tight throughput targets use pre-glued trays to guarantee predictable, rapid erection times without training temporary staff on complex folding sequences.

When to consider a different tray or box

Short runs and low-volume orders

If you are ordering a few hundred trays, the machine preparation time for a multi-point folder-gluer makes the production route less practical. Compare an unglued manual tray, which is easier to manufacture for short runs but requires folding by hand.

Parcel and courier delivery

An open tray provides no top containment. If the package moves through mixed-carrier networks, compare an auto-bottom mailer with a hinged lid, or pack this tray inside a closed master carton.

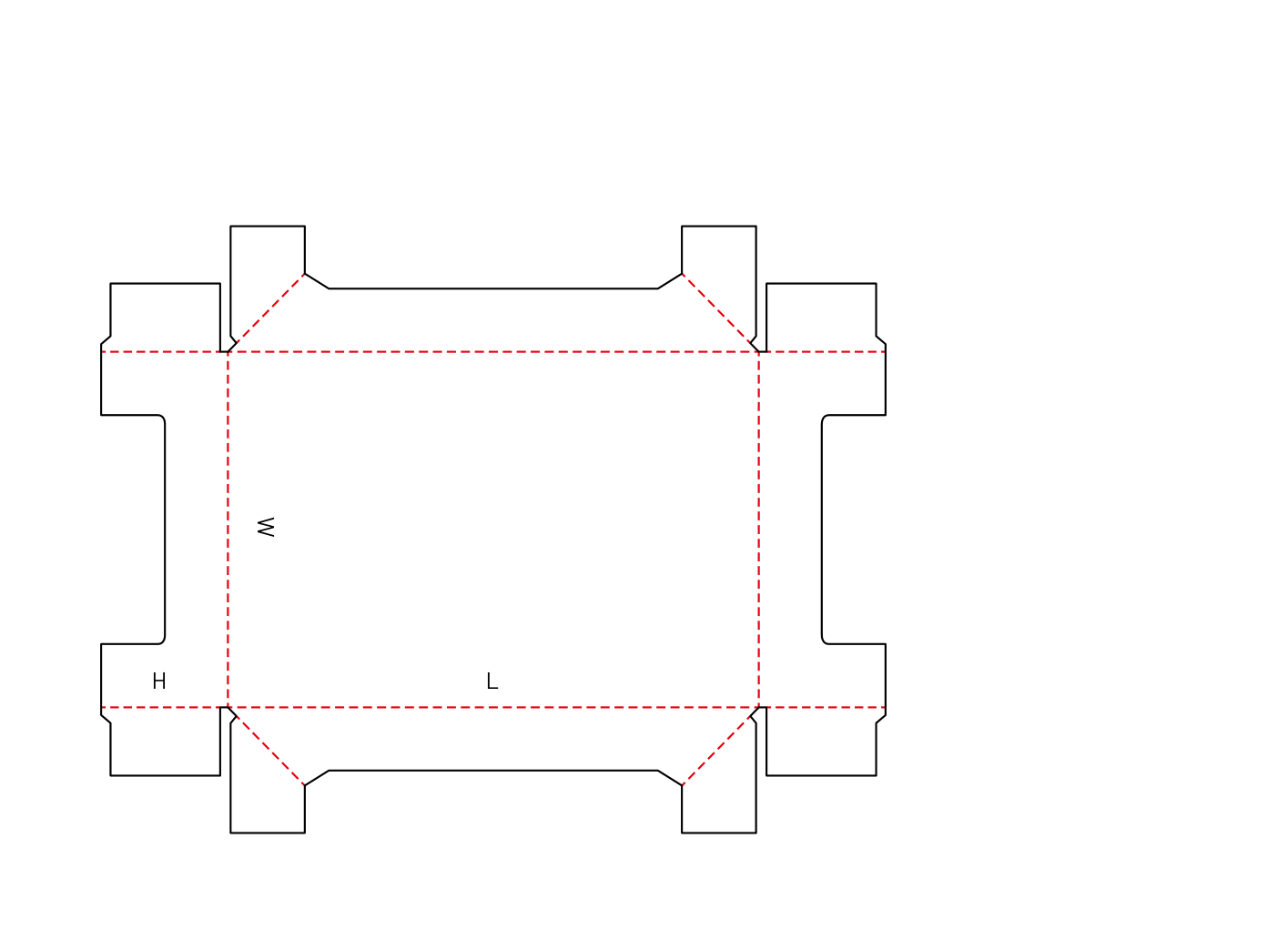

Close variants and lookalike dielines

The closest library neighbors include 0771, 0459, 0459.1. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board thickness, print, and production choices

Board thickness and locking friction

The pop-up mechanism relies on precise clearances. Heavy double-wall boards make the 180-degree corner folds stiff and can cause the locking tabs to jam during assembly. Fine or medium flutes generally provide a smoother snap.

Production volume and machine routing

This tray requires a flatbed die-cutter for the internal locking holes and a multi-point folder-gluer for the corners. Discuss your expected order volumes early to ensure the labor savings justify the manufacturing path.

Print placement around locking zones

Retail graphics work well on the outer walls, but critical artwork should avoid the diagonal collapse creases and the locking tab insertion zones where scuffing or cracking is more likely.

Packing line layout

Ensure operators have enough space to pull the flat blanks upward into their 3D shape in one fluid motion before loading.

Profile and locking adjustments

Dust flap and edge profiles

The top edges of the shorter walls can be cut straight or with a stepped profile. This changes the visual presentation on the shelf and can be adjusted to match specific product heights.

Cut-hole clearance tuning

The receiving slots that catch the locking tongues must be precisely matched to the chosen board caliper. Changing board grades requires recalculating these clearances so the tray neither binds nor sits loosely.

Wall height ratios

The side and end walls can be adjusted to balance product containment against display visibility, provided the locking tabs still have enough vertical space to engage.

Board and packing details

Internal clearance for locking tabs

The locking tongues that hold the tray open sit flush against the inside of the shorter walls. While they are flat, they add a minor layer of board thickness that should be accounted for if your product fit is extremely tight.

Additional notes

Flat delivery and storage

Because the factory glues the corners and folds the tray flat, it ships and stores with excellent density while still offering instant assembly at the pack bench.

Related packaging to compare

0422: Manual Fold Tray

An unglued alternative that is easier to manufacture for short runs but requires manual folding at the pack bench.

0771: Collapsible Tray

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

0459: Octagonal Tray

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

FAQs

Assembly and closure

Does this tray require tape to stay open?

Factory-glued corner hinges and locking tabs snap into receiving holes when the tray is opened, holding the walls at 90 degrees without tape.

Board and material

Can we use heavy double-wall corrugated board?

Thick board increases the force needed to pop the tray open and often causes the locking tabs to crush or bind instead of snapping cleanly into place. Fine or medium flutes generally provide a smoother assembly.

Quantity and production

Why is this tray better suited for large repeat orders?

The factory must prepare a multi-point folder-gluer to articulate and glue the four corners before delivery. That machine preparation time makes the production route less practical for short trials.

Shipping and route

Can this ship directly through the mail?

The open top leaves the product exposed. It requires a lid, shrink wrap, or an outer master carton for courier transport.

Related package choice

Can we add a lid to this design?

Adding a hinged lid transforms the package into a mailer box, which keeps the fast-erecting base but provides full shipping enclosure.

Assembly and closure

How does the tray lock into its 3D shape?

When you pull the walls upward, pre-glued corner hinges pull the adjacent walls up simultaneously. Locking tongues then snap into receiving slots to prevent the tray from collapsing.

Inserts and product fit

Does the locking mechanism affect internal space?

The locking tabs sit flush against the inside walls, adding a minor layer of board thickness that matters only if your product fit is extremely tight.

Print and finish

Can we print on the inside of the tray?

You can print on the interior, but you should avoid placing critical graphics directly over the diagonal collapse creases or the locking tab insertion zones, as these areas experience friction during assembly.
