High-speed packing for perishable goods
Produce and agricultural packing

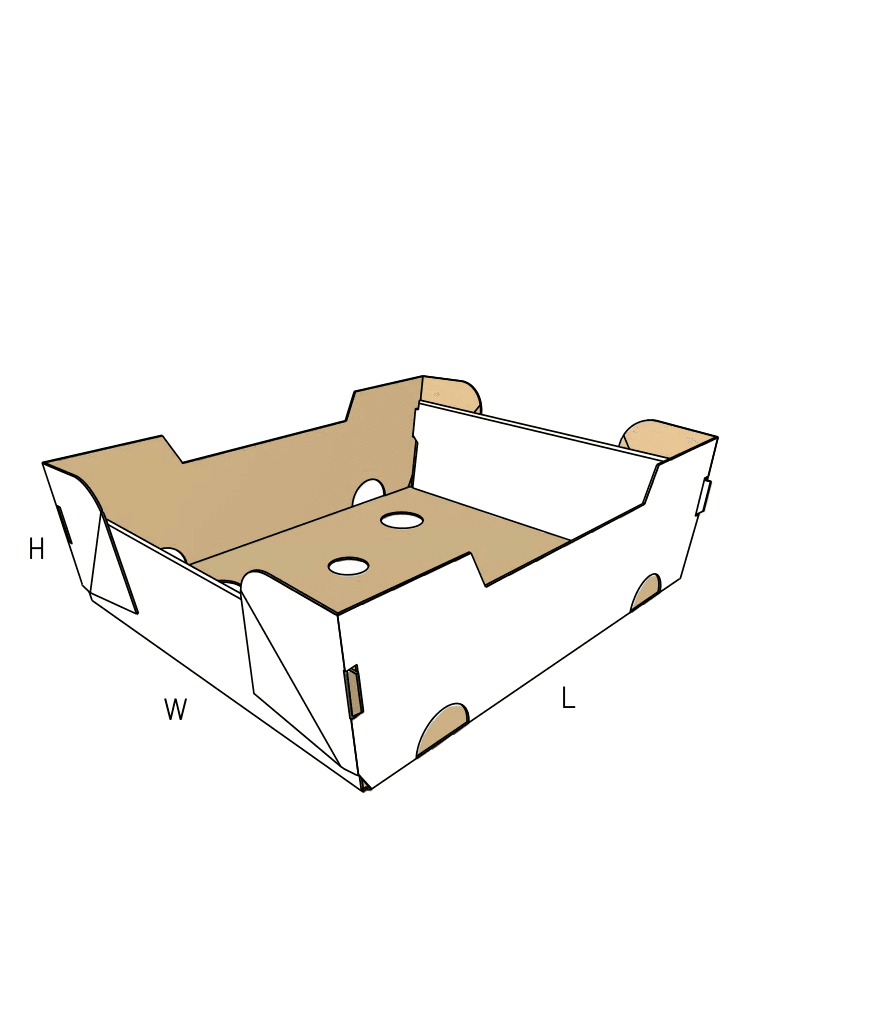

The circular cutouts allow field heat to escape and keep fresh goods ventilated. The instant base keeps up with high-volume harvest or sorting lines.
Bakery and fresh food transport
Provides a rigid, breathable carrier for short-distance delivery to retail counters. The open top allows immediate access for display.
Direct field harvesting
Allows workers to assemble trays instantly in the field without carrying tape dispensers or setting up dedicated packing stations.
Retail shelf presentation
The tapered profile and open top allow customers to see and select products directly from the tray without store staff needing to unpack individual items.
Agricultural and short-distance distribution loops
High-volume manual pack benches
When labor time per unit is the main bottleneck, shifting the folding work to the corrugated factory allows staff to pack faster.
Regional distribution networks
Moving goods from farm to local grocer where heavy, multi-tier pallet stacking is less extreme, allowing the tapered walls to survive the short journey.
Grocery and retail display
Stores that prioritize fast restocking benefit from trays that go straight from the delivery truck to the produce aisle.
When to consider straight walls or different bases
Heavy pallet stacking
The tapered walls and ventilation holes act as stress concentrators, reducing vertical compression strength. If you need to stack heavy pallets high, a straight-walled tray provides better crush resistance.
Parcel and courier shipping
This is an open-top tray. If the product ships through a mixed-carrier network, courier transit usually demands a master carton or a separate lid to contain the goods.
Board thickness, tooling, and run size
Board thickness and lock binding
The crash-lock base relies on precise clearances to snap together. Heavy double-wall board can cause the tabs to bind or resist opening. Fine to medium flutes usually perform better.
Production route and run size
This tray requires a flatbed die-cutter for the holes and a multi-point folder-gluer for the base. These machines require dedicated preparation, making this tray better suited for established, repeat programs rather than small trials.
Balancing airflow and crush resistance
Adding more ventilation holes improves cooling for fresh produce but removes load-bearing corrugated board. The hole count must be balanced against the weight of the stacked product.
Print and branding surface
The tapered walls angle inward, changing how graphics appear on a retail shelf. Artwork must be adjusted to account for the slope and the interrupted surface caused by the ventilation cutouts.

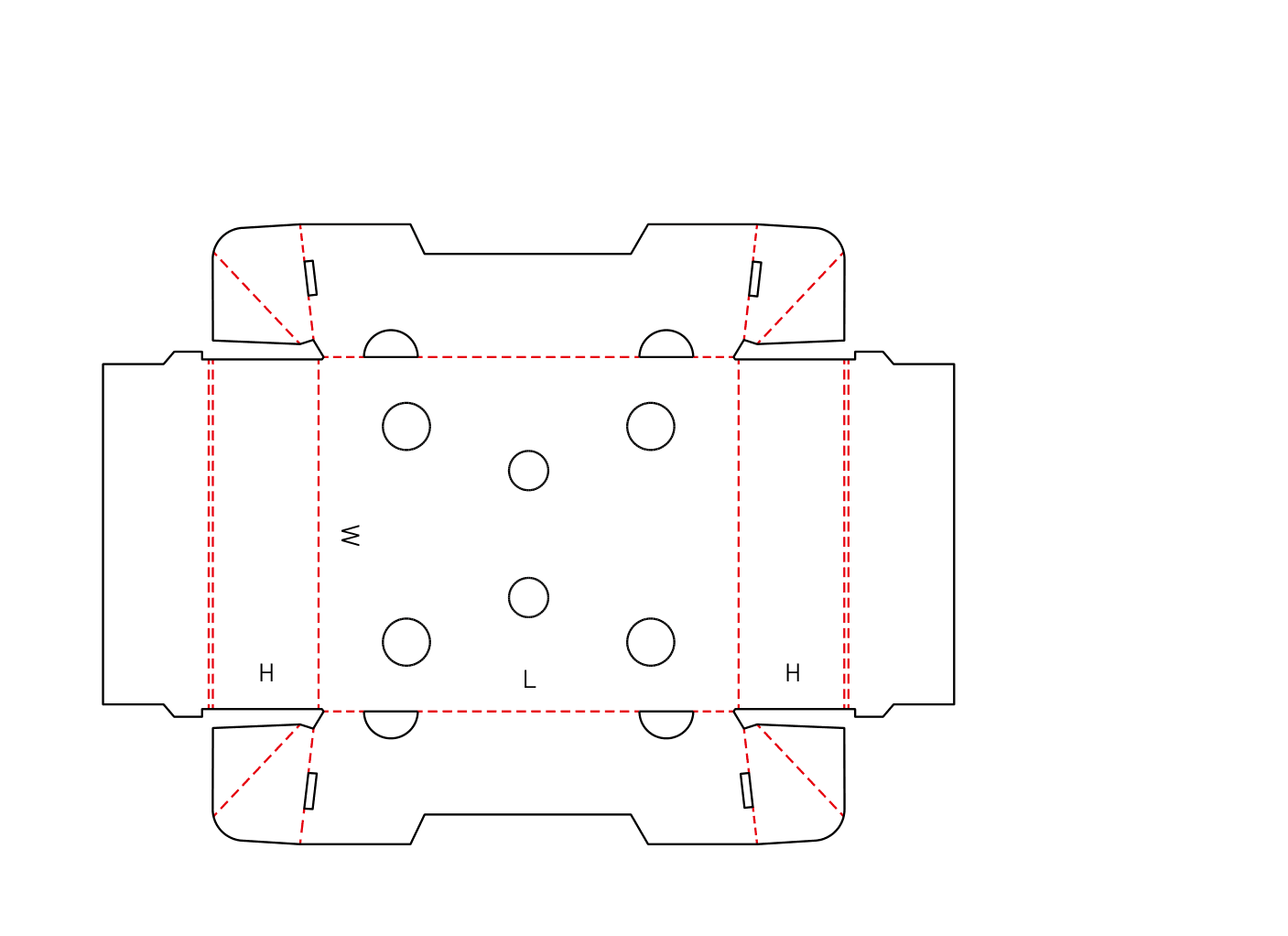

Hole placement and taper adjustments
Ventilation hole sizing and placement
The circular cutouts can be adjusted in size and quantity, but adding too many holes will further weaken the load-bearing walls.
Wall taper angle
The slope of the side walls can be modified to change the internal volume or display profile. Extreme angles require verification against the factory folder-gluer belts to ensure the blank feeds properly.
Crash-lock tab clearance
The interlocking base tabs must be adjusted to match the exact thickness of the chosen corrugated board, ensuring the floor locks securely without jamming.
Board and packing details
Flatbed stripping limits
Very small ventilation holes in thick board may fail to strip cleanly during manufacturing. The hole diameter must be balanced against the board caliper.
Additional notes
Flat delivery and storage
The factory glues the side seam and base, delivering the trays completely flat. The glued overlaps make the bundles slightly thicker than unglued sheets, but they still store efficiently before use.
FAQs
Shipping and Route
Can this tray ship through parcel networks?
The open top provides no containment. It must be placed inside a master carton or sealed with a separate lid or wrap for courier transit.
Production and Volume
Is this tray practical for a small trial run?
The tapered profile and crash-lock base require flatbed die-cutting and multi-point gluing. This production route is highly efficient for large, repeat orders but makes small trial runs difficult to justify.
Board and Fit
Can we use heavy double-wall board for extra strength?
Thick board increases the force needed to pop the tray open and raises the risk of the interlocking base tabs binding or failing to engage. Physical testing is recommended before committing to heavy flutes.
Performance
How does the taper affect stacking?
Angled walls transfer vertical weight poorly compared to straight vertical walls. If you plan to stack loaded trays on a pallet, you must test the physical compression strength with your exact product weight.
Customization
Can we change the angle of the tapered walls?
Extreme angles can prevent the factory folder-gluer belts from gripping the blank properly. Any change to the taper requires verification against the converter's machine limits.
Assembly
Does the base require tape to stay closed?
The base flaps interlock mechanically when the tray is squared. Once the product is loaded, the weight keeps the floor locked in place without pack-bench tape.
Prototyping
Can I get a hand-cut prototype to test the base?
Digital cutting tables can score and cut the shape, but they cannot replicate the factory gluing process. You will need to manually glue the side seam to test the pop-up action.
Inserts
Can we add dividers for individual items?
Yes, separate corrugated partitions can drop into the open top, though the tapered walls mean the dividers must be custom-sized to fit the narrower bottom footprint.
