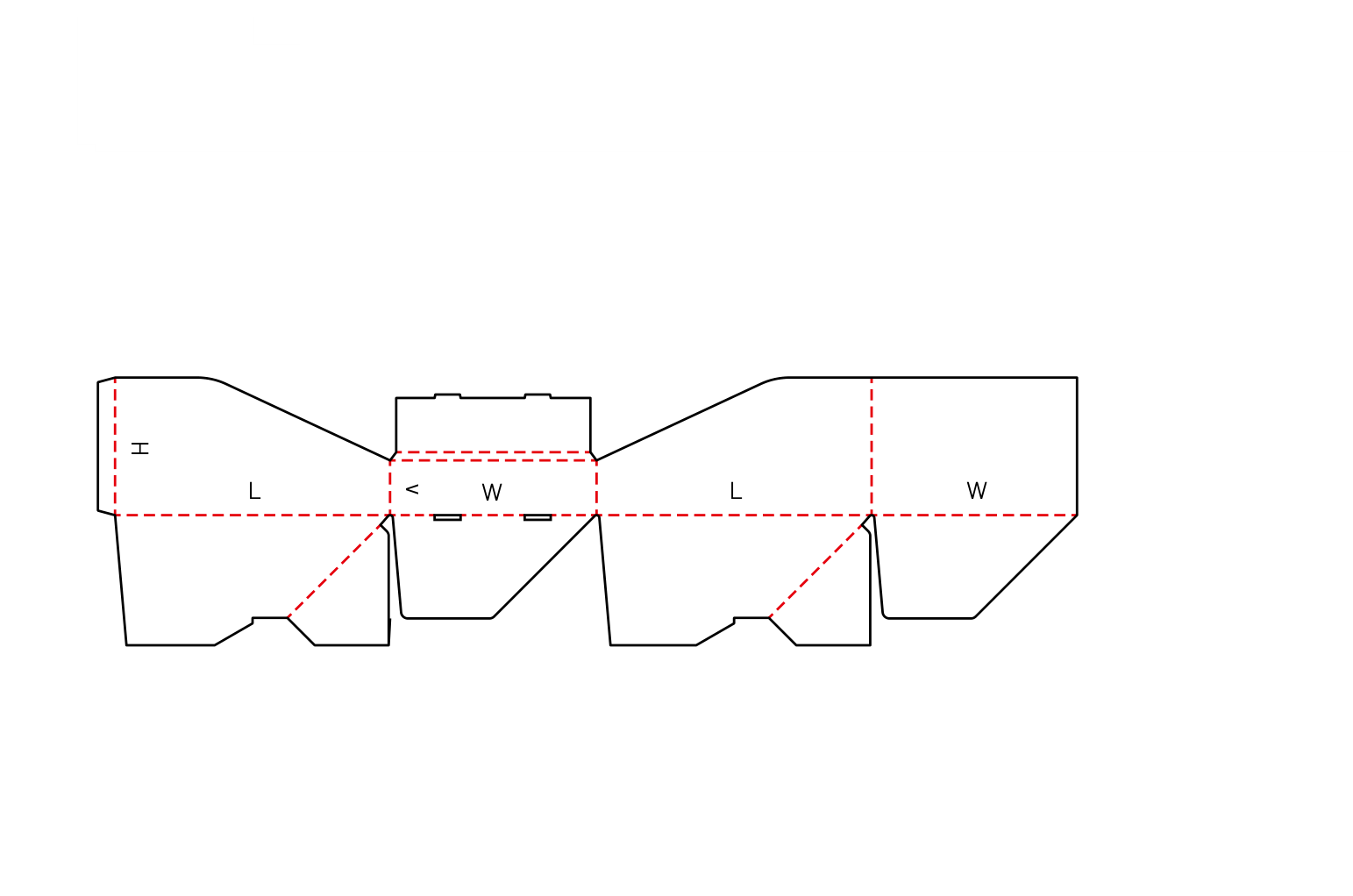

FEFCO 0801

Auto-Bottom Retail Display Box with Header

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Pops open instantly via a factory-glued crash-lock base
Open front and fold-up header for retail presentation
Packs inside an outer master carton for transit

About this product

This is a fast-setup retail display tray built for the packing line. It ships flat, but a factory-glued crash-lock base allows it to pop open and square up in one motion, eliminating the need to fold and tuck bottom flaps by hand.

Because the top is open and the back panel folds up into a branding header, this box is strictly for presentation. It requires an outer master carton for transit, and the complex glued base usually makes the most sense for higher-volume retail rollouts.
