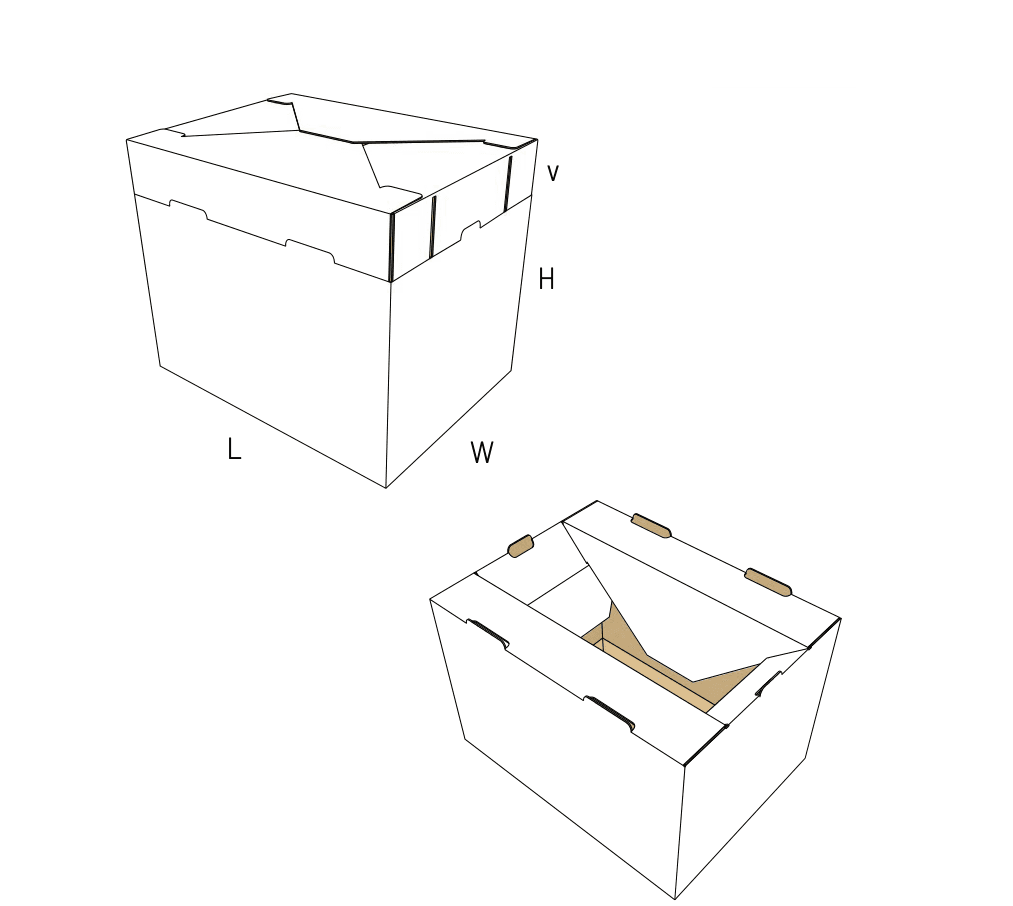

FEFCO 0819

Tear-Free Folding-Lid Retail Box

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Integrated lid folds inward to hide raw corrugated edges
Eliminates perforated tear-off waste at the retail store
Pre-glued base snaps open for fast pack-station loading

About this product

This shelf-ready transport box ships fully enclosed, but instead of using a perforated tear-away lid for retail display, the top panels fold completely inward. The folded lid locks flush against the interior walls, creating a clean, finished presentation edge without leaving trash for store staff to discard.

Because the lid acts as internal reinforcement rather than disposable waste, the tray gains vertical stacking strength on the shelf. The tradeoff is material sensitivity: the inward fold requires precise creasing and thinner board grades to prevent the hinges from binding.

Common uses

FMCG, cosmetics, pharmacy goods, and premium retail assortments.

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

Do you need printing on the inside of the box?

How will these boxes be shipped to stores?

What type of items will be packed inside?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail presentation and shelf-ready packing

Premium shelf-ready packaging

The clean, un-torn front edge matches premium brand expectations in cosmetics or personal care where ragged perforations look cheap.

High-turnover FMCG

Store staff can convert the box from transit to display in seconds without needing box cutters or having to carry away torn cardboard scraps.

Heavy or dense small items

The folded-in lid panels act as internal columns, reinforcing the side walls so the tray holds its shape as inventory depletes.

Zero-waste retail environments

Stores with strict aisle-clearance policies benefit from a display that generates no immediate cardboard waste during the stocking process.

Retail channels and fulfillment situations

Pharmacy and health retail

Keeps small bottles or blister packs organized with a clean presentation that fits narrow pharmacy shelving.

Direct-to-retail brand rollouts

Ensures the display looks exactly as intended, removing the risk of store staff tearing a perforated box incorrectly and ruining the branding.

Club store pallet displays

Provides a neat, uniform appearance when stacked in bulk, keeping the focus on the product rather than jagged cardboard edges.

When to consider a different display style

Perforated tear-off boxes

If you are packing very lightweight goods or prioritizing the absolute lowest material usage, a standard tear-off SRP uses less board because it does not need the extra depth required for the inward fold.

Open-top display trays

If your product ships inside a larger master carton and does not need its own transit lid, an open tray eliminates the lid entirely and reduces production economics.

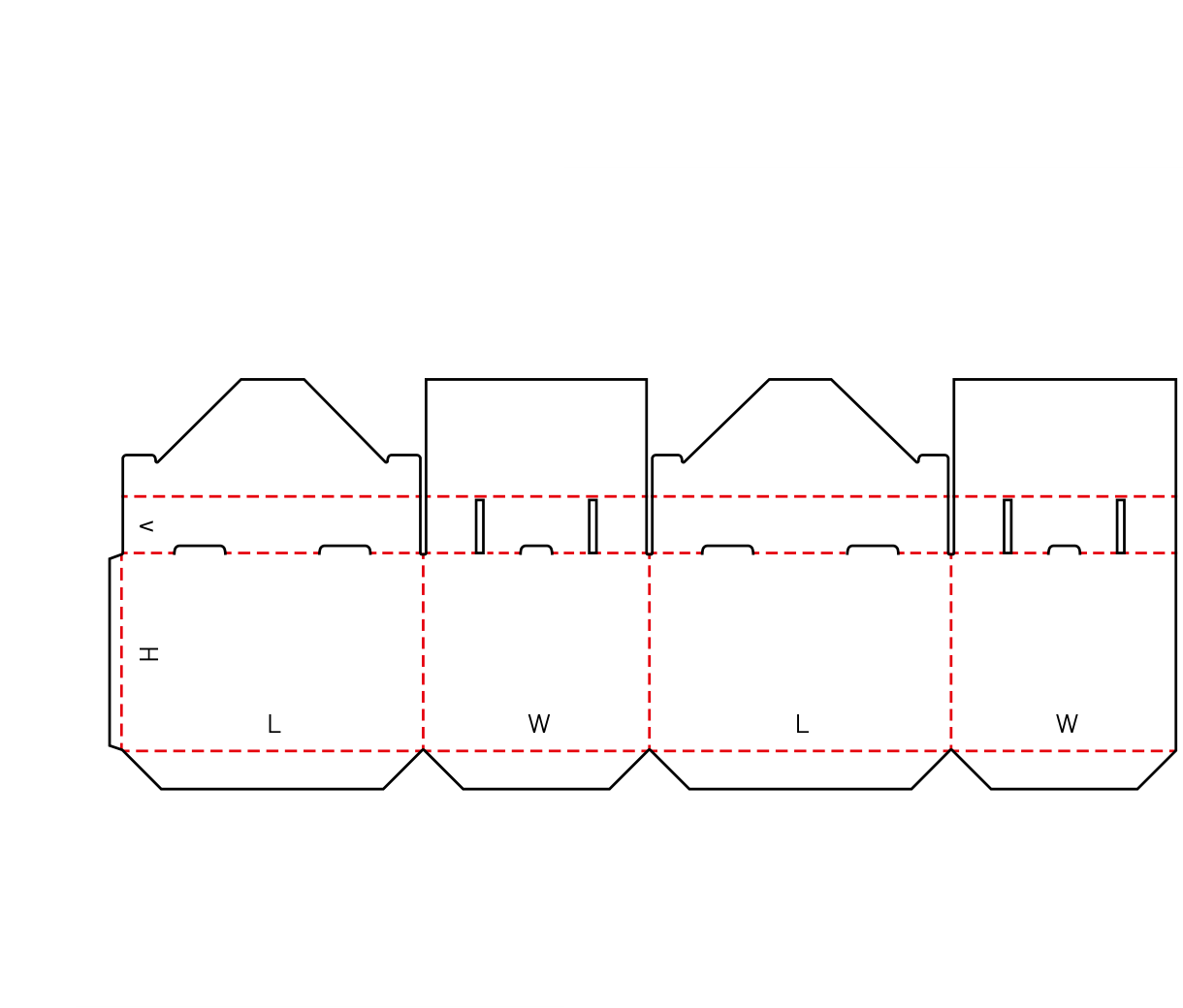

Close variants and lookalike dielines

The closest library neighbors include 0818, EVC11230, EVC11262. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board, print, and closure decisions

Board thickness limits

The 180-degree inward fold is highly sensitive to board caliper. Fine flutes fold cleanly and lock securely. Heavy flutes or double-wall board will likely bind, tear the hinge, or cause the locking tabs to crush.

Inside print requirements

Because the lid folds inward and rests against the back wall, the inside face of the lid may become visible to the shopper. If that panel needs branding, two-sided printing should be discussed early.

Transit sealing

While the lid closes the box for transport, it relies on friction locks. Depending on the courier or pallet routing, the top may still require a clear wafer seal or a strip of tape to keep the closure secure during transit.

Packing line speed

The standard pre-glued base snaps open instantly, which speeds up manual packing. If your packing line uses automated case erectors, discuss whether the equipment can handle the specific inward-folding top flaps.

Practical template adjustments

Locking tab geometry

The friction locks that hold the folded lid against the inner walls can be adjusted for tighter retention or easier store-level assembly depending on the board choice.

Display window depth

The front drop-down profile can be raised or lowered to expose more of the primary product while maintaining enough lip to keep items from sliding out.

Extended back panel

The rear panel can be extended slightly higher than the side walls to create a small, integrated header card for additional branding behind the product.

Board and packing details

Pack-station squaring and loading

The base is factory-glued. At the pack station, the operator simply pushes the opposite corners, and the floor snaps into a rigid, ready-to-load state, saving significant assembly time compared to unglued trays.

Base closure and locking options

Snap-lock versus auto-bottom

While typically configured with a fast-erecting crash-lock base, the bottom can be adapted to a simpler snap-lock if repeat packing volume does not justify a fully pre-glued base.

Additional notes

Layer step creases and board thickness

The fold lines on this package are specifically offset to accommodate the exact thickness of the chosen corrugated board. Changing the board grade later requires recalculating the template so the lid continues to fold flush.

FAQs

Board and Finish

Can this box be made in heavy double-wall corrugated?

It is highly discouraged. The integrated lid must fold 180 degrees inward to lock against the interior walls. Heavy board will bind at the hinges, resist the fold, and likely pop out of the locking slots.

Assembly and Packing

Does this box require tape to assemble?

The bottom is glued at the factory and snaps open at your pack station without tape. However, the top lid may need a strip of tape or a clear seal for outbound transit, depending on your shipping route.

Retail Setup

How does the store staff open it?

Staff open the top flaps, fold the main lid panel completely inside the box, and push the locking tabs into the interior slots. There is no tearing, cutting, or waste to discard.

Print and Branding

Do I need to print on the inside of the box?

It depends on your artwork. When the lid folds inward, its interior face becomes the back wall of the display. If you want that back wall branded, the package may call for two-sided printing.

Shipping Route

Can this ship as a standalone parcel?

It is primarily designed for palletized retail distribution. If you intend to ship it directly through a courier network, the top lid will require a secure external seal to prevent it from popping open during transit.

Comparison

Why choose this over a box with a perforated tear-off lid?

It provides a much cleaner presentation. Perforations often tear unevenly, leaving ragged edges that detract from premium products. This style hides the raw edges and reinforces the tray walls.

Product Fit

Does the folded lid take up space inside the box?

Yes. Because the lid folds flush against the interior walls, it slightly reduces the internal width and depth. Your product arrangement must account for this extra layer of corrugated board.

Design

Can the front display window be customized?

Yes. The front drop-down profile can be raised to hold taller items securely or lowered to expose more of the primary product, depending on how much retention lip your items need.
