FEFCO 0825

Retail Gravity Dispenser Box

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Deep front cutout for gravity-fed dispensing
Manual snap-lock base secures without tape
Requires an outer master carton for transit

About this product

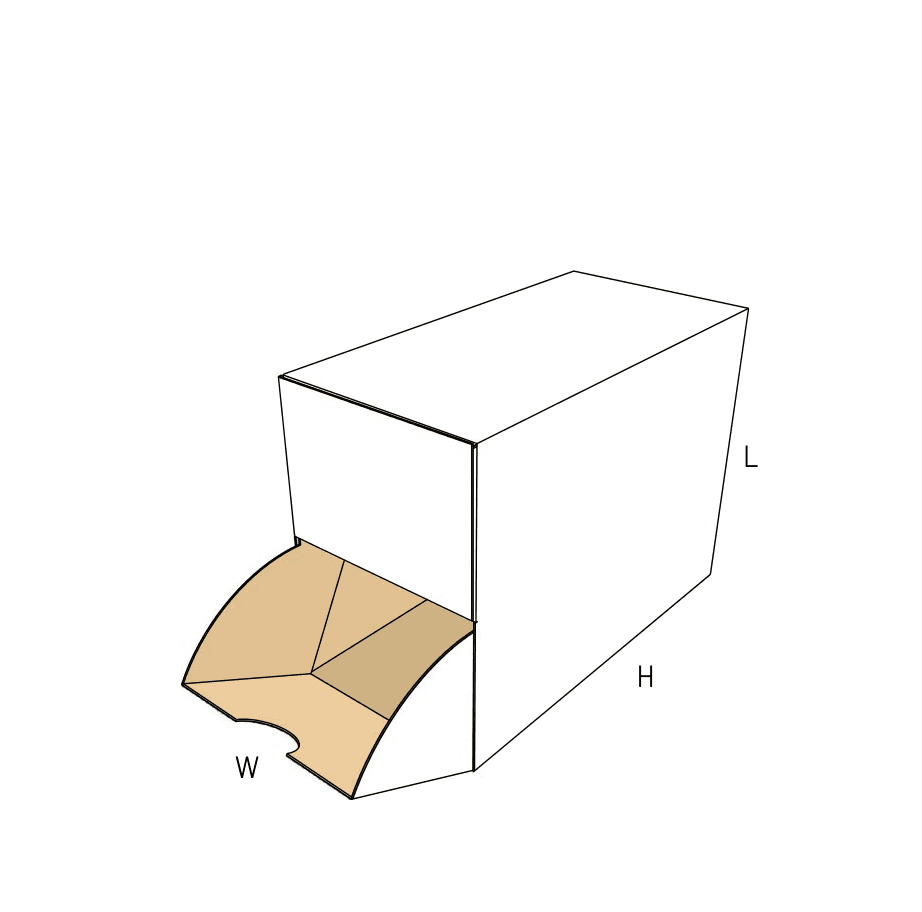

This one-piece retail dispenser box ships flat and folds into a vertical bin with a front chute. It holds loose items like coffee capsules, wrapped candies, or small hardware, keeping them organized and easy for shoppers to grab on a counter or shelf.

The base uses a manual snap-lock (1-2-3 bottom) that secures the floor without tape. This changes the assembly routine compared to a pre-glued crash-lock box, requiring a few extra seconds of manual folding at the pack station.

Common uses

Coffee pods and beverage packets
Wrapped candies and confectionery
Small hardware bins
Cosmetic sample counters

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Width (across the front)

Depth (front to back)

Total height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What type of items will this dispenser hold?

How do you want the front opening designed?

Do you also need outer shipping boxes for these dispensers?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail dispensing and bulk item presentation

Point-of-sale counter bins

The vertical footprint saves counter space while the open chute keeps small impulse items visible. The top lid closes to keep reserve stock dust-free until it drops down.

Shelf-ready bulk hardware and parts

Organizes loose screws, fittings, or small components on industrial shelving. The front lip retains the parts, but the friction-locked base should be tested for weight capacity before a full rollout.

Office breakroom beverage stations

Dispenses single-serve coffee pods or tea packets. The box acts as both the storage container and the presentation unit, keeping counters tidy.

Trade show sample distribution

Holds loose sample packets, tubes, or promotional giveaways at event booths. The flat side panels provide space for brand messaging.

Channels relying on countertop and shelf bins

Retail checkout and impulse channels

Stores with limited counter space use the vertical design to present small items right at the register.

Industrial and hardware supply

Parts distributors use these bins to separate small components on warehouse shelves, allowing quick access without opening individual boxes.

Food service and hospitality

Cafes and hotels use the gravity feed to manage single-serve condiments, keeping the presentation clean as inventory depletes.

Faster pack-station assembly alternatives

High-volume packing lines

If your fulfillment team packs thousands of these dispensers a day, the manual three-step folding of the snap-lock base adds labor time. Compare this to a crash-lock base, which pops into shape instantly.

Standalone parcel shipping

Because the front is completely open, this box cannot travel through a courier network on its own. If the box needs to ship individually, consider a fully enclosed mailer that converts into a display upon arrival.

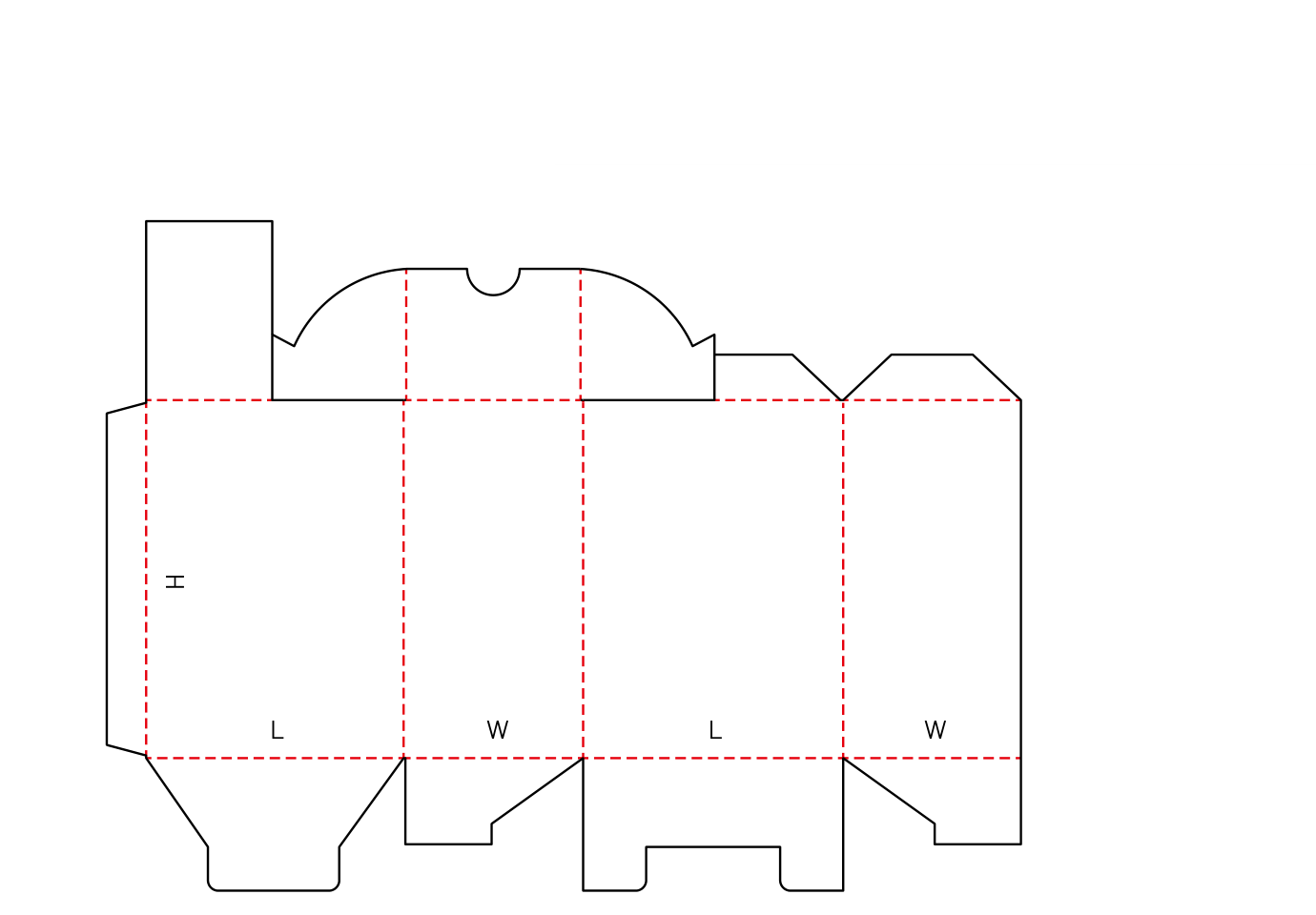

Close variants and lookalike dielines

The closest library neighbors include EVC11001, A10.10.02.04.52.a, EVC11001#2. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board thickness, front lip height, and assembly labor

Fine flutes for clean base locking

This structure relies on interlocking corrugated tabs at the base. Fine flutes fold cleanly and allow the tabs to catch. Heavy or double-wall board causes the locks to bind and reduces the internal space.

Front lip retention height

The height of the lower front wall dictates how well the box holds back loose items. A low lip makes it easier for customers to reach in, but increases the risk of product spilling out if the box is overfilled.

Pack-station labor versus production route

The manual snap-lock base requires a standard straight-line gluer during production, but demands more folding time from your packing team. Evaluate whether your operation prioritizes faster pack-station assembly or a simpler manufacturing route.

Master shipper planning

These dispensers ship flat to your facility. Once loaded with product, they must be packed into a fitted corrugated master carton to survive distribution to the retail store.

Chute width and access profiles

Chute width and side wall splay

The width of the dispensing opening can be adjusted. A wider opening improves access but removes structural support from the front corners, which can cause the side walls to bow outward under the pressure of heavy bulk goods.

Base flap clearances

The friction-lock tabs on the 1-2-3 bottom must be tuned to the exact caliper of your chosen corrugated board to prevent binding during assembly.

Top lid closure style

The standard tuck-in lid keeps dust out of the reserve stock. This can be modified with friction locks if the lid needs to stay securely closed during aggressive handling.

Board and packing details

Print surface considerations

The flat side and back panels offer excellent billboard space for retail branding. Fine flutes provide a smooth surface for high-quality graphics without visible washboarding.

Cutout variations

Thumb cut access

Replaces the wide gravity chute with a smaller semi-circular cutout for items that require more front-wall containment.

Additional notes

Testing for wall splay

If you plan to overfill the dispenser with dense items, test a physical sample first. Heavy outward pressure can cause the front corners to tear or the side walls to bow.

FAQs

Shipping and route

Can I ship this dispenser directly to a customer?

No. The open front chute means loose items will fall out during transit. This box must be packed inside a closed master shipper for distribution.

Board and material

Can we make this out of heavy double-wall board for extra strength?

We advise against it. The manual snap-lock base requires the corrugated board to fold tightly and interlock. Thick board causes these tabs to bind, making assembly frustrating and often failing to lock securely.

Product fit

How much weight can the base hold?

The base relies entirely on friction between folded corrugated flaps. While it easily holds light items like coffee pods or candy, heavy metal parts can cause the base to burst. We recommend a physical weight test for dense products.

Assembly and packing

Does this box require tape or glue to set up?

No. The manufacturer glues the side seam, and your packing team folds the bottom flaps into a friction lock. The top lid simply tucks into place.

Customization

Can we change the size of the front opening?

Yes. The opening can be widened for better access or narrowed to prevent items from spilling. We will help you balance product visibility with the structural strength of the front corners.

Production path

Why choose this over a crash-lock dispenser?

This snap-lock version requires only a standard straight-line gluer during manufacturing. It makes sense when you have the labor capacity to fold the bottoms by hand rather than relying on a multi-point gluer.

Loading

How do we load the product into the dispenser?

The box is loaded from the top. Once the base is locked, you pour the bulk items in, and they naturally feed down to the front chute. The top lid is then tucked closed.

Print and finish

Does the front cutout affect the printable area?

Yes. Because the lower front panel is removed to create the chute, your primary branding and product information should be placed on the side panels, back panel, or a separate display header.
