Hercule Industrial logoHercule Industrial
Interactive 3D
1 / 3

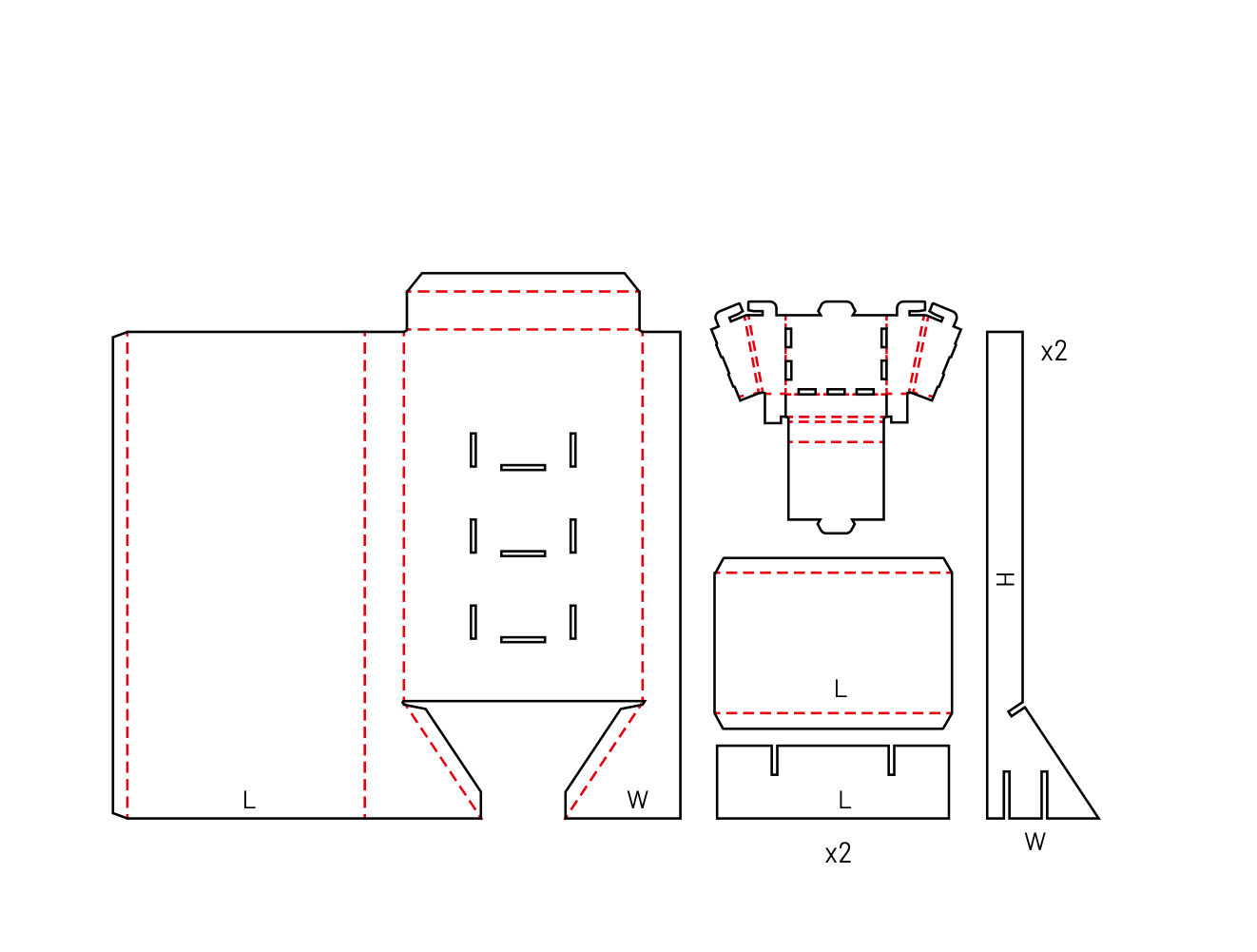

FEFCO 0849

Corrugated Retail Floor Display with Tray Shelves

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Multi-piece unglued kit that ships flat in a master carton
  • Drop-in tray shelves feature folded front lips to retain products
  • Base pedestal and internal insert prevent the frame from splaying

About this product

A freestanding corrugated floor fixture designed for point-of-purchase merchandising. It uses a tall U-shaped back frame, a stabilizing base pedestal, and multiple drop-in tray shelves to present products in retail aisles.

Because the entire unit consists of separate flat pieces, it ships efficiently in a master carton. The tradeoff is the manual assembly required at the store or co-packing facility, where staff must fold the tray lips and align the locking tabs into the side walls.

Common uses

  • Seasonal retail rollouts
  • Lightweight cosmetics and toiletries
  • Packaged snacks and impulse buys
  • Trade show and event merchandising

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail Merchandising and Floor Presentations

Seasonal promotional end-caps and aisles

The tiered shelves organize multiple product variants, while the tall side panels and front base offer large surfaces for campaign branding. The tray lips keep loose or small boxed items from sliding off when bumped by passing carts.

Lightweight cosmetics and personal care

The friction-fit shelves handle lightweight, high-volume items well. The enclosed base pedestal keeps the bottom shelf off the floor and protects the display structure from accidental kicks or mop damage.

Packaged snacks and impulse buys

The multi-shelf layout provides high visibility for grab-and-go items. The folded front lips on each tray ensure that bags or small boxes stay secure even as inventory depletes throughout the day.

Trade show and event merchandising

Because the entire fixture ships flat, it is easy to transport to temporary event spaces. The unglued tab-and-slot design allows staff to build a professional presentation without specialized hardware.

Campaign Rollouts and Co-Packing

Distributed retail campaigns

Brands shipping displays to hundreds of retail locations rely on the knocked-down flat format. The unglued pieces pack tightly into a single master shipper, reducing freight volume before the display reaches the store.

Co-packing operations

Facilities that pre-load displays before shipping to retailers must account for the assembly labor. Workers have to square the main frame, lock the base, fold each tray, and carefully align the locking tabs into the side walls before loading the product.

Brand activations and pop-up shops

Temporary retail footprints benefit from the freestanding nature of this display. It creates an immediate, branded shelving unit that does not rely on existing store fixtures or permanent wall space.

When to Consider a Different Display Style

Heavy or dense bulk goods

If you are displaying heavy bottles, canned goods, or dense hardware, the friction-fit tabs on these shelves may shear, or the center of the shelf may sag. A display with 180-degree rolled edges and vertical dividers handles heavy point loads better.

Faster store-level setup

If retail staff complain about multi-piece assembly, a factory-glued display tube pops open much faster. It generates more waste during production, but it removes the frustration of aligning multiple unglued tabs.

Close variants and lookalike dielines

The closest library neighbors include 0832, 0853, EVC62186. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board, Production, and Assembly Choices

Mixing board grades for strength and folding

The main U-frame needs a thicker board to support the vertical weight, while the tray shelves need a thinner board so the locking tabs fold cleanly without crushing. Using two different board grades requires manual collation before shipping.

Payload testing and tab clearance

The width of the locking holes in the side walls must exactly match the thickness of the board used for the shelves. Changing the board material without adjusting the cut files will cause the tabs to bind during assembly or slip out under load.

Master shipper requirements

Because this display is a collection of unglued flat parts, it cannot ship on its own. It requires a separate corrugated master carton to keep the body, base, and shelves together during transit.

Large-format production limits

The main body of a tall floor display is a massive single piece of corrugated board. This requires large-format flatbed cutting equipment, which makes it better suited for planned retail rollouts rather than small trial runs.

Shelf Count and Spacing Adjustments

Shelf count and vertical spacing

The number of trays and the distance between them can be adjusted to fit the product height. Adding more shelves increases the total height of the main back panel, which eventually hits the size limits of standard flatbed presses.

Front lip height

The folded front edge of each tray can be raised to hide more of the product base or lowered to increase visibility, depending on how securely the items sit on the shelf.

Base pedestal angle

The front panel of the base can be angled or kept vertical. An angled base provides a larger uninterrupted surface for branding and helps shift the center of gravity backward for stability.

Board and packing details

Internal stripping waste

The numerous slots cut into the side walls to accept the shelves generate unrecoverable scrap board. This material inefficiency is a natural part of the tab-and-slot design.

Additional notes

Internal stripping waste

The numerous slots cut into the side walls to accept the shelves generate unrecoverable scrap board. This material inefficiency is factored into the production approach.

Related Retail Displays

0832: Related template 0832

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

0853: Related template 0853

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

FAQs

Assembly and Labor

Do these displays require glue or tape to assemble?

No. The entire structure relies on mechanical friction locks. The base panels lock the bottom square, and the tray tongues slide into slots on the side walls to hold the frame together.

How difficult is this for retail staff to build?

It requires careful two-hand assembly. The main friction point is aligning the left and right tabs of a tray into the side-wall slots simultaneously without crushing the corrugated board.

Product Fit and Weight

How much weight can the shelves hold?

Weight capacity depends entirely on the board choice and the width of the display. Because the shelves are suspended by side tabs, heavy point loads can cause the center to sag or the tabs to tear. Always request a physical prototype to test with your actual product.

Shipping and Route

Can this display be shipped fully assembled and loaded?

It is risky. The unglued tab-and-slot connections are designed for static retail floors, not the lateral shocks of transit. Most buyers ship these flat to the store, or use specialized pallet packaging if shipping pre-loaded.

Production and Route

Why does this display require large-format flatbed cutting?

The complex locking slots, the angled base panels, and the specific tray tabs cannot be cut on standard box-making machinery. The main body panel is also exceptionally large, requiring specialized flatbed equipment.

Material and Board

Can we use heavy double-wall board for the whole display?

Using heavy board for the tray shelves makes the small locking tabs too stiff to fold and insert easily. It is usually better to use a strong board for the main frame and a thinner, cleaner-folding board for the shelves.

Product Fit and Weight

How does the display stay upright without tipping?

The separate front panel and internal base insert lock the bottom of the U-frame into a rigid pedestal. This prevents the side walls from splaying outward and keeps the entire structure stable on the retail floor.

Material and Board

What happens if we change the board thickness later?

The locking slots in the main body are cut to match the exact thickness of the shelf board. If you switch to a thicker or thinner board without updating the cut files, the shelves will either bind during assembly or slip out under load.
