FEFCO 0840

Multi-Shelf Retail Display Stand

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Multi-piece unglued kit with a U-shaped main frame and separate drop-in shelves
Shelves act as structural cross-braces to keep the side walls rigid
Ships knocked-down flat for transit to co-packers or retail stores

About this product

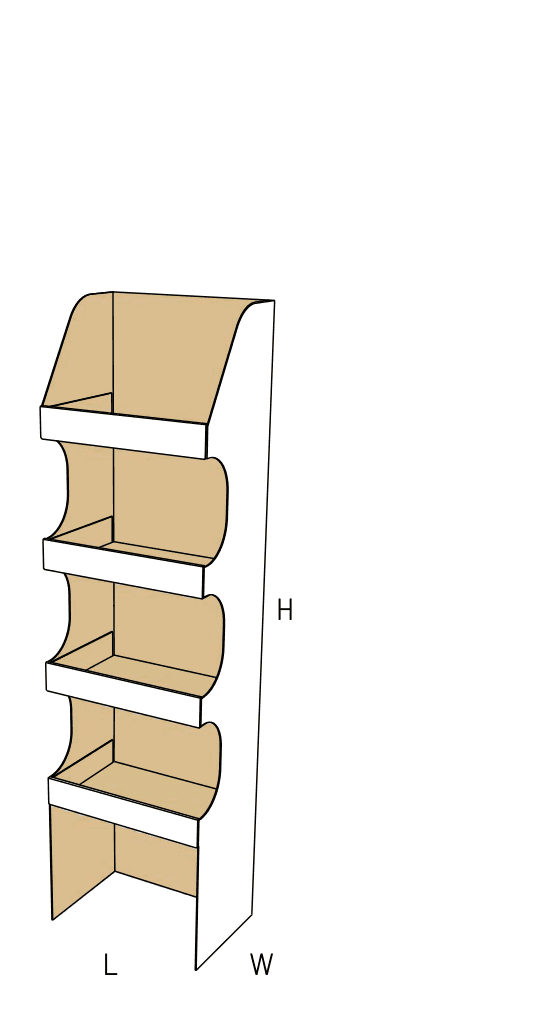

This multi-piece corrugated display creates a freestanding retail fixture using a tall U-shaped backboard and separate drop-in shelves. It ships flat as a kit and locks together entirely through mechanical friction, requiring no tape or glue to assemble.

Because the side walls fold at a simple 90-degree angle, the unit relies on the inserted shelves to act as cross-braces. This makes it a practical choice for light-to-medium retail merchandising, though the manual assembly effort and shelf weight limits require careful planning before production.

Common uses

Retail floor and end-cap merchandising
Countertop point-of-sale fixtures
Trade show and event literature racks
Temporary promotional bins

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Overall display height

Shelf width (side to side)

Shelf depth (front to back)

Number of shelves

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How heavy are the items going on each shelf?

Where will this display be assembled?

How much of the display needs custom printing?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail floor and promotional display setups

Retail floor and end-cap merchandising

The tall rear panel provides a large billboard space for branding, while the open shelves keep boxed goods, cosmetics, or packaged snacks accessible in busy aisles.

Countertop point-of-sale fixtures

Scaled down and cut from thinner board, the exact same design organizes small impulse items like lip balm or travel toiletries right at the register.

Trade show and event literature racks

The flat shelves easily hold brochures or sample kits. Because the entire unit packs flat and requires no tools, event staff can assemble it on-site in minutes.

Product launch and pop-up shop displays

For short-term brand activations, the flat-packing design allows field teams to transport the display easily and assemble it on-site without specialized hardware.

Co-packing and campaign execution

Co-packing and fulfillment operations

Teams building retail-ready pallets appreciate that the display components arrive flat. However, the multi-piece tab-and-slot assembly requires dedicated pack-station labor to erect the stand before loading the product.

Seasonal retail promotions

For temporary campaigns, this unglued setup bypasses factory gluing. The design relies on large-format die-cutting and printing, shifting the assembly burden to the store floor.

Field marketing and brand activations

Field teams managing multiple locations benefit from the knocked-down delivery. The friction-fit assembly means representatives can set up the presentation without carrying tape or adhesive.

When to consider reinforced display styles

Heavy payloads require hollow columns

If you are displaying heavy beverages or dense hardware, compare this to a 0831 display. The 0831 rolls its side walls into 180-degree hollow pillars, providing much higher vertical crush resistance than a single-thick 90-degree wall.

Angled presentation is needed

If the product needs to tilt backward for better shopper visibility, look at the 0834 display, which features an inclined backboard rather than a straight vertical drop.

Close variants and lookalike dielines

The closest library neighbors include 0830, 0833, EVC92031. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Decisions that affect assembly and stability

Board thickness versus assembly friction

Heavy flutes provide better payload stiffness but make the long 90-degree side folds physically exhausting to bend. Thick board also increases the risk of the locking tabs crushing when pushed into the body slots.

Shelf count and vertical height

Adding more shelves increases the vertical height of the main body blank. For tall floor displays, this single large piece requires careful planning to ensure it fits within typical flatbed cutting dimensions.

Master shipper requirements

This display is not designed for standalone parcel shipping. The flat components must be kitted and packed inside a separate corrugated master shipper for safe transit to the final destination.

Base depth and tipping risk

The depth of the bottom side walls determines the display's center of gravity. Tall units holding heavy items on the top shelf require an extended base footprint to prevent forward tipping.

Practical template adjustments

Shelf lip height

The front and back folds on each shelf can be extended to create a deeper retention lip, preventing loose items from sliding off while adding rigidity against center sag.

Shelf spacing

The vertical distance between slots can be adjusted to accommodate different product heights, though this changes the overall tension distribution across the side walls.

Header card profile

The top of the main backboard can be cut into custom curves, angles, or brand-specific shapes to draw attention above the retail shelving line.

Board and packing details

Component layout and material use

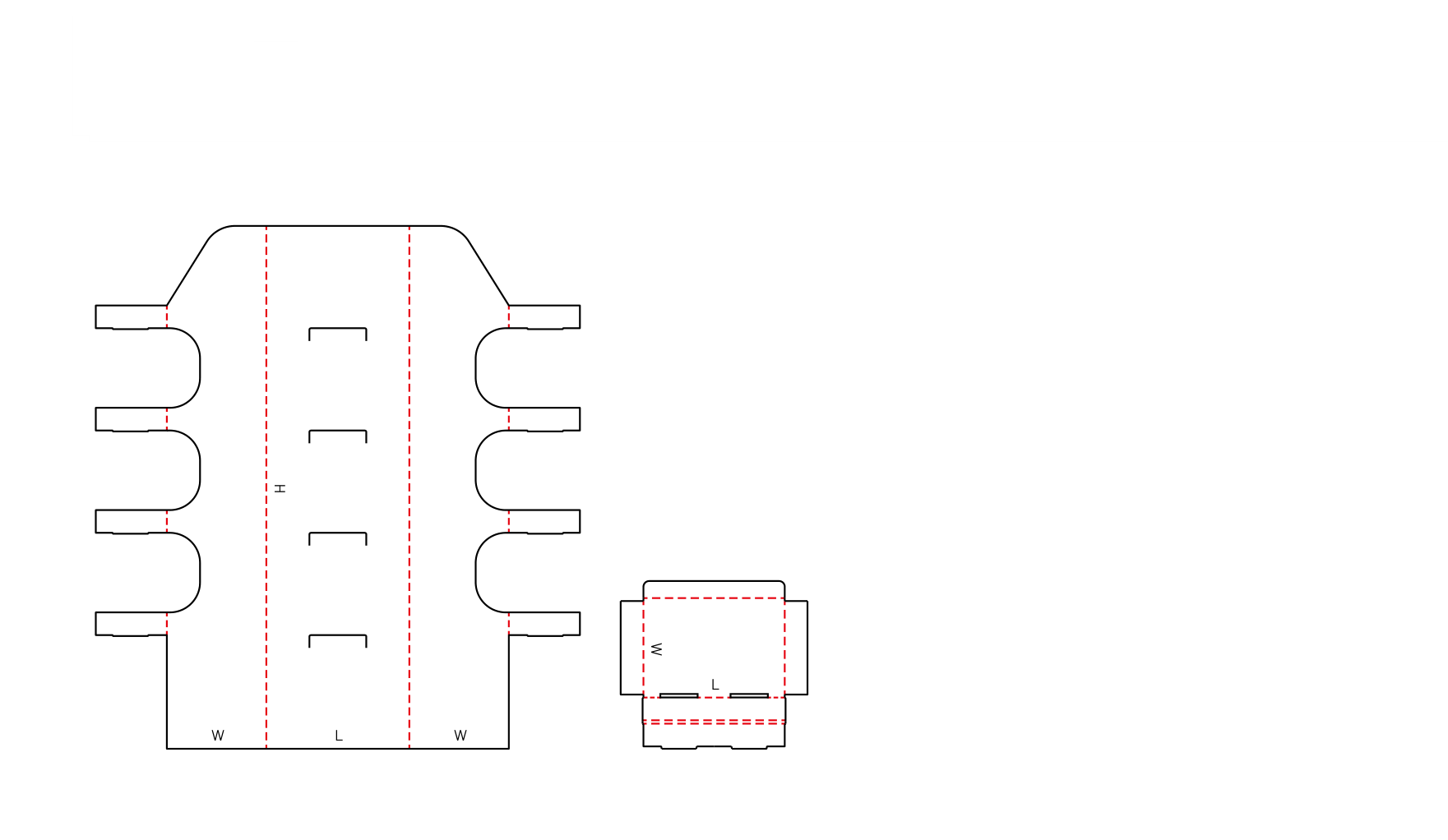

The open gap between the side walls on the main body blank leaves room to nest the smaller shelf components, making the overall material footprint highly dependent on the shelf count and dimensions.

Physical payload testing

Because the shelves act as the primary tension members holding the display together, a physical mockup in the exact production board is mandatory to test for center sag and lateral sway before a full rollout.

Additional notes

Large-format billboard space

The tall, unbroken back panel and wide side walls offer excellent continuous surfaces for flexographic or digital printing, making it highly effective for brand campaigns.

FAQs

Shipping and route

Can this display be shipped directly to a customer through the mail?

No. The open shelving and multi-piece tab-and-slot construction mean it must be shipped knocked-down flat inside a separate corrugated master shipper.

Assembly and closure

Does this display require adhesive to stay together?

No. The entire unit relies on mechanical friction. The shelves feature tabs that slide into corresponding slots on the main body, locking the unit square.

Board and finish

What board grade makes the most sense for this stand?

B or C flute is a practical choice for general retail loads. While double-wall board offers higher payload stiffness, it increases the manual effort required to fold the side walls and forces the locking tabs to bind during insertion.

Product fit and loading

How much weight can each shelf hold?

This depends entirely on the board grade, shelf width, and product distribution. Because the shelves are supported only by the side tabs, heavy point loads will cause center sag. You should always request a physical sample to test your specific payload.

Packing labor

Who usually assembles this display?

Assembly happens at the point of use. This means either a co-packer builds and loads it before wrapping it for retail delivery, or store staff assemble the flat kit directly in the aisle.

Quantity and production

Why are short runs of large floor displays less common?

The main body of a floor-standing unit requires a massive flatbed die-cutting press. The upfront preparation for a die that large makes short runs less practical, though digital cutting can be used for prototypes.

Presentation

Can the shelves be angled to display products better?

The standard 0840 uses flat, horizontal shelves. If you need an angled presentation, you should evaluate the 0834 display, which features an inclined backboard and tilted shelves.

Stability

How do I prevent a tall display from tipping forward?

Tipping risk is managed by adjusting the depth of the side walls at the base. A deeper base pushes the center of gravity backward, counteracting the weight of products loaded on the upper shelves.
