Retail Merchandising and Floor Presentations
High-traffic retail dump bins
The beveled corners act as reinforced structural columns, making the bin more resistant to accidental kicks or bumps from shopping carts than a standard flat-sided display. The drop-in base holds lightweight bulk items like packaged snacks, travel toiletries, or seasonal promotions.
Freestanding presentation pedestals
When the base insert is positioned near the top of the tube, the structure functions as a presentation pedestal. The angled corner panels provide extra surfaces for campaign branding and create a finished, architectural look in open floor plans.
End-cap promotional displays
The chamfered edges allow this display to sit neatly at the end of retail aisles without presenting sharp 90-degree corners that catch on passing carts or customer clothing.
Lightweight bulk merchandising
Because the internal floor relies on friction or simple tabs to stay elevated, this bin works well for high-volume, low-weight items. Heavy hardware or dense liquids require a different base support strategy.
Retail Channels and Promotional Rollouts
Seasonal promotional campaigns
The body and base ship completely flat in a master carton, allowing efficient distribution to hundreds of retail locations. Store staff can assemble the bin without tools, making it practical for short-term promotional pushes.
Supermarket and grocery floor plans
Grocery environments demand displays that can handle incidental contact. The eight-crease profile distributes impact force better than a simple four-corner box, keeping the display standing through heavy weekend foot traffic.
Trade show and event marketing
Event teams use these bins because they pack flat for transport but offer a premium, non-boxy appearance once assembled on the show floor.
Comparing Standard and Hexagonal Display Bins
When a standard square footprint is enough
If the premium beveled look is unnecessary and budget is the primary concern, a standard four-corner display bin (0845) is easier for the factory to glue and often more cost-effective for simple dump-bin applications.
When center-aisle placement demands 360-degree access
If the display sits completely isolated in a wide aisle, a true hexagonal tube (0846) offers six equal sides for branding and access, rather than four main sides with small chamfered corners.
Board Choice, Base Friction, and Print Surfaces
Board thickness and folding behavior

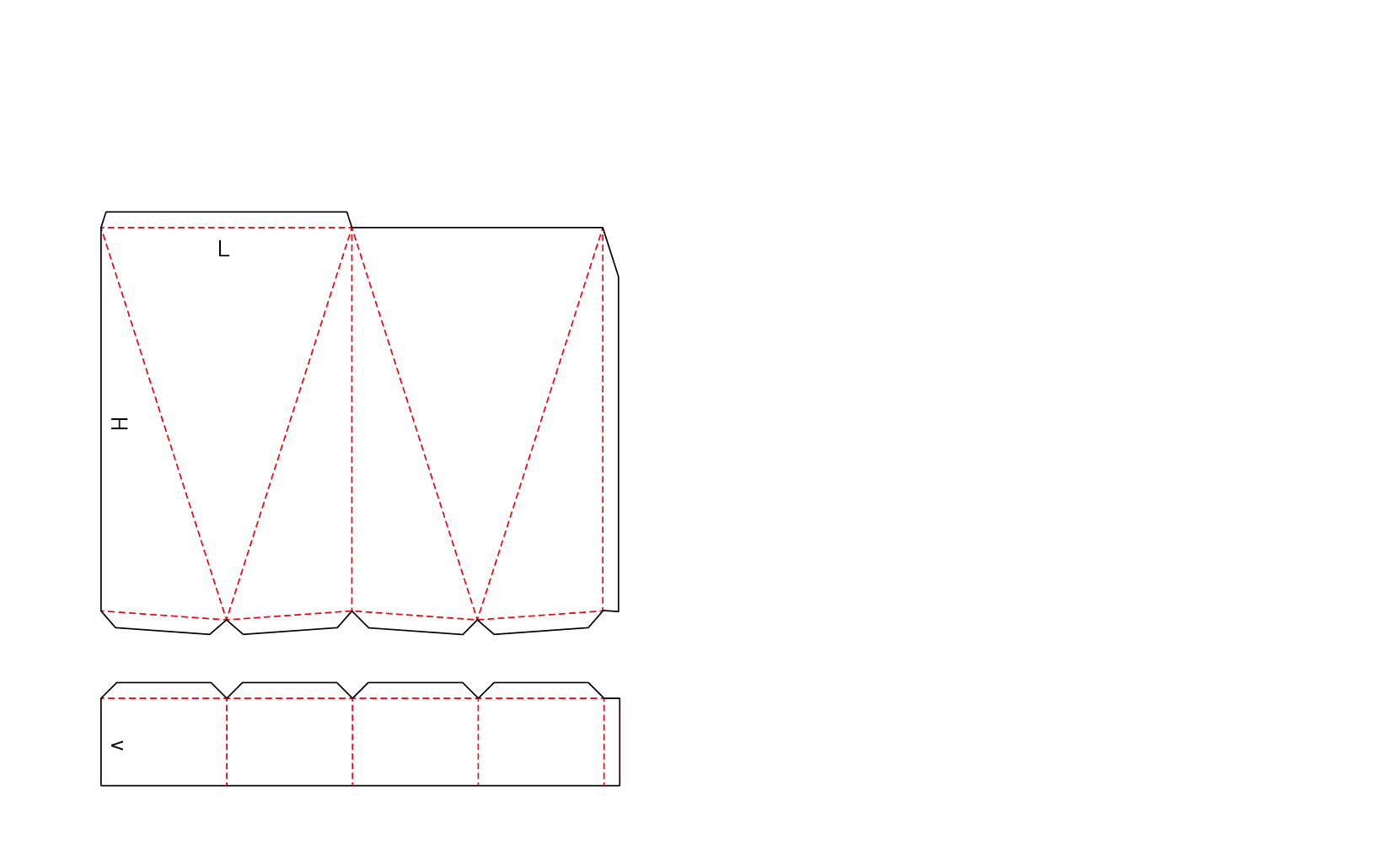

The outer tube requires eight vertical creases to form the beveled shape. While standard B or C flute board folds cleanly, heavy double-wall board makes these extra folds stiff. This changes how easily store staff can square up the display and can cause the tube to skew during factory gluing.
Base insertion friction
The internal base relies on a tight friction fit or tab-and-slot engagement against the outer walls. Changing the board grade after the initial design alters this clearance, causing the base to either jam during assembly or slip down under product weight.
Print surface allocation
The four main panels and four beveled corners offer distinct zones for branding. Deciding whether to print the narrow chamfered edges or leave them as solid accent colors changes the visual impact on the retail floor.
Payload weight and base support
The internal base relies on outward tension against the body walls. Heavy items change whether a simple friction fit is enough or if the base needs engineered locking tabs to prevent the floor from sagging.
Adjusting Display Depth and Corner Angles
Setting the base elevation
The depth of the product bin is determined by how high the base insert sits inside the tube. A high elevation creates a shallow tray for presenting a few premium items, while a low elevation creates a deep dump bin for bulk goods. Adjusting this height changes the center of gravity, so tall, shallow setups should be checked for tipping risk.
Modifying the bevel width
The width of the chamfered corners can be widened or narrowed. A wider bevel creates a more octagonal appearance and increases column strength, while a narrower bevel maximizes the flat space on the four main display panels.
Adding base locking tabs
For heavier payloads, the base insert can be modified to include specific locking tabs that engage with hidden slots cut into the outer tube, preventing the floor from slipping down over time.
Board and packing details
Master shipper requirements
This display is an open-top retail fixture, not a shipping container. The flat body tube and base piece must be packed together into a separate corrugated master shipper for safe transit to the retail store or co-packing facility.
Base Locking Styles
Friction-fit versus tab-locked base
Depending on the product weight, the base insert can be designed as a pure friction-fit tray or engineered with specific locking tabs that engage with hidden slots in the outer tube for heavier payloads.
Additional notes
Factory gluing considerations
The eight-crease profile requires careful setup on a factory folder-gluer. While it creates a distinct retail display, it is a specialty run compared to standard four-corner boxes.
FAQs
Assembly and Packing
How is this display assembled at the store?
The main body arrives flat but pre-glued at the side seam. Retail staff push the edges to pop the tube into its beveled shape, fold the flaps on the separate base piece, and push the base down into the tube until it seats at the correct height.
Product Fit
How much weight can the base insert hold?
Payload capacity depends entirely on the board grade and the tightness of the base fit. Because the base is suspended inside the tube, heavy items can cause the floor to sag or slip. We recommend a physical load test with your actual products before full production.
Production Path
Why does board thickness matter so much for this design?
The outer tube has eight vertical creases instead of the usual four. Thick, heavy board makes these extra folds stiff, which can cause the tube to skew during factory gluing or make it difficult for store staff to square up the display.
Shipping Route
Can this display be shipped with products already inside?
Generally, no. Because the base is a drop-in piece and the top is open, this structure is designed to ship flat to the store and be loaded on-site. If the package needs a pre-packed display, a different style with a crash-lock base and shipping cover is usually a better choice.
Print and Finish
Where can graphics be printed on this display?
The entire outer surface of the tube, including the four main panels and the four beveled corner panels, can be printed. The internal base piece is usually left unprinted or given a simple flood coat, as it is mostly covered by the product.
Samples and Prototypes
Should we request a prototype before ordering?
Yes. A physical sample is critical to verify two things: that the base insert slides in smoothly without crushing the edges, and that it holds firmly without slipping down once your products are loaded.
Adjustments
Can the base height be adjusted after manufacturing?
No. The base elevation relies on specific friction tolerances or pre-cut slots in the outer tube. The desired depth of the bin must be decided before the cutting die is made.
Shipping Route
Does this display require a separate shipping box?
Yes. The display itself is an open-top retail fixture. The flat body and base pieces must be packed inside a separate corrugated master carton to handle the courier or freight network.
