FEFCO 0846

Double-Sided Hexagonal Floor Display

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Double-sided access for center-aisle or open-floor retail placement.
  • Drop-in shelves feature raised bumpers to retain loose or small products.
  • Requires manual store-level assembly to square the frame and insert the shelves.

About this product

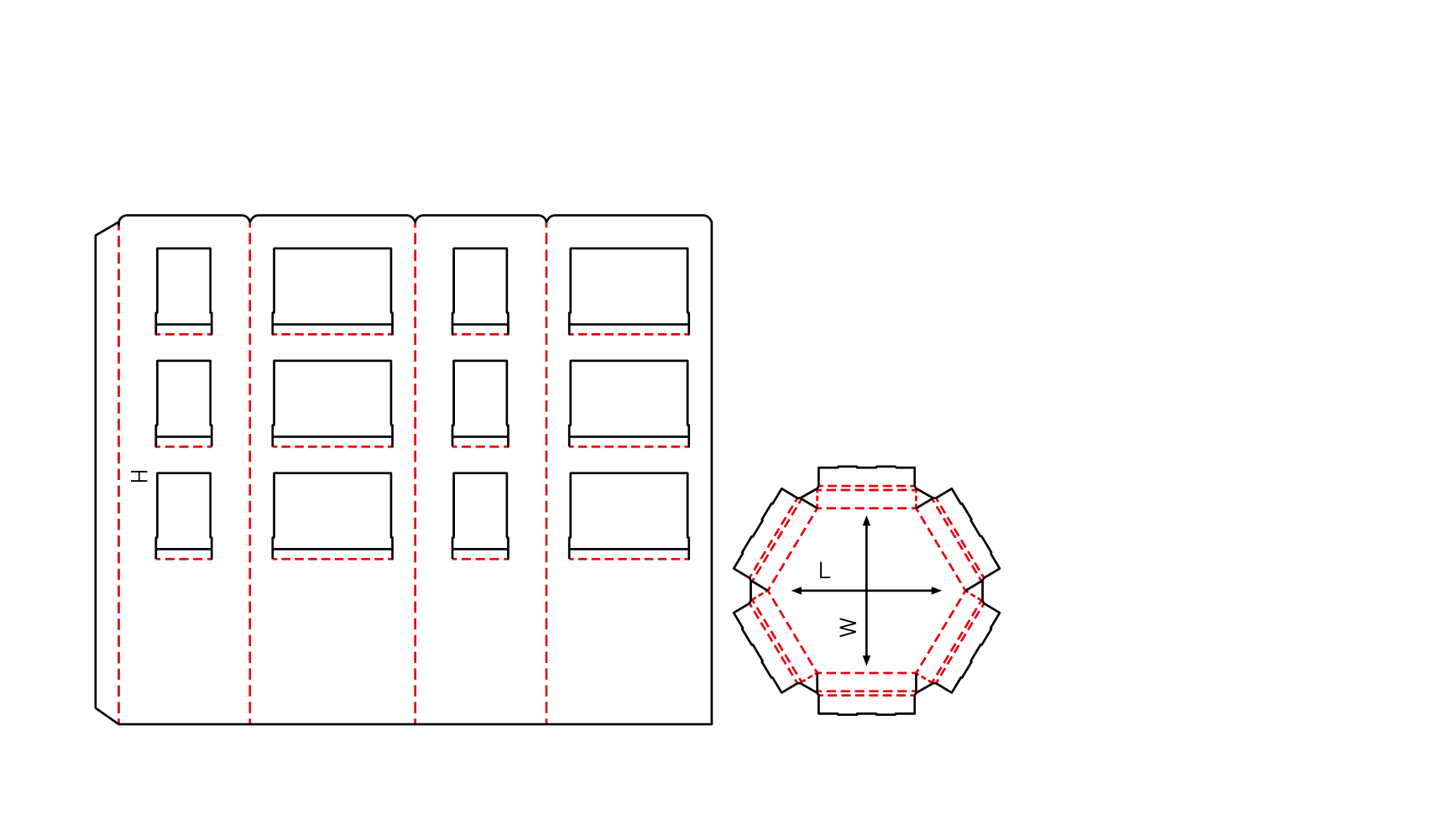

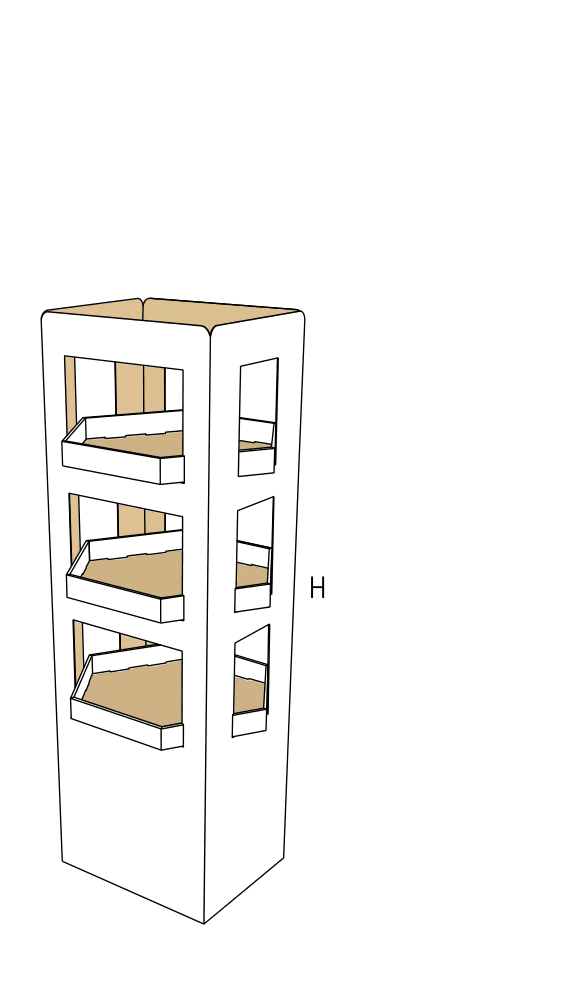

A freestanding corrugated floor display designed for center aisles and open retail spaces. It uses a continuous hexagonal outer frame with large open windows on two sides, allowing shoppers to approach and pick products from multiple directions.

Inside the frame, separate drop-in shelves feature raised front and back bumpers to keep loose or small items from sliding out. Because the shelves lock directly into the outer walls, the entire unit gains vertical stability, though it requires careful manual assembly at the store level.

Common uses

  • Center-aisle promotional rollouts
  • Loose or small-item merchandising
  • Trade shows and event marketing
  • High-traffic retail intersections
  • Multi-tier product assortments

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Center-Aisle and Open-Floor Retail Presentations

Center-aisle promotional rollouts

The double-sided windows allow traffic to flow around the display without hiding the product. The hexagonal shape provides a stable footprint for freestanding use.

Loose or small-item merchandising

Unlike flat shelves, the raised bumpers on each shelf act as shallow trays. This keeps lip balms, travel toiletries, or small packaged snacks from being knocked off the edge by passing carts.

High-traffic retail intersections

The hexagonal footprint provides stability against accidental bumps, while the double-sided windows keep products visible from multiple approach angles.

Multi-tier product assortments

The separate shelves allow brands to organize different flavors, sizes, or complementary items vertically without mixing them in a single dump bin.

Retail Merchandising and Event Marketing

Trade shows and event marketing

The entire unit ships flat in a master carton. Event staff can erect the main tube and drop in the shelves without needing tools or hardware, creating a tall, branded fixture in minutes.

Retail co-packing

Brands sending pre-packed displays to retailers must account for the multi-piece nature of this stand. The frame and shelves are usually shipped knocked-down alongside the product for store staff to assemble.

Seasonal or temporary retail campaigns

Brands launching short-term promotions use this display to secure off-shelf floor space without investing in permanent metal or wood fixtures.

When to Compare Other Retail Displays

Heavy or dense bulk goods

The shelves rely entirely on corrugated tabs inserted into the side walls. If you are displaying heavy beverage bottles or dense hardware, the shelves may sag in the center or shear the tabs. A display with a central load-bearing pillar or metal shelving is a safer choice.

Products that need unobstructed sliding access

The raised bumpers keep items secure, but they force shoppers to lift products up and out. If you are displaying wide, flat boxes that should slide out easily, a bumperless display is a better fit.

Close variants and lookalike dielines

The closest library neighbors include 0872, EVC62013_3, EVC61034. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board Choice, Shelf Count, and Assembly Planning

Board grade and tab friction

Heavy double-wall board makes the outer frame incredibly rigid, but it also makes folding the shelf bumpers and forcing the tabs into the wall slots physically exhausting for retail staff. B-flute or C-flute often provides a better balance of frame stiffness and assembly ease.

Flatbed tooling and blank size

The main hexagonal body is cut from a single, massive piece of corrugated board. Depending on the final height of your display, this blank may push the limits of standard flatbed die-cutters, which can affect which converters can run the job.

Master shipper requirements

Because the display ships knocked-down in multiple pieces, buyers must plan for a separate outer corrugated box to transport the frame and shelves to the retail location.

Shelf payload limits

The shelves rely on corrugated tabs inserted into the side walls. Buyers must test their specific product weight to ensure the center of the shelf does not sag over time.

Structural Adjustments for Product Fit

Shelf count and vertical spacing

The template defaults to three shelves, but the number and distance between them can be adjusted to match your product height. Adding more shelves increases the overall height of the main body blank.

Bumper height

The depth of the raised edges can be increased for taller, unstable products, or decreased to increase the visible display window.

Header card integration

The top panel can be modified to accept a slotted header card, adding vertical branding space above the main product windows.

Board and packing details

Manual assembly burden

This is not a pop-up display. Store staff must square the glued tube, fold the edges of every individual shelf, and carefully align the tabs into the wall slots. If your retail partners demand instant setup, this multi-piece setup may cause compliance issues on the floor.

Header and Branding Additions

Header Card Additions

While the base template has a flat top, a separate header card can be slotted into the top panel for additional branding.

Additional notes

Internal stripping waste

The large open windows on the two main faces generate heavy offcut waste during die-cutting. This is standard for open-face displays, but it factors into the overall material cost.

Related Retail Displays

0843: C-Column Display Stand

Consider this alternative if you want to avoid the massive single-piece body blank. It uses two separate side columns to support the shelves.

0872: Related template 0872

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

EVC62013_3: Shelf Display with Supports

EngView neighbor that can look close in CAD. Review it if a sample or dieline seems similar, then verify closure style, slots, wall build, and assembly before treating it as a substitute.

FAQs

Shipping and route

Can this display be shipped fully assembled with products inside?

No. The open windows and multi-piece tab-and-slot shelves mean it is not suited for direct transit while loaded. It must be shipped knocked-down in a master outer carton.

Product fit

How much weight can the shelves hold?

This depends entirely on the board grade and the width of the display. Because the shelves are suspended by side tabs, wide displays with heavy items will suffer from center sag. We recommend physical load testing with your actual product.

Assembly

Does this display require glue or tape to assemble in the store?

No. The manufacturer glues the main side seam before delivery. Store staff simply square the frame and lock the shelves into place using the pre-cut friction tabs.

Board and finish

Why does board thickness matter so much for this specific stand?

The shelves lock into the walls using corrugated tabs. If the board is too thick, the tabs will crush when forced into the slots, and the shelf bumpers will be difficult to fold by hand.

Print and finish

Can we print on the inside of the display?

Yes, but because the main body is a single folded tube, printing on the inside back walls requires double-sided printing on the flat blank before it is die-cut and glued.

Samples and prototypes

How do we verify the shelves will not sag under our product weight?

The safest approach is a physical prototype. We cut a sample in the target board grade, load it with your actual product, and check for center deflection and tab shear over a few days.

Assembly

How long does it take to assemble in a retail store?

Store staff must square the main frame, fold the bumpers on each shelf, and align the tabs into the wall slots. This multi-step process takes more time than a simple pop-up bin.

Product fit

Can we use flat shelves instead of tray shelves?

Yes. If your products are boxed and do not need raised bumpers to stay in place, a display with flat shelves may be easier for shoppers to access.
