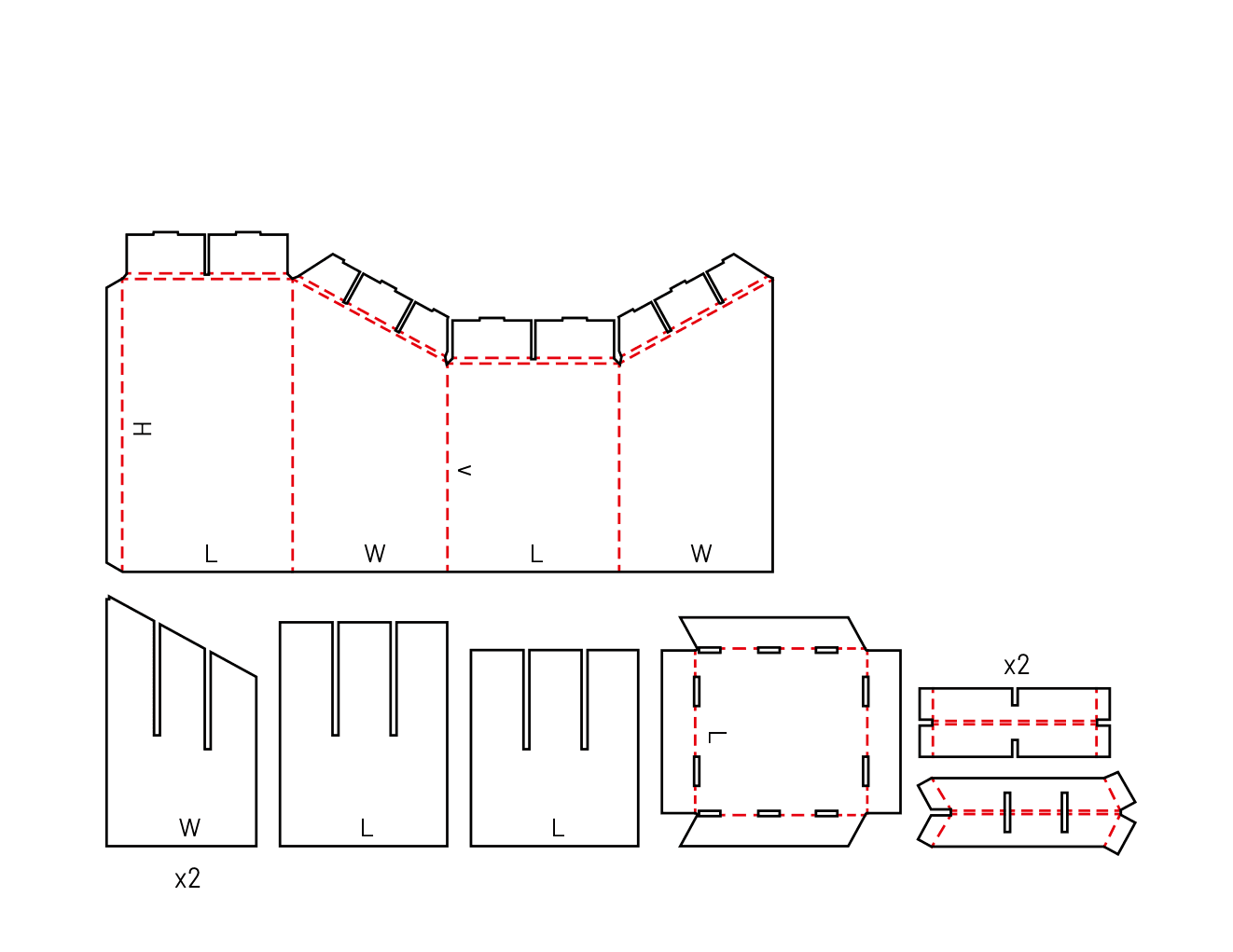

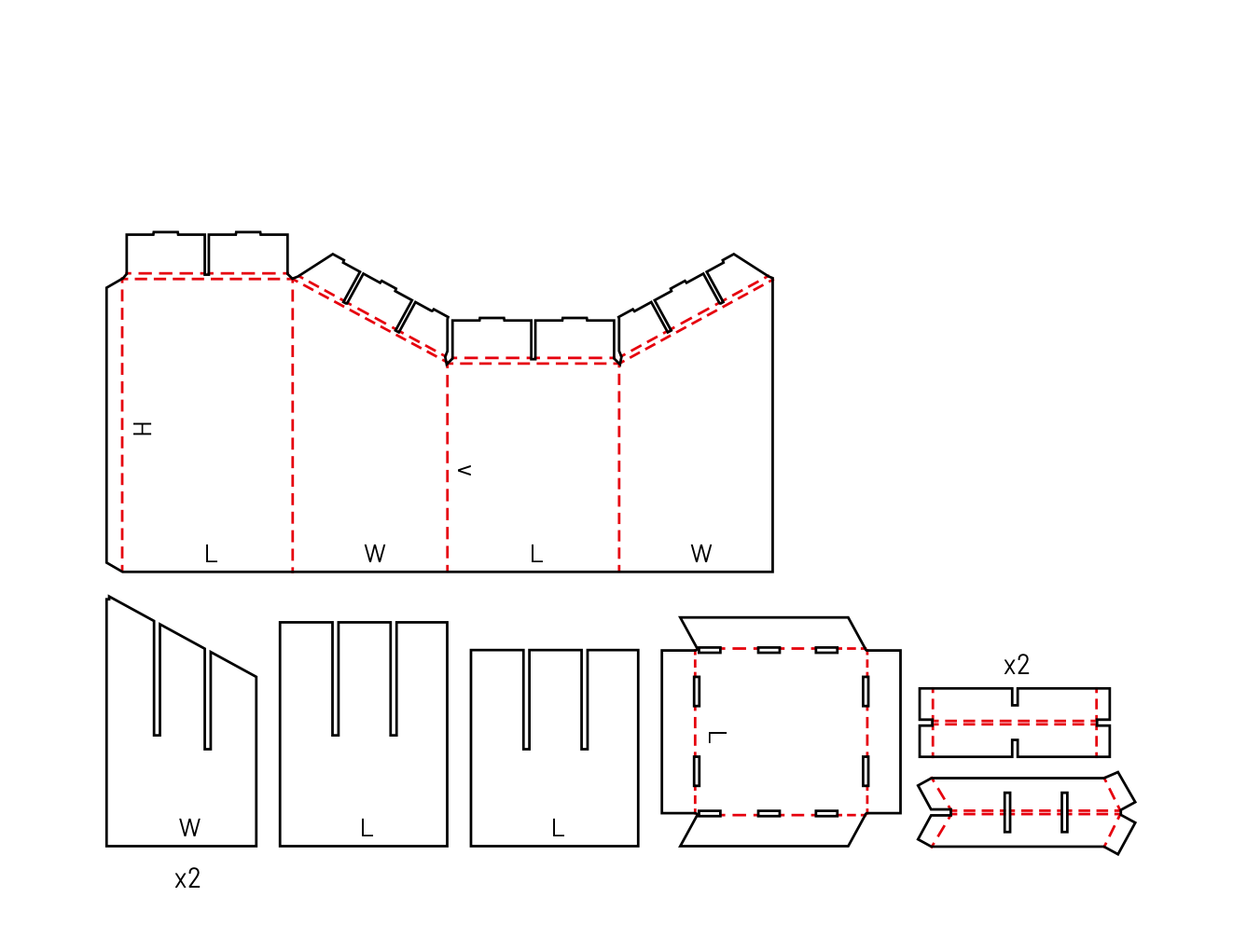

FEFCO 0854

Inclined Retail Display with Compartment Tray

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Multi-piece unglued kit that ships flat for point-of-use assembly
Interlocking egg-crate dividers create dedicated product cells
Internal cross-bracing prevents the angled tray from sagging

About this product

A freestanding corrugated fixture designed to organize and present small merchandise at an accessible angle. It combines a tall base pedestal with a drop-in tray and an interlocking egg-crate grid, keeping individual items separated and facing the shopper.

Because it relies entirely on unglued mechanical locks, the display ships completely flat as a multi-piece kit. The tradeoff for its clean, compartmentalized presentation is a multi-step manual assembly process at the store or fulfillment center.

Common uses

Cosmetics and personal care
Bottled beverages or sauces
Hardware accessories and small parts
Confectionery and impulse merchandise

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Overall width

Overall depth

Overall height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How many individual compartments do you need?

Where will this display be assembled and packed?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Merchandising and Product Organization

Multi-SKU cosmetics and personal care

The individual cells keep small bottles, tubes, or compacts upright and separated. The angled presentation keeps products in the back rows visible, while the grid prevents items from falling over as inventory depletes.

Hardware and small parts organization

For heavier small items, the internal cross-bracing supports the tray floor. The distinct compartments allow retailers to present different sizes, colors, or variations in a single footprint without mixing.

Confectionery and impulse merchandise

Placed near checkout counters, the divided sections keep small candy bars, mints, or gum packs neatly arranged rather than jumbled in a single bin.

Vaping and tobacco products

The precise grid sizing matches small, uniform boxes, keeping the display orderly even after multiple customer interactions.

Fulfillment and Store-Level Operations

Co-packing and retail rollouts

Brands running national campaigns often ship these displays knocked-down to a fulfillment center. Because the kit contains multiple distinct pieces, the delivery arrives as a bundled set requiring manual collation before final packing.

Store-level assembly

Retail staff must erect the base, build the internal support grid, place the tray, and weave the dividers together. This requires dedicated time and floor space, making it a better fit for planned seasonal resets rather than quick impulse placements.

Trade shows and temporary events

The flat-packing nature allows event teams to transport the display easily, setting up an organized, professional presentation without permanent fixtures.

When to Consider a Different Display Style

Fast setup for loose bulk items

If you are merchandising loose, lightweight items and need retail staff to set up the display in seconds, a glued dump bin is a better choice. It sacrifices the organized cells for a single-piece, pop-open construction.

High-volume vertical presentation

If you need to display a large number of products and floor space is tight, compare this to a multi-tier compartmentalized display. It stacks multiple horizontal trays vertically instead of relying on a single angled plane.

Close variants and lookalike dielines

The closest library neighbors include 0848, EVC62135, EVC62067. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board, Print, and Assembly Choices

Matching board grades to the component

The base pedestal often uses a thicker board to support the overall weight, while the egg-crate dividers need a thinner flute. Heavy board on the dividers makes the intersecting slots too tight, causing the corrugated material to bind or crush during assembly.

Flat delivery and multi-piece planning

Because this display consists of several separate flat blanks, the delivery includes the base, internal supports, tray, and dividers. Planning for the handling and sorting of these separate pieces is a key part of the project.

Print surface allocation

The base pedestal and the outer tray walls offer the largest continuous areas for branding. The internal dividers can be printed, but the intersecting grid breaks up complex graphics, making solid colors or repeating patterns a better choice.

Internal cross-bracing density

The angled tray rests on a hidden grid of corrugated strips inside the base. Heavier products require a denser internal support grid to prevent the tray floor from sagging over time.

Adjusting the Display Geometry

Cell count and grid density

The number of compartments is determined by the intersecting divider strips. Adding more cells increases the organization but also increases the assembly time at the store.

Presentation angle and footprint

The incline of the tray can be adjusted, but steeper angles shift the center of gravity forward. If the angle is increased, the base depth must usually be extended to prevent the display from tipping forward when fully loaded.

Header card integration

A vertical back panel can be added to the rear of the base pedestal, providing a raised billboard for branding or pricing information without taking up additional counter space.

Board and packing details

Internal cross-bracing and tray support

The angled tray does not support the product weight alone. A hidden grid of corrugated strips sits inside the base pedestal, matching the incline angle and providing a solid floor for the tray to rest on.

Flatbed die-cutting requirements

The precision required for the interlocking divider slots, the angled base cuts, and the tray locking tabs means this display relies on flatbed preparation.

Additional notes

Store-level assembly burden

This is a complex fixture requiring two hands and dedicated floor space to build. Retail staff must erect the base, drop in the supports, fold the tray, and weave the dividers. Plan for this labor when scheduling retail rollouts.

FAQs

Assembly and Packing

Can this display be shipped fully assembled with products inside?

Because it relies on unglued friction locks and has an open top, it is designed for flat delivery. It ships in a master carton for assembly at the final destination.

Board and Material

Why avoid heavy double-wall board for the whole display?

While a heavy board makes the base strong, it makes the egg-crate dividers nearly impossible to assemble. The intersecting slots will bind, and the manual force required will likely crush the locking tabs. Mixing a strong base with thinner dividers is usually the better approach.

Product Fit

How much weight can the angled tray hold?

The weight capacity depends on the internal cross-bracing hidden inside the base. Because the tray floor rests directly on this internal grid, it can support moderate weight without sagging, but physical testing is required to ensure the entire unit does not tip forward.

Manufacturing

Does this display require gluing?

The entire display uses mechanical tab-and-slot locks. It is a multi-piece kit that folds and locks together without adhesive.

Design Adjustments

Can we change the angle of the display tray?

The incline can be adjusted. However, making the angle steeper shifts the center of gravity toward the front. The base footprint must be evaluated to ensure the display remains stable when fully loaded.

Can we choose the exact number of compartments?

The grid is created by intersecting divider strips. You can specify the number of rows and columns to match your exact product dimensions, though very dense grids will increase assembly time.

Print and Branding

What parts of the display are best for printing?

The front and sides of the base pedestal offer the largest uninterrupted billboard space. The tray walls also accept print well, while the internal dividers are usually left plain or flood-coated.

Prototyping

How do we test the fit before ordering?

A physical prototype is highly recommended to test the friction of the divider slots in your chosen board grade, and to verify the display will not tip forward when loaded with your specific products.
