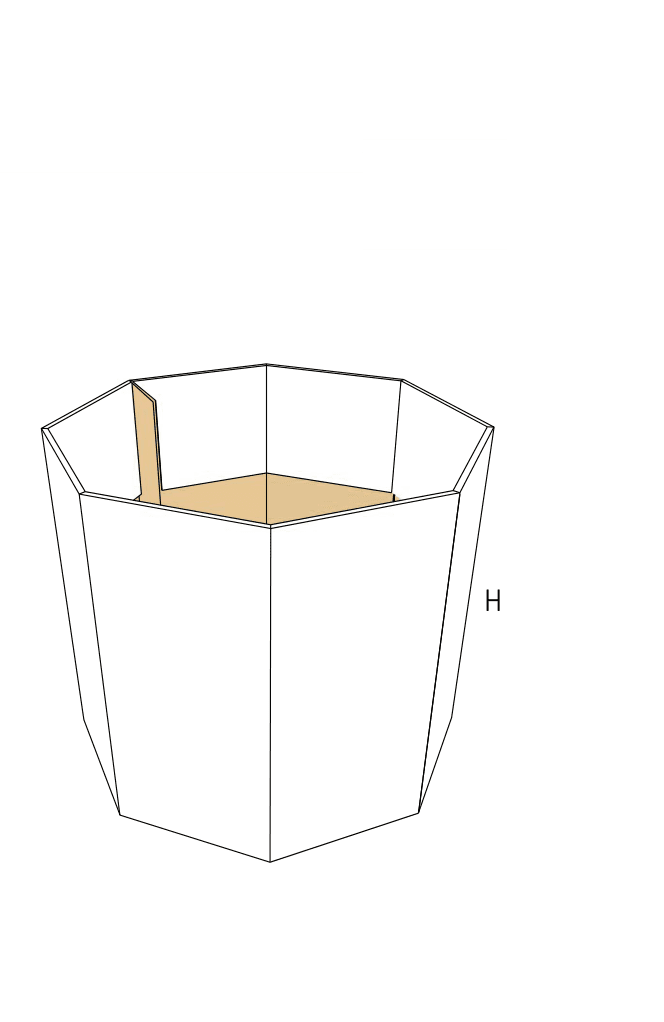

FEFCO 0859

Polygonal Retail Dump Bin

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Two-piece design with a glued outer tube and a drop-in floor
Ships flat for point-of-use assembly at the retail store
Best for lightweight to medium bulk goods like snacks, apparel, or soft home items

About this product

A freestanding corrugated floor display designed to hold loose, bulk, or irregularly shaped merchandise. It features a tall, multi-sided body that provides a continuous branding surface and a wide open top for easy shopper access.

The display ships flat as a two-piece kit. Store staff square the factory-glued tube, fold the bottom flaps inward to create a support ledge, and insert the separate polygonal floor piece to carry the product weight.

Common uses

Packaged snacks and confectionery
Lightweight apparel and soft goods
Soft home goods and textiles
Seasonal impulse promotions

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Overall width

Overall depth

Overall height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What type of products will go inside?

Do you have a preference for the bin shape?

How deep should the product area be?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Merchandising and Bulk Floor Presentations

Bulk packaged snacks and confectionery

The deep, open bin easily holds loose bags of chips, candy, or seasonal treats. The tall side walls contain the irregular shapes while keeping the products visible from multiple aisles.

Lightweight apparel and accessories

Used for rolled t-shirts, socks, or hats, the wide opening allows shoppers to dig through inventory without collapsing the display.

Soft home goods and textiles

Pillows, small blankets, and towels fill the large internal volume effectively without exceeding the weight limits of the folded corrugated floor supports.

Seasonal impulse and clearance merchandise

Placed in high-traffic areas or near checkout zones, the multi-sided exterior acts as a large billboard for short-term promotional campaigns and mixed loose items.

Fulfillment, Events, and Store-Level Setup

Retail rollouts and store-level setup

Because the main tube is glued at the factory, store staff do not need tape or tools to build the bin. They simply push the tube open, fold the bottom flaps inward, and drop the floor piece into place.

Co-packing and fulfillment centers

The display ships knocked-down to the co-packer. If the bin needs to be shipped fully loaded, it requires a heavy-duty master shipper and careful palletization, as the open top does not support vertical stacking.

Trade show and event merchandising

The flat-shipping, two-piece design makes it easy to transport to event venues. It sets up quickly without tools and provides a tall, 360-degree surface for event branding.

When to Consider Shelved Displays or Tab-Supported Floors

Organized product presentation

If your products need to stand upright, face forward, or sit on multiple levels, a shelved display or a tiered counter unit will perform better than an open dump bin.

Extremely heavy bulk items

The drop-in floor rests on folded corrugated flaps. For heavy items like hardware or large beverage bottles, the base will require an internal support cross to prevent the flaps from tearing or unfolding under the weight.

Close variants and lookalike dielines

The closest library neighbors include 0858, 0860, 0851. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board Stiffness, Payload Support, and Print Planning

Board stiffness and wall bulging

A heavier board grade prevents the tall side walls from bowing outward when filled with loose product. However, thicker board makes the bottom flaps harder to fold by hand and requires precise clearance adjustments for the drop-in floor.

Payload weight and internal support

Heavy items require a separate corrugated cross placed under the drop-in floor. This transfers the weight directly to the ground, preventing the support flaps from failing.

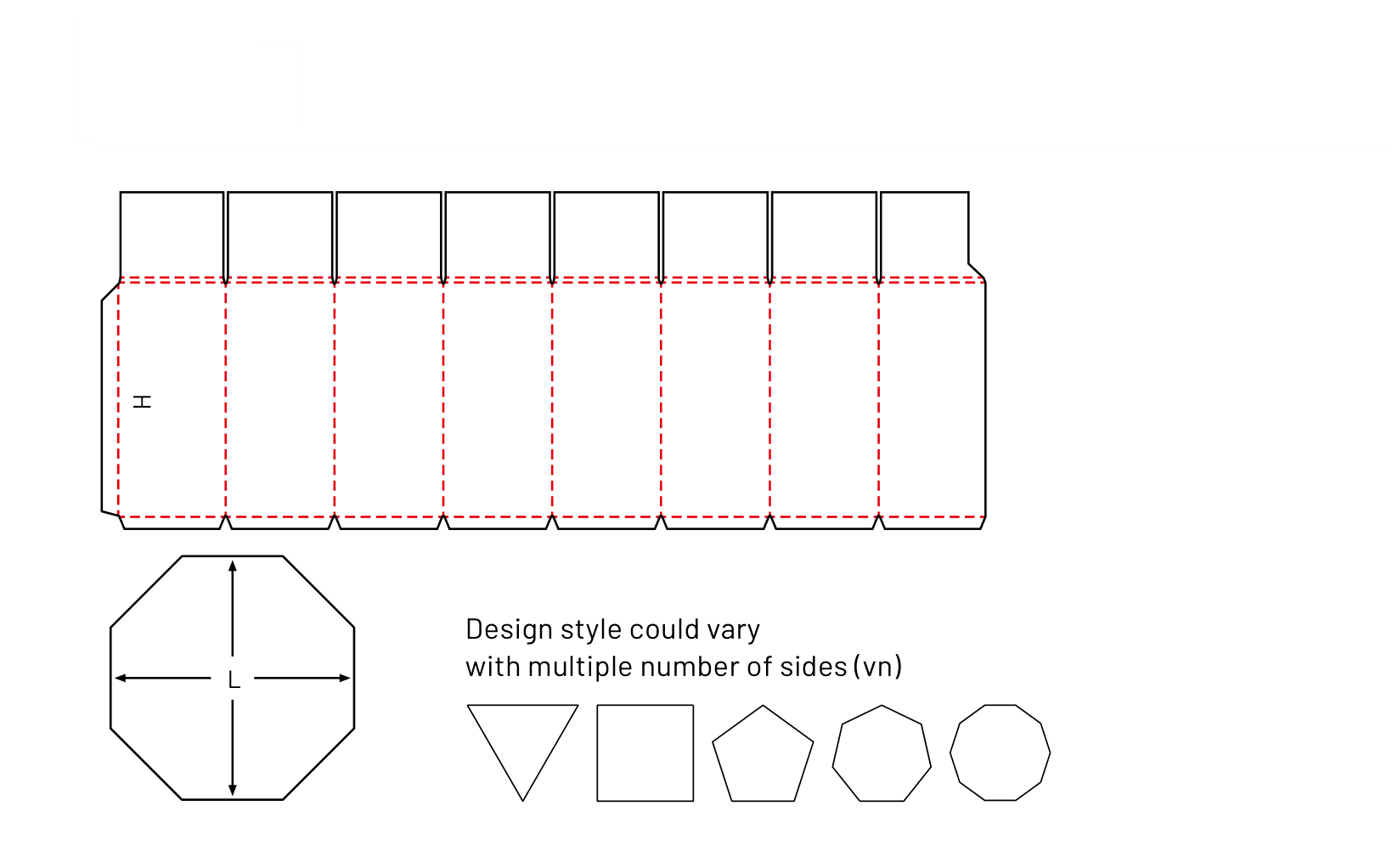

Number of sides

While often built as a hexagon or octagon, the number of sides changes the footprint and the complexity of the factory gluing process. More sides create a rounder appearance but require specialized folder-gluer routing.

Print coverage and graphic alignment

The continuous multi-sided tube offers a 360-degree canvas, which requires planning for panel transitions and press size limits when laying out the artwork.

Footprint, Depth, and Support Adjustments

Floor depth placement

The internal volume of the bin can be adjusted by changing where the bottom flaps fold. A higher floor placement keeps smaller quantities of product near the top, making the bin look full without requiring excess inventory.

Side count and footprint

The template can be adjusted from a hexagon to an octagon to change the floor space it occupies and alter the visual presentation.

Internal support cross

Adding a separate interlocking grid under the floor piece transfers heavy product weight directly to the ground, reinforcing the base for denser merchandise.

Board and packing details

Factory gluing for multi-crease tubes

Gluing a six- or eight-sided tube flat is more complex than a standard four-sided box. It often requires specialized equipment or slower run speeds to prevent the blank from skewing during production.

Additional notes

Internal support cross for heavy goods

If you are packing dense items, a separate corrugated cross can be placed under the drop-in floor. This transfers the weight directly to the ground, preventing the support flaps from failing.

FAQs

Product fit and payload

How much weight can the drop-in floor hold?

The weight limit depends entirely on the board grade and the product distribution. Because the floor rests on folded corrugated flaps, heavy payloads require physical testing. If the load is too heavy, an internal support cross can be added to reinforce the base.

Assembly and packing

Does this display require tape or glue at the store?

No tape or glue is needed at the store. The side seam is glued at the factory. The person setting it up only needs to square the tube, fold the bottom flaps inward, and insert the floor piece.

Shipping and route

Can this bin be shipped through a parcel network?

Not on its own. It is an open-top display designed for the retail floor. It must be shipped flat inside a master shipper, or shipped fully assembled and loaded on a protected pallet.

Print and finish

Can graphics be printed on all sides?

Yes. The continuous outer tube provides a 360-degree surface for branding. The specific printing method will depend on the board choice and the total size of the flat blank.

Adjustments

Can we change the shape from a hexagon to an octagon?

Yes. The template can be adjusted for different numbers of sides. Keep in mind that adding more sides changes the floor footprint and can affect how the flat tube runs through factory gluing equipment.

Presentation

How do we keep the bin looking full with less inventory?

The depth of the floor can be raised during the design phase. By folding the support flaps higher up the walls, the product sits closer to the top edge, creating a full appearance with less inventory.

Board choice

Why not use the thickest board available for maximum strength?

While thick board prevents the side walls from bowing outward, it makes the bottom support flaps very difficult for store staff to fold by hand. It also requires precise clearance adjustments so the drop-in floor does not bind during assembly.

Delivery

How does the display arrive at the store or co-packer?

It arrives knocked-down flat as a two-piece kit: the folded main tube and the separate flat floor piece. This keeps shipping volume low until the display is ready to be built.
