Retail Floor Merchandising and Promotions
Center-aisle and end-cap staging
The tall backboard acts as a promotional billboard, while the folded tray shelves keep loose or boxed merchandise secure. The double-wall columns provide the vertical rigidity needed to hold multiple tiers of product in high-traffic retail environments.
Seasonal and temporary campaigns
Because the entire unit is corrugated and ships flat, it works well for short-term promotional rollouts. Store teams can assemble the frame, load the trays, and break the display down for recycling once the campaign ends.
Multi-bay product presentations
The template supports expanding horizontally into two or three bays. This creates a wider presentation wall for displaying an entire product family or coordinating multiple SKUs in a single freestanding unit.
Heavy or loose item merchandising
Unlike flat drop-in shelves, the folded tray lips prevent loose items, bottles, or small boxes from sliding off the edge. The trays also cross-brace the vertical columns, adding stability when loaded with heavier merchandise.
Merchandising Channels and Rollouts
Consumer packaged goods and beverage
Brands rolling out new product lines use this structure to secure secondary floor space away from crowded inline shelves. The tray lips prevent bottles or boxes from being easily knocked off by passing carts.
Apparel and soft goods
Folded apparel, accessories, or bundled kits sit neatly inside the tray shelves. The open front allows shoppers to browse sizes or colors without dismantling a complex presentation.
Hardware and home goods
Boxed tools, hardware kits, or home accessories often require sturdy retention. The folded tray shelves provide a secure resting place, while the double-wall columns support the vertical weight of dense products.
When to Consider Glued or Flat-Shelf Alternatives
High-volume rollouts with limited store labor
Folding the 180-degree columns and slotting multiple trays takes time and physical effort. If retail staff need a faster setup, compare this to displays with factory-glued side columns, which pop open much faster at the point of use.
Products that do not need shelf retention
The folded tray shelves add rigidity and keep items from falling, but they require extra folding steps. If you are displaying large, stable items that will not slide off, a display with simple flat drop-in shelves may be easier to assemble and cheaper to cut.
Board, Assembly, and Shelf Adjustments
Mixing board grades for strength and folding
The main frame often requires a heavier board to support the vertical weight, while the trays may use a thinner board for easier folding and sharper print quality. Discussing a mixed-board approach early helps balance display strength with assembly effort.
Master shipper planning
This display is an architectural fixture, not a shipping container. The main backboard and the flat tray blanks must be collated and packed into a separate corrugated master shipper to protect the flat components during courier or freight delivery.
Tray depth and forward leverage
Deep trays provide more merchandising space but increase the risk of the display tipping forward. Very deep trays may also sag in the center under heavy product weight, requiring physical payload testing before production.
Point-of-use assembly labor
Because this display avoids factory gluing, the assembly burden shifts entirely to the retail store. Store staff must pre-break long double creases, fold the barrier columns 180 degrees, fold the individual trays, and slot them into the frame.
Template Adjustments and Shelf Options
Shelf spacing and bay width
The distance between tiers can be adjusted to match product height, and the template can be widened to support multiple side-by-side bays. Keep in mind that very wide or deep trays may require heavier board to prevent the center from sagging under weight.
Tray lip height
The front and side lips of the folded trays can be raised or lowered. Taller lips offer more secure product retention and a larger printable area for branding, while shorter lips make it easier for shoppers to remove products.
Backboard height and header shape
The vertical backboard can be extended upward to create a larger promotional billboard. The top edge can also be die-cut into custom shapes to match brand logos or campaign themes.
Board and packing details
Flatbed cutting and blank size limits

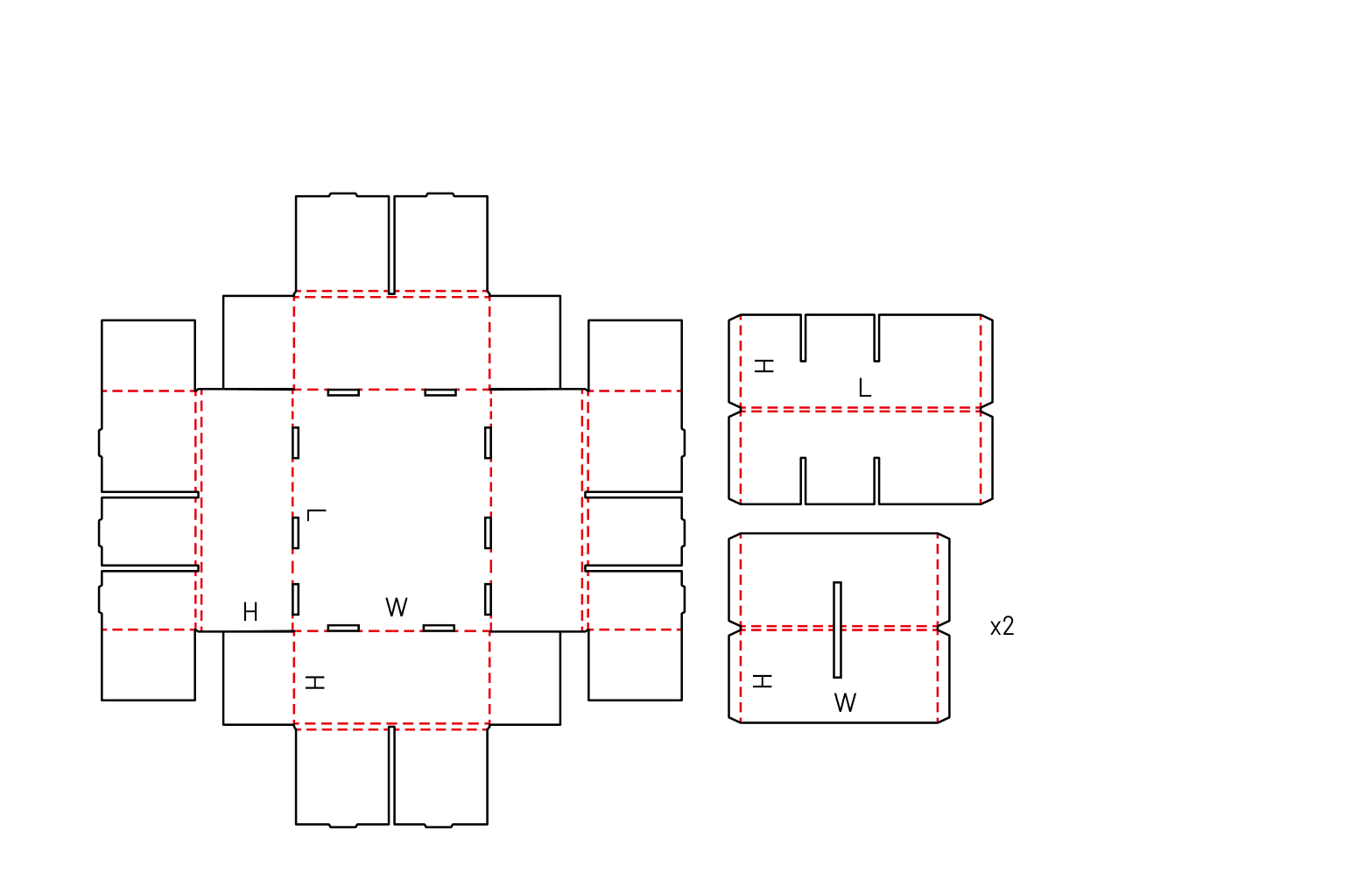

The main backboard is a single massive piece of corrugated board that includes the 180-degree fold-over columns. For very tall or wide displays, this blank can exceed the size limits of standard flatbed cutting equipment, which may require splitting the design or adjusting the overall dimensions.
Structural Options
Multi-bay configurations

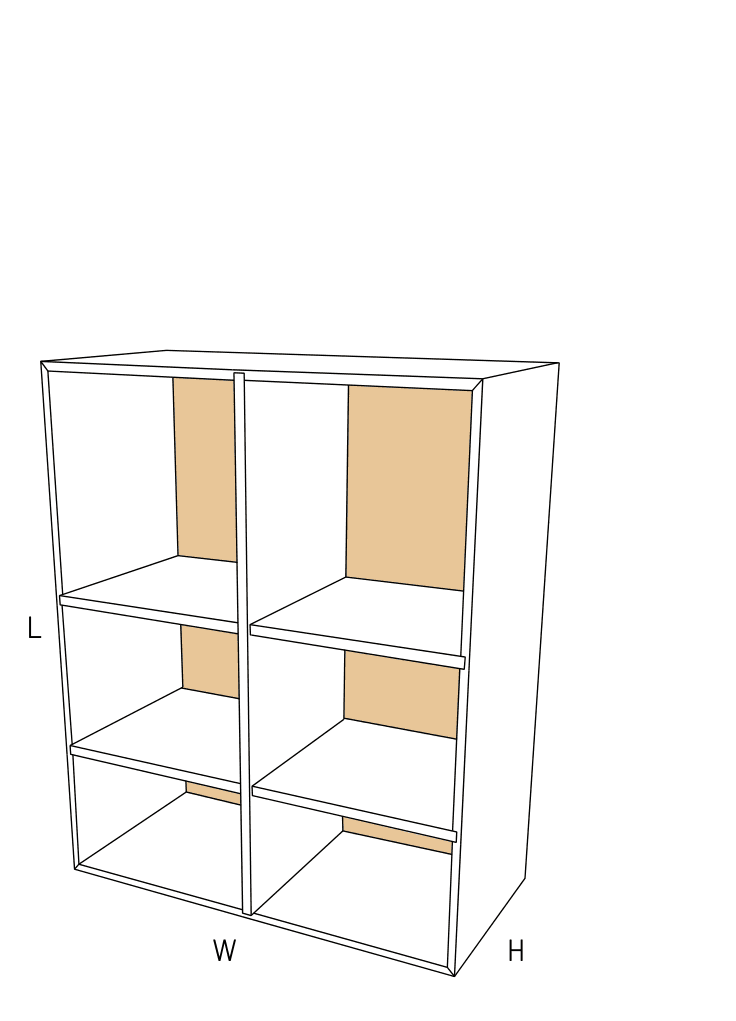

The base template can be expanded horizontally by adding more vertical columns and tray sets, creating a wider two-bay or three-bay presentation wall.
Additional notes
Physical prototype validation
Because the locking mechanism relies on precise friction and board thickness, always request a physical sample. Testing proves that the tabs fit the slots without binding and that the shelves can support your specific product weight without sagging.
Related Display Structures
FAQs
Assembly and Labor
Can this display be shipped fully assembled and loaded with product?
No. This is an open architectural fixture designed to be assembled at the retail location. It must ship flat inside a master carton, and store staff will build the frame and load the merchandise on site.
How difficult is the store-level setup?
It requires two-hand assembly and moderate physical effort. The operator must fold the long vertical columns inward, fold the individual tray shelves, and slide the trays into the column slots to lock the frame together.
Board and Strength
Should we use the thickest board possible for maximum strength?
Not necessarily. While heavy board improves vertical strength, it makes folding the 180-degree columns physically exhausting and increases the risk of the locking tabs crushing during insertion. A balanced board choice is critical.
Product Fit
How much weight can the shelves hold?
Capacity depends entirely on the board grade, tray width, and tray depth. Wide trays with heavy products may sag in the center or shear the locking tabs. Physical payload testing is always required before a full production run.
Print and Graphics
Where can graphics be printed on this display?
The tall backboard serves as the primary billboard, and the front lips of the folded trays offer excellent space for branding, pricing, or product information.
Production
Does this display require factory gluing?
No. The entire structure relies on mechanical tab-and-slot friction locks. The trays slide into the folded columns, which holds the columns in place and cross-braces the display without any adhesive.
Board and Strength
Can we use double-wall board for the entire display?
Using double-wall board for the main frame adds excellent vertical rigidity, but using it for the trays makes the 90-degree folds difficult and risks crushing the locking tabs. A mixed-board approach is usually the better choice.
Assembly and Labor
How do the shelves stay in place without glue?
The trays use mechanical tab-and-slot friction locks. Sliding the assembled trays into the folded columns locks the 180-degree folds in place and cross-braces the entire frame, providing structural stability without permanent fasteners.
