FEFCO 0831

Multi-Shelf Retail Floor Display Stand

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Multi-piece unglued kit with main body and separate shelves
  • 180-degree folded side columns provide vertical load support
  • Ships knocked-down flat for dense pallet transit

About this product

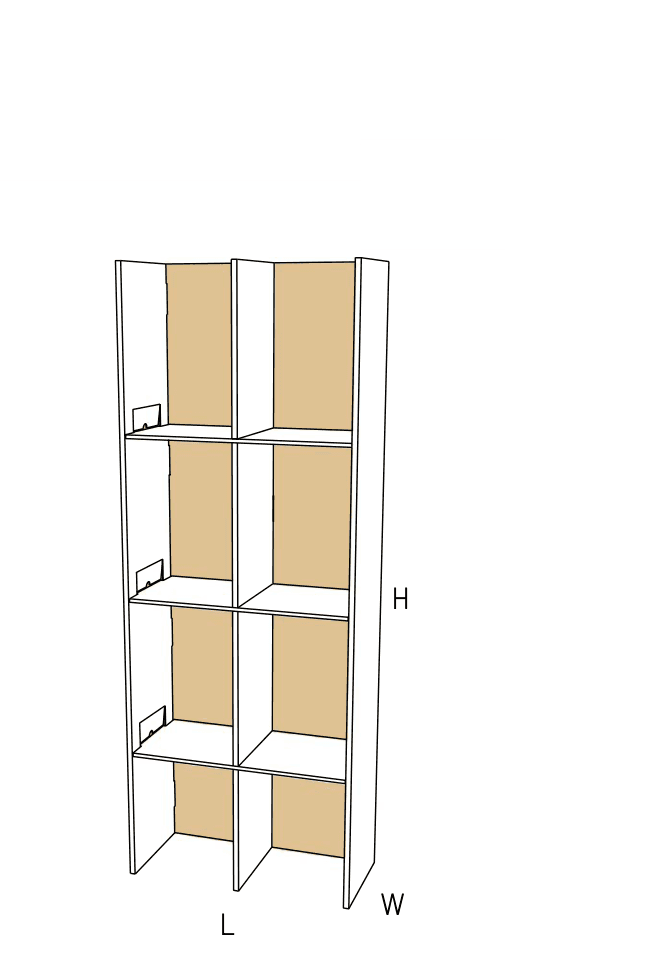

This multi-piece corrugated display stand creates a freestanding retail fixture with a tall branded backboard and multiple open-front shelves. It ships flat as a kit and relies on folded side columns to support the weight of the merchandise.

Because it uses flat drop-in shelves without front retaining lips, it offers unobstructed access for shoppers. The main tradeoff is assembly effort. Retail staff must manually fold the thick side columns and insert each shelf, making board choice a careful balance between payload strength and folding difficulty.

Common uses

  • Retail end-caps
  • Trade show literature racks
  • Lightweight packaged goods presentation

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail floor and promotional display setups

End-cap and aisle product launches

The tall rear panel acts as a billboard, drawing attention in busy retail aisles. The open shelves work well for boxed goods, lightweight cosmetics, or packaged snacks where shoppers need quick, unobstructed access.

Trade show and event literature racks

When scaled appropriately, the flat shelves easily hold brochures, sample kits, or promotional giveaways. The entire unit packs flat for transport to the event and can be assembled on-site without tools.

Countertop point-of-sale presentations

Scaled down and cut from thinner board, this exact display functions as a multi-tier register unit for small impulse items like lip balm, gift cards, or travel-sized toiletries.

Lightweight apparel and soft goods

Folded shirts, socks, or accessories stack neatly on the unrimmed shelves, allowing customers to pull items directly from the stack without catching on a front lip.

Merchandising and campaign rollouts

Retail brand managers

Campaign rollouts require displays that provide large graphic areas. This unglued design shifts the assembly effort to the point of use, allowing the entire budget to focus on high-quality print and structural board.

Distributors and wholesalers

Shipping fully assembled fixtures takes up too much space. This multi-piece design packs densely onto pallets or into master shippers, allowing efficient distribution to individual retail locations.

Event marketing teams

Teams traveling to multiple venues need fixtures that break down flat. The mechanical tab-and-slot design means the display can be erected in a convention hall without relying on adhesives or hardware.

Situations that point to different display styles

Products that roll or slide easily

Because the shelves on this display are flat and lack front rims, loose or cylindrical items can fall off. If your product needs to be contained, look at a display that uses folded tray shelves to provide a protective front lip.

Limited floor space

If retail partners cannot accommodate a freestanding floor unit, look at a single-piece countertop dispenser that captures impulse buys at the register.

Heavy bulk goods like beverages

The flat shelves rely entirely on their insertion tabs and the board's stiffness. For heavy liquids or dense hardware, a reinforced tray-based display or a pallet-skirted bulk bin provides better vertical support.

Fast pack-station fulfillment

This is an architectural fixture meant for store-level assembly, not a shipping box. If you need to pack goods at a fulfillment center and ship them directly to consumers, choose a dedicated e-commerce mailer or crash-lock box.

Close variants and lookalike dielines

The closest library neighbors include 0833, 0830, 0832. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board thickness, payload, and assembly effort

Balancing board strength with manual folding

The side columns must be folded 180 degrees inward by retail staff. While heavy double-wall board increases how much weight the shelves can hold, it also makes these long folds physically exhausting to complete by hand.

Graphic placement and print surfaces

The tall rear panel serves as the primary billboard. You must decide whether to print only the backboard or extend the graphics to the outer faces of the side columns and the top surfaces of the shelves.

Shelf count and vertical spacing

The distance between shelves dictates what products fit. Adding more shelves increases the overall height of the display and requires more corrugated board, which changes the weight of the knocked-down kit.

Master shipper requirements

The display components ship knocked-down flat. You must plan for a protective corrugated master shipper to transport the kit safely to the retail store or distribution center.

Configuring shelves and dimensions

Adjustable shelf count

The template allows you to specify the exact number of shelves needed for your product assortment, from a simple two-tier setup to a tall five-shelf tower.

Internal shelf dividers

For smaller items or mixed assortments, slotted dividers can be added to compartmentalize the flat shelves, keeping different product SKUs organized.

Custom header profiles

The top of the rear billboard panel can be die-cut into custom shapes, such as brand logos or product silhouettes, rather than remaining a simple straight edge.

Board and packing details

Shelf sag and payload testing

Because the shelves are supported only by tabs inserted into the side and rear walls, the center of the shelf is vulnerable to sagging under heavy loads. Always test a physical sample with your actual product weight over time before committing to a large order.

Structural options and dividers

Optional shelf dividers

The template can be configured with interlocking vertical dividers that drop into the shelves, creating separate bins for mixed product displays.

Additional notes

Shelf center sag

Without a front fold-over rim, the middle of the shelf relies entirely on the stiffness of the board. Wide shelves carrying heavy goods may bow over time.

Related retail displays

0833: Related template 0833

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

0830: Related template 0830

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

FAQs

Assembly and Labor

Does this display require tape or glue to assemble?

No. The entire display locks together mechanically. The side columns fold inward and lock with tabs, and the shelves slide into die-cut slots to hold the frame rigid.

Can retail staff assemble this easily?

It requires two-hand manipulation and a few minutes of effort. The difficulty depends heavily on the board thickness. Thicker corrugated board makes the long column folds much stiffer and harder to bend.

Product Fit

How much weight can the shelves hold?

Capacity depends entirely on the board grade and shelf width. Because the shelves lack a reinforcing front rim, heavy items can cause the center to sag or the insertion tabs to tear. We strongly recommend physical load testing for your specific product.

Shipping and Route

Can this display be shipped through parcel networks?

Not on its own. The display components ship knocked-down flat and must be packed inside a protective corrugated master shipper to handle courier transit.

Print and Finish

Where can graphics be printed on this display?

The tall rear panel serves as the primary billboard. The outer faces of the side columns and the top surfaces of the shelves can also be printed to increase brand visibility.

Product Fit

Do the shelves have a front lip to keep products from falling?

No, this specific design uses flat, open-front shelves. This provides unobstructed access for shoppers but means loose or round items can roll off. If you need a front lip, a tray-shelf display is a better fit.

Production Path

Why does this require large-format cutting?

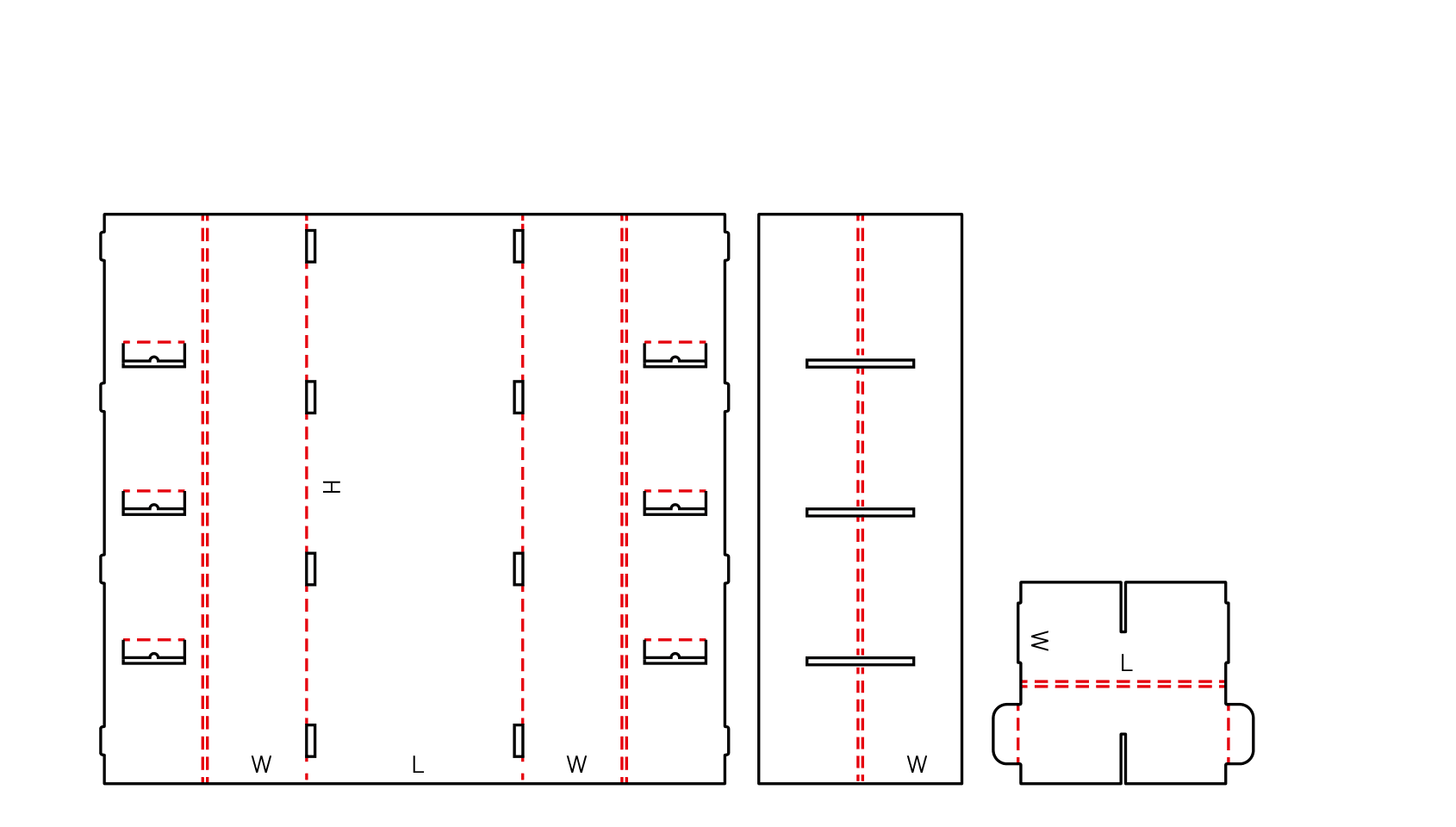

The main body, which includes the back panel and both fold-out side columns, is cut from a single large sheet of corrugated board. For floor-standing units, this often exceeds the size limits of standard equipment.

Samples and Prototypes

Should I order a physical sample before the full run?

Yes. A physical mockup in the exact board grade is crucial. It allows you to verify that the shelves will not sag under your product's weight and that the side columns can be folded by hand without excessive effort.
