FEFCO 0881

Single-Sided Display Header

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Slots directly into a master retail display without tape or glue
  • Provides a single-sided print surface for forward-facing foot traffic
  • Requires exact board caliper matching with the host display's receiving slots

About this product

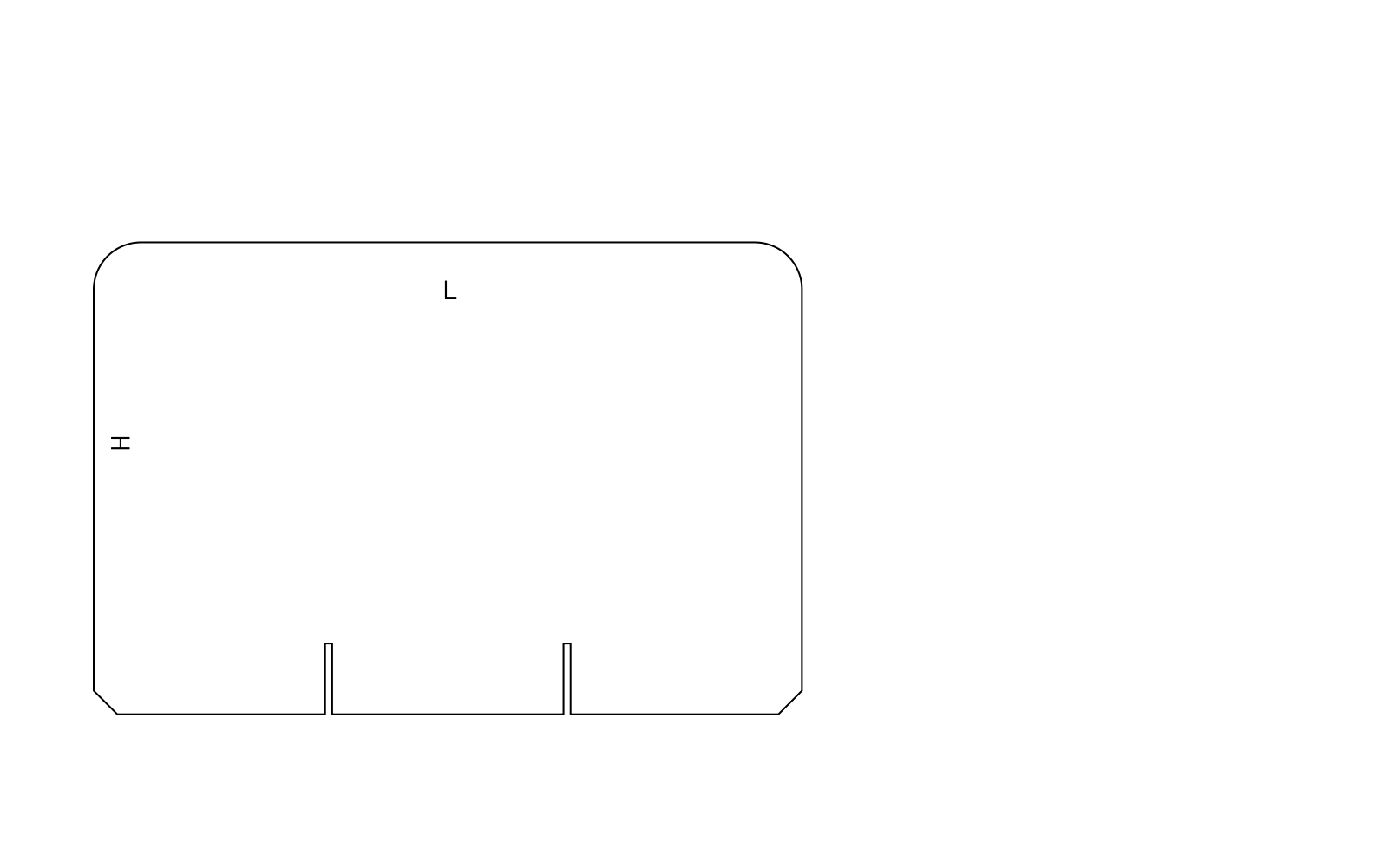

A flat, unglued corrugated panel designed to slot into the top of a retail floor stand or counter display. It acts as a forward-facing billboard, providing a large print surface without the material cost of a folded, double-sided header.

Because it is a single sheet of board, its success depends entirely on matching the slot tolerances of the host display and choosing a flute grade stiff enough to prevent bowing across wide spans.

Common uses

  • End-cap promotional billboards.
  • Countertop merchandiser headers.
  • Temporary retail campaign rollouts.
  • Dump bin signage.

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail staging and promotional billboards

End-cap and aisle displays

Caps a freestanding floor unit to draw attention from down the aisle. The single-sided format fits perfectly when the back of the display faces a wall or another fixture.

Countertop merchandisers

Provides a small, high-visibility branding area above a tray of lightweight goods. Countertop versions typically use thinner board for crisp graphics and easy insertion.

Pallet skirt toppers

Large format headers that slot into pallet wraps or bulk bins. These require heavy board grades to span the width of a standard pallet without sagging.

Dump bin signage

High-visibility branding for loose-fill promotional bins. The header locks into the back wall of the bin to advertise the loose items below.

Point-of-sale campaigns and temporary retail rollouts

Short-term retail campaigns

Because the header is a single flat piece, it ships efficiently inside the master display carton. Store staff can erect the main bin, fold the header tabs, and drop the billboard into place in seconds.

Seasonal product launches

Brands rolling out holiday or seasonal items use these headers to change the messaging on a permanent display fixture without replacing the entire stand.

Trade show and event staging

Temporary branding that packs flat and sets up quickly on standard slotted fixtures. The flat delivery makes it easy to transport to event venues.

When to consider double-sided headers or load-bearing trays

Center-aisle island displays

If foot traffic approaches your display from multiple directions, a single-sided header leaves the back exposed as raw corrugated board. Compare a double-sided folded header to ensure your branding is visible from 360 degrees.

Load-bearing shelf needs

This header acts strictly as a vertical billboard. If you need a component that holds product weight or acts as a suspended shelf, compare a horizontal shelf insert or a folded tray.

Close variants and lookalike dielines

The closest library neighbors include EVF92003, EVF92002, 0100. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board stiffness, span bowing, and base tab fit

Board stiffness versus span width

A wide floor display header must support its own weight. Thin board will bow or sag forward over time. Heavy board stays rigid but requires wider receiving slots on the host display.

Base tab thickness and insertion friction

The tabs at the bottom of the header often fold 90 degrees to lock into the display base. If the header board is too thick, the tabs will crush when store staff try to force them into narrow slots. The header and the host display must be planned together.

Print surface and fluting visibility

Single-sided construction means the back side exposes the raw corrugated fluting lines. This limits placement to end-caps or wall-facing displays where the back remains hidden.

Host display slot coordination

The die-cut tabs must match the exact width and depth of the receiving unit. A mismatch results in a header that either wobbles loosely or fails to seat entirely.

Custom top profiles and base tab geometry

Custom top profiles

The top edge does not have to be a plain rectangle. Flatbed die-cutting allows the header to follow the outline of a logo, character, or product shape, provided the center of gravity remains balanced over the base tabs.

Tab and slot geometry

The base anchors can be adjusted to fit different host display thicknesses. Wider tabs provide more friction for heavy headers, while narrow tabs work well for lightweight counter displays.

Corner rounding

Adding radii to the top corners prevents dog-earing and fraying in high-traffic retail environments, keeping the display looking fresh longer.

Board and packing details

Flat delivery and master carton packing

This component ships completely flat. It is almost always packed directly inside the master shipper alongside the knocked-down display base, ensuring the store receives the entire kit at once.

Profile and base modifications

Custom die-cut outlines

The top and side edges can be cut to follow specific brand artwork, replacing the standard rectangular profile.

Additional notes

Base tab and host display slot coordination

If you are sourcing the header separately from the main display, you must verify the exact width of the receiving slots. A mismatch will result in a header that either wobbles loosely or crushes during insertion.

Related display components

EVF92003: Rectangle with Chamfer

EngView neighbor that can look close in CAD. Review it if a sample or dieline seems similar, then verify closure style, slots, wall build, and assembly before treating it as a substitute.

EVF92002: Rectangle with Fillets

EngView neighbor that can look close in CAD. Review it if a sample or dieline seems similar, then verify closure style, slots, wall build, and assembly before treating it as a substitute.

FAQs

Product fit and use

Can this header stand on its own?

No. It is an accessory component designed to lock into a separate host display. It cannot stand upright on a flat surface without a slotted base.

Board and finish behavior

What board grade makes sense for wide headers?

Large floor displays usually require a stiffer B-flute or C-flute board to prevent the center span from bowing forward. Small counter displays can use a thinner E-flute for cleaner edges and sharper print.

Retail setup

How do store teams attach it to the display?

The bottom edge features die-cut tabs. The retail worker folds these tabs 90 degrees and pushes them down into matching slots on the top of the host display. The friction holds the header upright.

Print and finish

Can we print on both sides of a single-sided header?

You can print on both sides of the flat sheet, but the back side will show the raw corrugated fluting lines. If you need a premium, smooth print surface on both the front and back, a folded double-sided header is a better choice.

Shipping and route

How does this ship to the retail store?

This component ships completely flat. It is almost always packed directly inside the master shipper alongside the knocked-down display base, ensuring the store receives the entire kit at once.

Retail setup

What happens if the base tabs are thicker than the display slots?

The tabs will crush when store staff try to force them into the narrow slots. The header and the host display must be planned together to ensure the board caliper matches the receiving gaps.

Print and finish

Can the top edge be cut into a custom shape?

Yes. Flatbed die-cutting allows the header to follow the outline of a logo or product shape. The center of gravity just needs to remain balanced over the base tabs.

Retail setup

Does this require tape or glue to stay upright?

No. The header relies entirely on the friction fit between its folded base tabs and the slots in the host display.
