Retail Shelf Organization
Deep shelf product alignment
Acting as a spacer behind smaller items to push them to the front edge of a deep shelf. This improves product visibility and keeps the display looking full even as inventory depletes.
Dump bin lane creation
Creating physical lanes or back-stops inside a deep retail floor display. The locking tabs keep the dividers from shifting when customers reach in to grab a product.
Master display kitting
Shipping flat alongside a larger display kit. Store staff can configure the shelf layout based on the specific merchandise being loaded, using the limiters to separate different SKUs.
Countertop display organization
Keeping small items like cosmetics or impulse buys upright and separated in shallow countertop units, preventing them from tipping over.
Campaign and Merchandising Contexts
Point-of-purchase rollouts
Brand teams use these limiters to maintain a clean presentation in freestanding floor displays without upgrading to complex molded plastic trays.
Store operations
Retail staff use them to manage shelf depth, preventing small boxes or bottles from getting lost at the back of a display unit.
Promotional end-caps
Merchandisers rely on these stoppers to maintain strict product facing during high-traffic end-cap promotions, ensuring the display looks organized.
Alternative Display Accessories
When you only need a loose spacer
If the shelf lacks receiving slots and you only need a basic friction-fit spacer, a simple scored pad avoids the need for precision tab cutting and alignment.
When you need vertical advertising
If the goal is branding rather than horizontal product alignment, a promotional header card provides a billboard surface that mounts to the top of the display.

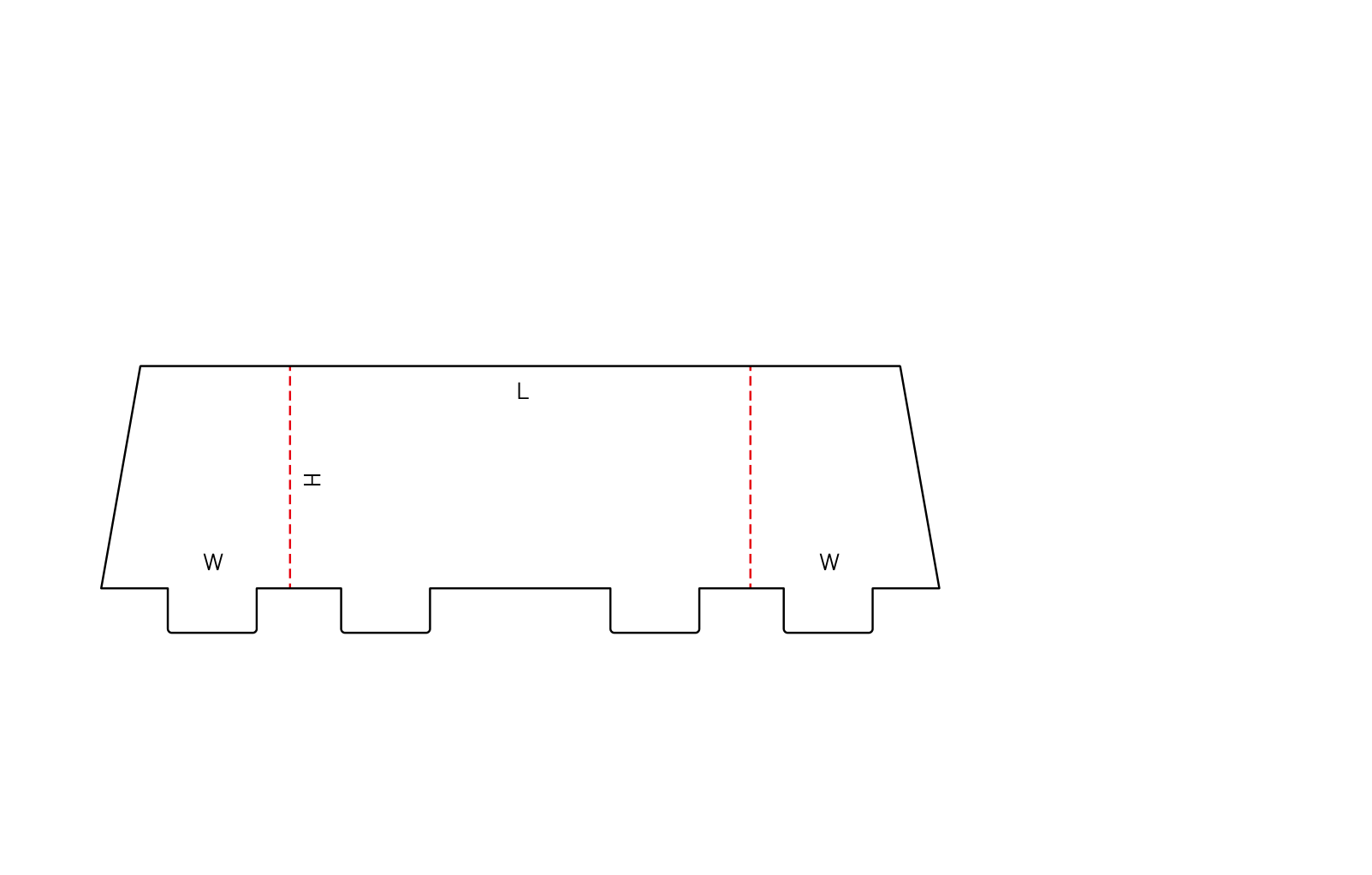

Close variants and lookalike dielines
The closest library neighbors include 0880, 0952, E10.11.00.00. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.
Tolerances and Production Planning
Board thickness and tab fit
The locking tabs must be precisely toleranced to the receiving slots on the host display. Heavy flutes can make the small folds too stiff and cause the tabs to crush during insertion. Fine flutes are usually the safer choice for small accessories.
Nesting with the master display
If you are ordering a large floor display, ask if these stoppers can be nested into the offcut waste areas of the main cutting die. This often eliminates the separate material cost for the accessory.
Assembly labor
These require manual folding and insertion at the store level. If a display requires dozens of limiters, factor the pack-station or retail staff time into the rollout plan.
Slot tolerance matching
Ensuring the receiving slots on the host display are sized correctly for the chosen board grade, preventing tab tear-out or crushing when products are loaded.
Tab and Volume Adjustments
Tab width and depth
The locking tabs can be widened or lengthened to match different shelf slots. This ensures a tight friction fit that will not pull out when products are removed.
Spacer volume
The distance between the parallel creases can be adjusted to create a wider or narrower standoff, depending on exactly how far forward the product needs to sit.
Angle and profile
Adjusting the side profile to match angled shelves or specific product shapes, ensuring the stopper does not obscure branding on the primary packaging.
Board and packing details
Physical prototyping requirement
Always test a physical sample of the stopper with the actual host display. A digital file cannot confirm whether the tab friction is too tight, which causes crush, or too loose, which causes the stopper to fall out.
