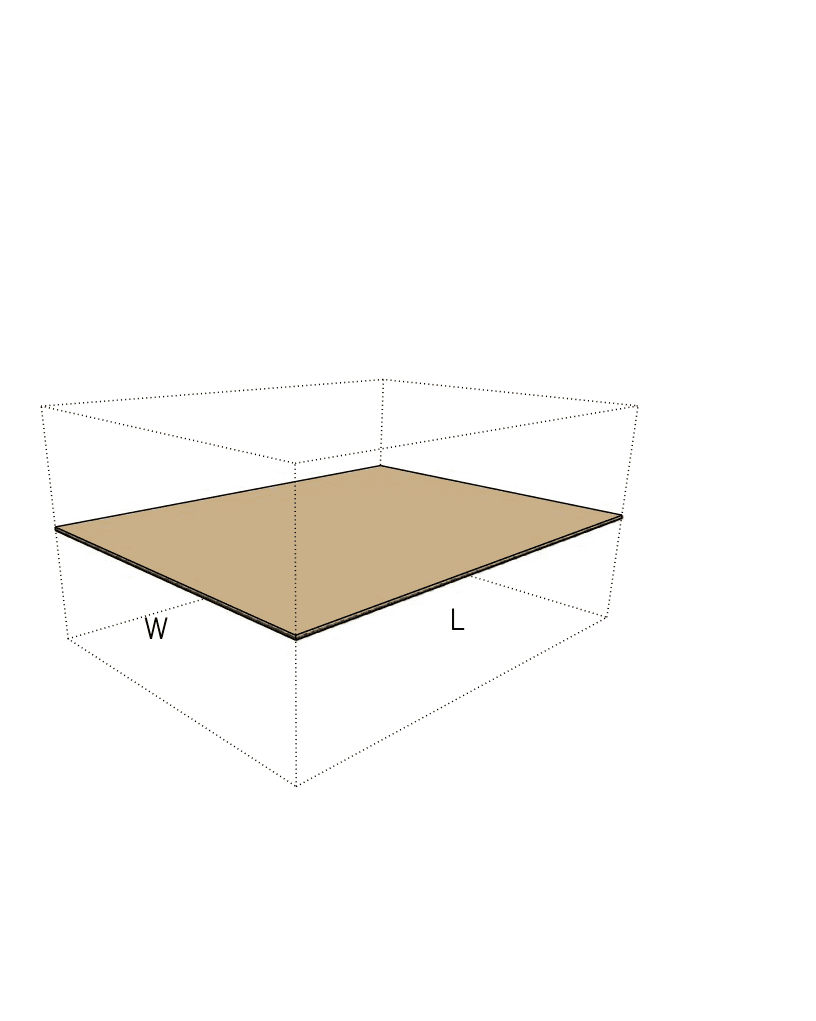

FEFCO 0901

Corrugated Bottom Pad

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Flat, uncreased drop-in insert
  • Sized specifically to a parent box interior
  • Protects contents from blade damage during opening

About this product

A corrugated bottom pad is a flat, uncreased sheet sized to drop directly into the base of a master shipping box. It reinforces the floor against heavy loads, separates stacked products, and provides a sacrificial barrier against blades when the package is opened.

Unlike a generic sheet of board, a true bottom pad is calculated to match its parent box. The exact dimensions account for the thickness of the outer walls and the fold radii of the inner flaps, ensuring the pad drops in smoothly without bowing or catching on the edges.

Common uses

  • Heavy industrial parts
  • E-commerce unboxing protection
  • Pallet layer separation
  • Internal compartmentalization base

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Base reinforcement, layer separation, and blade protection

Blade protection for retail and e-commerce

When fulfillment teams or end customers slice open a taped box, the blade often penetrates too deeply. A bottom or top pad acts as a sacrificial barrier, absorbing the cut before it reaches the actual product.

Floor reinforcement for heavy goods

Dense industrial parts or liquid containers can cause the bottom flaps of a standard shipping box to sag. A rigid bottom pad distributes that localized weight evenly across the entire base, reducing stress on the center seam.

Pallet layer separation

Beyond individual boxes, large flat pads act as interleaving dividers between stacked goods on a pallet. They prevent product movement, protect items from scratching, and distribute vertical compression loads uniformly.

Creating a flat internal floor

Standard shipping boxes have inner flaps that create an uneven bottom surface. Dropping in a flat pad creates a smooth, continuous floor, which helps when loading smaller secondary cartons or delicate retail packaging that might otherwise tilt.

E-commerce fulfillment, industrial kitting, and pallet loads

High-volume fulfillment centers

Because the pad has no folds or locks, packers can drop it into a box in a fraction of a second. It provides a fast way to add structural reinforcement or a clean presentation layer without slowing down a busy packing line.

Industrial kitting and heavy parts

Shippers moving dense metal components rely on bottom pads to prevent base failure. The pad transfers the point load of a heavy gear or motor across the entire corrugated footprint, rather than letting it concentrate on a single flap edge.

E-commerce unboxing and presentation

A pad made from a thinner, fine-flute board can be printed with high-quality graphics and dropped in on top of the product. This acts as a premium presentation layer that greets the customer immediately upon opening the box.

When to compare folded inserts and generic sheets

When side-wall protection is needed

A flat pad only reinforces the floor. If the product needs protection against lateral impacts or requires the insert to brace against the side walls, compare a U-shaped side pad. It adds two vertical folds to cover the bottom and two sides.

When precise parent-box fitment is unnecessary

If the goal is simply to source raw board area for general warehouse use, compare a generic flat sheet. A 0901 pad is parametrically tied to a specific master box, while a generic sheet is cut to arbitrary dimensions.

Close variants and lookalike dielines

The closest library neighbors include 0903, 0902, 0900. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Clearance, corners, board thickness, and flute direction

Square cuts versus chamfered corners

A perfectly rectangular pad is highly efficient to produce, but its sharp 90-degree corners can catch on the inner flaps of the master box during insertion. Trimming the corners slightly makes the pad drop in effortlessly, though it requires a die-cutting process.

Board thickness and internal volume

Thicker double-wall board offers excellent puncture resistance, but it consumes vertical space inside the master box. The packaging specification must verify that adding a thick pad leaves enough room for the product and allows the top flaps to close cleanly.

Flute direction for bending resistance

Corrugated board is much stiffer parallel to its flutes. If the primary goal is to stop the bottom of the box from sagging, the flute direction of the pad should run perpendicular to the gap between the outer box flaps.

Surface finish and presentation

Uncoated kraft board is the standard choice for unseen industrial reinforcement. If the pad will serve as a visible top layer in a retail shipment, a bleached white or coated finish provides a better surface for printed branding.

Corner chamfers, cutouts, and fit tolerances

Corner chamfers

Small angled cuts that remove the sharp 90-degree point at each corner of the pad. This prevents the pad from snagging on the folded corners of the outer box, making manual insertion much faster and reducing edge damage.

Slip-fit clearance calculation

The pad cannot share the exact internal dimensions of the master box. A packaging engineer calculates a slight reduction in length and width to account for the thickness of the box walls and the fold radii, ensuring the pad does not bow.

Ventilation or extraction cutouts

For applications requiring airflow around agricultural goods or finger holes for easier removal, internal cutouts can be added to the flat profile.

Board and packing details

Production routing and shape complexity

Simple rectangular pads can often be cut directly from the board without a die-cutting process, making them highly efficient for trials and standard runs. Adding chamfered corners, ventilation holes, or tight tolerances shifts the job to a die-cutter, which makes sense for repeat packing programs where insertion speed justifies the shaped profile.

Additional notes

Parent box dimension tracking

When specifying a bottom pad, always provide the exact internal dimensions and board grade of the master box it will go into. A packaging engineer uses those details to calculate the precise slip-fit clearance.

Related inserts and dividers

0900: Generic Flat Sheet

A visually identical flat sheet, treated as raw board area rather than a component parametrically sized to a specific parent box.

0902: U-Shaped Side Pad

Adds two parallel creases, allowing the pad to fold up and reinforce two side walls along with the base.

0903: Complete Cover L-Side Pad

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

FAQs

Fit and clearance

How much smaller should the pad be than the inside of my box?

The pad must be slightly smaller than the stated internal dimensions of the master box. It requires a calculated clearance to account for the thickness of the box walls and the fold radii of the inner flaps. If cut too tight, it will bow or jam during packing.

Protection and route

Will a bottom pad prevent a heavy box from breaking open?

It helps by distributing the weight of dense items across the entire floor, rather than letting it concentrate on the center seam. However, the ultimate strength still depends on the outer box's board grade and how well the bottom flaps are secured.

Packing labor

Can these pads be placed by automated machinery?

Yes. Because they are completely flat and require no folding, they are highly compatible with vacuum lifters and automated pick-and-place packing lines.

Print and presentation

Can a bottom pad be printed for unboxing experiences?

Yes. A pad made from a thinner, fine-flute board can be printed with high-quality graphics and dropped in on top of the product, acting as a premium presentation layer that greets the customer as soon as they open the box.

Fit and clearance

Why might a pad bind or get stuck during insertion?

Binding usually happens when the pad is cut to the exact internal dimensions of the box without accounting for the corner folds, or when sharp 90-degree corners catch on the inner flaps. Adding a slight corner chamfer resolves this.

Board and strength

Does the flute direction of the pad matter?

Yes, corrugated board resists bending much better parallel to its flutes. To maximize floor support, the flutes on the pad should run perpendicular to the center seam of the outer box.

How does board thickness affect the master box?

Every millimeter of pad thickness reduces the available internal depth of the master box. When using heavy double-wall pads for maximum puncture resistance, you must ensure the remaining vertical space still accommodates your product.

Production and labor

When should I choose a shaped corner over a simple rectangle?

A simple rectangle is highly efficient to produce and works well for lower-volume or manual packing. Shaped corners require a die-cutting process but make the pad drop in much faster, which is often worth it for high-speed, high-volume fulfillment lines.
