Common packing jobs for flat pads
Layer separation

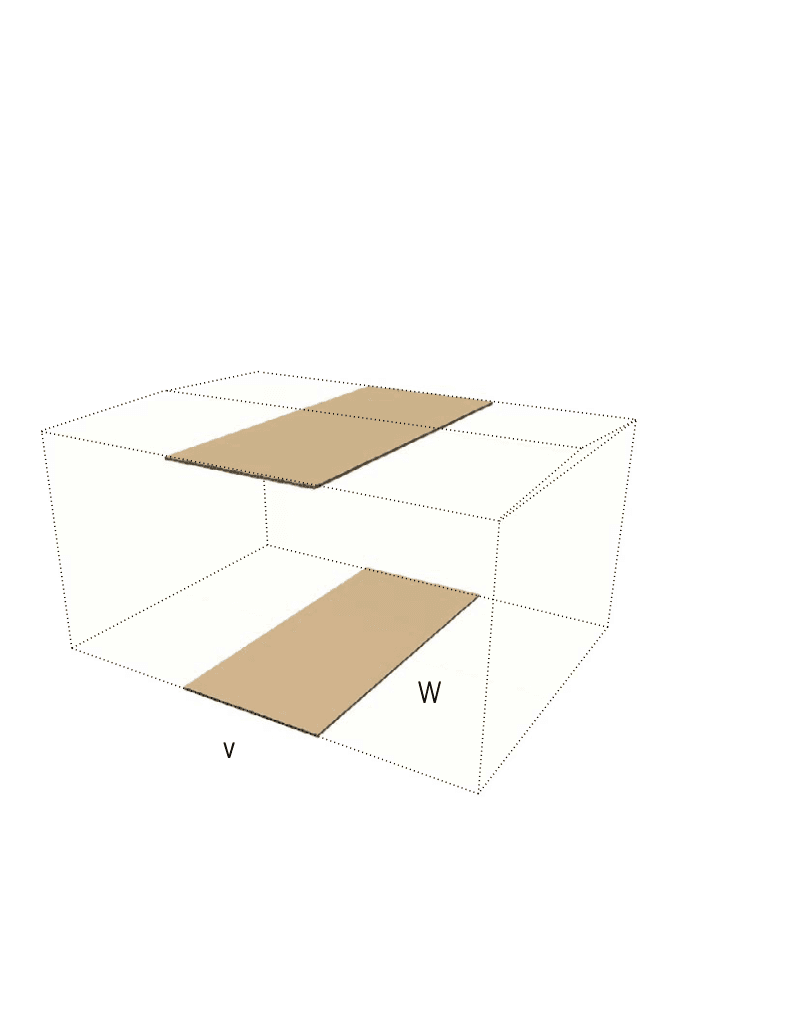

Dropping a flat sheet between tiers of canned goods, jars, or machined parts prevents vertical crushing and surface scuffing.
Bottom reinforcement
Placing a heavy-duty pad at the base of a shipping carton distributes the weight of dense components, reducing localized stress on the outer tape seal.
Box-cutter protection
A simple pad placed at the very top of the packed goods acts as a sacrificial shield against blades when retail staff or end users open the carton.
Pallet stabilization
Large format pads act as slip sheets between pallet tiers, tying the load together before stretch wrapping.
Fulfillment and distribution contexts
E-commerce kitting
Thin pads separate different components within a single mailer, keeping presentation clean without adding complex folded inserts.
Heavy industrial shipping
Dense metal parts require double-wall or triple-wall bottom pads to prevent the payload from punching through the master carton floor.
Food and beverage distribution
Glass jars and canned goods rely on horizontal dividers to stack multiple tiers safely within a single shipper.
When to consider folded or slotted dividers
Need for individual compartments
If glass bottles or fragile parts need isolation from lateral impact, a flat pad will not stop them from shifting. Consider a slotted cross-divider to create individual cells.
Need for corner shock absorption
A flat sheet only protects flat faces. If the product requires heavy edge or corner protection, look at folded corner blocks or V-shaped profiles.
Board grade and internal clearance choices
Board thickness versus internal volume
Thicker board provides better puncture resistance and stiffness, but it subtracts from the usable depth of the outer box. You must account for the pad's caliper when sizing the master carton.
Flute direction
Corrugated board bends more easily parallel to its flutes. If the pad spans a wide gap or supports a heavy tier, the flute direction should run perpendicular to the longest span for maximum rigidity.
Clearance and binding
A pad cut to the exact internal dimensions of the outer box may snag on the interior flaps during insertion. Specifying a slight reduction in length and width ensures packers can drop the pad in quickly.
Production route and edge profile
A perfectly rectangular pad can run directly on the corrugator as a straight cut. Adding rounded corners or finger holes shifts the job to a die-cutter.
Edge profiles and corner modifications
Straight cuts versus die-cut shapes
Keeping the pad as a simple rectangle avoids custom tooling. Any deviation from a straight 90-degree corner requires a flatbed die.
Finger cutouts
For tight-fitting pads that sit deep inside a box, adding semi-circular cutouts allows end users to grip and remove the layer easily.
Printed presentation surfaces
While industrial layer pads are usually plain kraft, a printed E-flute pad placed at the top of an e-commerce box acts as a branded unboxing cover.
Board and packing details
Flat delivery and warehouse storage
Because they have no folds or glued joints, flat pads stack with maximum density. A single pallet can hold thousands of thin layer dividers, minimizing storage space before use.
