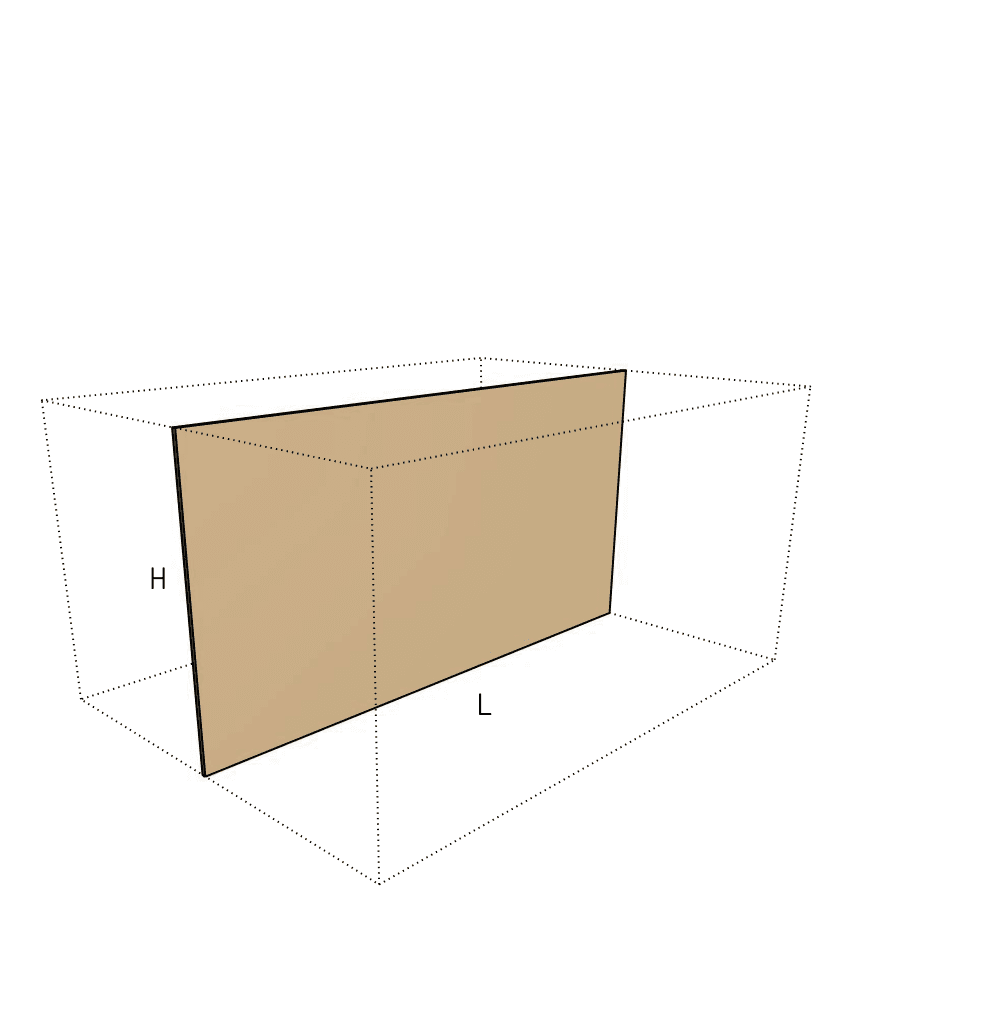

FEFCO 0903

Corrugated L-Pad and Corner Brace

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Single-fold L-shape for corner reinforcement and lateral buffering
  • Relies on friction and the outer box walls to hold its position
  • Requires exact internal box dimensions to calculate the proper fold allowance

About this product

A corrugated L-pad is a single-fold insert that drops into a master shipping box to reinforce a corner, absorb lateral impact, or fill an empty void at one end of a carton.

Because it relies entirely on the walls of the outer box to hold its 90-degree shape, the pad must be sized precisely to the host carton's internal dimensions to prevent bowing or binding.

Common uses

  • Lateral shock absorption for heavy industrial parts.
  • Corner reinforcement for boxes bearing uneven weight.
  • End-of-box void fill for products that do not fill the primary container.
  • Internal product separation for kitting.

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Corner reinforcement and lateral void fill

Lateral shock absorption

Placing the L-pad against the side of a master carton buffers dense or fragile components from side impacts. The corrugated flutes absorb the transverse force before it reaches the product.

Corner reinforcement

A heavy-duty L-pad braces a specific corner of a shipping box that bears uneven weight or faces higher crush risk during transit, distributing the load across two panels.

End-of-box void fill

When a product does not completely fill the length of the primary container, an L-pad takes up the remaining space. The short panel acts as a brace to prevent the payload from shifting.

Internal product separation

A fine-flute L-pad can separate a secondary item, like a power supply or accessory box, from the main product without requiring a complex, multi-piece partition.

Heavy industrial, fragile goods, and kitting applications

Heavy industrial transit

Dense metal parts or machinery components often need localized bracing to prevent them from punching through the side of a master carton. A double-wall L-pad provides that barrier.

E-commerce kitting

Fulfillment centers use L-pads to quickly divide a box into two sections for mixed orders, keeping heavy items away from lighter components.

Glass and fragile goods

Bottles and ceramics packed near the edge of a master carton face higher impact risks. An L-pad adds a dedicated crush zone along the most vulnerable outer walls.

When to consider flat sheets or U-channels

Flat layer separation

If the goal is simply to separate stacked tiers of product or reinforce the bottom floor, a flat corrugated pad eliminates the fold and reduces board use.

Full side-wall protection

If the product needs buffering along two opposite walls, a U-shaped channel provides a continuous wrap rather than just a single corner brace.

Multi-item compartmentalization

If you need to separate four bottles or glasses, you need an interlocking cross-divider. A single L-pad cannot create a grid.

Close variants and lookalike dielines

The closest library neighbors include 0902, 0901, 0900. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board thickness, flute direction, and fold allowances

Board grade and internal volume

A heavy double-wall board provides maximum shock absorption but consumes more internal volume and requires more effort for a packer to fold. A thin E-flute board creates a crisp 90-degree corner with minimal space loss.

Host box dimensions

The factory must know the exact internal dimensions of the outer box. The fold allowance changes based on board thickness, and a miscalculation will cause the L-pad to bulge or fit too loosely.

Flute direction

Running the flutes vertically adds stacking strength to the corner. Running them horizontally provides better cushioning against side impacts. The choice depends on whether the primary risk is crushing or dropping.

Delivery and packing labor

These pads ship flat and require manual folding before insertion. For high-volume packing lines, factor in the time required for operators to break the score line and seat the pad.

Asymmetric panels, chamfers, and score profiles

Asymmetric panel lengths

The two legs of the L-pad do not need to be equal. One panel can run the full length of the box while the shorter panel simply anchors the pad in place.

Corner chamfers

For extremely tight fits, the outer corners of the pad can be angled slightly to prevent the insert from catching on the inner flaps of the master box during insertion.

Score line profiles

Heavy double-wall boards can crack or bind when folded to 90 degrees. Adjusting the crease profile ensures the board bends cleanly without compromising the inner liner.

Board and packing details

Production routing and tooling

While simple, the transverse fold usually requires a flatbed or rotary die-cutter, unlike longitudinal folds which can sometimes be run on a standard slitter-scorer.

Additional notes

Outer carton dependency

An L-pad provides localized buffering but cannot replace the need for a properly rated outer shipping box.

Related internal inserts

0900: Flat Corrugated Pad

Review this option if you only need bottom reinforcement or layer separation without a vertical wall.

0902: U-Shaped Channel

Look at this style if you need to buffer two opposite sides of a product rather than a single corner.

0901: Complete Cover Bottom Pad

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

FAQs

Product fit and inserts

Does this pad lock into place?

No. It relies entirely on friction and the walls of the outer box to hold its 90-degree shape. It does not have tabs or locks.

Related package choice

Can this be used to create a four-part grid for bottles?

No. While some packaging catalogs loosely group all dividers under this category, a true L-pad only has one fold. Compartmentalizing multiple items requires slotted, interlocking partitions.

Board and finish behavior

Does the board thickness change the flat size of the pad?

Yes. Thicker corrugated board requires a larger fold allowance. The flat blank must be cut slightly larger to achieve the same final internal dimensions once folded.

Packing labor

Can packers fold these by hand?

Yes. The single score line makes manual folding fast, though heavy double-wall board may require more physical effort to break the crease cleanly.

Quantity or production path

Do I need to supply the outer box dimensions for a quote?

Yes. Sharing the exact internal dimensions of the master carton ensures the pad fits smoothly without bowing or binding against the walls.

Print and finish

Can this pad be printed?

Yes, though it is rarely printed unless it serves as a visible presentation brace in an unboxing kit.

Board and finish behavior

Does the flute direction matter for this insert?

Yes. Vertical flutes add stacking strength to the corner, while horizontal flutes absorb side impacts better. The right choice depends on your specific transit risks.

Route and shipping

Will this insert prevent a heavy item from punching through the box?

It adds a localized barrier and distributes the force, but the outer box must still be rated for the total payload weight. An insert cannot fix a weak master carton.
