Common packing jobs for wrap-around pads
Targeted shock absorption
For dense industrial parts or electronics, the pad acts as a buffer against the outer box walls, absorbing lateral impacts before they reach the product.
Master carton reinforcement
When a standard shipping box buckles under heavy top loads, adding a wrap-around pad provides immediate vertical column strength along the uncreased panels. This often saves upgrading the entire outer box to double-wall board.
Internal void fill and segregation
The pad can isolate a primary component in the center of a larger box, leaving the deliberate gap or the open ends available for cables, manuals, or lighter accessories.
Surface protection for finished goods
When packing painted or polished items, the continuous corrugated surface prevents the product from rubbing directly against the outer carton seams during transit.
Fulfillment and distribution contexts
Industrial kitting and parts distribution
Heavy metal components often need localized bracing to prevent them from punching through a standard carton. A heavy-duty pad provides that barrier while shipping completely flat to the packing station.
E-commerce fulfillment
When shipping fragile goods in standard boxes, operators can quickly wrap the product before insertion, adding a layer of protection without managing complex multi-piece partitions.
Furniture and flat-pack shipping
Long or bulky items packed in large master cartons benefit from localized wrap-around pads to reinforce vulnerable sections without adding excessive weight to the overall package.
When to consider a different insert
Full 360-degree coverage
If the product requires complete enclosure without a gap, compare this to a five-panel horizontal wrap (FEFCO 0905), which fully overlaps to seal the perimeter.
Vertical perimeter reinforcement
If you need to reinforce the side walls of a box but leave the top and bottom completely open for top-loading, a vertical perimeter sleeve (FEFCO 0904) is usually a better fit.
Board, fit, and packing decisions
Board thickness versus packing fatigue
Heavy single-wall or double-wall board maximizes shock absorption but significantly increases the board's natural spring-back. Operators will have to exert more force to hold the pad closed during insertion.
Calculating the gap

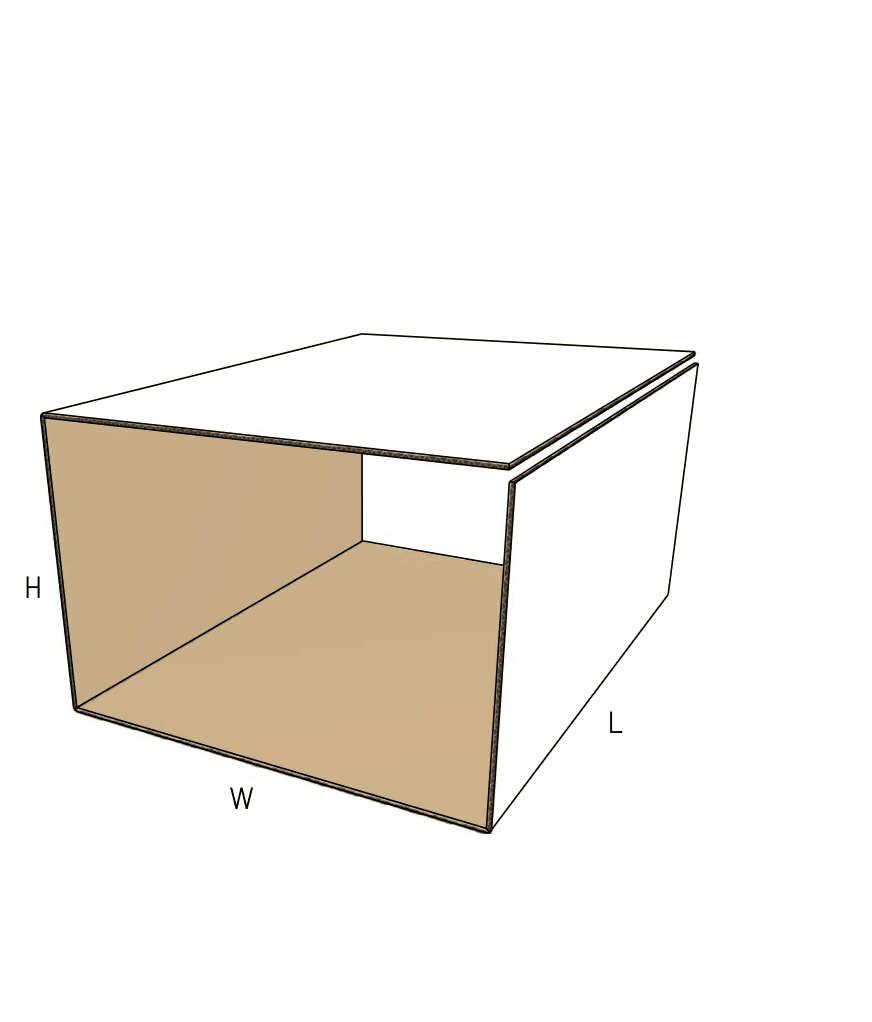

The pad is designed with a deliberate split along the long axis. This gap prevents the inner panels from colliding when folded, ensuring a clean 90-degree wrap around the product.
Outer box clearance
The pad must be sized precisely to the host carton's internal dimensions. A fit that is too tight will cause the pad to bind during insertion, while a loose fit reduces its structural reinforcement.
Flute direction and vertical strength
The corrugated flutes run parallel to the uncreased edges. When inserted into a master carton, these vertical channels act as load-bearing columns, significantly increasing the box's ability to handle heavy pallets.
Practical template adjustments
Gap placement and sizing
The width of the top flap and the opposing side wall can be adjusted to widen or narrow the split, accommodating specific product features or making manual insertion easier.
Flap length adjustments
The side panels can be extended or shortened to change how much of the product is covered, allowing the pad to act as a partial brace rather than a full wrap.
Board grade selection
Switching from a heavy C-flute to a thinner E-flute reduces the protective cushion but makes the pad much easier to fold and hold closed during rapid packing.
Board and packing details
Production route and prototyping

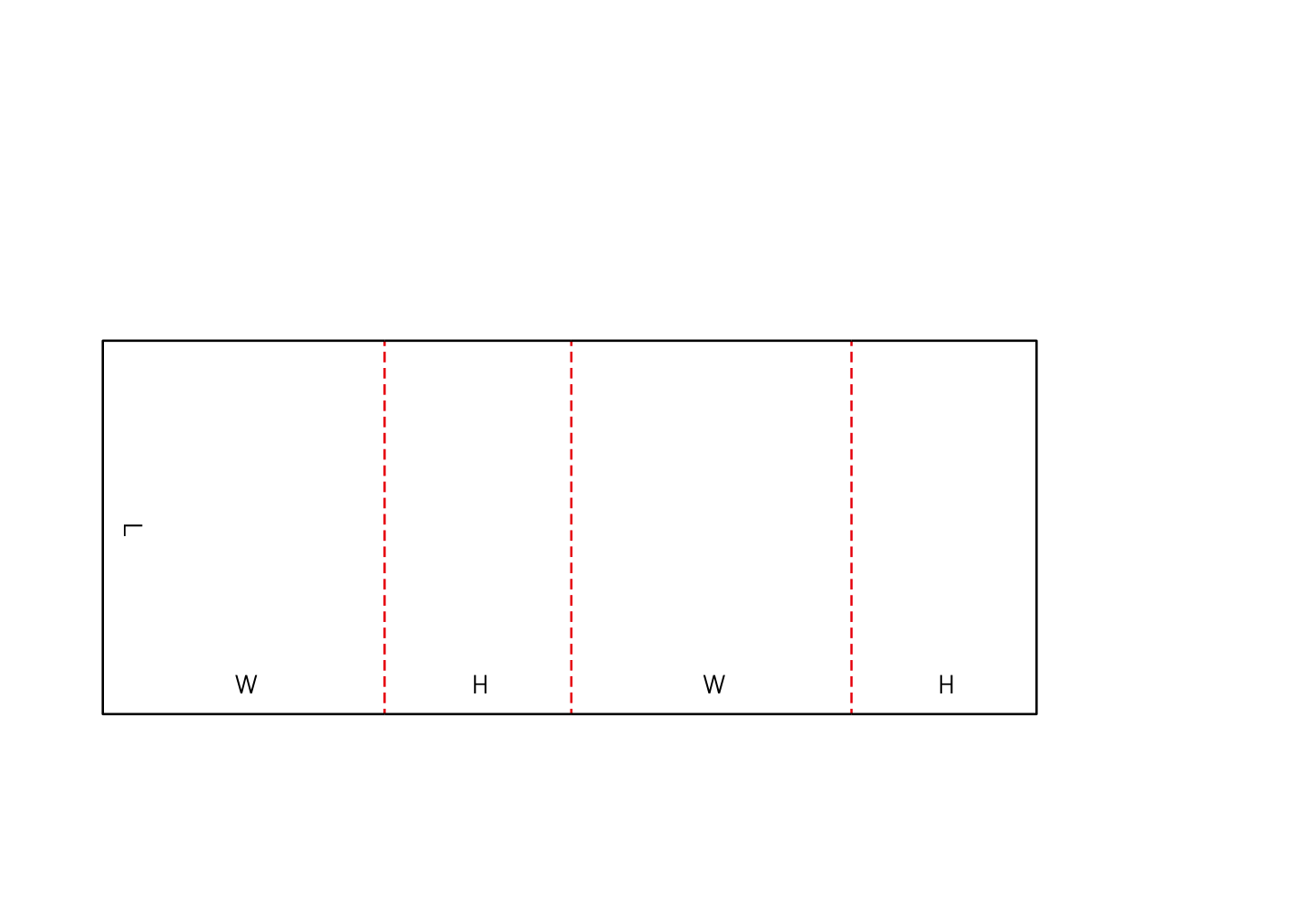

Because this insert consists exclusively of straight cuts and parallel creases, it runs as a simple sheet. This makes it easy to prototype and adjust dimensions without waiting for shaped cutting dies.
