Common packing jobs for length-way pads
Box cutter and opening defense

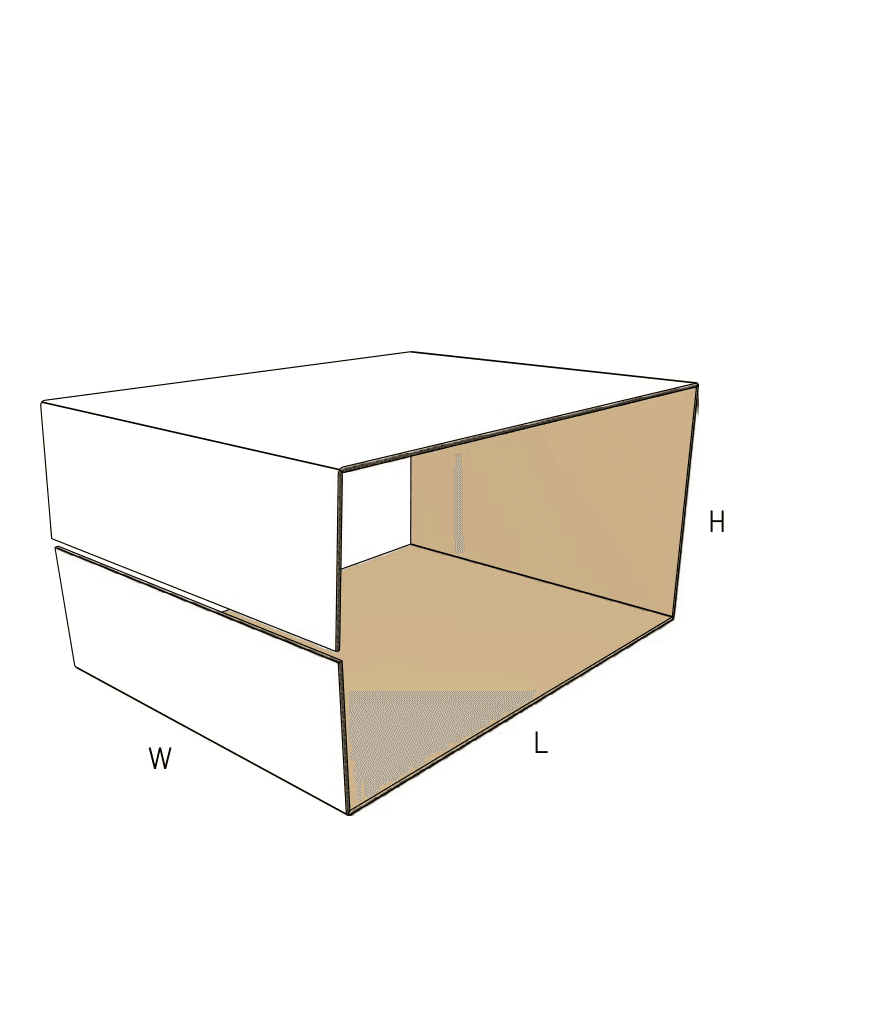

When a master carton is sliced open at the top or bottom center seam, the long panels of this pad sit directly beneath the tape line. This provides a dedicated corrugated shield that stops blades before they reach the primary product.
Heavy component cushioning
Dense metal parts or extrusions can easily punch through the top or bottom of a standard shipping box during transit. Wrapping the component in a dedicated liner absorbs that localized force before it reaches the outer wall.
Internal layer separation
For deep master cartons holding multiple items, the pad separates horizontal layers while simultaneously protecting the ends of the products from shifting against the box walls.
End-wall impact absorption
Long, heavy items often take the brunt of drop impacts on their short ends. The vertical panels of this pad add a dedicated crush zone to the ends of the master carton, reducing the risk of the product punching through.
Fulfillment and industrial packing environments
Industrial kitting and parts distribution
Heavy components often need localized bracing to prevent them from piercing a standard carton. A heavy-duty pad provides that targeted defense without requiring a full double-wall upgrade for the outer box.
High-value retail fulfillment
When shipping expensive electronics or cosmetics, the pad acts as a secondary barrier against rough courier handling and careless unboxing, ensuring the primary retail package remains pristine.
Furniture and flat-pack shipping
Heavy panels and hardware kits shift during transit. Wrapping the ends and main faces of these components prevents them from breaking through the outer shipper during warehouse drops.
When to consider a different protective insert
Vertical stacking strength is the priority
If your master cartons buckle under heavy pallet loads, this pad will not help. Because its flutes run horizontally along the vertical end panels, it provides almost zero column strength. Look at a vertical perimeter liner (FEFCO 0908) instead.
Long-side protection is required
If your product needs protection along its longest side walls rather than its ends, evaluate a horizontal wrap-around pad (FEFCO 0905). That style leaves the ends open but covers the long perimeter.
Board, fit, and packing line decisions
Board thickness and folding effort
Heavy double-wall board offers excellent puncture resistance, but it creates severe spring-back tension. Operators must manually hold the pad folded while inserting it into the box. Thinner flutes reduce this packing fatigue.
Host box clearance
Adding a five-panel wrap reduces the usable internal volume of your master carton. The outer box dimensions must account for the pad's board thickness on the top, bottom, and both ends to prevent the assembly from binding during insertion.
Packing line speed
This pad requires a two-handed wrap-and-hold motion. If your fulfillment line relies on high-speed automated insertion, this unglued, spring-tensioned pad will slow down operators.
Flute direction and stacking limits
The flutes on this pad run parallel to its width. This makes folding easier but means the vertical end panels have horizontal flutes. Do not rely on this insert to hold vertical weight.

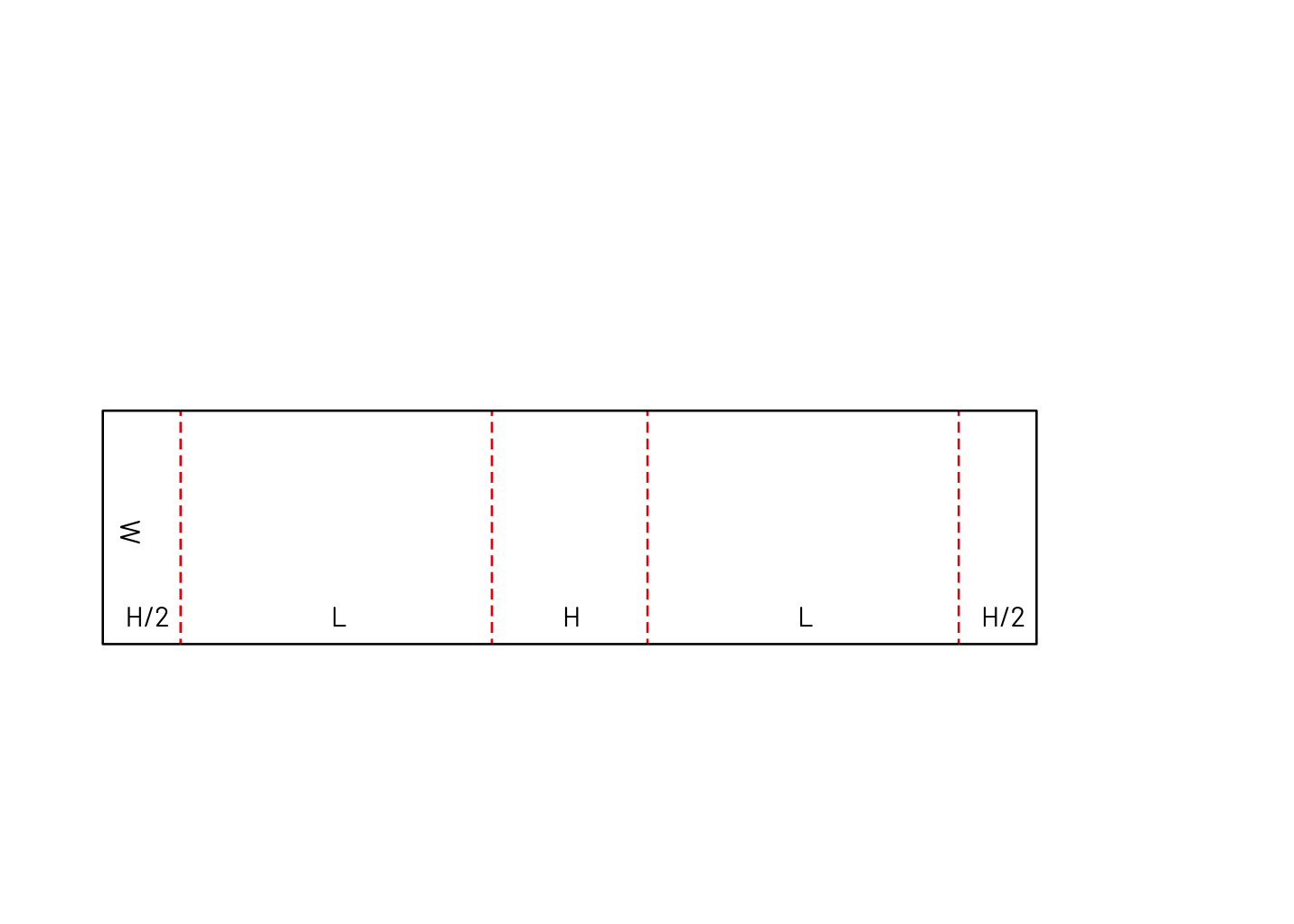

Practical template adjustments
End-gap sizing
The two short flaps that cover the final end wall can be sized to meet exactly in the middle, or they can be kept short to leave a deliberate gap for barcode scanning, cable routing, or easier finger access.
Board grade selection
You can specify E-flute or F-flute if the package needs a tight slip-fit with minimal volume loss, or step up to C-flute if the primary goal is heavy shock absorption against drops.
Tooling-free production
As long as the pad remains a simple rectangle with straight parallel creases, it can run on a slitter-scorer. Adding ventilation holes or custom cutouts will force the job onto a die-cutter, adding shaped-cut production planning.
Board and packing details
Flat delivery and storage
Because these pads have no glued joints or interlocking tabs, they ship and store completely flat. This yields the highest possible pallet density for warehouse storage before use.
Additional notes
Internal volume loss
When specifying this pad for an existing master carton, remember that the board thickness will consume internal space on the top, bottom, and both ends. A physical fit test is highly recommended before a full production run.
Related internal packaging
FAQs
Packing and assembly
Can this pad be inserted automatically by machinery?
No. Because the pad has no glued joints and naturally springs open, it requires an operator to manually fold it around the product and hold it closed while sliding it into the outer box.
Protection and route
Does this pad make the outer box stronger for stacking?
No. The corrugated flutes on the vertical end panels run horizontally, which provides cushioning but almost no vertical column strength. If the package needs stacking support, a vertical liner is a better choice.
Fit and sizing
Do the end flaps have to leave a gap?
Not necessarily. The terminal flaps can be extended so they meet exactly in the center, providing total coverage for that end wall. Leaving a gap is simply an option for access or visibility.
Production and tooling
Does this pad require a custom cutting die?
Usually not. Because the design relies entirely on straight, parallel creases, it can often be produced on standard scoring equipment without the need for custom flatbed tooling.
Closure and sealing
Do I need to tape or glue the pad closed?
No. The pad is held in its folded shape entirely by the friction and boundary walls of the master carton it slides into.
Materials
What board grade works best for this insert?
It depends on the product weight and the packer's limits. Heavy board resists punctures better but is much harder to fold by hand. Thinner E-flute or B-flute is easier for operators to handle during high-volume packing.
Fit and sizing
How does this affect the internal dimensions of my master carton?
The board thickness of the pad consumes internal space on the top, bottom, and both ends. You must increase the outer box dimensions to account for this, or the pad will bind and buckle during insertion.
Protection and route
Can I use this pad without an outer box?
No. This is strictly an internal fitment. It has no closure mechanism of its own and relies entirely on the master carton to hold its shape and protect the product from the elements.
