FEFCO 0914

Square Wrap-Around Shipping Tube

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Wraps around long, rigid profiles like furniture parts and extrusions
Creates a double-wall reinforced face where the outer panels overlap

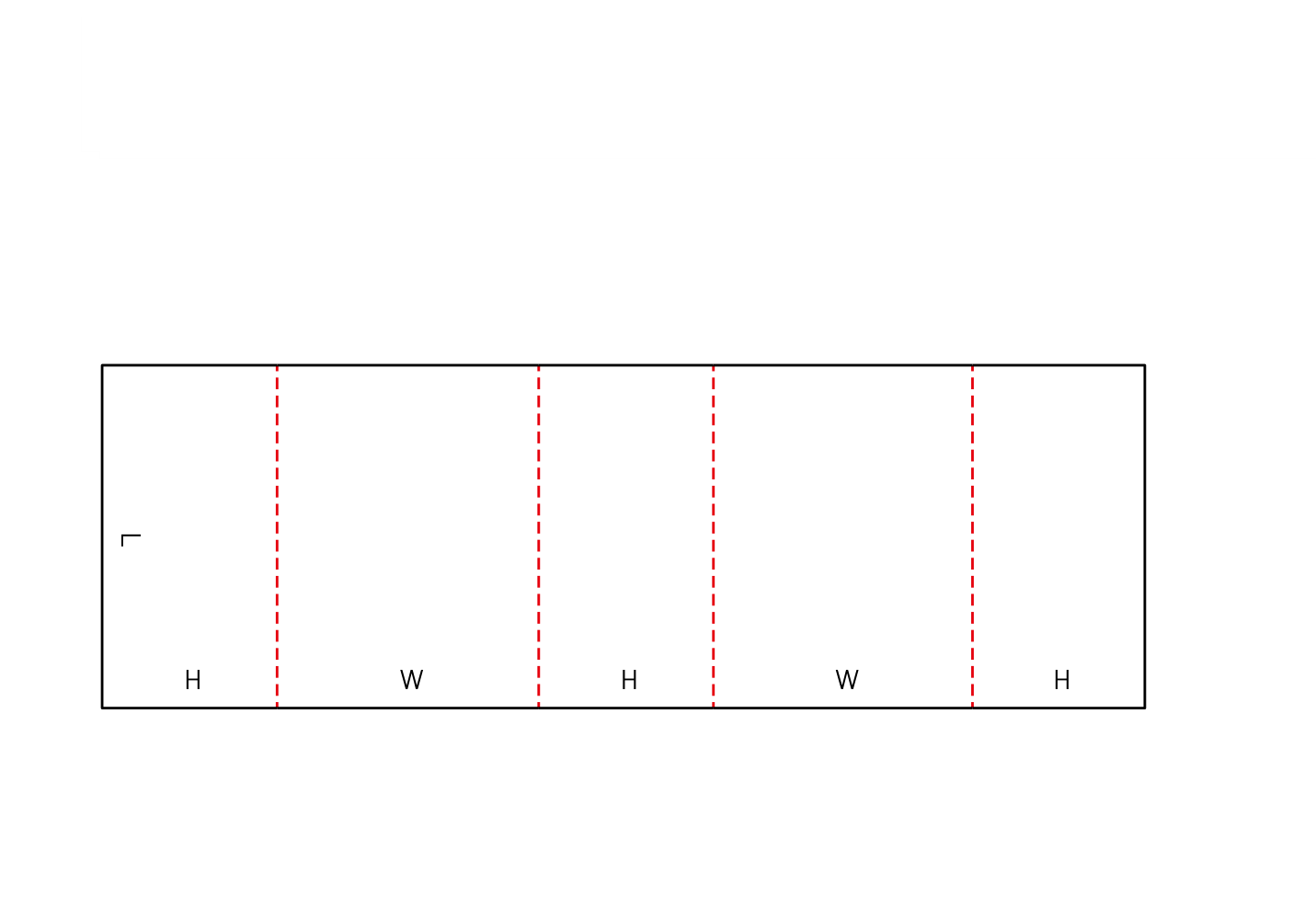

Runs as a simple scored sheet that ships completely flat

About this product

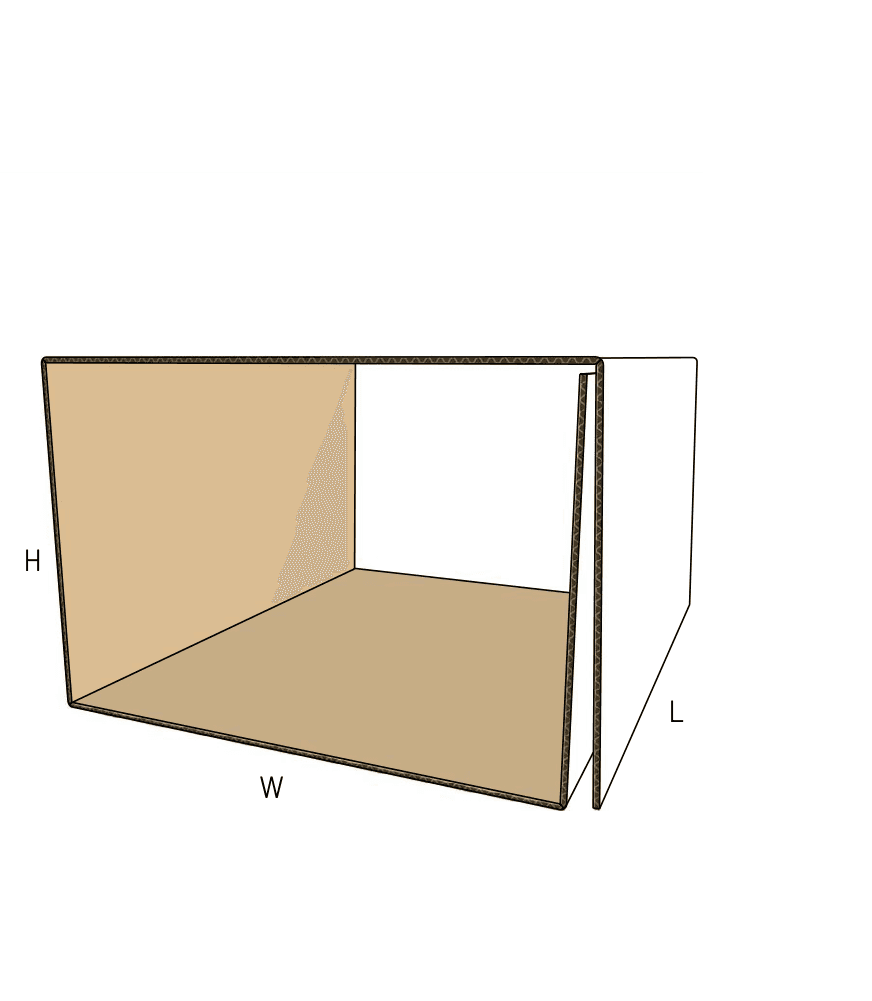

A five-panel corrugated sheet that folds into an open-ended rectangular sleeve, wrapping around long products to create a secure shipping tunnel. By overlapping completely on one face, it provides a double-wall layer of protection along the length of the package.

Because it relies entirely on straight parallel creases, this wrap avoids custom die-cutting. The main tradeoff is packing labor. The unglued board naturally springs open, requiring operators to hold the overlap tight while applying tape or strapping.

Common uses

Furniture component protection
Metal rod and architectural extrusion shipping
Master carton perimeter lining
Rolled fabric and textile shipping

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Tube length

Tube width

Tube height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How do you plan to keep the wrap closed?

How will the ends of the package be secured?

What type of product is going inside?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Product fits for the wrap-around tube

Long profile and extrusion wrapping

Metal rods, architectural extrusions, and wardrobe poles fit perfectly inside the square profile. Unlike round tubes, the square shape prevents rolling on conveyor belts and stacks cleanly on pallets.

Furniture component protection

Heavy table legs, bed frames, and flat-pack hardware kits use the wrap as a protective tunnel. The full overlap face provides extra shock absorption against lateral impacts.

Master carton perimeter lining

When dropped inside a larger shipping box, the five-panel sheet forms a continuous inner wall. The overlap ensures there is no weak gap in the reinforcement, helping the master carton resist outward bulging.

Rolled fabric and textile shipping

Heavy rolls of fabric, canvas, or industrial textiles fit securely inside the square profile. The flat inner walls prevent the creasing or pinching that can happen when forcing rolls into standard slotted boxes.

Fulfillment and distribution environments

Industrial manufacturing

Facilities shipping long metal or plastic parts use these wraps to avoid larger shaped boxes or oversize cartons.

Furniture distribution

Flat-pack distributors rely on the wrap-around method because it is easier to fold the board around a heavy, awkward component than to slide that component into a pre-glued tube.

Architectural and building supply

Suppliers shipping molding, trim, and long hardware rely on this wrap to provide continuous edge protection without the bulk of oversized master cartons.

When to evaluate a different sleeve or tube

High-speed packing lines

If your packing line cannot accommodate the manual two-handed wrap-and-hold motion required to tape the overlap, a pre-glued half-slotted tube allows operators to simply drop the product in.

Small or loose components

Because the ends remain open, this sleeve cannot contain loose items on its own. If the product does not span the full length of the tube, the package may call for secondary end caps, shrink wrap, or a fully enclosed box.

Close variants and lookalike dielines

The closest library neighbors include 0906, 0910, 0503. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board, closure, and packing choices

Closure method and board spring-back

The sleeve has no native locks. You must decide how to secure the overlap. Heavy double-wall board offers excellent protection for furniture but creates strong spring-back, requiring heavy-duty strapping or strong adhesive tape to keep the tube closed.

Overlap width

The overlapping panel can be specified to cover the entire opposing face or just a portion of it. A full overlap maximizes column strength and puncture resistance, while a partial overlap saves material cost.

Flute direction

The direction of the corrugated flutes determines where the tube gets its strength. Running flutes parallel to the tube axis maximizes stacking strength, while running them perpendicular makes it easier to fold tightly around the product.

End containment strategy

Since the wrap leaves both ends open, you must decide how to secure the product longitudinally. Options include relying on a tight friction fit, adding separate corrugated end caps, or applying shrink wrap over the final assembly.

Template adjustments for the wrap

Cross-section and length

The width, height, and overall length of the tube can be adjusted to fit the exact profile of the product, ensuring a tight friction fit that prevents internal shifting.

Partial overlap reduction

The fifth panel can be shortened so it acts as a simple fastening flap rather than covering the entire opposing face. This reduces material usage when side-impact risk is low.

Board grade and thickness

Heavy double-wall board offers excellent protection for dense furniture parts but creates strong spring-back during assembly. Single-wall Kraft works well for lighter extrusions and is easier for operators to fold.

Board and packing details

Flat delivery and storage

Because the wrap is a single sheet with parallel creases, it ships and stores completely flat, taking up a fraction of the warehouse space required for pre-glued tubes.

Modifications and alternatives

Partial overlap adjustment

The fifth panel can be shortened to act as a simple fastening flap rather than a full double-wall face, reducing material usage when side-impact risk is low.

Additional notes

Square versus round tubes

Unlike traditional round mailing tubes, the square profile prevents rolling on sorting conveyors and stacks efficiently on pallets without requiring special bracing.

FAQs

Closure and packing

Does this tube stay closed on its own?

The wrap relies entirely on external fastening. Operators must hold the overlapping panels flush while applying tape, glue, or strapping.

Route and shipping

Can this be shipped as a standalone parcel?

Only if the product itself is rigid enough to act as the core and the open ends are properly capped or sealed. Otherwise, it functions best as an inner protective sleeve or requires shrink wrap to contain the ends.

Production path

How is this wrap manufactured?

Because it is a simple rectangular sheet with straight parallel creases, it typically runs on standard slitter-scorer equipment, bypassing the need for custom flatbed cutting.

Board and material

What board grade makes sense for this wrap?

Heavy double-wall board is common for dense furniture parts, while single-wall Kraft works well for lighter extrusions. Keep in mind that thicker board increases the manual effort required to fold the panels tightly around the product.

Product fit

How tight should the wrap be around the product?

The sleeve should fit snugly. Because the ends are open, a tight friction fit helps prevent the product from sliding out during transit.

Packing labor

Is this faster to pack than a standard box?

For long, heavy items, wrapping the board around the product is often easier than trying to slide a heavy extrusion into a long, narrow box. However, securing the overlap does require two hands.

Inserts and protection

Does this wrap protect the ends of my product?

No. The sleeve forms a continuous tunnel but leaves both ends completely open. If your product is sensitive to end-to-end impact, the package may call for secondary caps or a fully enclosed box.

Storage and handling

How is this delivered to the packing station?

The wrap is a single sheet with parallel creases, so it ships and stores completely flat. This takes up a fraction of the warehouse space required for pre-glued tubes.
