Practical packing jobs for interlocking grids
Glassware and bottle isolation
Secures each object independently from all four sides. This eliminates unit-to-unit collision, preventing glass breakage and label scuffing during transit.
Heavy industrial parts separation
Keeps machined components or heavy metal parts from damaging each other while supporting heavy pallet loads from above.
Vertical stacking reinforcement
The intersecting walls of the grid act as structural columns. This allows the outer master carton to use lighter board because the internal grid carries the vertical compression load.
Multi-tier product stacking
For deep master cartons, packers can stack multiple grids on top of each other. Placing a flat corrugated pad between each grid layer creates distinct vertical tiers for smaller items.
Industries relying on strict cellular isolation
Beverage and cosmetics kitting
Retail presentation relies on pristine labels and unblemished surfaces. The strict cellular isolation prevents the friction that ruins premium packaging.
Automotive and electronics distribution
Shipping multiple distinct components in a single master box requires rigid separation to prevent delicate parts from crushing each other during rough handling.
Pharmaceutical and laboratory shipping
Glass vials and sample jars require rigid, individual compartments to prevent shattering. The tight friction fit of the grid ensures these small items do not migrate during transit.
When a different divider style makes more sense
Single-axis buffering
If you only need to buffer products from the side walls rather than isolating them from each other, a simple U-channel uses less board and requires no slot assembly.
Avoiding multi-piece assembly
If you want to avoid mating separate strips entirely, a single folded sheet can create parallel channels, though it cannot form a strict four-way intersecting grid.
Labor and fit choices before requesting a quote
Loose strips versus pre-assembled grids
Loose strips cost less to manufacture but shift heavy assembly labor to your packing floor. Pre-assembled grids cost more upfront but arrive diagonally collapsed and ready to drop into the box.
Board thickness and slot width
The slots must be cut to exactly match the board caliper. Changing from a thin E-flute to a thick C-flute requires updating the slot width, or the grid will bind and tear during assembly.
Cell count and array scaling

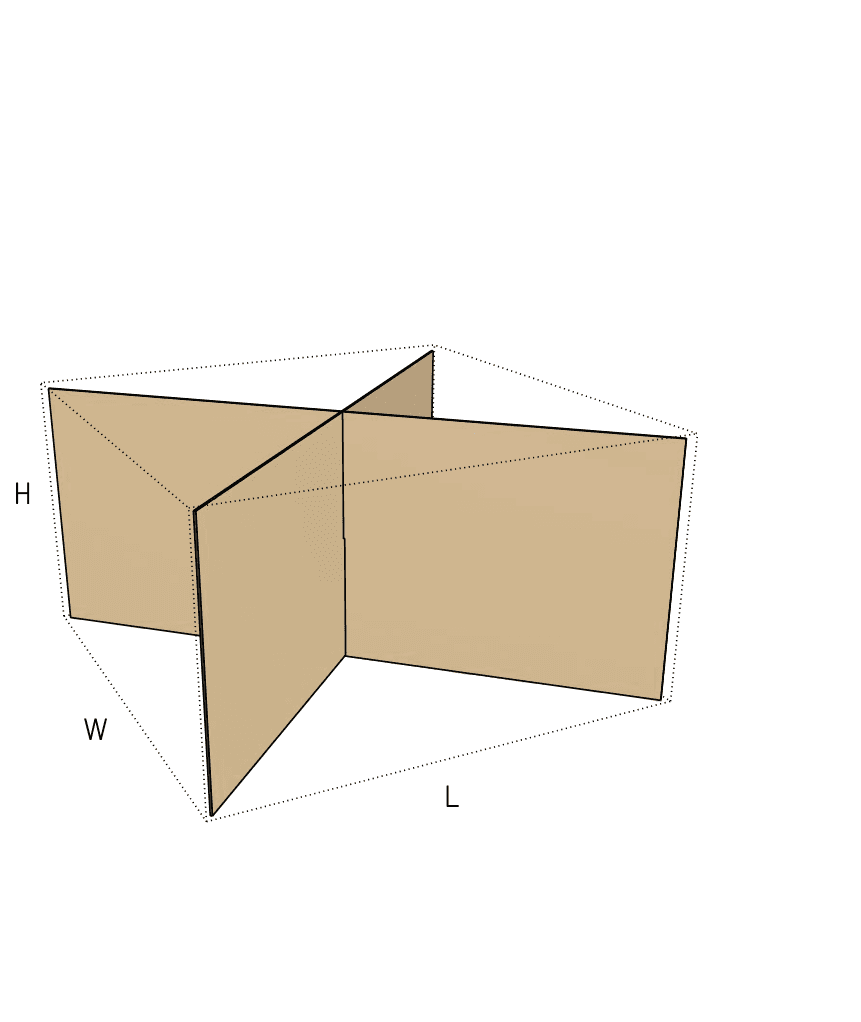

The basic layout creates four cells, but the same intersecting logic scales to twelve, twenty-four, or more cells by adding more slots and strips to the array.
Outer box board reduction
Because the intersecting grid provides heavy vertical column strength, you can often safely reduce the board grade of the outer master carton without sacrificing overall crush resistance.
Modifications for faster packing and secure locking
Chamfered slot entries
Tapering the top of the slots makes it much easier for packers to align and slide the strips together. This reduces manual friction on the packing line, though it usually requires die-cutting instead of standard slotting.
Locking friction tabs
Adding die-cut tabs inside the slots creates a hard lock when the strips intersect. This prevents the grid from falling apart during rough transit or when packers handle pre-assembled units.
Micro-flute or solid board substitution
If the master carton is tight on space, switching the grid material to a thin solid board or micro-flute maximizes the internal cell volume while maintaining strict product separation.
Board and packing details
Master carton fit and clearance
The partition must be sized slightly smaller than the internal dimensions of the master carton to allow easy insertion without bowing the outer walls.
Diagonal collapsing for storage
When fully assembled, the friction-fit grid can be pushed flat diagonally. This allows dense pallet shipping and efficient warehouse storage even for pre-assembled units.
Additional notes
Automated insertion limits
Ordinary straight-line folder-gluers do not assemble intersecting grids. Automated assembly requires specialized partition inserter equipment at the converter.
Outer box downgrading
Because the grid provides so much vertical strength, you can sometimes safely reduce the board grade of the outer master carton.
Related internal dividers and buffers
FAQs
Shipping and storage
Can this partition be shipped flat?
Yes. If you order them as loose strips, they ship completely flat. If you order them pre-assembled, they can be pushed diagonally flat to save pallet space.
Assembly and closure
Does this partition need tape or glue?
No. The longitudinal and transverse strips lock together using a perpendicular friction fit.
Product fit
Can I use this as a standalone shipping box?
No. This is an internal component that must be placed inside a master carton to hold the grid together and protect the contents.
Modifications
Why would I choose chamfered slots?
Chamfered or angled slot openings guide the strips together faster. This reduces manual assembly time on the packing floor, though it changes the manufacturing tooling required.
Board and material
Does the board grade matter for the slots?
Yes. The slot width is mathematically tied to the board thickness. If you test a prototype in thin solid board and then order thick corrugated, the slots will be too narrow and the strips will crush when pushed together.
Protection
Will this help my boxes survive pallet stacking?
Yes. The intersecting walls of the grid act as internal load-bearing columns, transferring vertical weight from the lid to the base and preventing the outer box from crushing.
Packing setup
How do I pack multiple layers of products using these grids?
You can stack grids vertically inside a deep master carton. You just need to place a flat corrugated pad between each grid layer to create a floor for the next tier of products.
Board and material
What happens if the slot width is wrong?
If the slots are too narrow for the board, the strips will bind and tear during assembly. If the slots are too wide, the grid will be floppy and fail to hold a square shape inside the box.
