Corrugated U-Channel Divider

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Folds into a U-shape to line box walls or divide space
Relies on the outer carton for friction-fit retention
Uses straight parallel creases for a simple production route

About this product

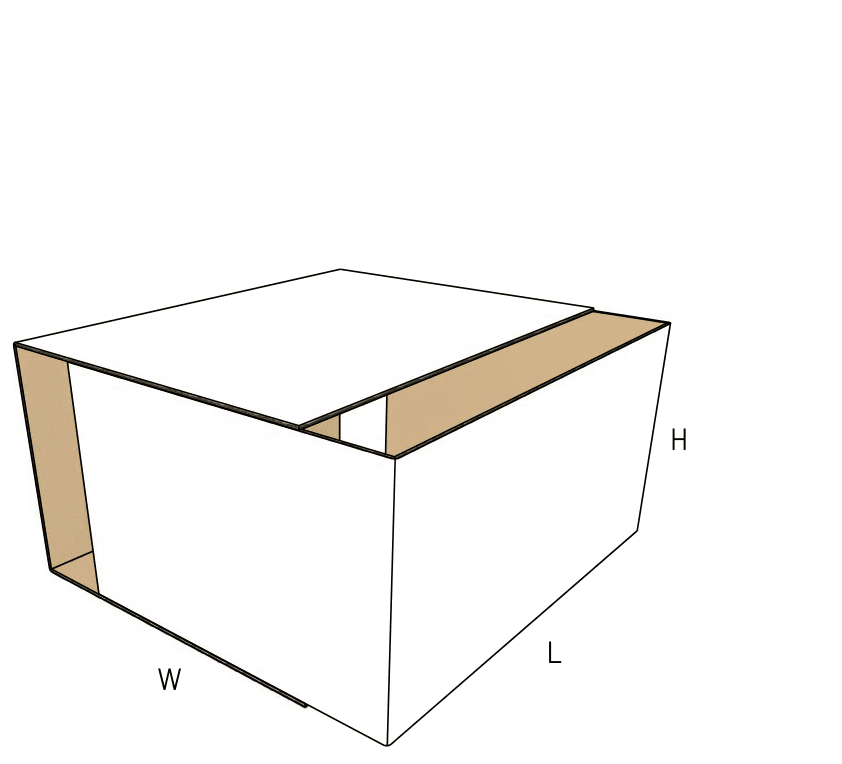

A U-channel divider is a simple three-panel corrugated insert that slides inside a master carton to buffer delicate goods against the outer walls or split the internal space into two distinct compartments.

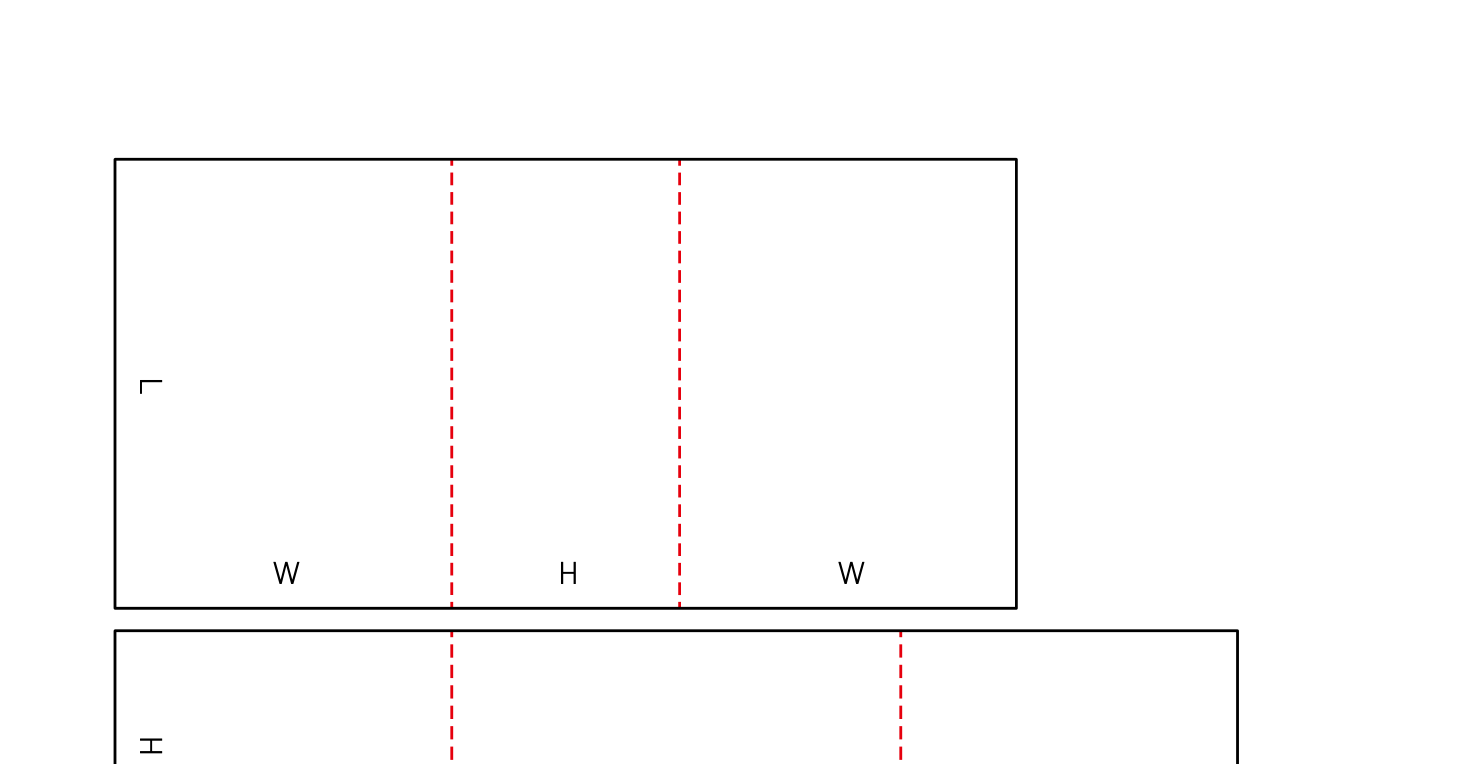

Known formally as the FEFCO 0929, this pad relies on straight parallel creases to form its shape. It offers a straightforward way to add targeted shock absorption or vertical stacking support without upgrading the entire outer box.
