Products that need single-cell suspension
High-value electronics and precision instruments
Creates a physical air gap that absorbs side impacts before they reach the central cell, keeping sensitive components away from the outer walls.
Heavy bottled liquids
Prevents a single heavy bottle from shifting or striking the outer carton walls during transit, reducing the risk of glass breakage.
Industrial motors and pumps
Suspends dense, heavy items in the center of the box, preventing the product's weight from crushing the outer corners during a drop.
Delicate ceramics and glassware
Provides deep standoff zones on all four sides, giving fragile items room to decelerate if the outer box takes a hit.
Fulfillment and kitting environments
E-commerce parcel shipping
Upgrades a standard outer shipper into a highly protective parcel box for single-item orders without requiring custom molded foam.
Industrial component kitting
Isolates a sensitive or heavy component within a larger master carton, keeping it secure until it reaches the assembly line.
Low-volume, high-margin fulfillment
Fits operations where the extra time spent manually folding and assembling the grid is justified by the high value of the single item being shipped.
When to compare other internal dividers
Packing multiple items in one box
If you need to separate several items rather than isolating just one, compare this to a standard multi-cell partition. A single-cell buffer dedicates too much space to air gaps for multi-item packing.
High-speed packing lines
If the labor of assembling four separate slotted pieces and folding eight flaps is too slow for your packing bench, a single-piece folded insert or a die-cut tray may be a better operational fit.
Board, fit, and packing line decisions
Board thickness and slot fit
The width of the interlocking slots must exactly match the board thickness. Changing board grades later means the slots will either bind during assembly or fit too loosely to protect the product.
Delivery state and packing bench setup
Decide whether the partition pieces should be delivered flat and loose to save pallet space, or pre-collated into sets to save time for the packing team.
Outer box sizing
This partition relies entirely on the outer box to hold its folded buffers in place. The internal dimensions of the master carton must be finalized before sizing the insert to ensure a proper friction fit.
Flute direction for vertical strength
If the packed item is heavy and the master boxes will be stacked on a pallet, aligning the flutes vertically on the partition pieces adds vertical crush resistance.
Adjustments for fit and assembly speed
Buffer depth for heavier impacts
The length of the folded outer flaps can be extended to create a wider air gap between the product and the outer box wall, offering more crush distance for heavier items.
Chamfered slot entries
Angled cuts at the opening of each slot help guide the pieces together, reducing friction and speeding up manual assembly on the packing bench.
Asymmetric cell placement
The intersecting slots can be shifted off-center to accommodate products that are heavier or wider on one side, keeping the overall weight balanced inside the master box.
Board and packing details
Outer box compatibility
This partition relies entirely on the outer box to hold its folded buffers in place. The internal dimensions of the master carton must be finalized before sizing the insert to ensure a proper friction fit.
Slot and clearance options
Chamfered slot entries
Angled cuts at the opening of each slot that help guide the pieces together, reducing friction and speeding up manual assembly on the packing bench.
Additional notes
Assembly labor and packing speed
Aligning four separate pieces and folding the outer buffers takes two hands and slows down the packing bench. It is best reserved for high-value items where the extra protection justifies the labor.
Related partitions and dividers
FAQs
Product fit and inserts
Can this be used without an outer box?
No. The partition relies on the walls of a master shipping box to hold the folded buffers in place and contain the product.
Route and shipping

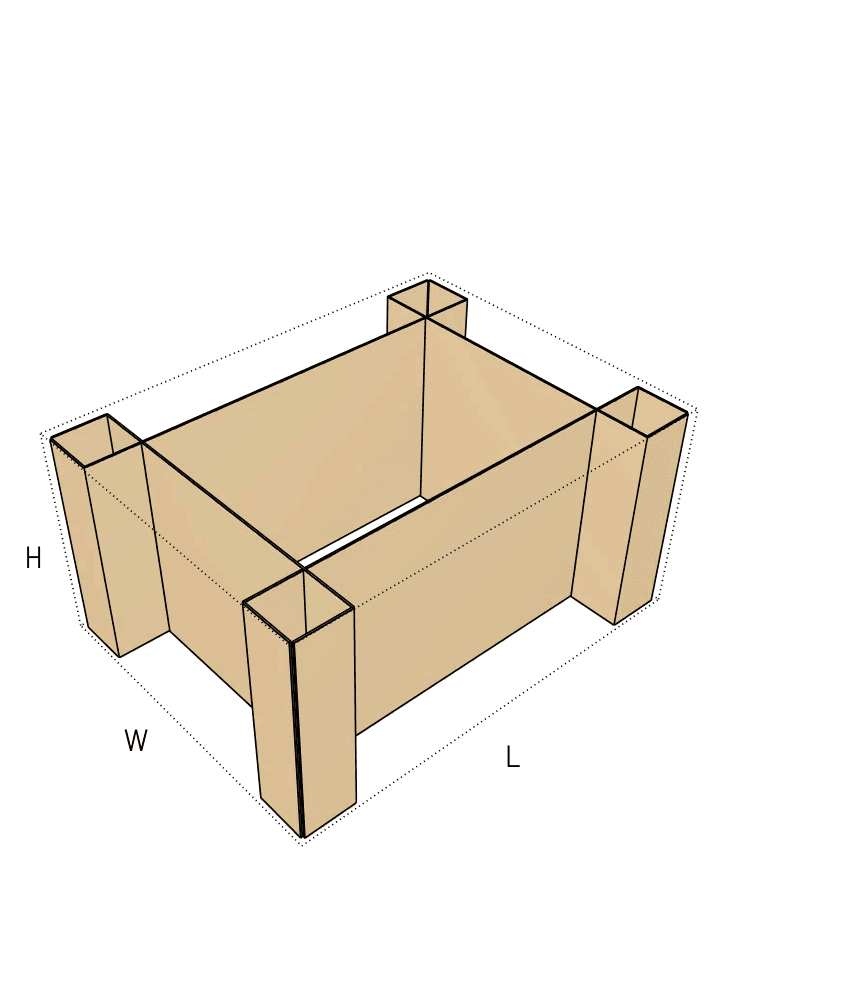

How does it protect the product?
The folded ends act as standoff legs, creating an air gap between the central product cell and the outer box. Side impacts compress the buffers before reaching the product.
Packing labor
Does this require tape or glue to assemble?
No. The four pieces lock together mechanically through intersecting slots, and the outer box holds the folded flaps in position.
Quantity and production path

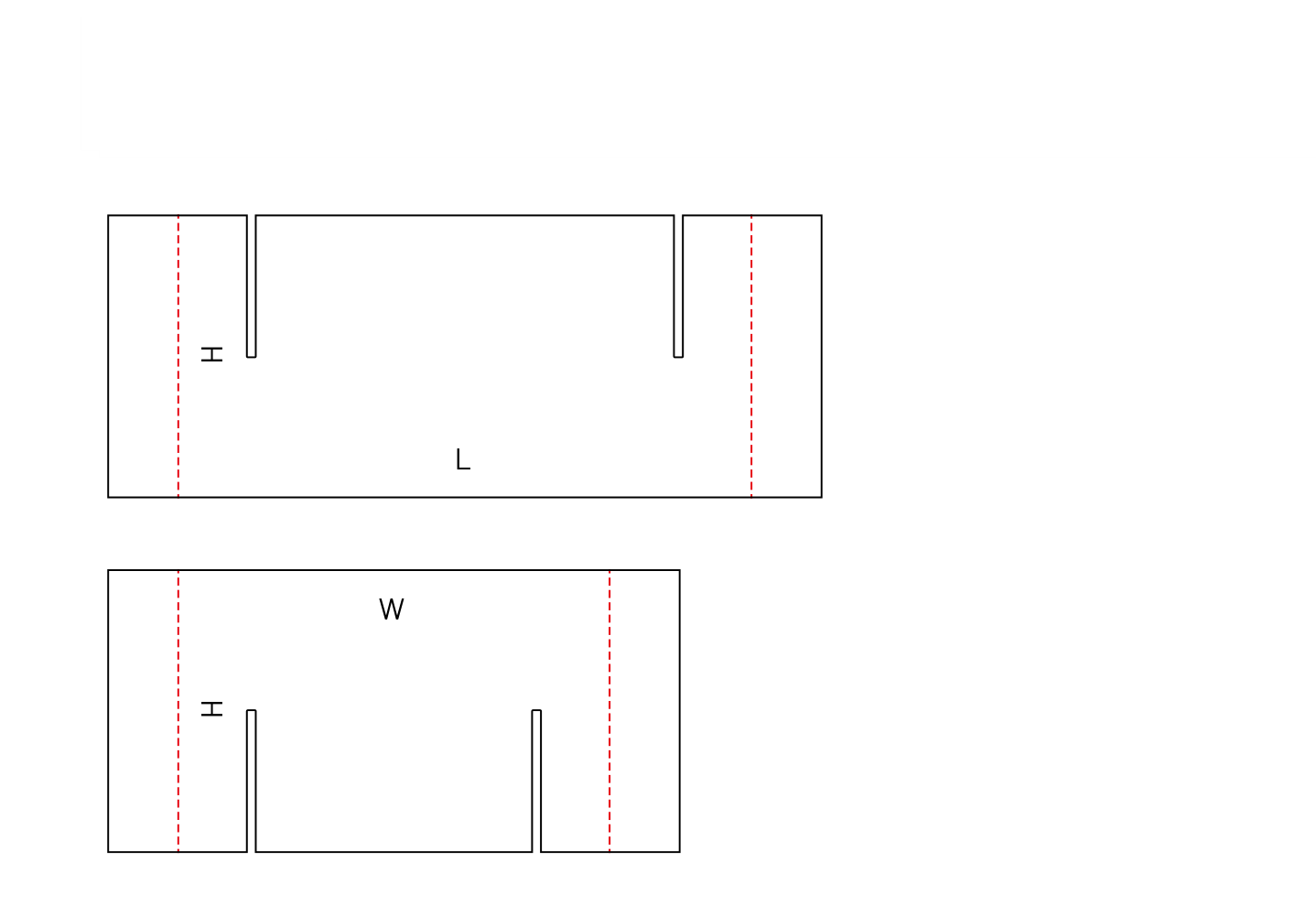

How is this delivered to the packing facility?
It is typically delivered flat as loose corrugated strips (two length pieces and two width pieces) to maximize pallet density.
Board and finish behavior
Can we change the board thickness later?
Changing the board thickness requires updating the slot widths. If the slots are too narrow, the pieces will crush during assembly; if too wide, the grid will fall apart.
Packing labor
Is this suitable for automated packing lines?
Because it requires aligning four separate slotted pieces and folding eight flaps against board spring-back, it is generally a manual-pack solution unless you use specialized robotic partition inserters.
Product fit and inserts
Why use this instead of a molded foam block?
Corrugated partitions store flat on pallets, saving warehouse space, and they can be recycled curbside along with the outer shipping box.
What happens if the outer box is too large?
The folded buffer flaps will not press firmly against the walls. This allows the entire grid to shift during transit, defeating the shock isolation.
