Product protection and void fill uses
Appliance and heavy electronics protection

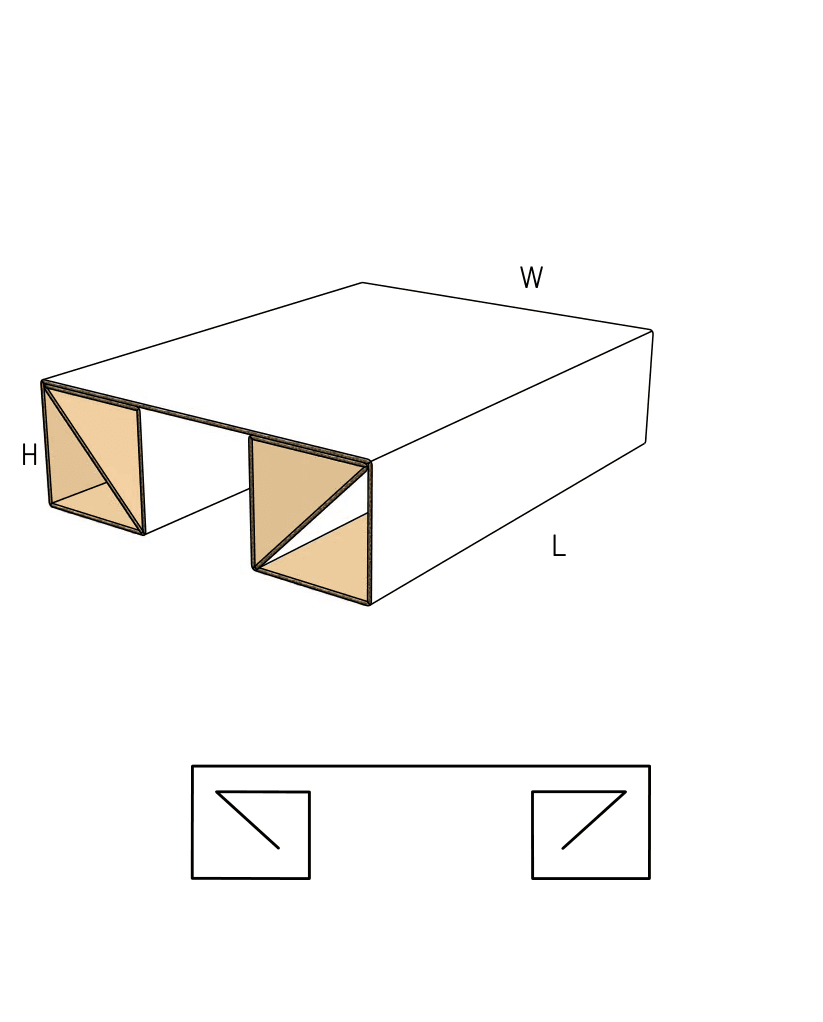

The continuous flat lid provides a broad resting surface for heavy items like servers, monitors, or appliances, while the internal cells absorb side impacts during transit.
Creating internal stacking platforms
Because the top surface is solid and supported by vertical pillars, this pad can act as an internal shelf, allowing smaller components or accessories to be stacked above a heavy base unit without crushing it.
Lateral impact absorption for fragile kitting
The diagonal internal braces act as crumple zones, isolating sensitive industrial parts from side impacts when packed inside a larger master carton.
Void fill for wide master cartons
When a heavy product does not fill the entire footprint of the outer box, this wide pad stabilizes the item and prevents shifting during transport.
Packing environments transitioning from EPS foam
Sustainability initiatives
Operations mandated to eliminate expanded polystyrene (EPS) foam can use this 100% corrugated alternative to achieve fully recyclable packaging bills of material.
Low-volume, high-value manufacturing
Because it relies entirely on straight parallel creases, this pad is highly practical for short runs of high-value industrial equipment where custom foam molds are impractical.
Heavy industrial kitting
Facilities packing dense metal parts or motors need internal buffers that will not crush under sustained vertical weight, making the braced pillars of this pad a strong fit.
Situations that require a different buffer style
High-speed automated packing
This pad requires complex, two-handed manual folding against board spring-back. If your line relies on automated insertion, evaluate simpler die-cut trays or pre-glued sleeves.
Localized corner protection
If you only need to protect the edges of a product rather than supporting a wide flat base, a single-cell buffer or a dedicated corner post will consume less board and assemble faster.
Board, assembly, and packing line choices
Balancing board strength with assembly fatigue
Heavy double-wall board provides massive shock absorption but drastically increases the physical effort required to fold the internal cells. Fine flutes are easier for operators to fold but offer less crush resistance.
Friction tuck vs. locking tabs
The standard design uses a friction tuck to stay closed and can be run with simple straight cuts. If heavy board causes the pad to pop open during assembly, adding locking tabs will solve the issue but requires custom shaped cutting.
Managing blank sprawl
Because the lid, walls, and internal cells are laid out end-to-end, a wide pad requires an exceptionally long flat blank. This can impact pallet density and storage space before use.
Flute direction and vertical load
To maximize the stacking strength of the continuous lid, the corrugated flutes must run parallel to the vertical side walls. This ensures the pillars do not buckle under heavy products.
Modifying the pad dimensions and folds
Adjusting footprint and height
The overall length, width, and height can be scaled to match your master carton. The internal diagonal braces automatically recalculate to maintain the correct geometry.
Adding relief cuts
If operators struggle with the spring-back of heavy board, custom relief notches can be added to the fold lines, though this requires custom shaped cutting rather than standard straight scoring.
Extending the continuous lid
The top panel can be extended slightly beyond the side pillars to create an overhang, which helps lock the pad into specific master carton dimensions or suspend it between other inserts.
Board and packing details
Friction lock behavior
The pad relies on the outward tension of the folded internal cells to hold the final tuck flap in place. It is most secure once confined by the walls of the outer shipping box.
Additional notes
Operator fatigue and board spring-back
Because the internal cells are folded back on themselves, the board naturally wants to spring open. Operators must hold this tension while wrapping the outer lid, which can cause fatigue during high-volume packing shifts.
Related internal shock absorbers
FAQs
Assembly and packing
Can this pad be assembled by automated packaging machinery?
Generally, no. The accordion-style folding of the internal cells and the final friction tuck require two-handed manual assembly to manage the board's natural spring-back.
Protection and performance
Does this perform exactly like molded EPS foam?
It provides comparable lateral and vertical shock absorption, but the exact performance depends heavily on the chosen board grade and flute direction. Physical drop testing with your specific product is required to validate the replacement.
Production and tooling
Why does this pad often avoid custom cutting?
The standard design consists entirely of straight, parallel creases and cuts on a rectangular blank. This allows it to be manufactured on standard slitter-scorer equipment without requiring a custom shaped cutting die.
Material selection
What board grade works best for this shock absorber?
The choice is a strict tradeoff. Heavy single-wall or double-wall board maximizes crush resistance but makes the manual folding process exhausting for operators. Thinner flutes are easier to assemble but absorb less impact energy.
Assembly and packing
How does the pad stay closed before insertion?
The design uses a terminal tuck flap that friction-locks inside the tube. It is held closed by the spring-back tension of the internal folded cells pushing outward against the side walls.
Production and tooling
Can I print instructions on the pad?
Yes. Because the internal structural components are hidden within a master shipper, simple one-color flexographic marks like part numbers, recycle logos, or folding instructions are common and easy to add.
Assembly and packing
How is this delivered to the packing facility?
The pads are shipped flat on pallets. Because the continuous lid, base panels, and internal diagonal flaps are arranged end-to-end, a wide pad requires an exceptionally long blank, which may overhang standard pallets.
Material selection
What happens if the board is too thick?
If the board caliper is too thick for the fold allowances, the internal cells will bow outward. This prevents the continuous lid from wrapping squarely and causes the terminal tuck flap to constantly pop open.
