FEFCO 0938

Vertical Reinforced Insert

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Adds targeted vertical stacking strength or lateral impact protection
  • Relies on straight parallel creases for a simple production path
  • Requires manual two-handed folding against board spring-back

About this product

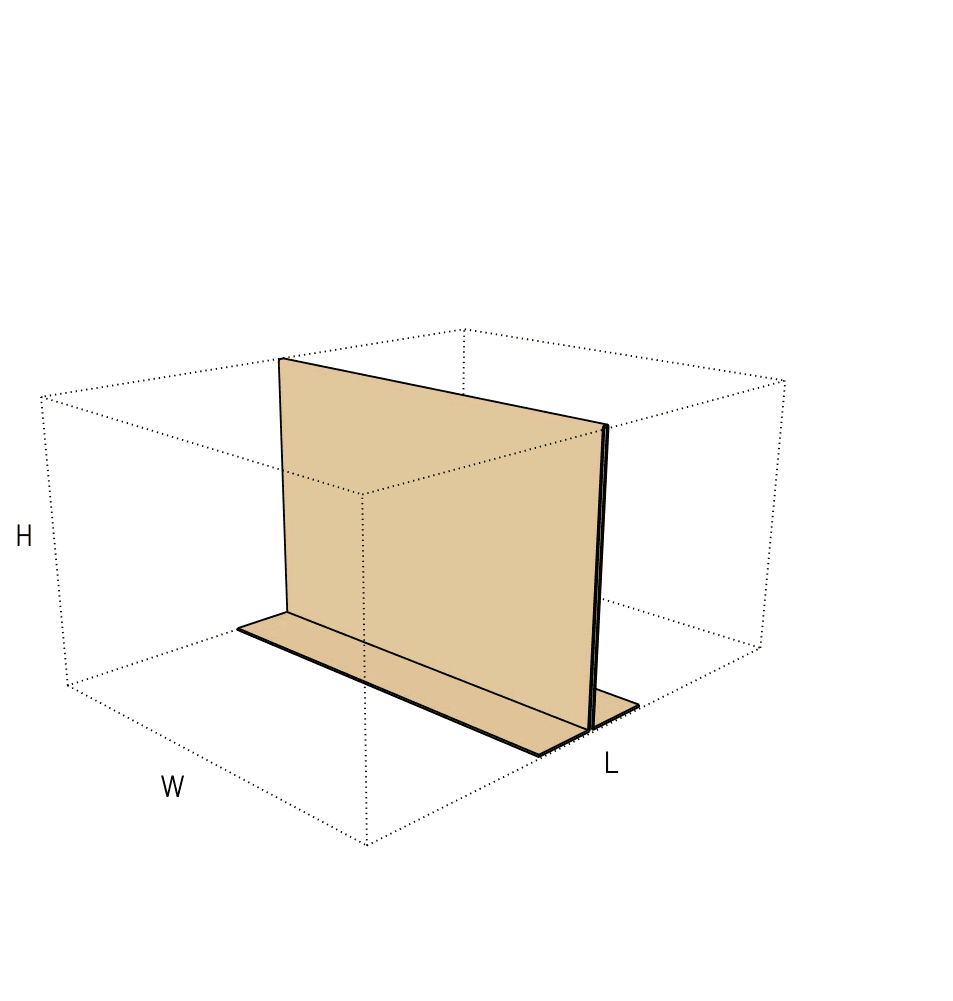

A single piece of scored corrugated board that folds into a rigid, double-wall support pillar. Placed inside a master carton, it transfers heavy vertical loads away from the outer walls or acts as a deep crush zone for side impacts.

Because it relies entirely on straight parallel creases, this insert follows a rapid production path. It offers a practical way to increase stacking strength, provided your packing line can handle the manual folding tension during insertion.

Common uses

  • Pallet stacking reinforcement for heavy industrial parts
  • Deep lateral shock absorption for fragile components
  • Corner crush protection for heavy liquid containers
  • Void fill for dense shifting items

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Heavy load reinforcement and shock absorption

Pallet stacking reinforcement

When heavy products threaten to crush the bottom boxes on a pallet, inserting these pillars into the corners or along the walls transfers the vertical weight directly through the flutes. This saves you from upgrading the entire outer box to a heavier board grade.

Deep lateral shock absorption

For fragile industrial components, the folded gap creates a deep, multi-wall crush zone. This absorbs side impacts before they reach the product.

Void fill for dense shifting items

When packing heavy, concentrated items like motors or pumps, the pillar acts as a rigid spacer. It keeps the dense product centered and prevents it from shifting and blowing out the side walls during transit.

Corner crush protection

Placing these inserts into the four corners of a master shipper reinforces the most vulnerable points of the package, protecting the internal contents from drops and lateral compression.

Industrial and heavy-goods packing

Heavy industrial components

Metal parts, motors, or dense electronics often require high compression performance but ship in standard outer cartons. A targeted pillar adds strength exactly where the load path requires it.

Hazardous or fragile liquids

When combined with horizontal pads, these vertical pillars prevent outer box buckling that could compromise inner glass or chemical containers.

High-density bulk shipping

For bulk fasteners, hardware, or dense granular products, the weight concentrates outward. A reinforced pillar helps the outer carton maintain its shape under heavy lateral pressure.

When to compare other internal buffers

Simple lateral separation

If you only need to keep two items from touching and do not need a deep standoff gap or double-wall compression strength, a basic three-panel C-partition is easier for operators to fold and insert.

Flush wall buffering

If you need multi-wall thickness against the side of the box but do not want a hollow tubular standoff, a flush-folding width insert provides flat reinforcement with slightly less spring-back tension.

Close variants and lookalike dielines

The closest library neighbors include 0936, 0937, 0955. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board grade, flute direction, and fold clearance

Flute direction

This is the single most critical detail. To act as a load-bearing column, the corrugated flutes must run vertically. If the flutes run horizontally, the insert loses its stacking strength.

Board thickness and spring-back

Heavy double-wall board provides massive crush resistance but fights back hard when folded. Operators will need two hands to hold the flaps under tension while sliding the insert into the outer box.

Fold clearance

Upgrading to a thicker board means the parallel score lines must be spaced further apart. If the gap is too narrow, the thick board will bind against itself and refuse to fold flat.

Insert height relative to the outer box

The pillar must be sized correctly against the internal height of the master carton. If it is too tall, the outer box flaps will not close; if it is too short, it will not bear the vertical load of the pallet stack.

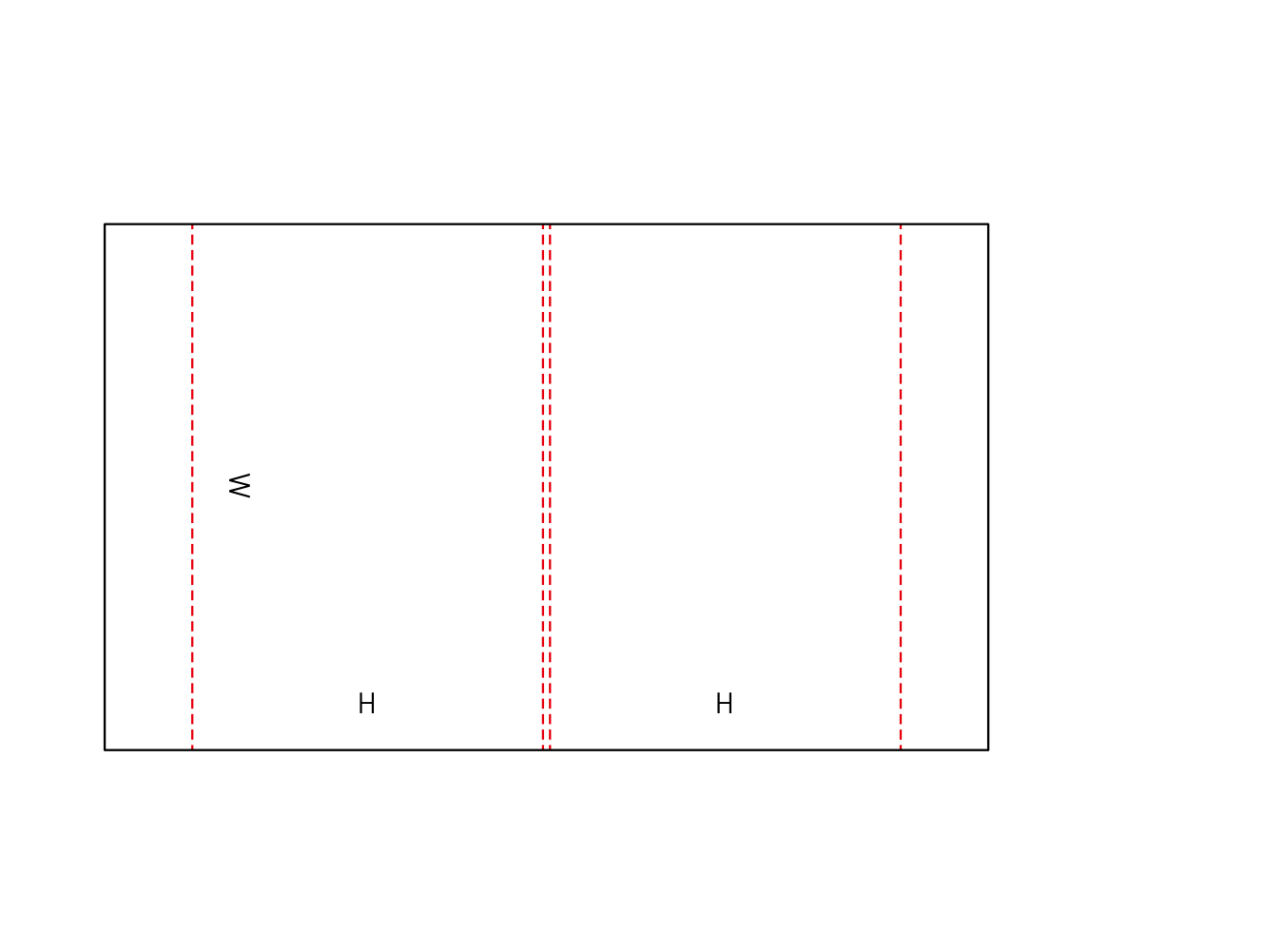

Adjusting the standoff gap and pillar dimensions

Standoff depth

The distance between the parallel creases dictates how far the main support panel sits from the outer box wall. This gap can be widened to create a larger crush zone for side impacts.

Flap height

The terminal flaps can be extended to increase the multi-wall overlap, adding more material to the vertical load path.

Asymmetric flap lengths

If the product sits off-center inside the master carton, one terminal flap can be extended further than the other to bridge the uneven gap and keep the product secure.

Board and packing details

Production path and shaped cuts

As long as the insert remains a simple rectangle with straight parallel score lines, it follows a rapid, straight-creased production path. Adding ventilation holes, locking tabs, or angled chamfers shifts the job to shaped cutting, which changes how the order is manufactured and trialed.

Structural variations

Flap orientation

Depending on the exact internal clearance and product shape, the terminal flaps can be scored to fold inward toward each other or outward against the box walls.

Additional notes

Straight-creased production path

The standard version of this insert is simple to manufacture because it only requires straight cuts and creases, making it easy to trial before committing to a large run.

Related corrugated inserts

0936: Flush width insert

Folds flat against the box wall for multi-layer protection without creating a hollow tubular pillar.

0937: Interior Form

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

0955: Interior Form

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

FAQs

Assembly and packing

Does this insert lock into place?

No. It relies entirely on friction and the walls of the master carton. The board's natural spring-back tension pushes the flaps against the outer box, holding the pillar in position.

Can we automate the insertion of this pillar?

Standard automated case packers cannot handle this insert. Because it lacks glue or locking tabs, it requires an operator to physically hold the folded tension while sliding it into the box.

Comparison

Why use this instead of a thicker outer box?

Upgrading an entire master carton to double-wall board increases the weight of the whole package. Using a targeted vertical insert allows you to add strength exactly where the load path requires it, keeping the outer box lighter.

Modifications

Can we add cutouts for product protrusions?

Yes, but any internal holes, slots, or non-straight cuts change the production path from simple straight creases to shaped cutting. This shifts how the order is manufactured and trialed.

Shipping and route

Will this make my box parcel-ready?

The insert adds internal protection, but parcel survival depends on the outer carton, the closure method, and the product weight. It must be tested inside the sealed master shipper.

Storage

How is this delivered?

It ships completely flat on a pallet, offering extremely high shipping density and taking up minimal warehouse space before assembly.

Assembly and packing

Does the insert need to be glued or taped?

No. The design uses the boundary walls of the outer package to hold its folded shape. Once inserted, the board memory pushes outward, securing it without adhesives.

Specification

How do we determine the right board grade?

The board grade should match the weight of the pallet load and the required crush resistance. Heavy double-wall board provides the most strength but requires more physical effort from the packing team to fold.
