Practical packing jobs for the 0945 cushion pad
Heavy-duty side shock absorption
Creates a localized crumple zone for heavy appliances, furniture, or industrial equipment that need separation from the outer box wall.
EPS foam replacement
Transitions protective packaging away from molded plastic blocks to a fully paper-based, curbside-recyclable system.
Blocking and bracing
Fills large, specific voids in a master carton to prevent heavy items from shifting during rough transit.
Corner and edge standoff
Keeps fragile panels and painted edges away from impact zones by creating a deep, folded air gap.
Industry and product fit
Appliance and furniture shipping
These sectors often need deep, rigid standoffs to protect corners and flat panels from side impacts without paying to line the entire box.
Industrial component kitting
Shipping heavy metal or electronic parts requires dense, localized blocking to survive freight handling. A folded corrugated tube absorbs massive energy before failing.
Heavy electronics and server transport
Rack-mounted equipment and heavy chassis units benefit from localized crush zones that keep sensitive components away from the outer carton walls.
When to consider a different internal fitment
When pack-bench speed is the priority
Compare the 0929 open C-channel. It offers less crush resistance because it does not roll into a closed tube, but it folds much faster and fights the operator less during insertion.
When you need protection on all four sides
Compare the 0904 full perimeter liner. A 0945 pad is localized for one side or corner; a 0904 wraps the entire internal perimeter of the master box.
When you need a self-locking corner
Compare the 0974 triangular corner brace. It locks into shape before insertion, reducing the tension operators have to hold.
Decisions that shape the final pad
Board grade and folding fatigue
Heavy double-wall board provides massive shock absorption but drastically increases the physical effort required to fold the pad. Your packing team will have to fight the board's natural spring-back all day.
Fold allowances
The internal creases must be precisely calculated for the exact board thickness. If the allowances are wrong, the nested panels will bind against each other, and the tube will not roll closed.
Pack-bench workflow
Operators need two hands to roll the pad and hold it closed while inserting it. This makes it a poor fit for high-speed automated packing lines.
Delivery state and storage
Pads ship completely flat, maximizing pallet density compared to molded foam blocks. This reduces warehouse footprint but shifts the assembly burden to the packing floor.

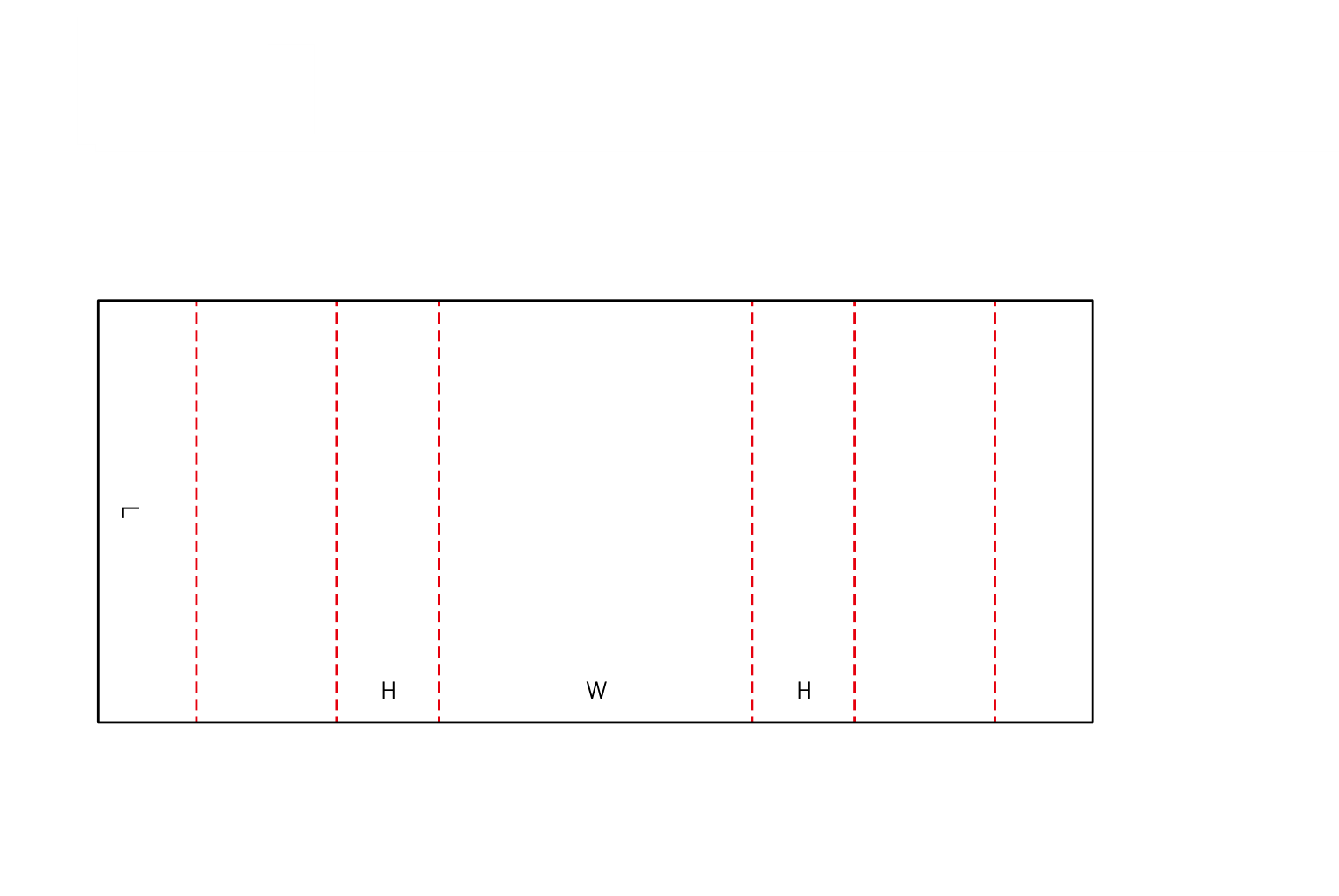

Template adjustments
Standoff depth
The depth of the crush zone can be extended or reduced by changing the width of the folded legs, directly altering how much void space the pad fills.
Contact face width
The main flat panel can be widened to distribute impact loads over a larger surface area of the product.
Board thickness scaling
Upgrading to double-wall board increases crush resistance but requires recalculating all internal fold dimensions so the thicker panels do not bind when rolled.
Board and packing details
Production path for simple rectangles
As long as the pad remains a simple rectangle with parallel creases, it follows a straightforward production path. Adding locking tabs or relief cuts changes how the board is cut and prepared.
Flat delivery and storage
Unlike molded foam blocks, these pads ship completely flat. This maximizes pallet density and saves warehouse space before use.
Additional notes
Physical fold testing
Always request a physical sample in the exact board grade you plan to use. A board that looks great on paper might be too stiff for your packing team to fold efficiently by hand.
Related packaging to compare
FAQs
Packing and assembly
Can this pad be inserted by automated packing equipment?
Standard suction effectors struggle with this design. The pad relies on unfastened folds and board spring-back, requiring manual tension to hold it closed during insertion.
Will the pad stay folded on its own?
It acts as a friction-fit component. The board naturally wants to spring back flat, so it relies entirely on the tight space between your product and the outer box wall to hold its shape.
Production and tooling
Does this require shaped cutting?
If the design uses only straight parallel creases and a rectangular outer profile, it follows a simpler production path. Adding tabs, slots, or angled cuts changes how the board must be prepared.
Board and material
What board grade works best for shock absorption?
Heavy single-wall or double-wall board provides the highest crush resistance. However, thicker board requires precise fold allowances and makes manual assembly much harder for your packing team.
Modifications
Can we add locking tabs so it holds its shape?
Adding tabs or slots is possible, but it changes the manufacturing route from simple straight cuts to shaped cutting. This alters the production path and preparation time.
Comparisons
How does this compare to EPS foam blocks?
It provides comparable localized shock absorption and ships flat to save warehouse space, but it requires more pack-bench labor to assemble than dropping in a pre-molded foam block.
Inserts and product fit
Does the pad need to cover the entire side of the product?
It is designed for localized blocking. You can use two narrow pads at opposite ends of a heavy item rather than one massive sheet, reducing total material use.
Route and shipping
How does the pad handle repeated drops?
The corrugated flutes crush to absorb severe impacts. Once crushed, that specific zone loses some of its original standoff depth, making it best suited for single-trip shipping rather than multi-use returnable packaging.
