Heavy-duty shock absorption and void fill
EPS foam replacement
When packed tightly inside a master carton, the nested corrugated layers provide massive lateral and vertical shock absorption. This allows product teams to eliminate plastic foam blocks from their shipping systems.
Custom internal standoffs

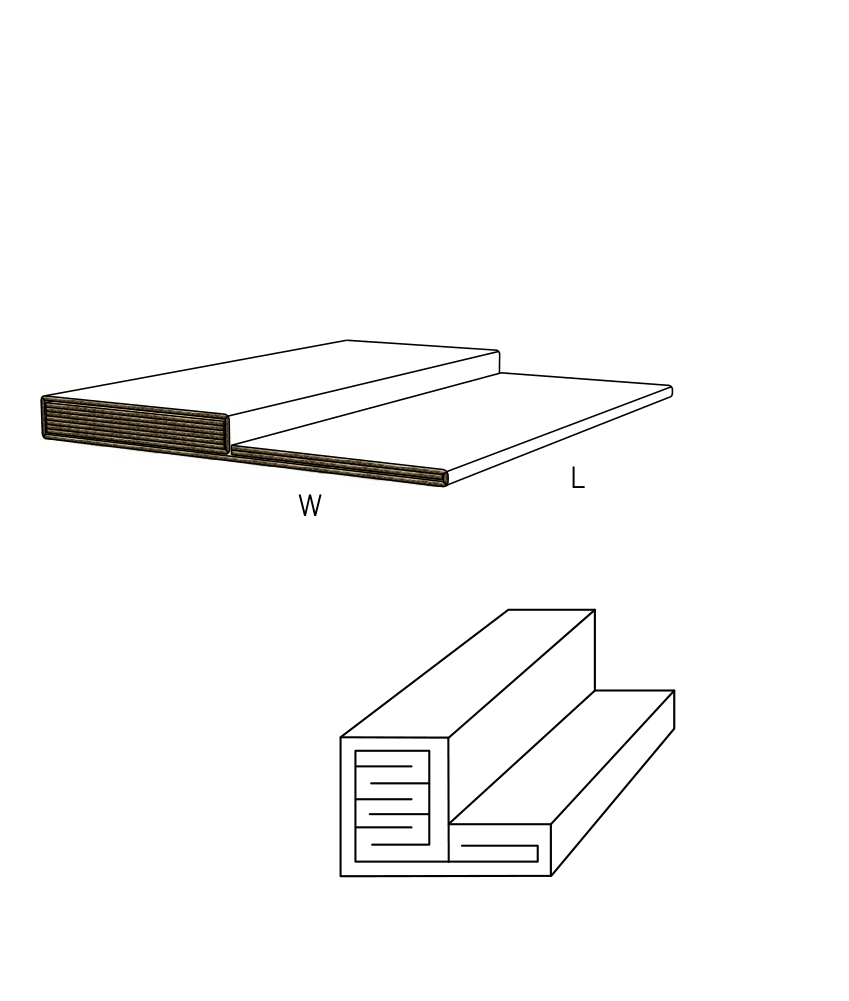

The sequence of folds can be adjusted to create U-channels, Z-pads, or thick multi-wall corners that suspend heavy components away from the outer box walls.
Dense void fill for heavy components
For dense, heavy items that shift during transit, a multi-layer block fills the gap with solid corrugated board rather than loose fill that can crush or settle.
Edge and corner bracing
The pad can be programmed to wrap around the edges of large appliances or furniture, providing a thick crush zone between the product and the outer shipper.
Industrial and sustainable packaging transitions
Industrial equipment and electronics
Heavy items require dense localized protection. A multi-panel block concentrates corrugated board exactly where the impact risk is highest, without requiring a complex custom insert for the entire box.
Manual kitting and fulfillment lines
This pad makes sense when your packing team already handles manual assembly. If your line relies on high-speed automated folder-gluers, the unfastened spring-back of this block will disrupt the workflow.
Sustainable packaging transitions
Companies moving away from mixed-material packaging use these blocks to achieve foam-like protection using only recyclable corrugated board.
When to consider a simpler folded pad
When you only need a simple spring cushion
If you do not need nested 90-degree corners or custom U-channels, an accordion-folded pad (FEFCO 0965) provides straightforward back-and-forth shock absorption with a slightly simpler folding motion.
When you need a basic rectangular spacer
If you are just trying to fill a large void and do not need 10 layers of dense protection, a 5-panel block (FEFCO 0949) creates a hollow rectangular tube that is faster to fold and uses less material.
Board thickness, folding fatigue, and blank length
Balancing shock absorption with folding fatigue
Heavy double-wall board provides excellent crush resistance, but folding it multiple times over itself requires significant hand strength. Test a physical sample with your packing team to ensure the manual effort is sustainable for a full shift.
Planning for blank sprawl
Building a thick 3D block out of a single sheet requires a massive unfolded length. These long flat blanks take up more pallet space than you might expect, which affects inbound freight and warehouse storage.
Master carton fit
This pad has no native locks or tabs. It relies entirely on the physical boundaries of the outer shipping box to stay folded. The dimensions of the pad must be calculated alongside the master carton to ensure a tight friction fit.
Flute direction and column strength
The direction of the corrugated flutes determines how the pad absorbs impact. Vertical flutes provide strong column strength for stacking, while horizontal flutes act more like a crushable spring.
Programming the panel depths and channels
Panel count and wrap sequence
The template can support up to 10 parallel panels. By adjusting the width of each segment, the pad can be programmed to form a solid square block, an open U-channel, or an asymmetrical spacer.
Subtractive fold allowances
As the board wraps around itself, the inner layers must be slightly shorter than the outer layers. We calculate these exact clearances based on your chosen board thickness so the pad rolls up squarely without binding or bowing.

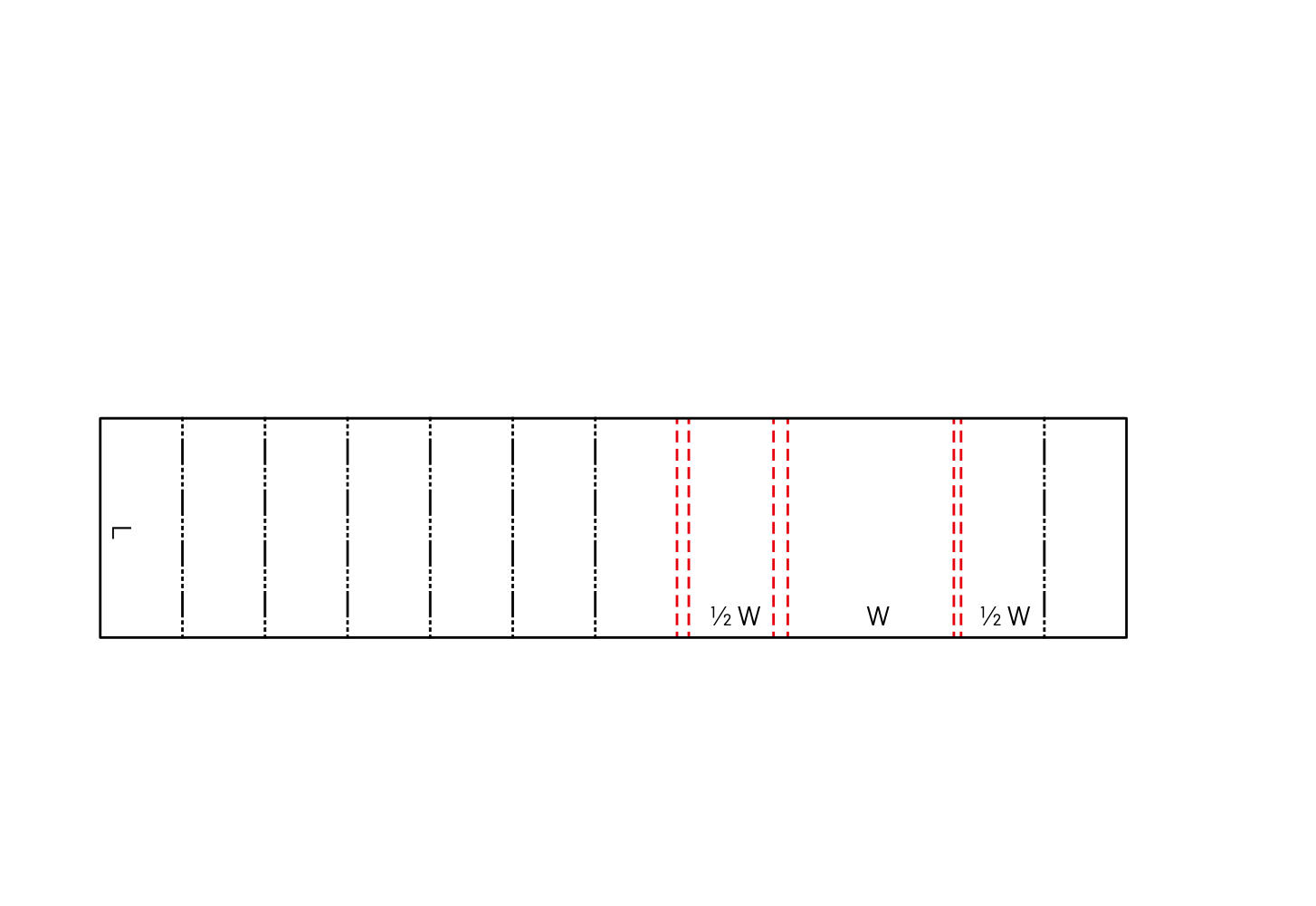

Double crease spacing
To allow thick corrugated board to fold 180 degrees over itself without cracking the liner, the hinge lines use double creases. The spacing between these creases is adjusted based on the exact board caliper.
Board and packing details
Production route and straight-line cutting
Because the blank is a simple rectangle with parallel creases, it can often be run on a slitter-scorer. This bypasses flatbed die-cutting entirely. However, adding custom relief cuts, chamfers, or locking tabs will force the job onto a die-cutter and change the production path.
Additional notes
Operator fatigue and hand strength
Folding heavy corrugated board 180 degrees over itself requires significant force. Always request a physical prototype to ensure your packing team can comfortably assemble the required volume.
Flat delivery footprint
A 10-panel block that measures 4 inches wide when folded might be 40 inches long when delivered flat. Plan your inbound freight and warehouse storage accordingly.
Related interior pads and blocks
FAQs
Assembly and packing
Does this pad need to be taped or glued?
No. The pad is held together by friction and tension once it is plunged into the master carton. If you leave it sitting on a packing bench, the board will naturally spring open.
Can we automate the insertion of these blocks?
Standard linear folder-gluers cannot process this pad. The complex sequence of unfastened wraps and the high board spring-back require two-handed manual constraint, making it a strictly manual packing job unless you invest in specialized robotics.
Material and performance
How does board thickness change the pad's behavior?
Thicker board drastically improves the pad's ability to absorb heavy impacts. However, it also increases the fold allowances required, makes the unfolded blank much longer, and makes the pad physically exhausting for an operator to fold.
Will this perform exactly like the EPS foam we currently use?
Corrugated blocks provide excellent shock absorption, but the load path is different from molded foam. We recommend physical drop testing of the complete assembled package to verify the crush limits for your specific product weight.
Production and routing
Why are the flat sheets so long?
Building a dense, multi-layered block requires wrapping the board over itself multiple times. A block that measures just a few inches wide when folded can require a flat blank that is several feet long.
Assembly and packing
How does the pad stay closed during transit?
It relies entirely on the physical boundaries of the outer master carton. The pad is sized to create a tight friction fit against the inner walls of the box, preventing the folded layers from expanding.
Production and routing
Can we add custom cutouts or locking tabs to the pad?
Yes, but adding internal cutouts or interlocking tabs changes the production method. The standard pad uses only straight parallel creases, which allows for simple straight-line cutting. Custom shapes require flatbed die-cutting.
Material and performance
What happens if the inner panels are too long?
If the inner panels are not cut slightly shorter than the outer wrapping panels, the board will bind against itself during assembly. This causes the entire block to bow, warp, or fail to fit inside the master carton.
