Heavy-duty corner protection jobs
Appliance and heavy equipment packaging

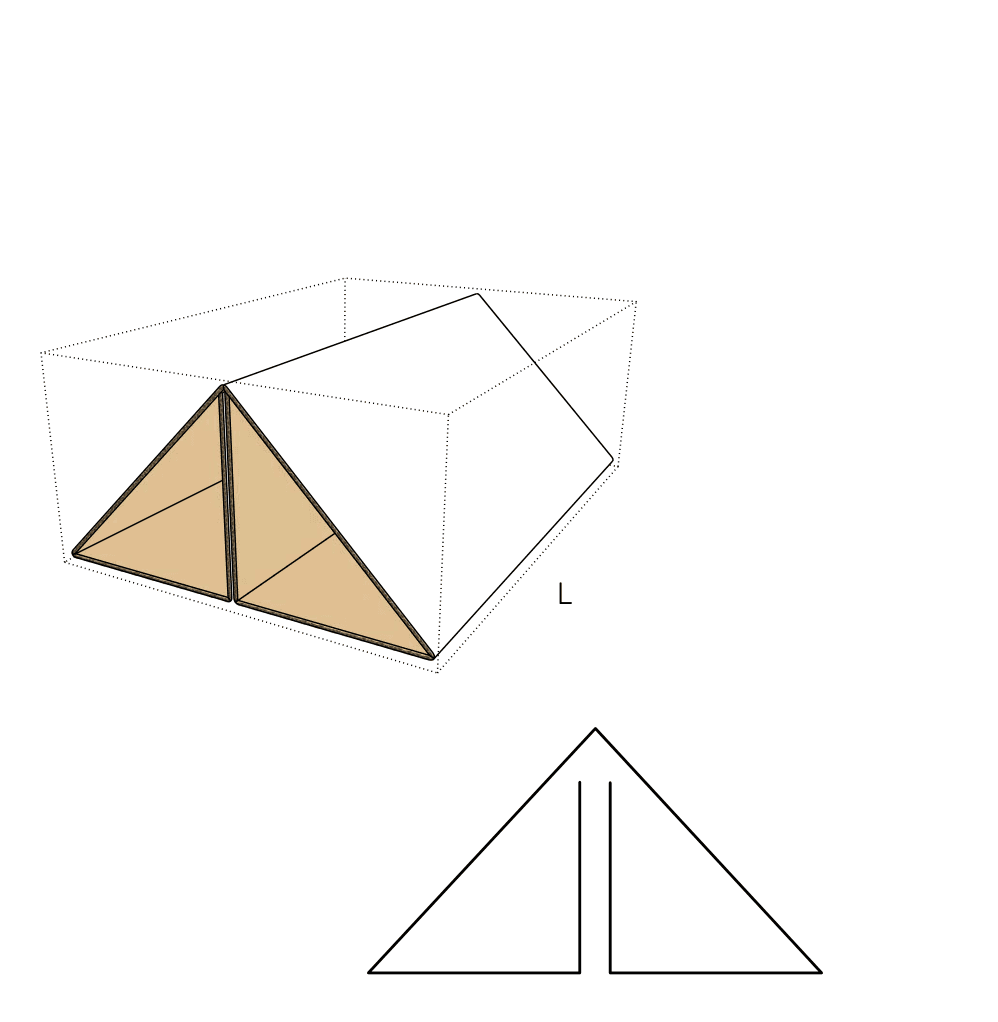

The hollow triangular shape creates a standoff distance between the outer box and the product. This gives heavy items a dedicated crumple zone to survive corner drops.
Furniture edge protection
Protects vulnerable 90-degree corners on desks, tables, and case goods. The broad diagonal face distributes impact force across a wider area of the product.
Industrial machinery components
Shields heavy, sharp-edged industrial parts that might otherwise puncture standard corrugated boxes during transit. The deep air gap keeps the product away from the outer walls.
Framed glass and large displays
Creates a standoff buffer for large, fragile flat items shipped vertically. The diagonal face spreads the load, reducing localized pressure on the frame.
Industrial and large-format shipping
Industrial manufacturing
Useful for teams looking to replace bulky EPS foam blocks with flat-shipping corrugated alternatives, provided they can test the specific crush limits of the board.
Manual fulfillment operations
Fits well in operations where manual pack times are acceptable for high-value protection. The operator must use two hands to fold the pad and maneuver it into the box corner.
Low-volume prototype shipping
When testing new heavy products, a simple folded pad is easier to trial and adjust than molded foam or complex die-cut inserts.
When to consider a different corner pad
When packing speed is the top priority
If operators struggle to hold the tensioned board closed while packing, compare this to a self-locking triangular brace. The locking version stays folded on its own, though it requires shaped cuts to create the locks.
When you only need light scuff protection
If the product is lightweight and does not need a deep air gap, a simple folded L-pad is faster to pack and uses less material.
Board, fit, and packing line choices
Board grade and folding fatigue
Heavy double-wall board provides maximum crush resistance for the truss. However, thicker board is exhausting to fold manually and fights back harder during insertion. You must balance protection needs with operator ergonomics.
Master box clearance
This pad has no locking tabs or glue. It relies entirely on the 90-degree corner of the master box to prevent the board from springing open. The outer box must be sized correctly to hold the pad tight against the product.
Product weight and flute direction
If the pad needs to support top-load weight, the flutes should be oriented vertically. This turns the folded triangle into a strong corner pillar inside the master box.
Assembly space on the pack bench
Operators need physical room to fold the board and hold it under tension before inserting it into the box. Tight packing stations may struggle with large versions of this pad.
Sizing the diagonal face and height
Diagonal face width
You specify the width of the diagonal face that touches your product. The lengths of the two outer legs are then mathematically calculated to form a perfect right angle based on your chosen board thickness.
Pad height
The pad can be cut to run the full vertical height of the master box, or kept short to act as a localized buffer just for the bottom corners.
Board thickness compensation
When changing from single-wall to double-wall board, the fold allowances must be recalculated. If the outer legs are not adjusted for the new thickness, the pad will not form a true 90-degree angle.
Board and packing details
Flat delivery and storage

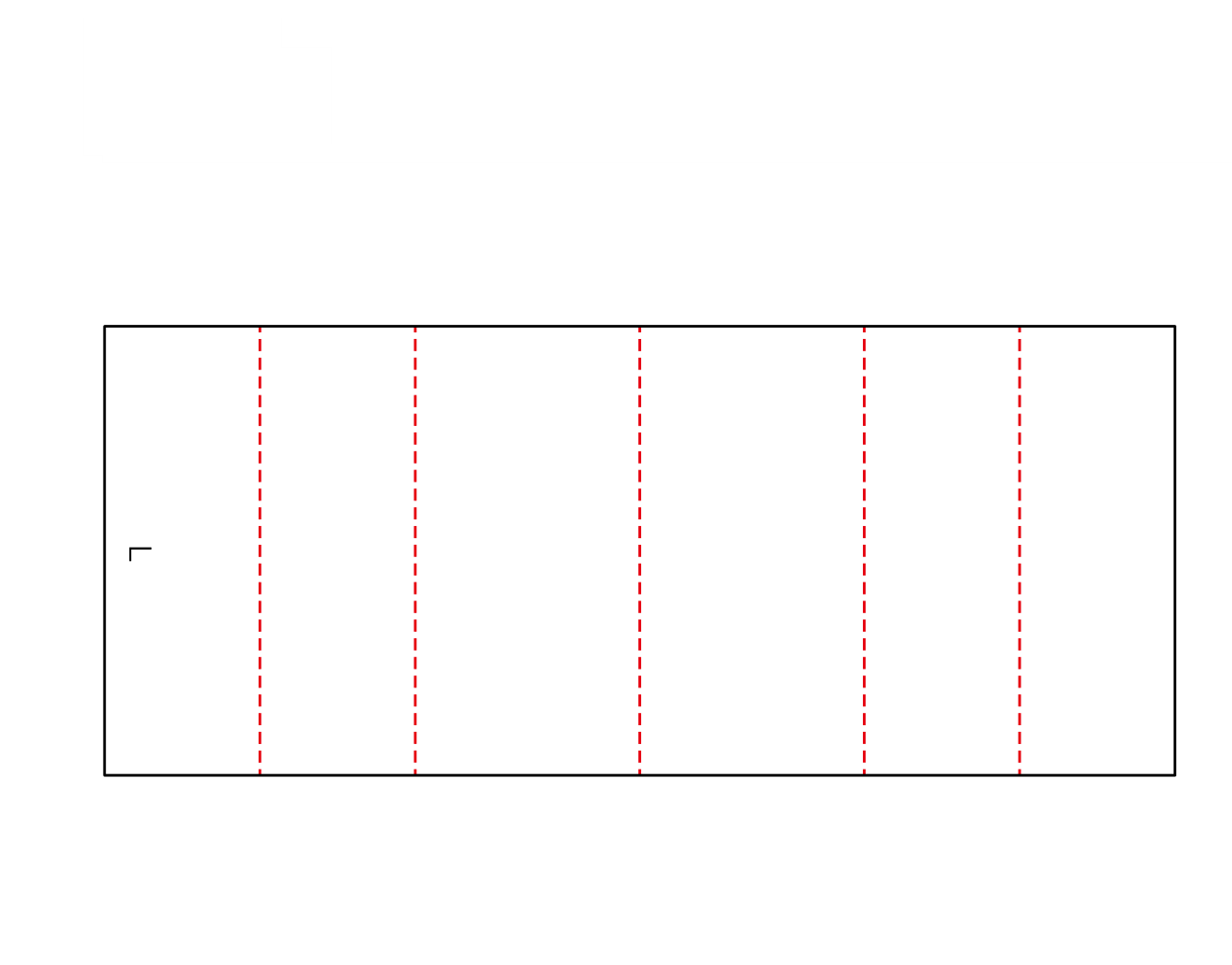

Because these are simple rectangular strips with parallel creases, they ship and store perfectly flat. This allows for maximum pallet density compared to pre-glued or foam corner blocks.
The geometry constraint
If you change the board thickness later, the fold allowances and leg lengths must be recalculated. If the math is wrong, the pad will bind or gap instead of seating cleanly in the corner.
Additional notes
Pack-bench ergonomics
Folding heavy double-wall board all day can cause severe operator fatigue. If you specify a very heavy board, test the folding effort with your packing team first.
Master box sizing
This pad does no good if it can shift around. The master box must be sized tightly enough to hold the pad firmly against the product.
Related corner protection
FAQs
Assembly and packing
Does this pad stay folded on its own?
No. It is an unfastened piece of board. The operator must fold it, hold it closed against the board's natural spring-back, and wedge it into the master box. The box walls keep it closed.
Can this be used on automated packing lines?
Rarely. Because the board springs back and requires two hands to hold closed during insertion, it is a poor fit for automated pick-and-place lines.
Protection and fit
Can this replace EPS foam corner blocks?
Many industrial shippers use corrugated trusses to replace foam. The exact performance depends on the board grade and the weight of your product. It requires physical drop testing to confirm it meets your standards.
Production and cutting
Does this pad require shaped cutting dies?
Usually no. Because the design uses only straight cuts and parallel creases, it can often be produced on basic slitter-scorer machines without shaped cutting dies.
Material choices
How does board thickness affect this design?
Thicker board increases the crush resistance of the corner. However, it also makes manual folding much harder and requires the fold allowances to be adjusted so the pad still forms a clean 90-degree angle.
Specification
What dimensions define this pad?
You need to specify the width of the diagonal face that will touch your product, the total vertical height of the pad, and the board grade you want to use.
Protection and fit
Can I use this pad for lightweight items?
You can, but a simple L-pad is usually faster to pack and uses less material if the product does not need a deep air gap.
Does the pad support top-load weight?
Yes, if the flutes are oriented vertically, the folded triangle acts as a strong corner pillar inside the master box, helping to support stacked weight.
