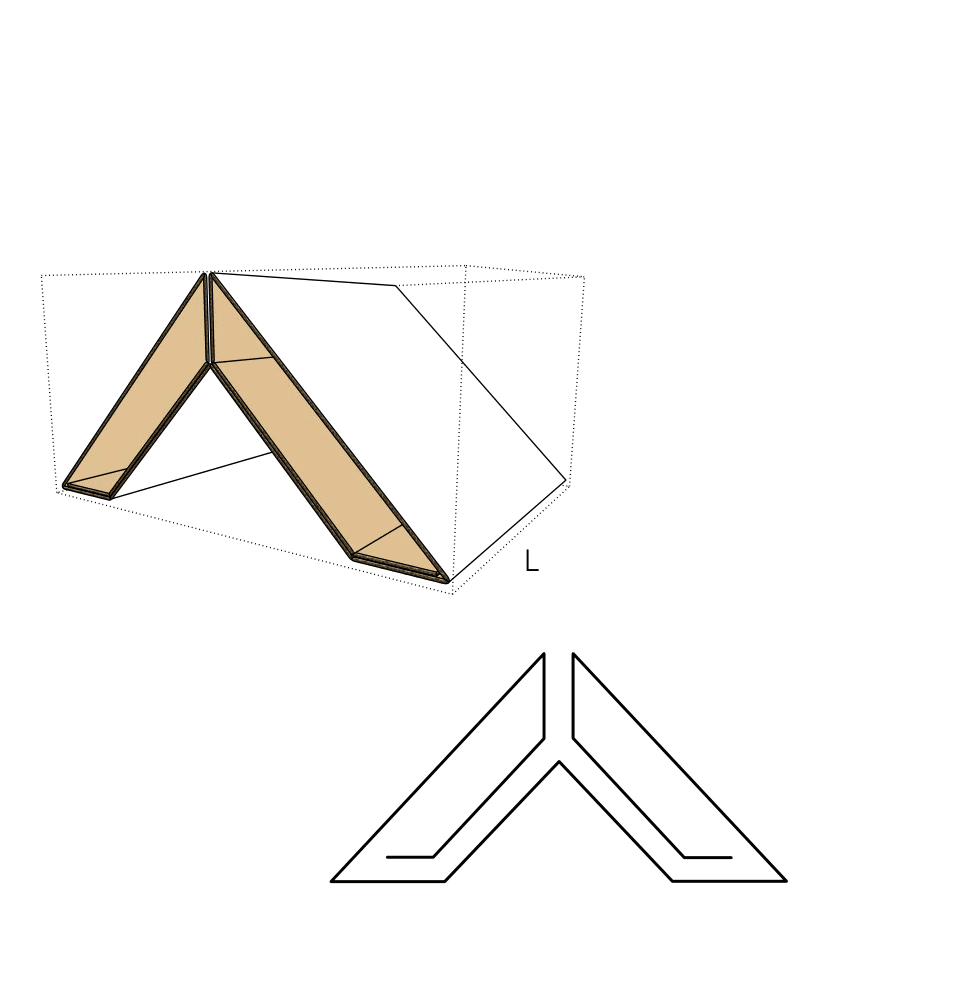

Heavy-duty corner protection and foam replacement
EPS foam replacement for heavy goods
This pad provides the deep crush zone needed to protect dense items like appliances or heavy machinery. The internal diagonal brace acts as a rigid truss, transferring impact energy away from the product corner without relying on mixed materials like Styrofoam.
Industrial equipment buffering
For low-volume or custom industrial equipment runs, this pad offers high-level protection using a simple production route. The straight-crease design makes it easy to produce in small batches without complex preparation.
Appliance corner reinforcement
Washing machines, refrigerators, and heavy ovens need deep standoff distance from the outer carton walls. The multi-wall wrapped layers build that necessary depth, ensuring the product handles lateral impacts during freight handling.
Heavy furniture transit
Solid wood or metal furniture corners are very susceptible to drop damage. The diagonal truss creates a rigid void that absorbs the shock before it reaches the finished edge of the furniture.
Appliance, furniture, and industrial transit
Appliance manufacturing
Appliance supply chains require heavy-duty drop protection. This pad builds the necessary standoff depth through multiple wrapped layers, ensuring heavy white goods handle warehouse handling.
Industrial equipment shipping
Custom machinery often ships in low volumes where complex custom inserts are impractical. A straight-creased corner pad provides heavy-duty buffering while keeping the production path simple.
Flat-pack and assembled furniture
Dense furniture pieces require rigid corner protection to prevent edge crushing. The internal diagonal truss offers a higher crush limit than standard hollow corner posts.
When to consider self-locking or simpler corner pads
High-speed packing lines
Folding this pad requires two hands and effort to overcome the board's natural spring-back. If your packing line requires rapid, one-handed insertion, a pre-glued or self-locking corner post makes more sense.
Standalone parcel shipping
This pad does not lock itself closed. It relies entirely on the tight 90-degree corner of a master outer carton to hold its shape. It cannot be used as an external edge protector for strapped bundles.
Board thickness, folding labor, and blank size
Board grade versus folding fatigue
Heavy double-wall board provides excellent shock absorption, but it sharply increases the physical effort required to fold the pad. The board thickness must be carefully matched to both the product weight and the packer's ergonomic limits.
Managing the flat blank size

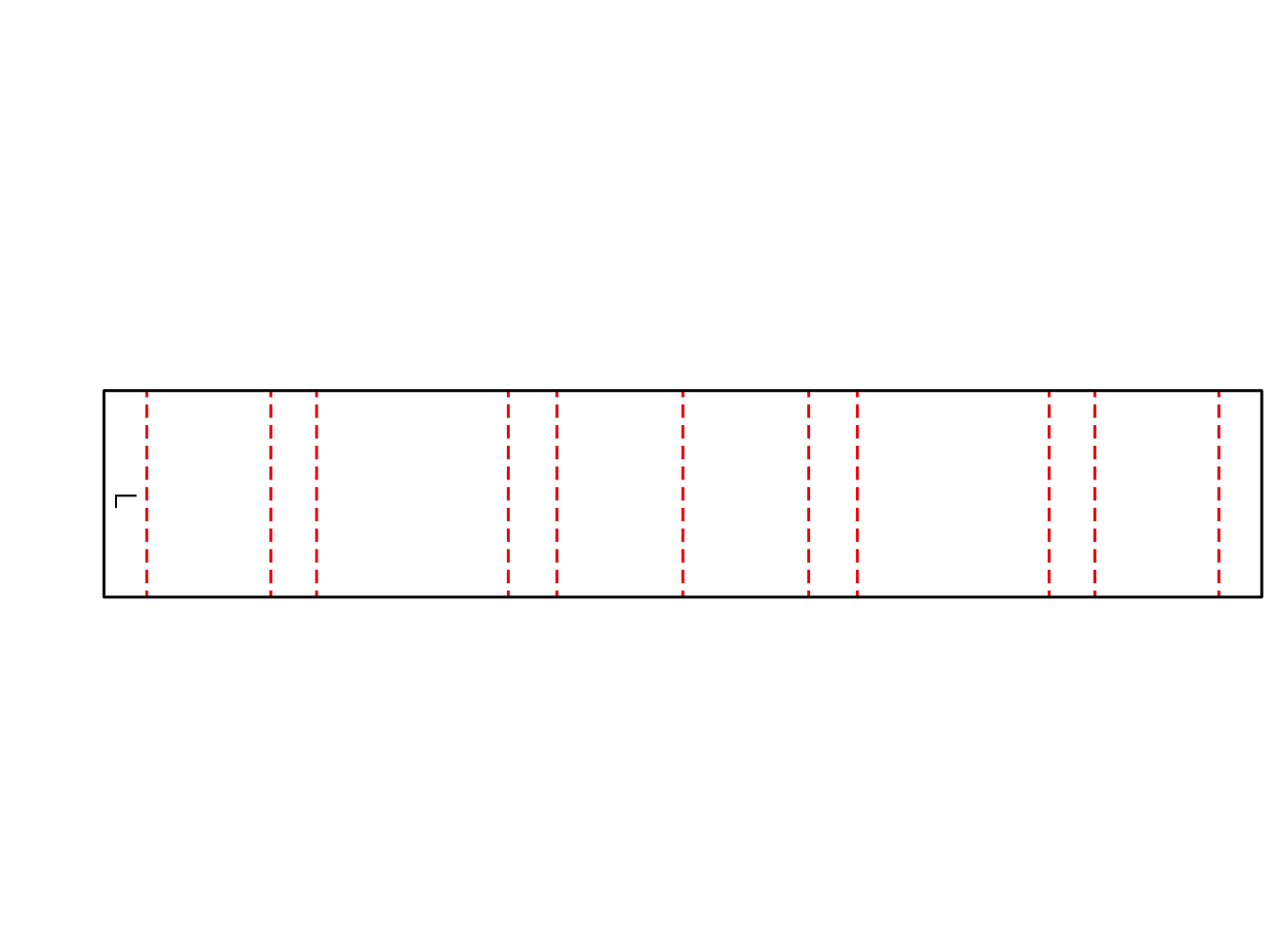

To build a thick corner, the flat corrugated blank must be extremely long, often many times the length of the final folded pad. This blank sprawl increases material usage and requires plenty of storage space at the packing station.
Friction fit and outer carton confinement
Once folded, the pad will naturally want to spring open. Packers must hold it tightly against the product corner while sliding the assembly into the outer box. The friction between the nested layers and the walls of the master carton keeps the truss locked in place.
Delivery format and storage
Because the unfolded blank is exceptionally long, these pads are shipped flat. You must ensure your packing stations have the physical space to store and handle the extended flat boards before assembly.
Adjusting leg length, crush depth, and board allowances
Outer leg length extension
The overall width and length of the corner legs can be extended to cover more of the product's edge, distributing the impact force over a wider surface area.
Internal clearance and board allowances
The internal folding allowances are mathematically tied to the board thickness. If you change the board grade, the inner panel dimensions must be recalculated to ensure the layers nest smoothly without binding or bowing.
Diagonal truss depth
The depth of the internal diagonal brace can be adjusted to increase the standoff distance between the product and the outer carton, providing a larger crush zone for heavier items.
Board and packing details
Prototyping the fold sequence
Because the pad relies on a complex alternating fold sequence, testing a physical sample is critical. This confirms whether the chosen board grade can be folded repeatedly without causing packer fatigue or tearing at the creases.
Additional notes
Managing board spring-back
Corrugated board naturally resists being folded back on itself multiple times. Packers will experience tension when forming the final L-shape, making this pad better suited for lower-volume industrial packing rather than high-speed fulfillment lines.
