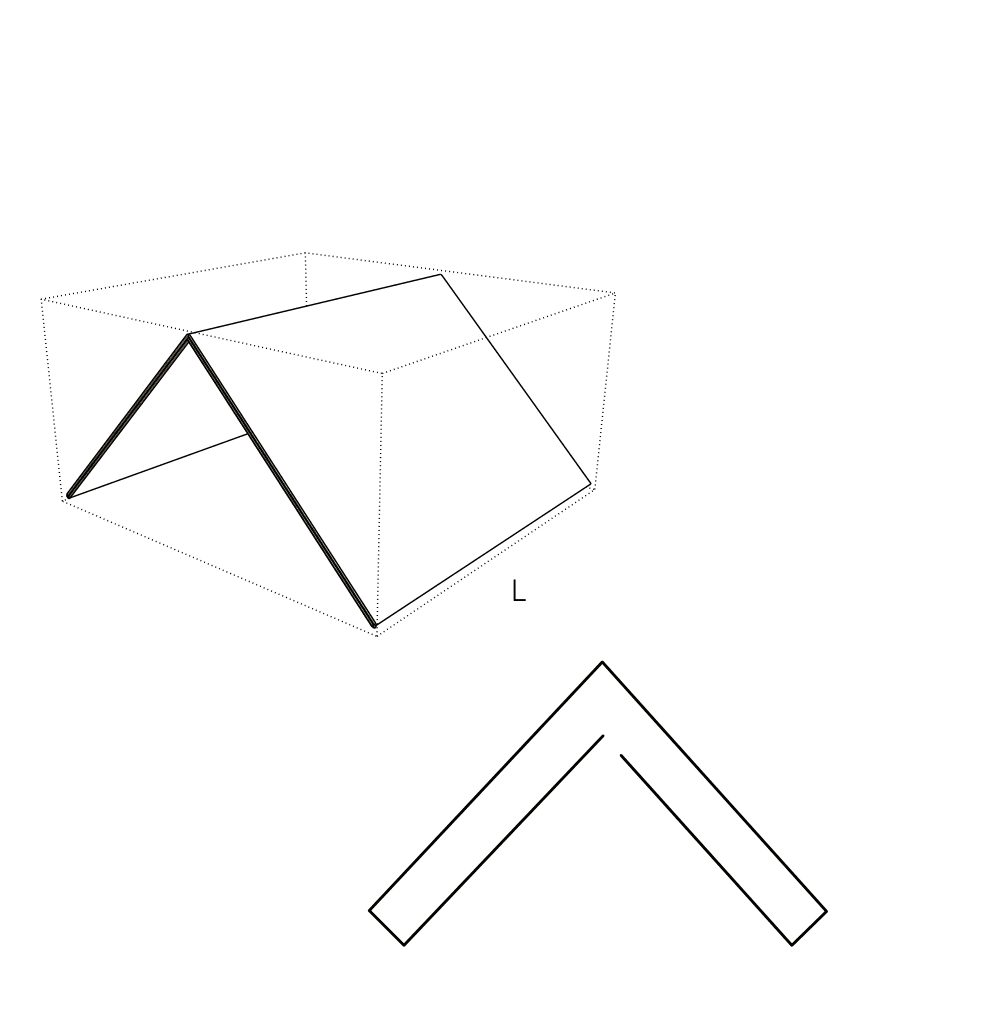

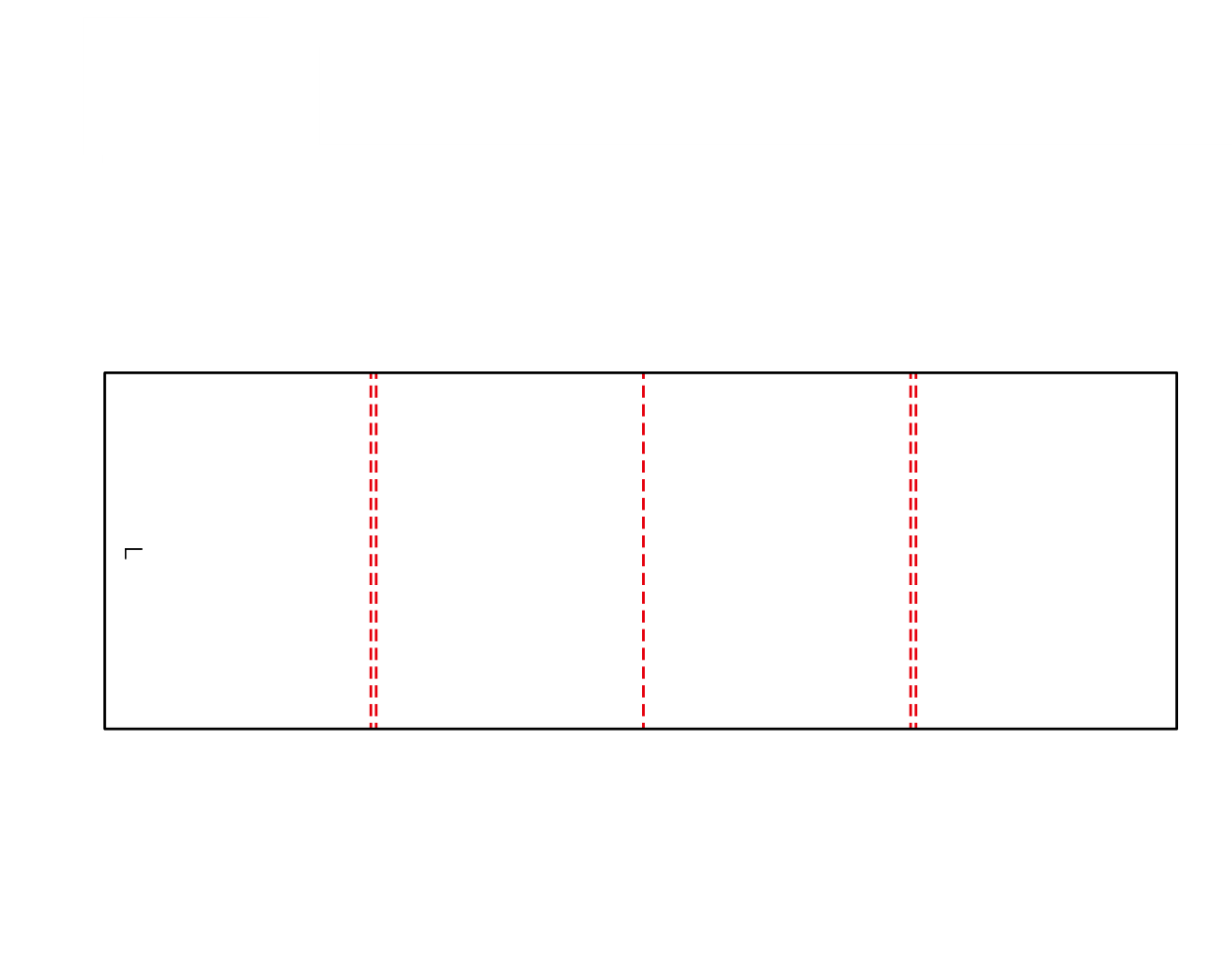

FEFCO 0971

Heavy-Duty Multi-Wall Corner Protector

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Multi-wall nested construction for heavy-duty corner shock absorption
  • Bypasses flatbed die-cutting for standard rectangular profiles
  • Requires manual pack-bench assembly to manage board spring-back

About this product

When shipping heavy appliances or industrial equipment, replacing EPS foam blocks with a single-material fiber-based alternative requires a dense, multi-wall corrugated corner post. This labyrinth pad folds inward upon itself to create a thick crush zone that absorbs severe lateral impacts and reinforces the vertical stacking strength of a master shipper.

Because it uses straight parallel creases, this pad bypasses flatbed die-cutting entirely. The trade-off is assembly time. The nested layers require manual folding and must be held under tension until they are seated inside the outer box.

Common uses

  • Appliance and heavy equipment shipping
  • Flat-pack furniture distribution
  • Palletized loads requiring high vertical crush resistance

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Heavy Appliance and Industrial Corner Protection

EPS foam replacement for heavy goods

This nested block provides the density and crush resistance needed to replace molded foam in appliance, furniture, and heavy equipment packaging. It relies entirely on the outer box to hold its shape, creating a single-material shock absorber.

Vertical stacking reinforcement

When a large master shipper needs to support heavy pallets, placing these multi-wall posts in the four corners transfers the vertical load straight down the flutes, preventing the outer box walls from buckling.

Lateral shock absorption for palletized loads

Forklift handling and transit shifting expose heavy pallets to side impacts. The dense, rolled layers create a deep crush zone that keeps heavy products from striking the outer box corners.

Internal spacing for irregular heavy parts

For products with protruding components like motors or compressors, these thick posts act as rigid spacers, keeping the vulnerable parts centered and away from the exterior walls.

Furniture, Equipment, and Foam-Replacement Programs

Industrial and equipment manufacturing

Heavy metal parts and machinery often destroy standard single-wall corner pads during transit. The dense, rolled layers of this post create a deep crush zone that handles severe impacts.

Flat-pack furniture distribution

Long, heavy furniture panels are vulnerable at the corners. This pad provides rigid, multi-layer buffering that handles warehouse handling and pallet stacking without adding mixed materials to the waste stream.

White goods and large home appliances

Washing machines, refrigerators, and ovens require massive corner protection. This labyrinth post matches the spacing and buffering of traditional foam while keeping the entire package fiber-based.

When to Consider Simpler Pads or Diagonal Trusses

High-speed automated packing lines

The nested layers of this post act like a spring and require two-handed manual folding and insertion. If your line relies on robotic pick-and-place, a pre-glued tube or a simple flat L-pad is a much safer choice.

Lightweight product buffering

If the product is light and only needs basic scuff or edge protection, the massive board usage and assembly labor of a multi-wall post are unnecessary. Compare a standard two-panel corner protector instead.

Close variants and lookalike dielines

The closest library neighbors include 0972, 0973, 0976. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board Thickness, Flute Direction, and Assembly Labor

Board thickness and folding fatigue

Double-wall board provides high shock absorption, but it exponentially increases the physical effort required to roll the layers inward. A physical fold test helps check operator fatigue before committing to a heavy board grade.

Flute direction for stacking strength

To function as a load-bearing column, the flutes must run vertically parallel to the corner. If the flutes run horizontally, the pad will absorb lateral shocks but will buckle under heavy top loads.

Pack-bench labor and shaped-cut production planning

This pad trades flatbed shaped-cut production work for higher manual assembly time. If your packing operation cannot support the two-handed folding required for every corner, a pre-assembled or self-locking alternative may be necessary.

Master carton clearance

The vertical height of the post should be sized slightly shorter than the internal height of the master shipper. This ensures the outer box flaps close cleanly without binding against the top of the pad.

Adjusting Post Height, Footprint, and Layer Count

Outer leg width and footprint

The width of the outer L-shape dictates how far the protection extends along the box walls. Expanding this footprint increases the overall board area quickly, as every nested inner layer must also grow to match.

Adjusting the post height

The vertical length of the pad can be extended to run the full height of the box for maximum stacking strength, or shortened to act as a localized bottom or top corner bumper.

Number of nested layers

The total length of the flat blank determines how many times the pad folds inward. Adding more panels increases the density and crush resistance of the labyrinth, while removing panels reduces board usage and assembly effort.

Board and packing details

The subtractive fold math

The inner layers of this pad are mathematically shorter than the outer layers. This subtractive allowance compensates for the board thickness, allowing the panels to nest tightly without colliding or tearing the liner during the 90-degree rolls.

Hollow Standoffs vs. Dense Blocks

Hollow standoff gaps

Instead of a completely dense block of corrugated layers, the fold sequence can be adjusted to leave a hollow air gap or standoff distance between the inner and outer walls, changing the crush profile for specific impact requirements.

Additional notes

Friction fit inside the master carton

This pad has no native locks or adhesive. It relies entirely on the 90-degree corner of the outer box and the weight of the product to stay coiled and in place.

Related Corner and Edge Buffers

0972: Corner Protector

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

0973: Corner Brace Pad

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

FAQs

Assembly and Packing

Can this corner post be assembled by automated equipment?

No. The sequential inward folds create significant spring-back tension. It requires manual, two-handed pack-bench assembly and must be held closed while being inserted into the master box.

Performance and Testing

Does this perform exactly like EPS foam?

It provides comparable heavy-duty shock absorption, but the exact crush behavior is different. A physical drop test of the fully loaded master shipper is the only way to verify if a specific board grade meets your foam-replacement targets.

Production and Tooling

Does this shape require custom cutting dies?

In its standard rectangular form, it only uses straight parallel creases and can be produced on a slitter-scorer without flatbed die-cutting. Adding custom relief cuts or locking tabs will change that production route.

Fit and Sizing

Can I change the board thickness later without redesigning the pad?

No. The inner panels are precisely shortened to account for the exact thickness of the board. If you switch to a thicker board without recalculating those inner panels, the folds will bind and the pad will bow.

Shipping and Storage

How are these delivered to the packing facility?

They are shipped completely flat. Because they do not use glue or locks, they cannot be pre-assembled before transit. This provides excellent pallet density but shifts all assembly labor to your pack bench.

Assembly and Packing

How does the pad stay closed before it goes into the box?

It does not lock on its own. The operator must hold the folded layers under tension until the pad is seated in the corner of the master carton, which then provides the friction fit to keep it coiled.

Fit and Sizing

Why is the flute direction important for this insert?

To reinforce the master carton against heavy top loads, the flutes must run vertically. If the flutes run horizontally, the pad loses its column strength and will buckle under pallet stacking pressure.

What happens if the inner panels are not mathematically shortened?

The corrugated board has physical thickness. If the inner panels are the exact same width as the outer panels, they will collide during the 90-degree folds, causing the entire pad to bind, bow, or tear the liner.
