Internal Bracing and Edge Protection Roles
Hanging folder rails for moving boxes
When sized correctly, the folded sheet wedges against the inside walls of a moving box, creating a sturdy horizontal ledge. This allows regular cartons to hold hanging file folders without requiring plastic or metal inserts.
Edge and corner protection
The 90-degree fold wraps around exposed edges on furniture, appliances, or stacked panels. It spreads localized rubbing and light strapping pressure across a wider board surface instead of letting one narrow band mark the product.
Internal bracing for heavy components
Manufacturers packing heavy, awkward parts use L-boards to brace items away from the outer carton walls. The folded board prevents shifting and absorbs lateral shocks during transit.
Void fill and spacing
When a product does not fill the entire master carton, a folded V-board creates a rigid gap. This maintains distance between the product and the box wall, reducing the risk of impact damage.
Fulfillment, Relocation, and Industrial Packing
Office relocation and archiving
Moving companies and corporate archiving teams use this insert to convert regular moving boxes into mobile filing cabinets, keeping documents organized during transit.
Industrial component packing
Industrial shippers rely on these simple folded rails to stabilize heavy parts. The board provides a buffer zone that keeps metal or machined components from punching through the outer box.
Furniture and appliance shipping
Large, bulky items often need edge protection inside an outer carton or under light holding straps. Board grade matters here; a normal corrugated L-board is not the same as a dense pallet V-board for high-tension strapping.
When to Choose a Different Pad or Channel
Flat layer pads (FEFCO 0100)
If the packing job only requires separating layers of product vertically, and the board does not have to bend around a corner or form a ledge, a flat, uncreased pad is a simpler choice.
U-channel spacers (FEFCO 0112)
If the product requires wrapping an edge completely or creating a parallel void-fill spacer, compare this to a double-creased sheet that provides three panels instead of two.
Flute Direction and Master Carton Fit
Flute direction for load bearing
If the folded board will act as a vertical column or support heavy hanging files, the corrugated flutes must run parallel to the load. Incorrect flute orientation causes the rail to bend under pressure.
Master carton internal clearance
This insert relies entirely on friction. The exact internal dimensions of the outer box dictate the rail size, ensuring it wedges tightly against the walls without bowing or slipping down.
Board grade selection
A basic single-wall board handles basic separation and light files. Heavy industrial parts or dense archiving folders may require a thicker board profile to maintain the 90-degree angle under stress.
Leg length ratio
The fold does not have to sit in the center. A short horizontal lip paired with a long vertical anchor leg maximizes column strength while keeping the overall board size manageable.

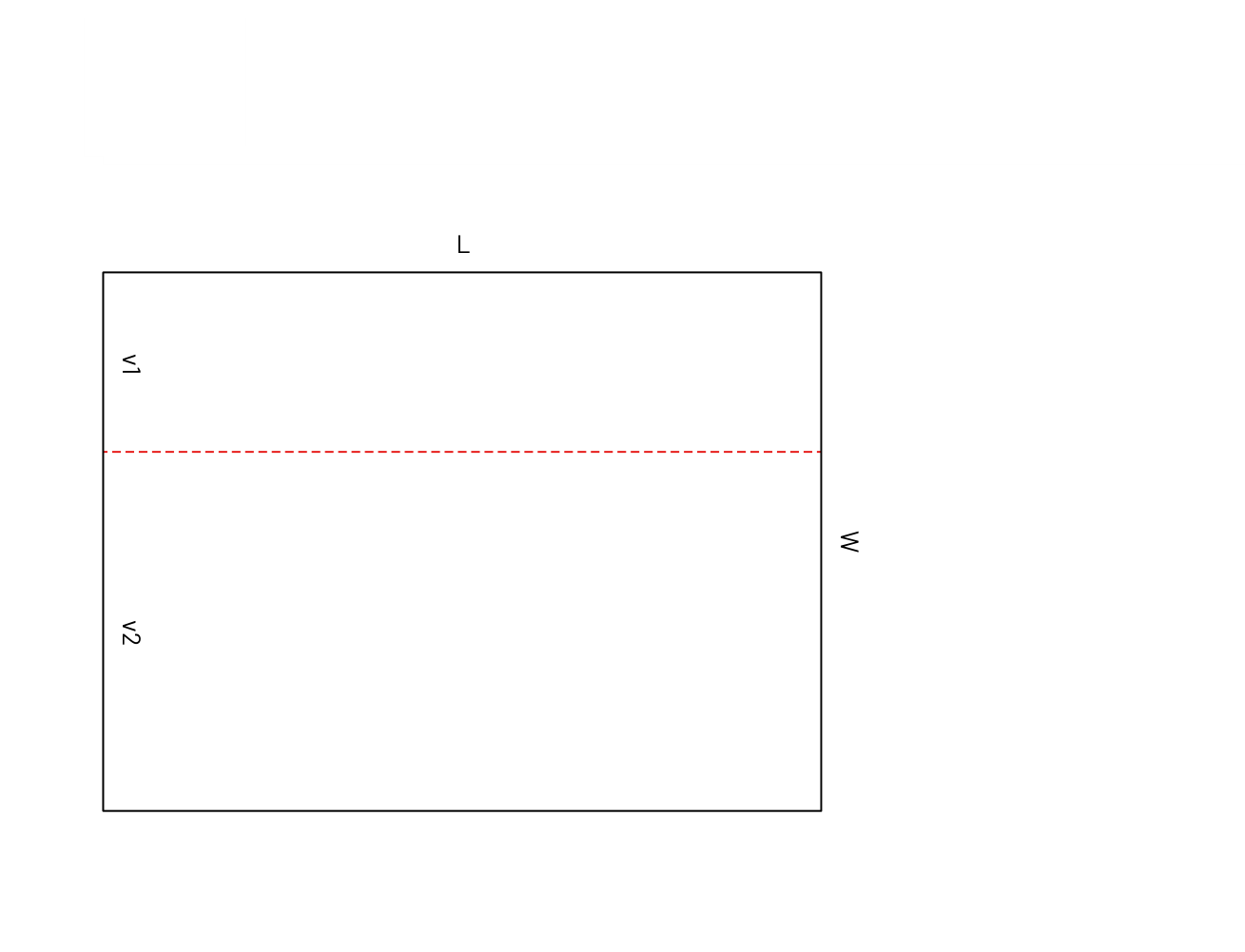

Adjusting the Leg Ratios and Crease Position
Asymmetric leg depths
The single crease can be offset to create one short leg and one long leg. This is useful when the rail must reach the bottom of a deep box but only requires a narrow resting ledge at the top.
Crease positioning
Moving the score line changes how the board interacts with the product. A centered crease works well for symmetrical corner protection, while an offset crease adapts to specific product overhangs.
Board thickness upgrades
Switching to a heavier flute profile increases the vertical column strength of the anchor leg, allowing the rail to support denser hanging files or heavier industrial components.
Board and packing details
Production path for simple rectangles
Because the geometry is a basic rectangle with one straight score, production often bypasses flatbed cutting. This straightforward path suits rapid fulfillment programs.
Storage and handling density
These inserts ship completely flat, maximizing pallet density. Packers fold them on the line just before insertion, keeping the assembly burden low.
Crease Orientation Variants
Widthwise crease orientation (FEFCO 0121)
If the packing setup or corrugator nesting requires the fold to run across the width of the board rather than the length, the 0121 style provides the exact same L-board function with a rotated crease.
Additional notes
Outer box wall stiffness
If the master carton has weak walls that bulge outward during transit, the internal rail may lose its friction grip and slip down. Ensure the outer box is rigid enough to hold the insert in place.
Related Internal Components
FAQs
Shipping and Route
Can this L-board be shipped on its own?
No. This is strictly an internal packaging component. It must be placed inside a sealed master carton or securely strapped to a palletized load.
Product Fit and Loading
How does the rail stay in place without glue or tape?
It relies on a tight friction fit. When the board is folded and pushed into the master carton, the natural spring-back memory of the corrugated board presses it firmly against the outer walls.
Material and Strength
What board grade is best for a hanging folder insert?
A sturdy single-wall board, such as C-flute, is usually sufficient for normal file weights. If the files are exceptionally heavy, the flute direction must be oriented vertically to prevent the anchor leg from bending.
Production and Routing
Does this shape require a flatbed cutting die?
Usually not. Because it is a simple rectangle with one straight crease, most converters can produce it using basic slitter-scorer equipment.
Product Fit and Loading
How do I determine the right leg lengths?
Base the vertical leg on the depth of your master carton and the horizontal leg on the width of the ledge required. An offset crease allows for a long anchor and a short resting lip.
Material and Strength
Will the rail hold heavy metal parts?
It depends on the flute direction and board grade. Orienting the flutes parallel to the load and upgrading to a thicker board profile increases the weight the rail can support.
Product Fit and Loading
Do I need tape to hold the fold?
No, the board relies on friction against the master carton walls. Tape is unnecessary as long as the outer box provides enough inward pressure to maintain the 90-degree angle.
Shipping and Route
Can this be used as an outer edge protector for pallets?
Only in lighter-duty situations. Standard corrugated can help with rubbing and modest holding pressure, but high-tension pallet strapping usually needs a denser edge protector or a heavier specification.
